Product Overview

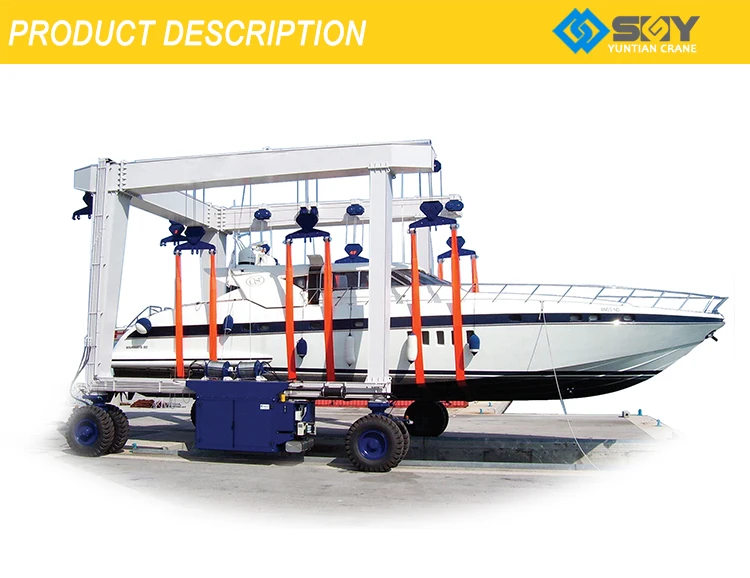

Description

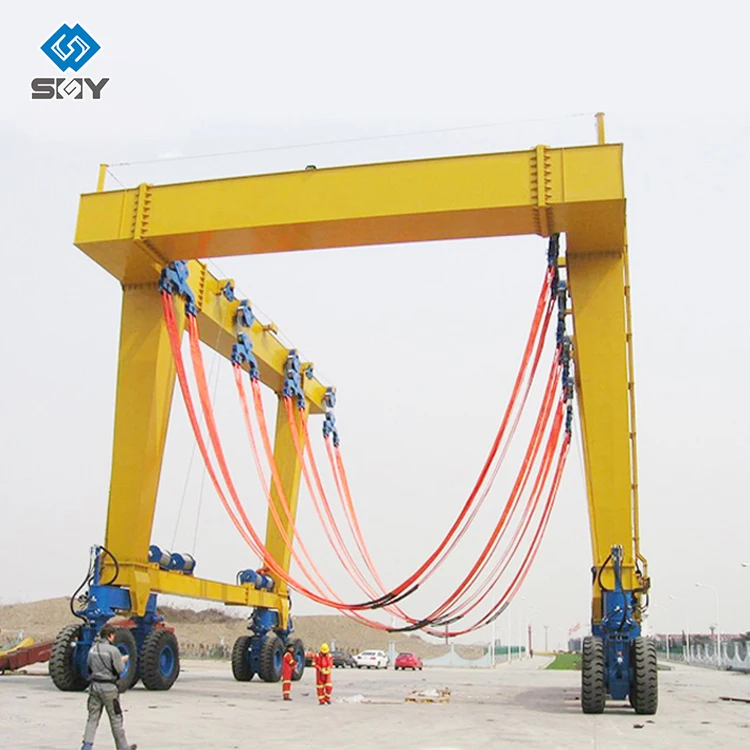

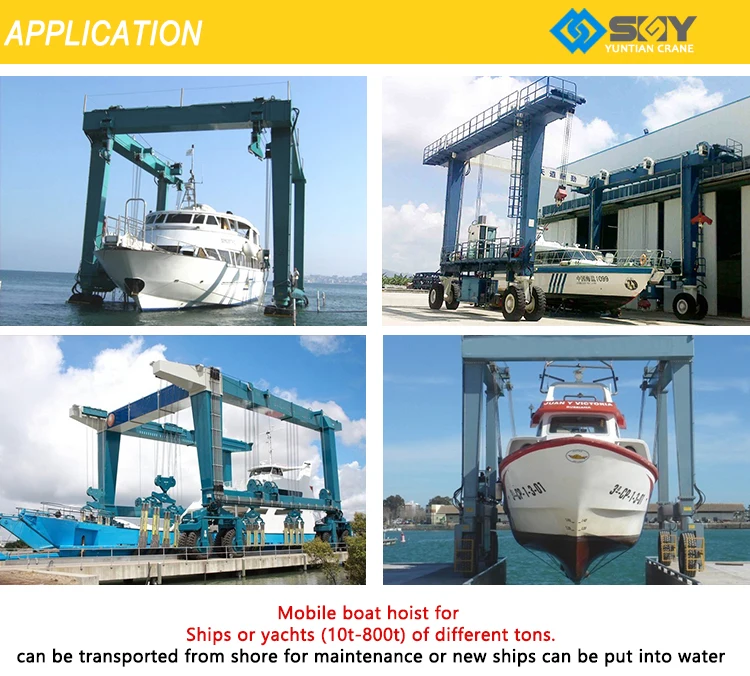

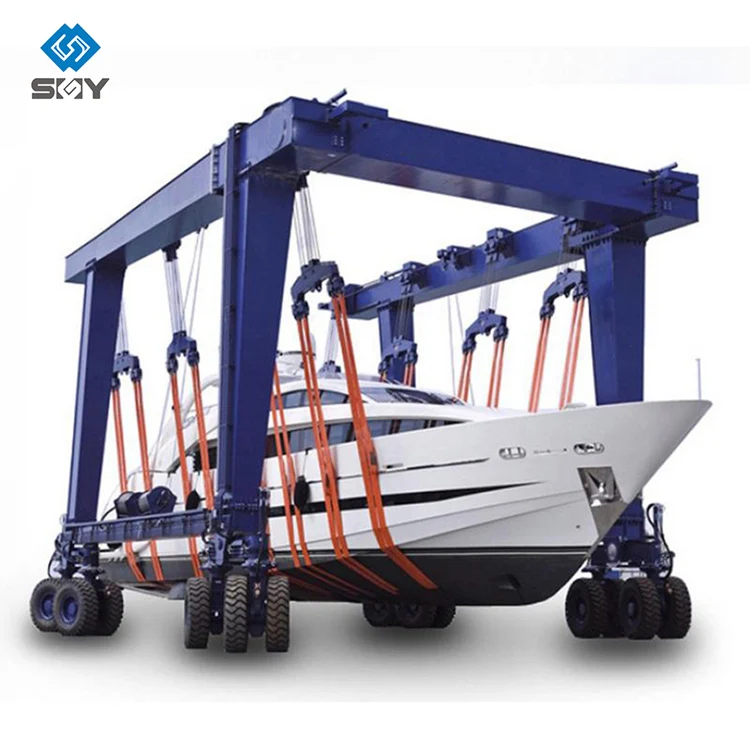

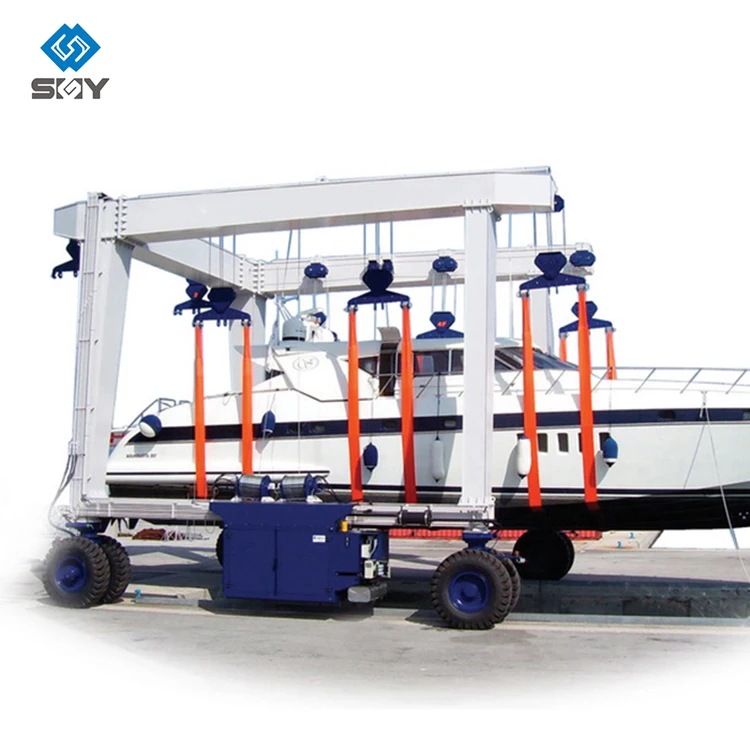

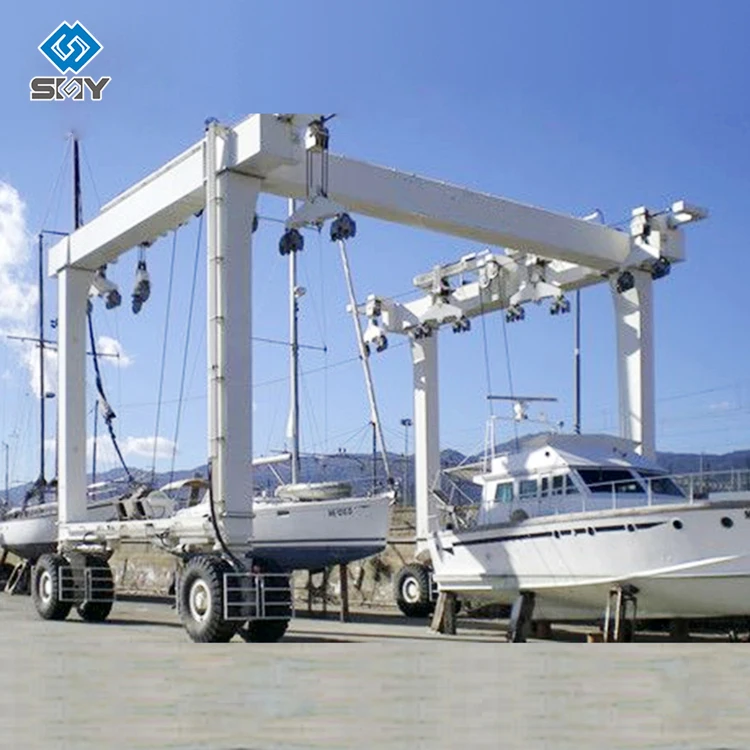

The boat and yacht handling crane can according to different requirements of our customers, the boat handling crane can handle different tonnage boats or yachts(10T-800T) from the shore side, it can be used for the maintenance on the shore side or can put the new boat into the water.

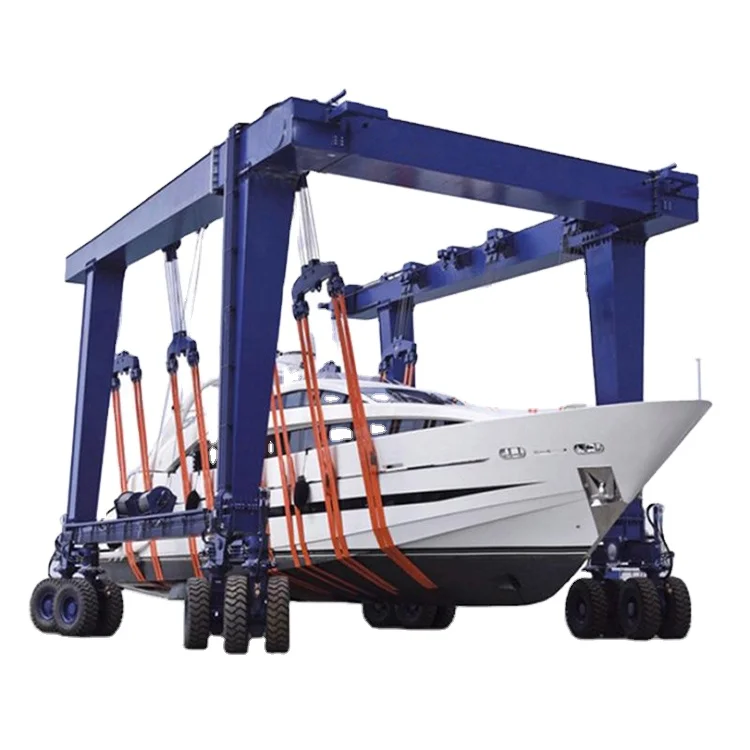

This yacht handling crane has soft and firm belt to lift the boat and yacht so that it will never hurt the surface. This crane also can put the boat in sequence quickly with small gap between each two boat.
This yacht handling crane has soft and firm belt to lift the boat and yacht so that it will never hurt the surface. This crane also can put the boat in sequence quickly with small gap between each two boat.
FEATURES:
1. For the crane traveling, this crane can move in diagonal direction, this boat and yacht handling crane also can steer in 90 degree and put the boat in any designated position according to requirements.
2. This crane can be adjusted the width of the main girder according to the boat in case to handling different side boat.
3. This yacht handling crane is of low expense, high performance, easy to operate and maintenance and so on.
4. Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.
2. This crane can be adjusted the width of the main girder according to the boat in case to handling different side boat.
3. This yacht handling crane is of low expense, high performance, easy to operate and maintenance and so on.
4. Low cost on the daily operation, it adopts the soft and firm belt to ensure there is no harm to the boat when hoisting.
Lifting Capacity (t) | 10 | 16 | 20/10 | 32/10 | 36/16 | 50/10 | |||||||
Span (m) | 18-35 | ||||||||||||
Lifting Height (m) | 10-13 | ||||||||||||
Duty Class | A5-A8 | ||||||||||||
Speed (m/min) | Lifting | 8.5 | 7.9 | 7.2/10.4 | 7.5/10.4 | 7.8/10.5 | 6/10.4 | ||||||
Trolley | 43.8 | 44.5 | 44.5 | 41.9 | 41.9 | 38.13 | |||||||
Crane | 40 | 38 | 38 | 40 | 40 | 38 | |||||||
Weight (t) | Trolley | 9 | 9.5 | 12 | 16 | 18 | 24 | ||||||
Total | 63.2-100 | 78-106 | 79-120 | 95-108 | 106-155 | 195 | |||||||
Wheel Pressure (KN) | 225-295 | 255-373 | 208-289 | 324-334 | 314-363 | 452 | |||||||
Steel Track | 43kg/m | 50kg/m | |||||||||||
Power Source | 3-phase A.C 380V 50HZ (As your demand) | ||||||||||||
