Grain Wheat Rice Combine Harvester Crawler Rubber Track AF88 Indonesia Thailand Philippines Multifunctional

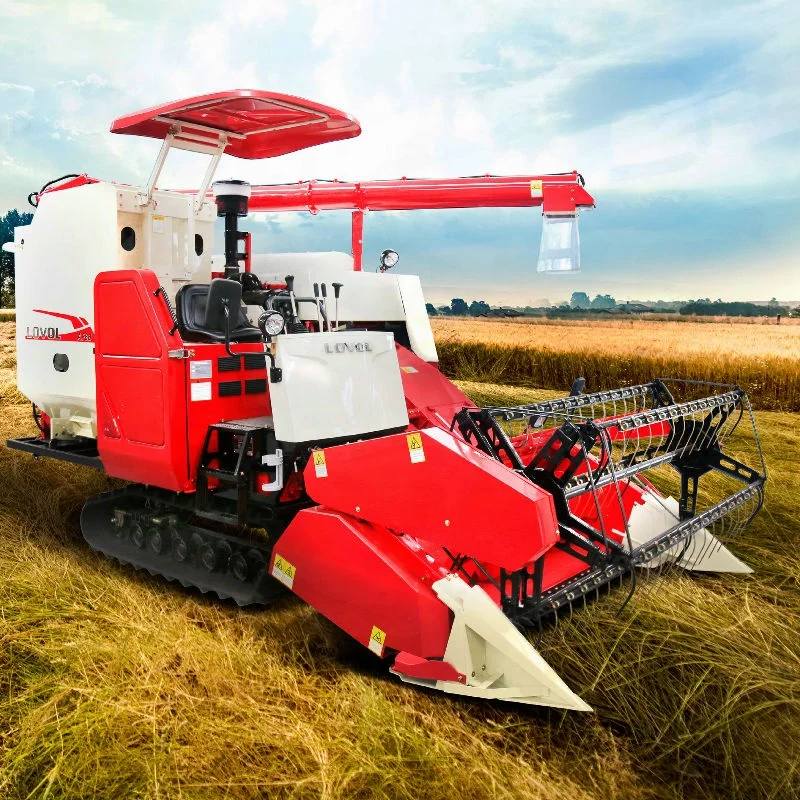

The AF88 rice harvester is a high-tech product that LOVOL Agricultural Equipment has been working on in recent years.

It is tailor-made for the habits and working conditions of users in Southeast Asia.

The ground clearance is increased, the passability is good, and the vertical axial flow roller design makes the machine width smaller, and greatly improves the threshing and cleaning performance, which is very popular among local users.

SPECIFICATIONS FOR AF88 RICE COMBINE HARVESTER
Engine	Engine brand	-	Dachai CA498Z-09T2/01
	Rated power	kW/rpm	88/2400
	Engine exhaust way	-	Upper/Lower
Basic parameters	Dimensions (L*W*H)	mm	5160x2750x2750
	Weight	kg	2970
	Unloading way	-	Left right rotation hydraulic unloading
	Header width	mm	2000
	Granary volume	L	1400
	Yield	h㎡/h	0.3-0.6
Walking system	Min. ground clearance	mm	285
	Gear type	-	HST
	Working speed	km/h	0-7.37

Detailed Images

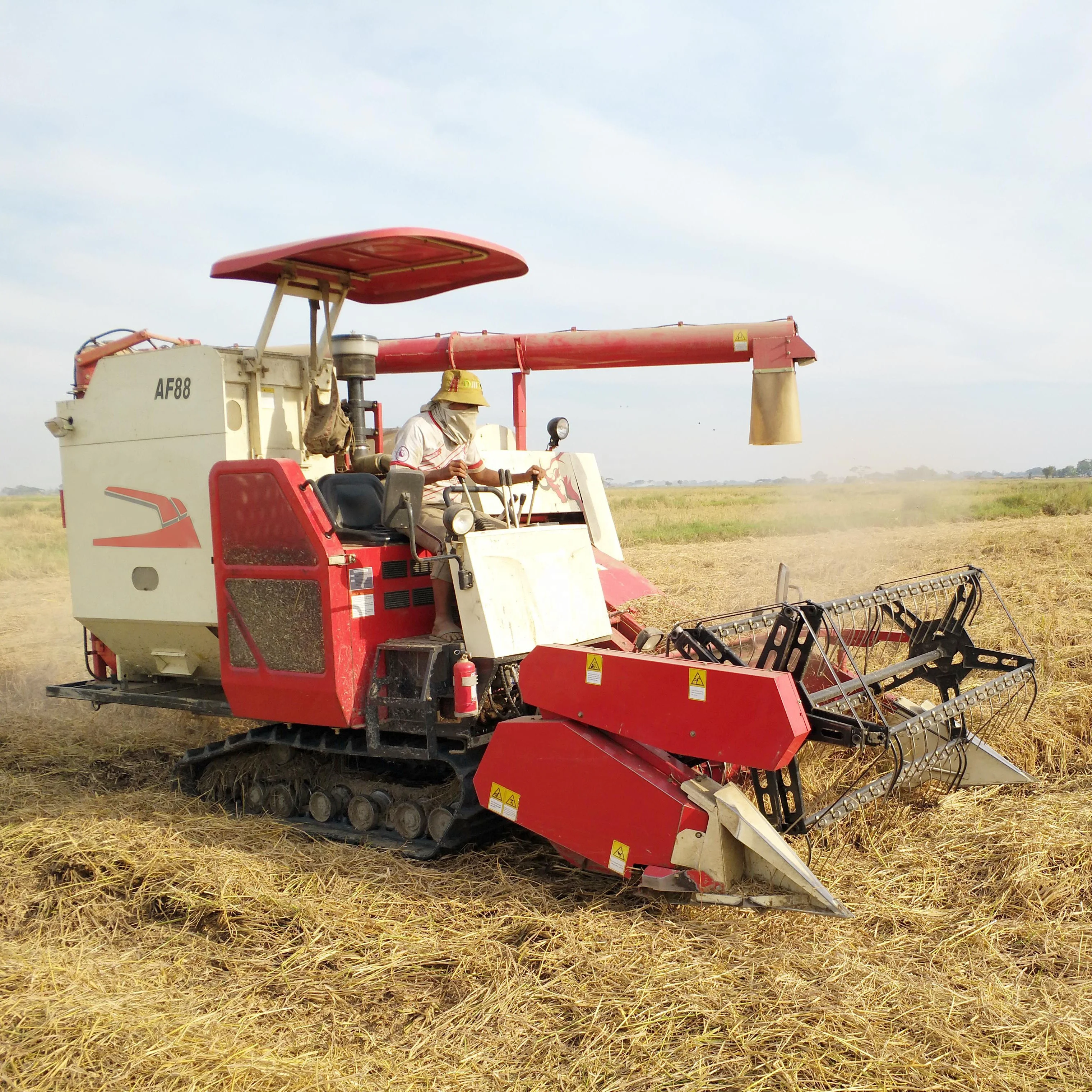

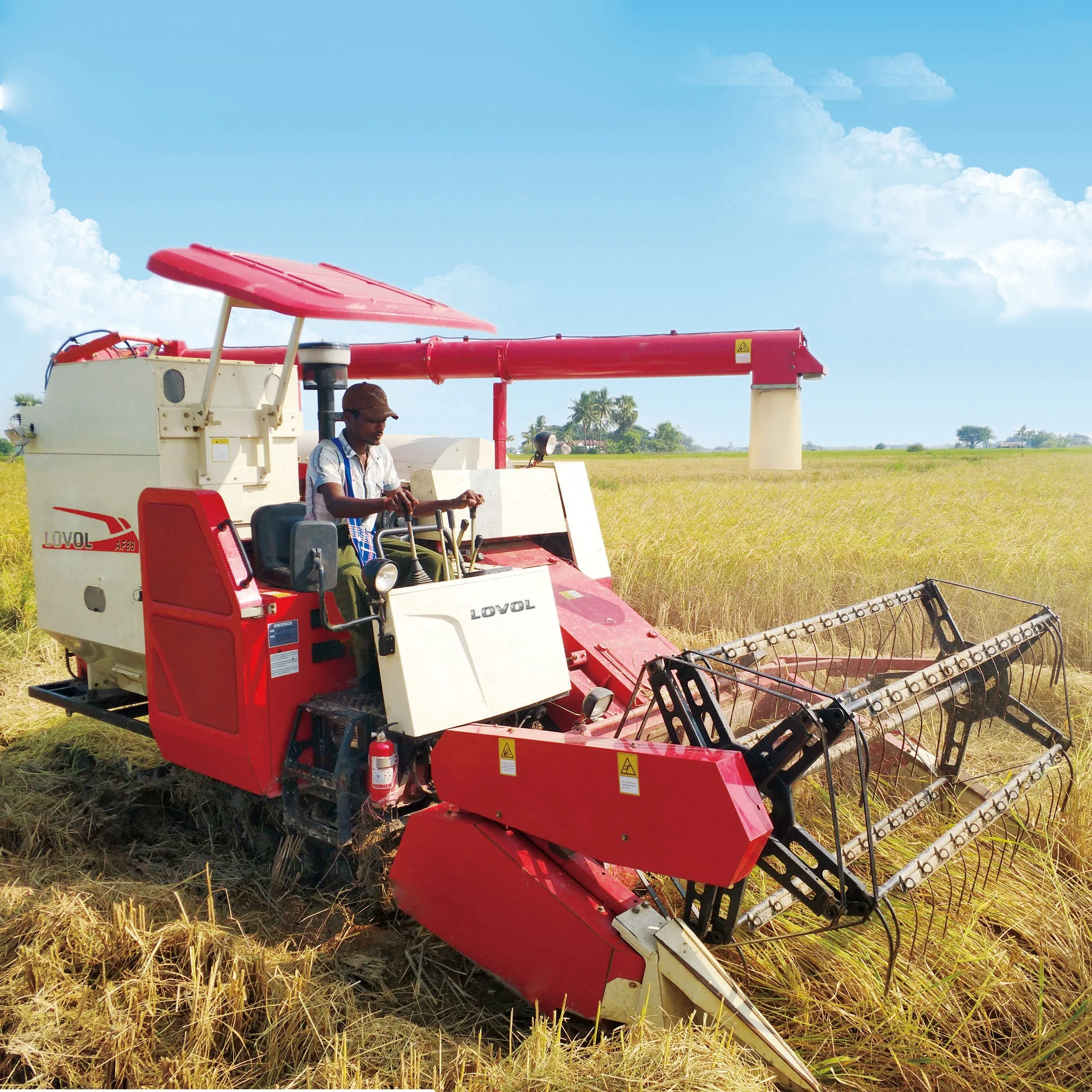

Model for super high yield

Faster and efficient, exact matching of operating speed and machine specification.

More feeding quantity ,bridge width 550mm.

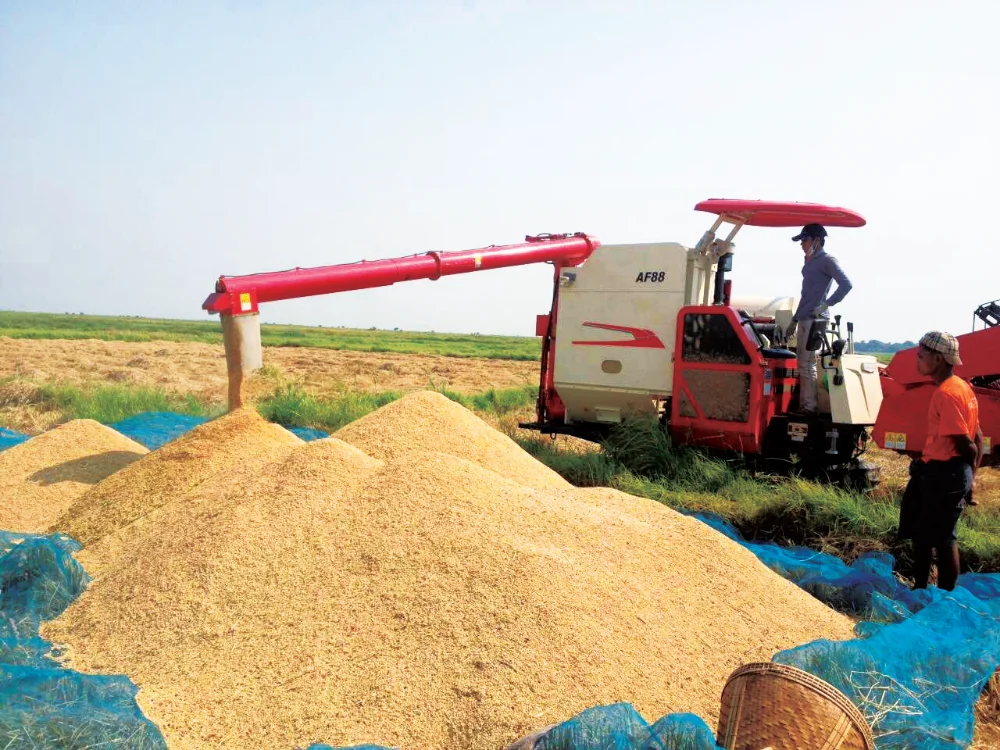

90 seconds for full unloading grain ,length 3.9 m,rotation 270 degree ,hydraulic motor drive.

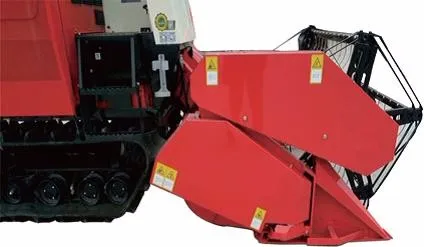

Easier for lodging grain , inclined angle header.

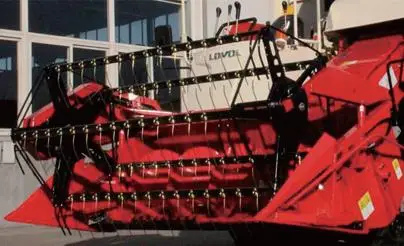

Easier for grabbing lodging grain , special design.

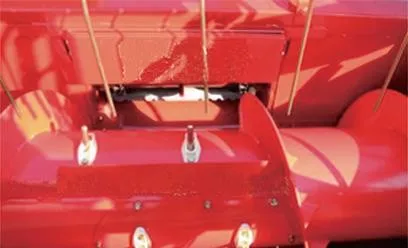

No straw twisted ,anti-twister border inner space 20mm between blade and harrow.

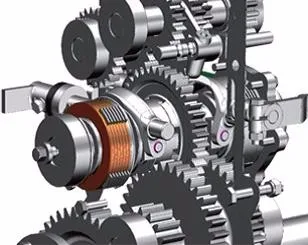

Transmission system

Lovol patented design transmission easy for maintain and more reliable.

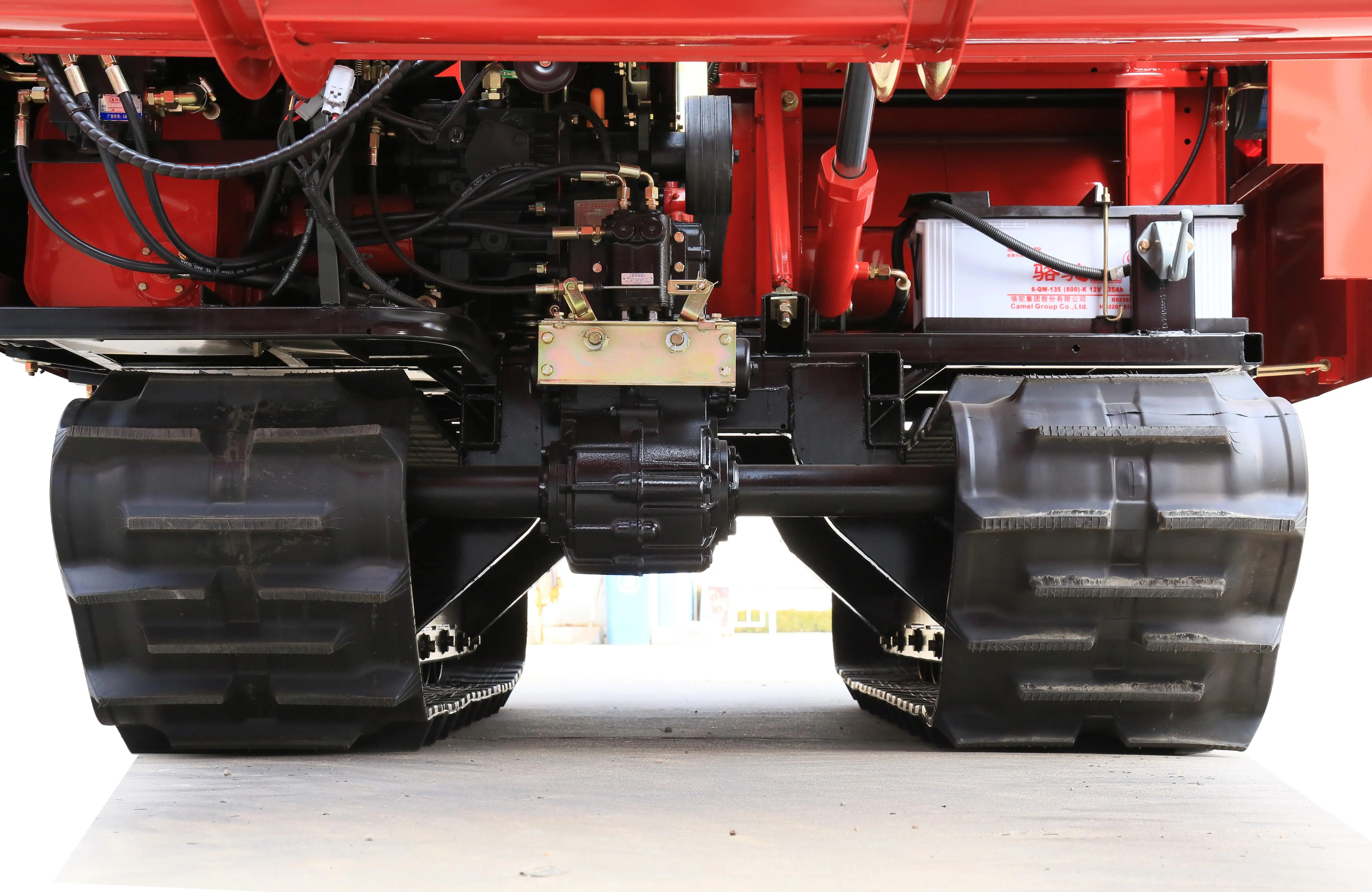

High ability anti-derailment for muddy and high-speed operating with chassis optimal design.

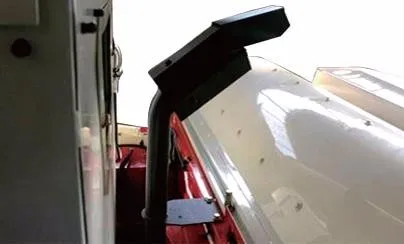

Efficient for avoiding dust or straw into vent-pipe with upper-stage exhaust.

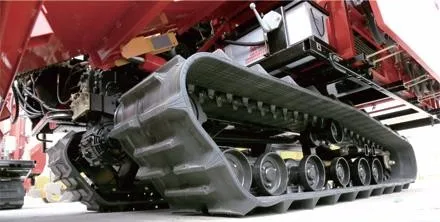

Good traffic ability with 535 ground
clearance at chassis rear-end.

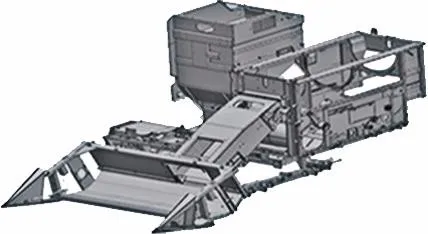

Enhanced structure

More reliable and good strength by high pressure steel rolling on machine.

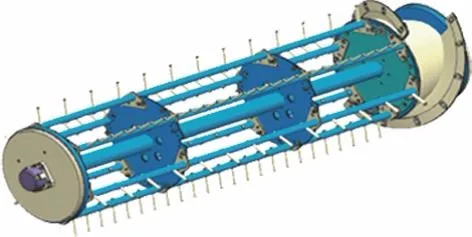

More good threshing by threshing cylinder(φ620x1954),more solid for two concave.

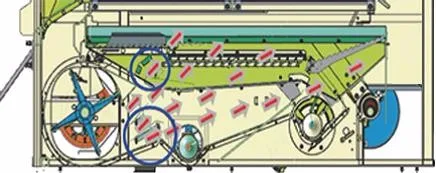

More clean cereal ,double blower way ,balanced wind.

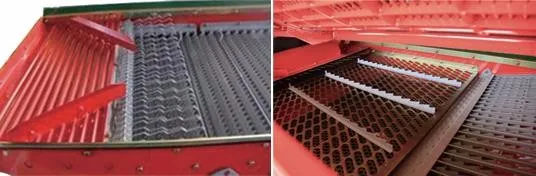

Optional for shieves with multi choice.
