ELP Sony IMX214 Sensor 3840*2880 13MP Auto Focus Mini USB Camera with 75 degree no distortion lens ELP USB13MAF KV75

Share on (62096871129):


Price:

Quantity:


Product Overview

Description


ELP Sony IMX214 Sensor 3840*2880 13MP Auto Focus Mini USB Camera with 75 degree no distortion lens ELP-USB13MAF-KV75





Product Description







Features:

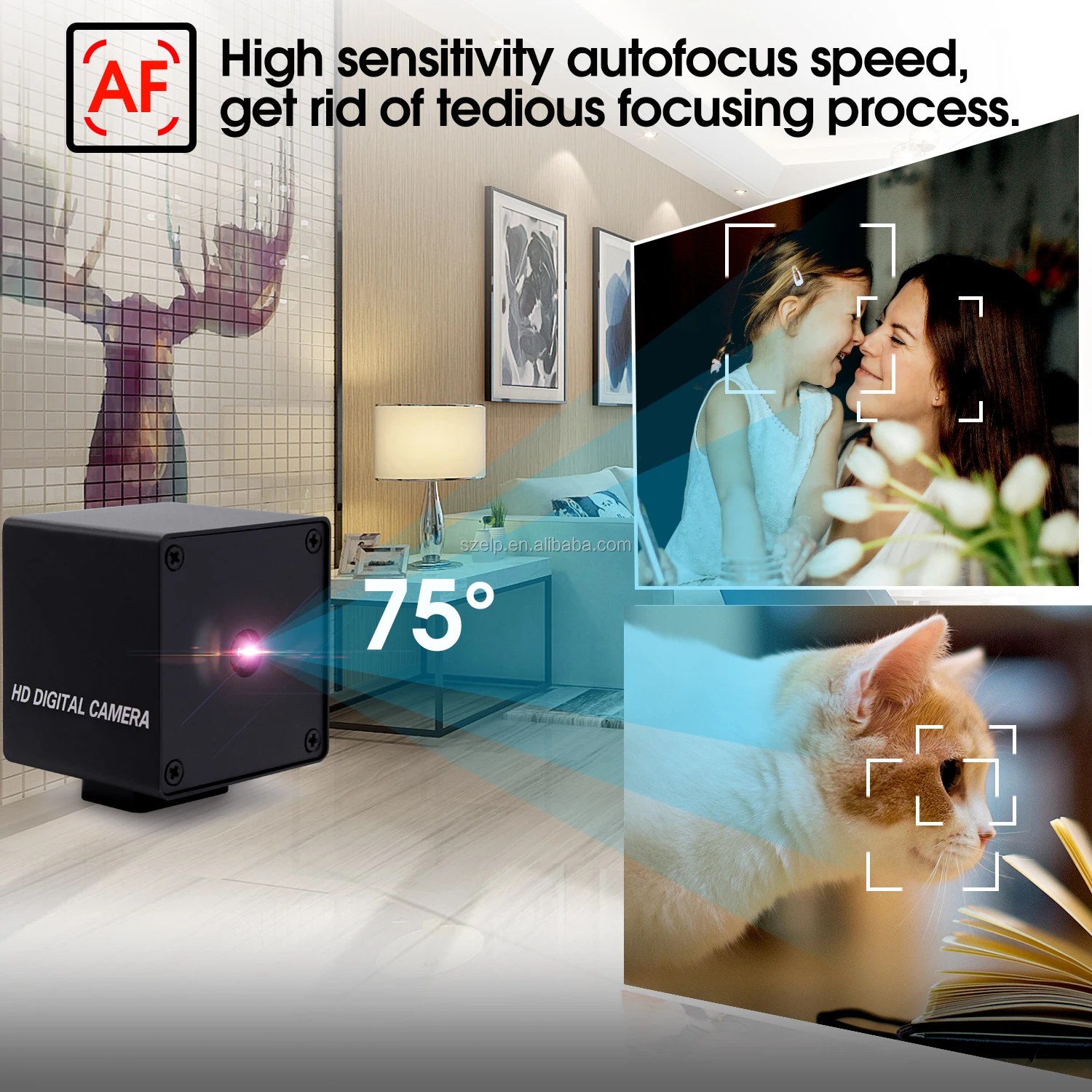

* 13 mp 3840*2880 Ultra HD Auto Focus USB Camera

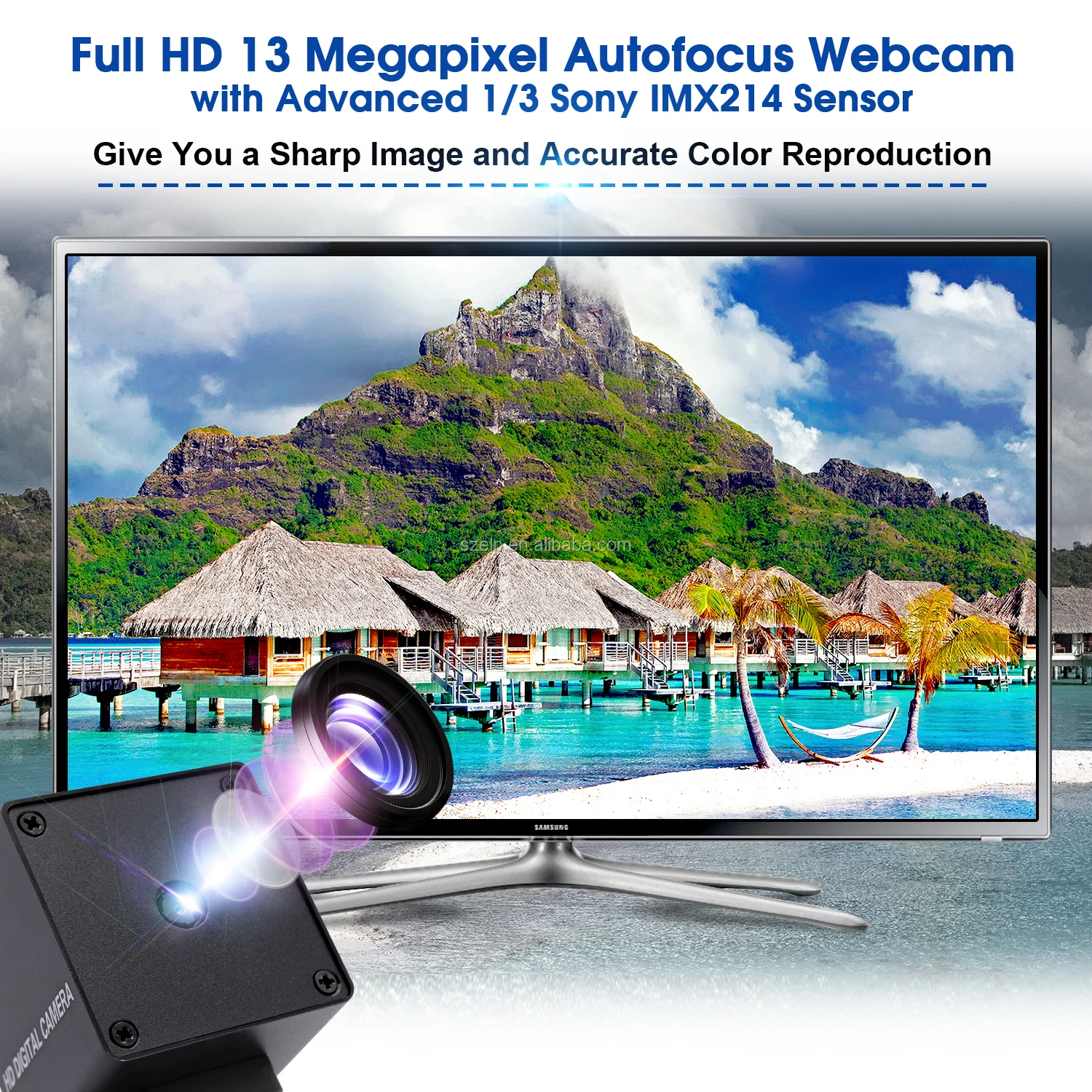

* 1/2.5Sony IMX214 sensor for high quality image


* With HD 75 degree no distortion M12 lens


* With 41*41mm mini zise black alluminum housing


* With microphone for audio recording


* MJPEG/YUY2 dual outpu format optional


* Mini board size 38x38mm for embedded application

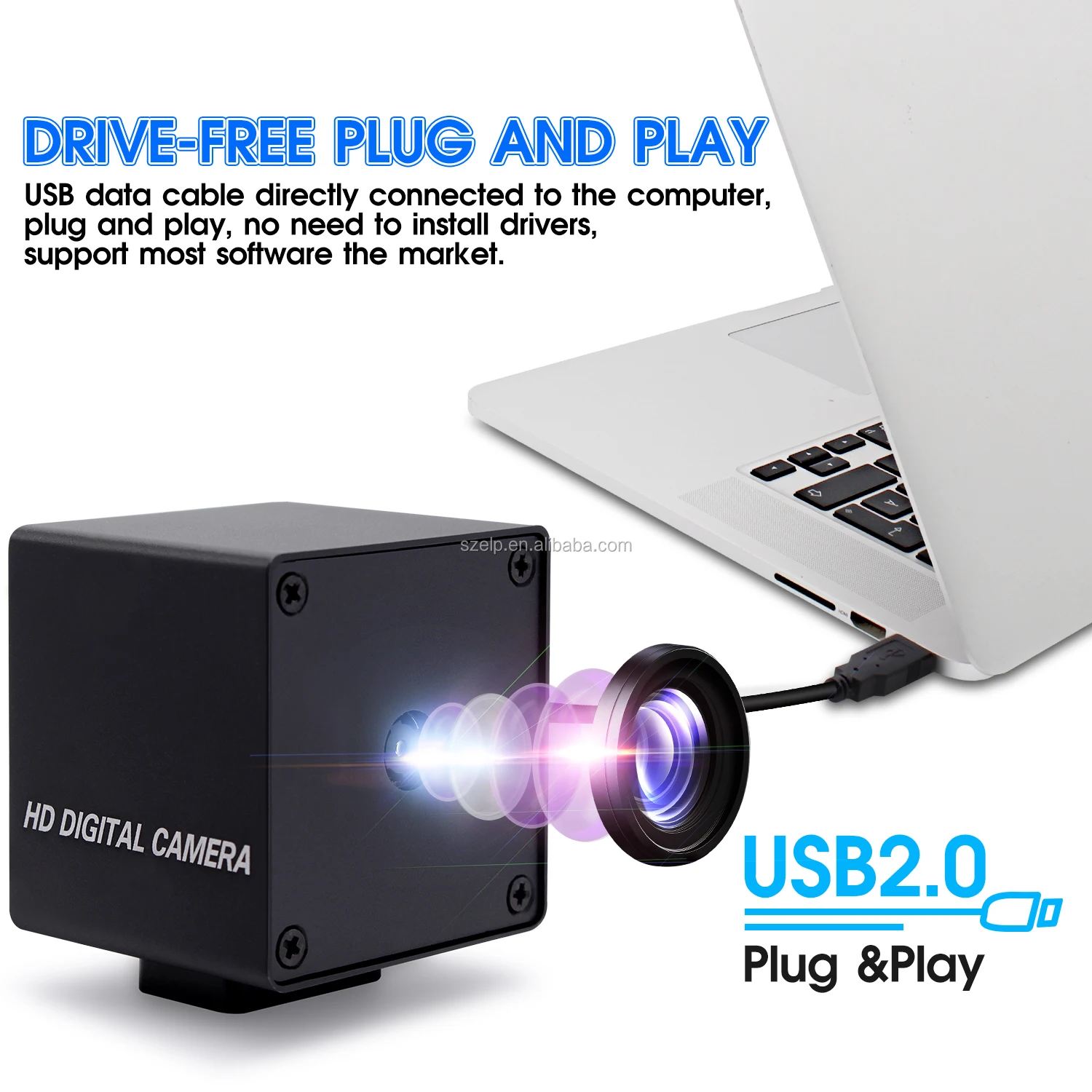

* High speed USB 2.0 plug&play port - suitable for any PC with USB 2.0 interface


* Low power consumption - ideal for portable equipment.


* UVC compliant - support Windows, Linux, Android system with UVC





Specification:














































































































Model



ELP-USB13MAF-KV75



Sensor



IMX214 (1/3" ) AF



Max. Resolution



3840(H) *2880 (V) 13Megapixel



Sensitivity



1000mV/Lux-sec



image area



6100µmx4524µm



Compression Format



MJPEG / YUY2(YUYV)



Resolution & Frame



MJPEG:
3840x2880@10fps/ 3264x2448@ 15fps/ 3840x2160@ 15fps/ 2592x1944@ 20fps
2048x1536@ 30fps/ 1600x1200@ 30fps/ 1920x1080@ 30fps/ 1280x1024@30fps
1280x960@30fps/1280x720@ 30fps/ 1024 x 768@ 30fps/ 800 x 600@ 30fps
640x480@ 30fps / 320x240@ 30fps



Focus



Auto



Object Distance



8CM-100M



Resolution



1000LW/PH (Center)



interface



USB 2.0 High Speed



Protocol



USB Video Class(UVC)



S/N Ratio



33dB



Shutter Type



Electronic rolling shutter / Frame exposure



AGC/AEC/AWB/ABF



Auto



Adjustable parameters



Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Contrast, Exposure



Lens Parameter



Size: 1/3, FOV: 75Degree
Relative Illumination (Sensor): 70%
IR Filter: 650±10nm



LED board power connector



Support 2P-2.0mm socket



Power supply



USB BUS POWER 4P-2.0mm socket



Operating Voltage



DC5V



Power consumption



 220mW



Board size



38X38mm



Operating Temperature



 -20~70



Working temperature



 0~60



Cable



Standard 1m (optional 2M,3M,5M)



Operating system request

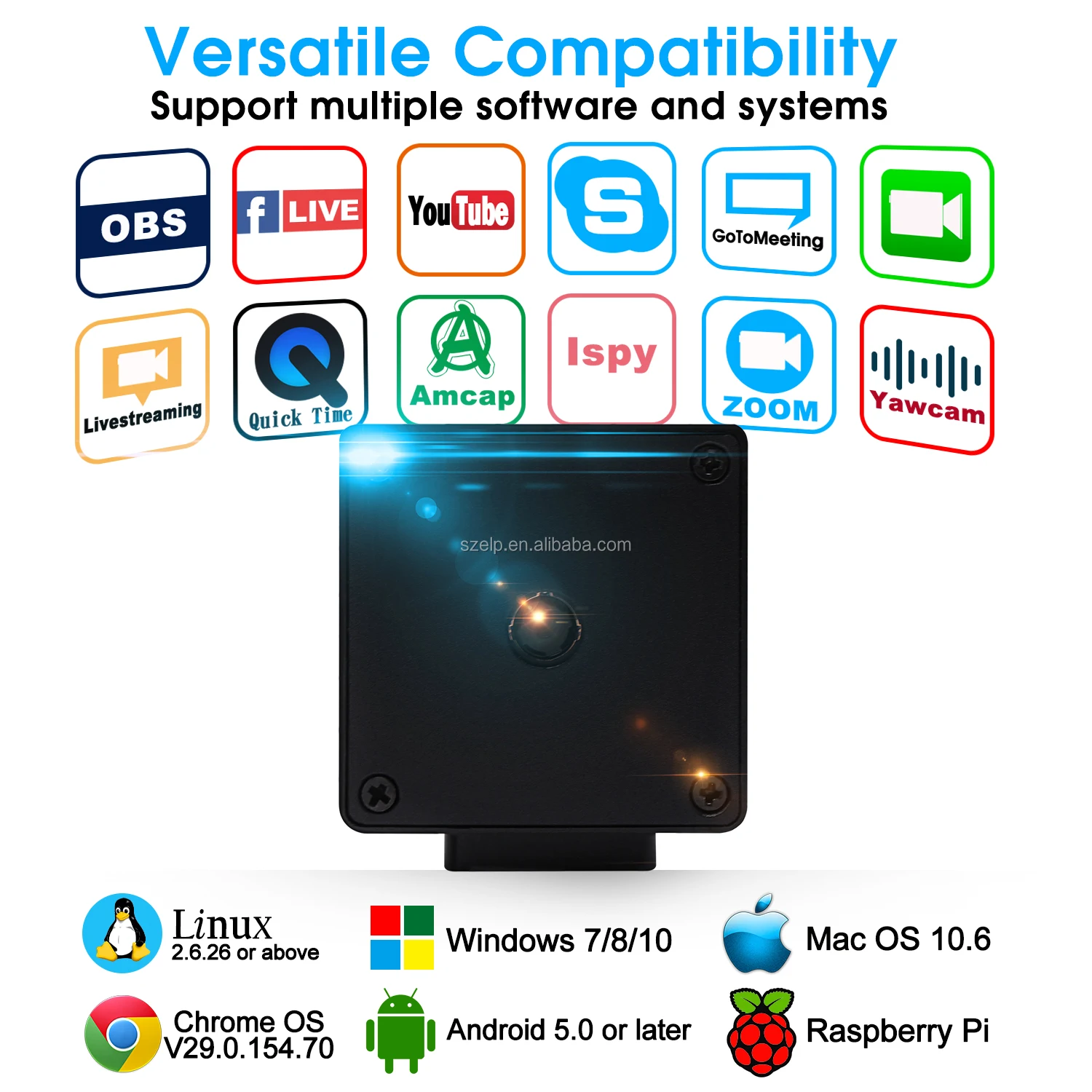

 Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC







13MP IMX214 Camera


13MP Sony IMX214 Sensor Related USB Cameras. For details, Please click its picture or Model NO.









































































Model NO.



ELP-USB13MAF-V75



ELP-USB13MAF-KV75



ELP-USB13M02-V100



ELP-USB13M02-BL100



ELP-USB13M02-KL100



ELP-USB13M02-MFV



Lens



75 degree lens



75 degree lens



100 degree lens



3.6mm lens



170 degree lens



2.8-12/5-50mm
varifocal lens



Focus



Auto Focus



Auto Focus



Fixed Focus



Fixed Focus



Fixed Focus



Fixed Focus



Housing



No



Mini metal



no



Mini metal



Mini metal



Industrial metal









Pictures






Sample Picture:


13M02-2 2448P.jpg
