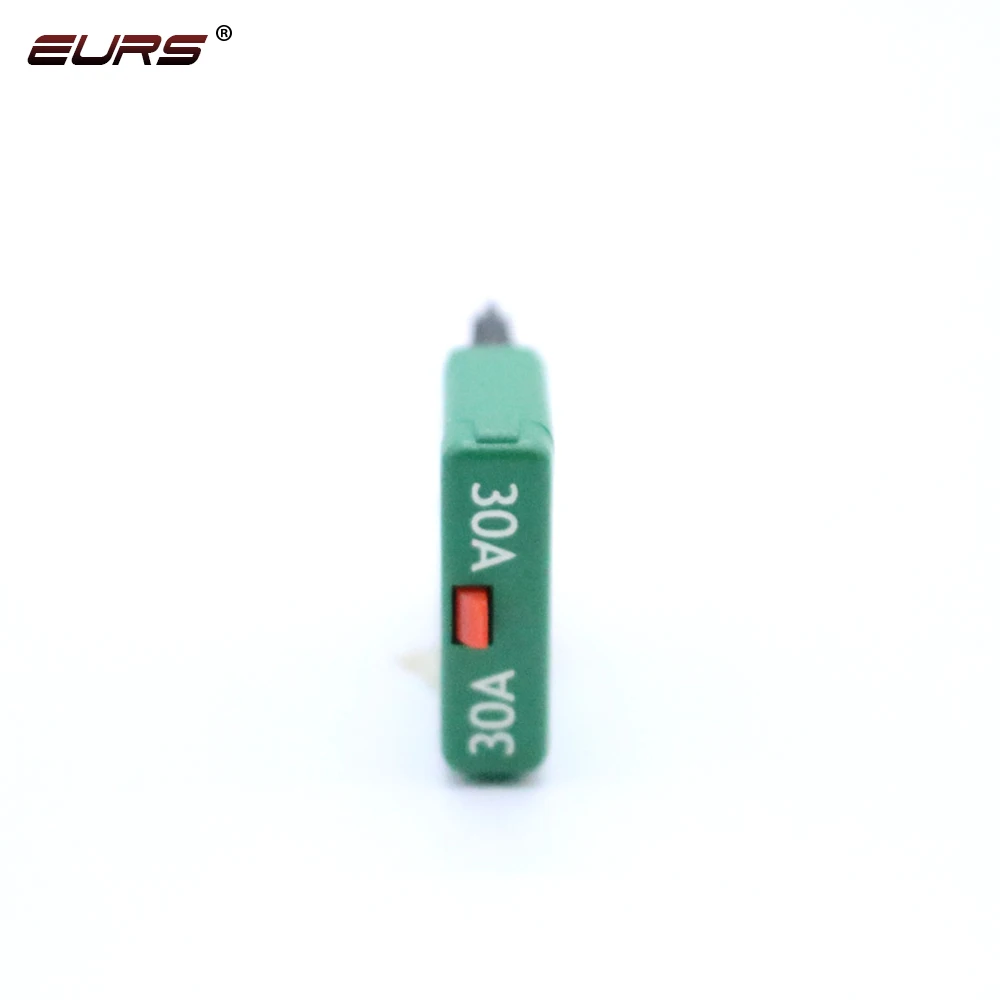

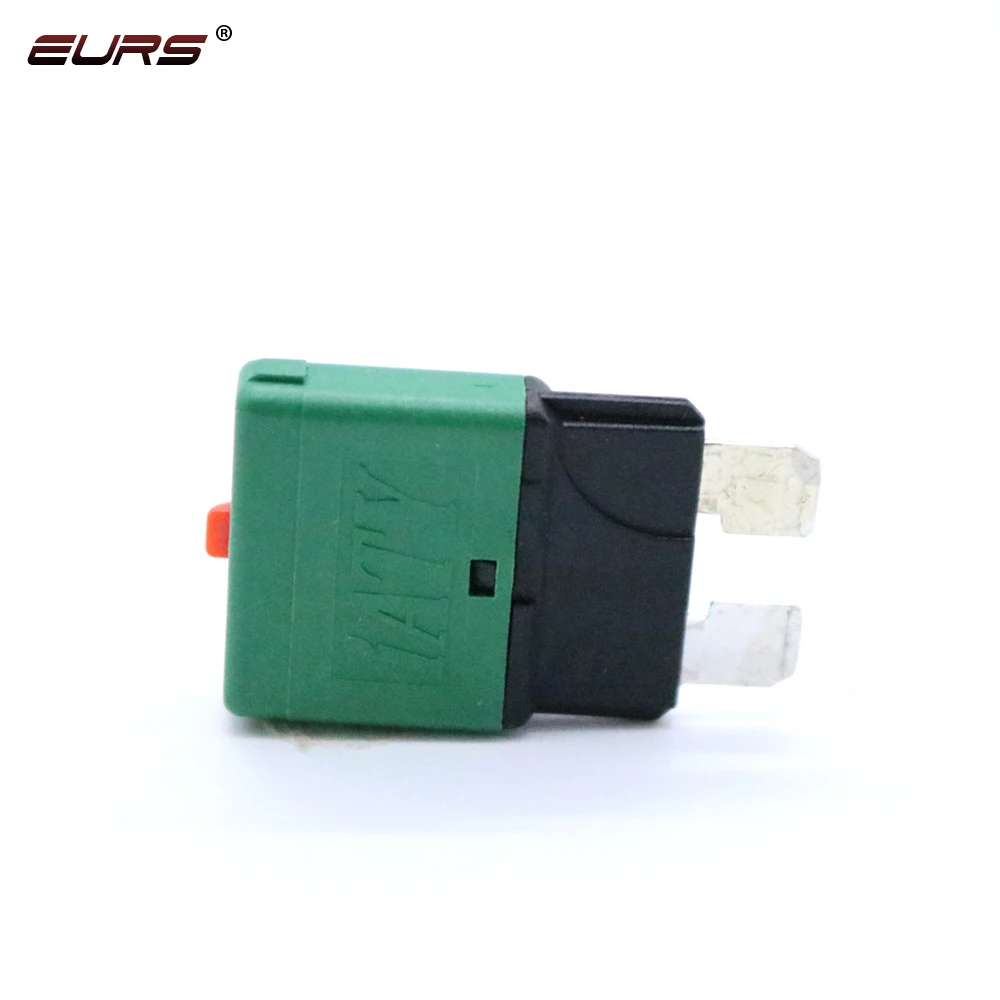

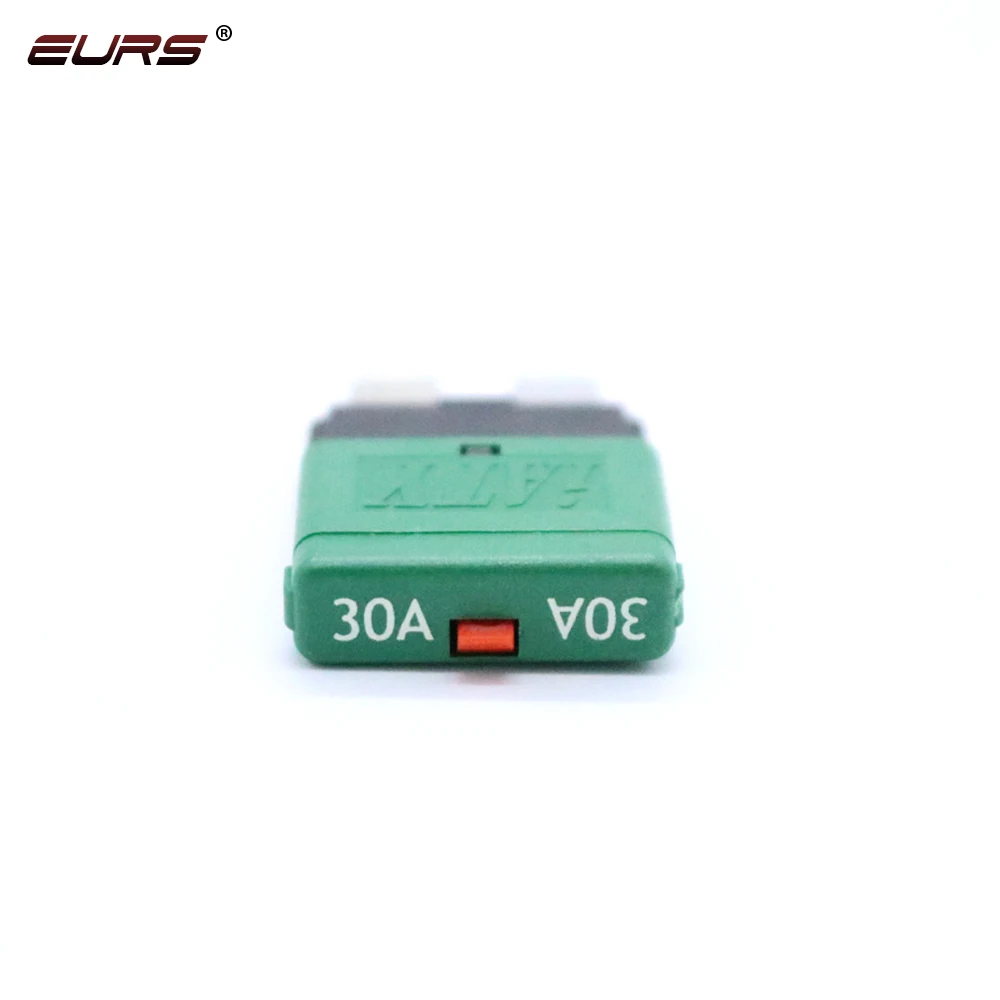

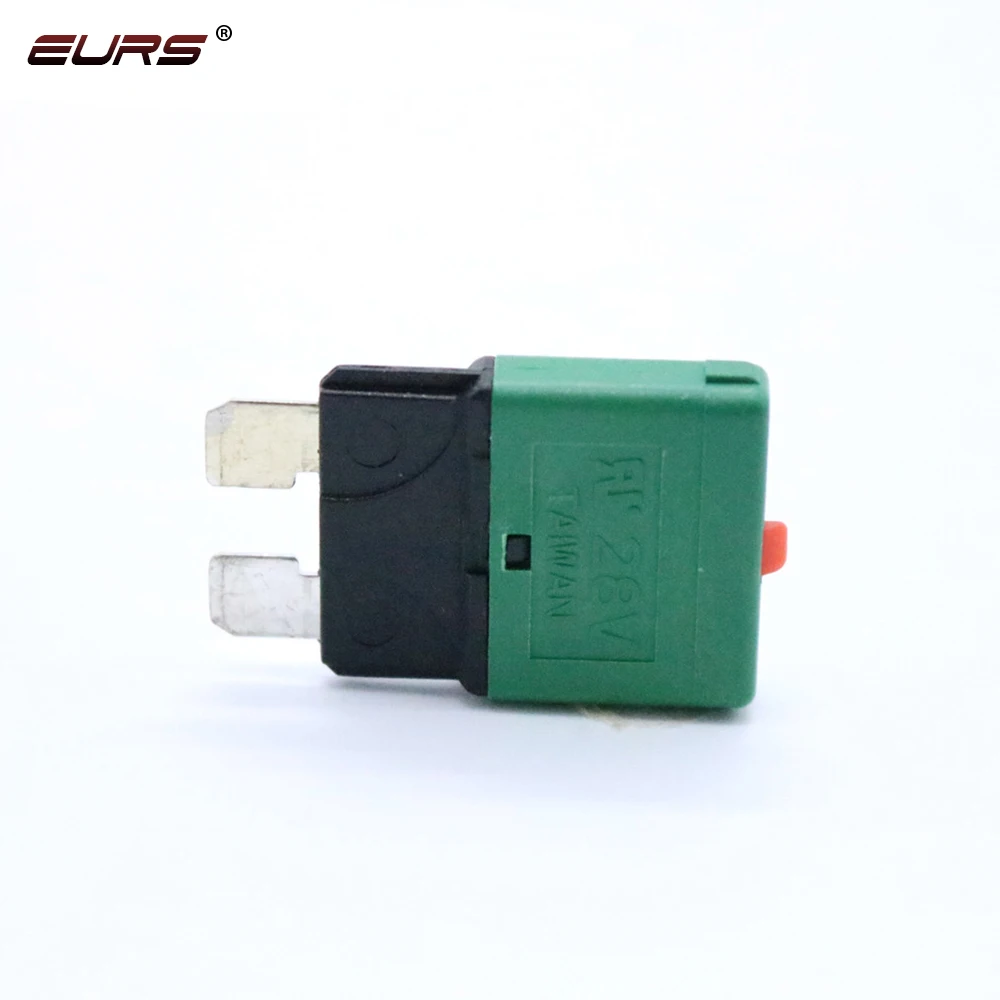

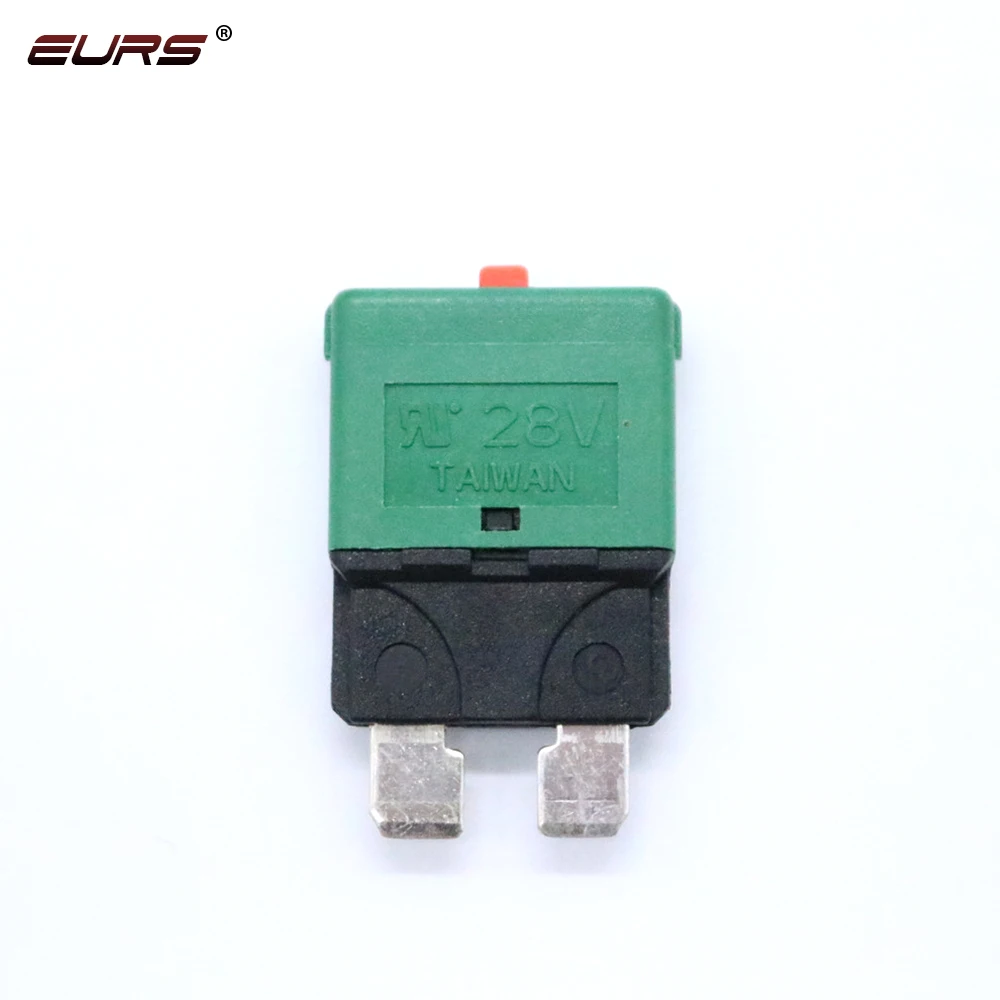

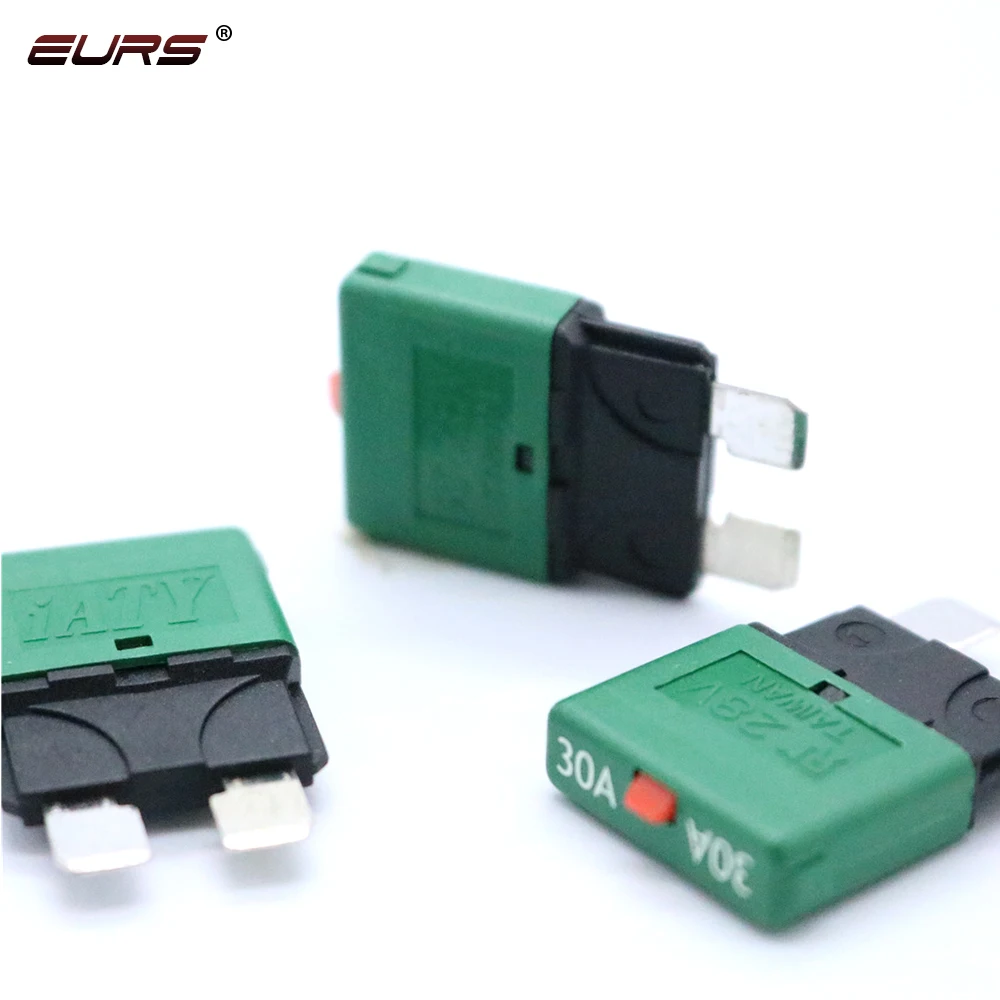

30AMP 28V DC CIRCUIT BREAKER TRIP FUSES STANDARD BLADE FUSE MANUAL RESET
- Category: Circuit Breakers >>>
- Supplier: Shenzhen EURS Electronic Co. Ltd.
Share on (62097043414):
Product Overview
Description
30AMP 28V DC CIRCUIT BREAKER TRIP FUSES STANDARD BLADE FUSE MANUAL RESET
Specifications
Specifications:
Miniaturized single pole press-to-reset thermal circuit breaker designed.
For automotive fuse block installation.
Extends the benefits of circuit breaker performance and Convenience to application which are cost critical.
Manual Reset Type (Type III )
| Product name | overload protection circuit breaker |
| Description | ATC Circuit Breakers |
| Interrupt Rating | 2000A@28V DC |
| Rated Current | 5-30A 28V DC |
| Pole | single pole, normal closed |
| Function Type | thermal trip |
| Operating Temperature Rating | -40°C to 85 °C |
| Storage Temperature Rating | -40°C to 125 °C |
| Materials | UL-Rated 94V-0 Thermoplastic Body.Tin-Plated Brass Alloy Termina |
| Weight | 5g/pcs |
| Marking | Ampere, Voltage and Part No. (iATY).Cover is Color-coded to Amperage Ratings |

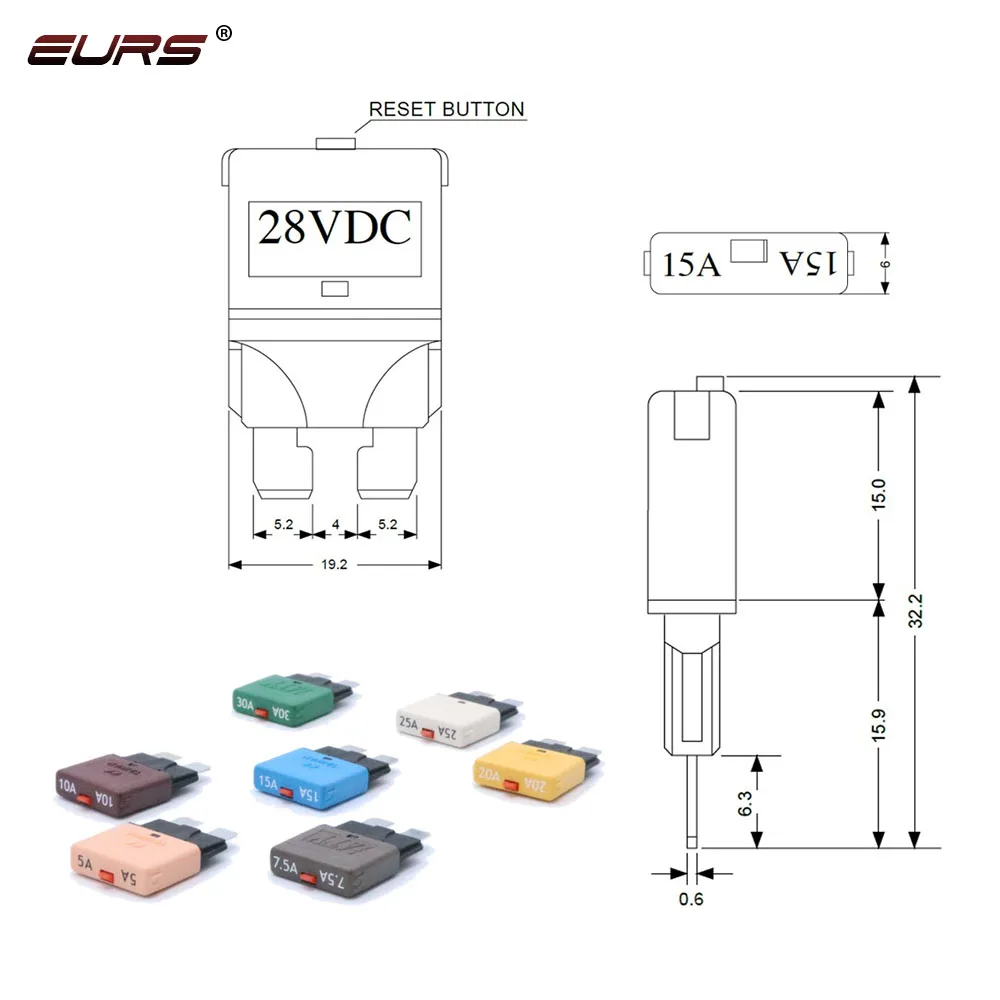

| Termination | 5.2mm Wide Blades Compatible with ATY-N Type Fuse Blocks |
| Complianeces | SAE J553 Type III |
| Typical Applications | Exra low voltage wiring systems on all types of vehicles and marine craft |
Part No: Ampere Body Color:
iATY-5 5A Brown
iATY-7.5A 7.5A Brown
iATY-10 10A Red
iATY-15 15A Blue
iATY-20 20A Yellow
iATY-25 25A White
iATY-30 30A Green
Package:
10* 10AMP Fuse
