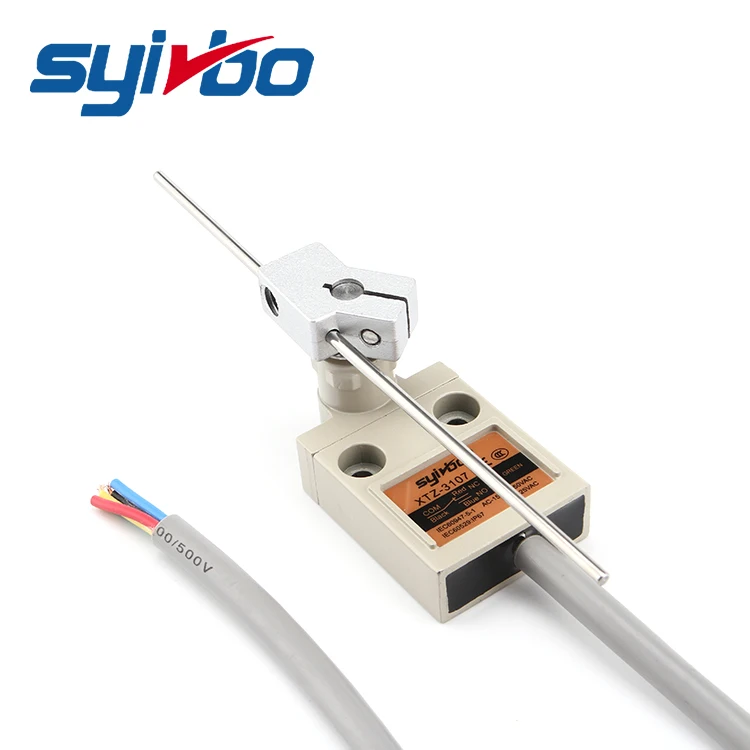

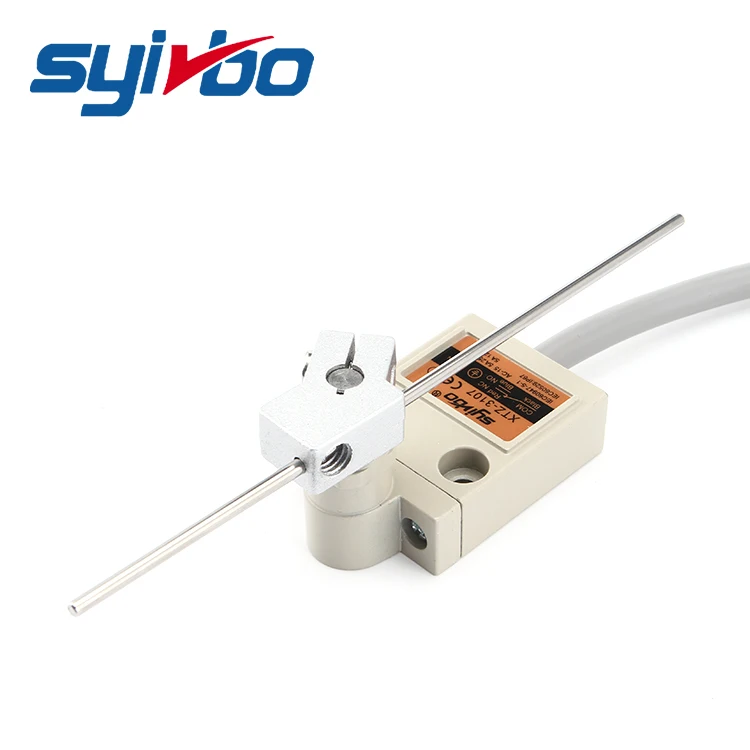

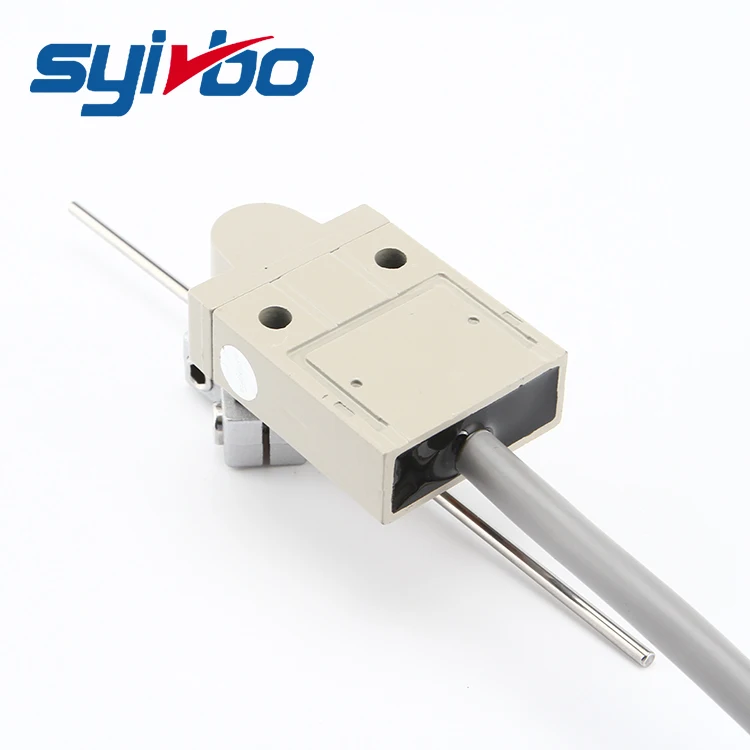

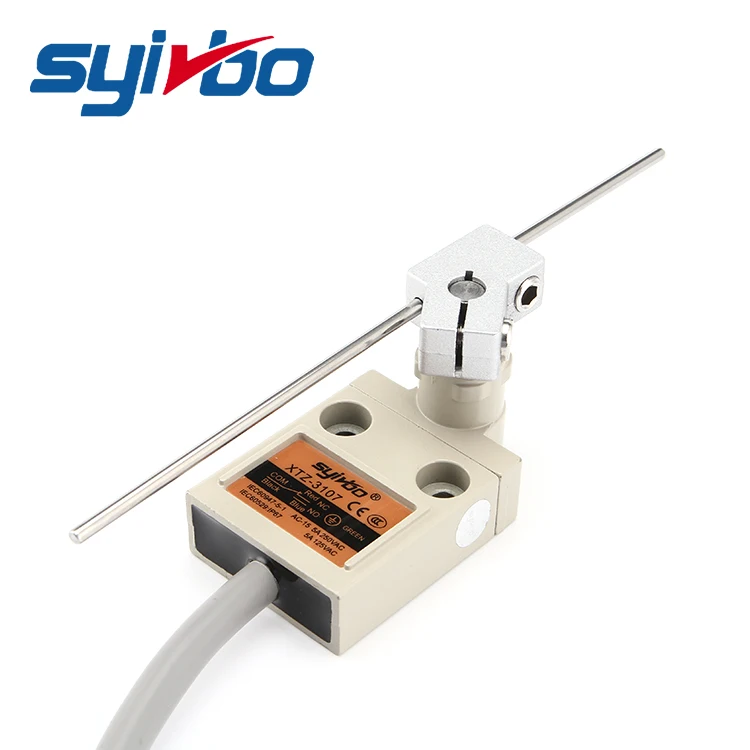

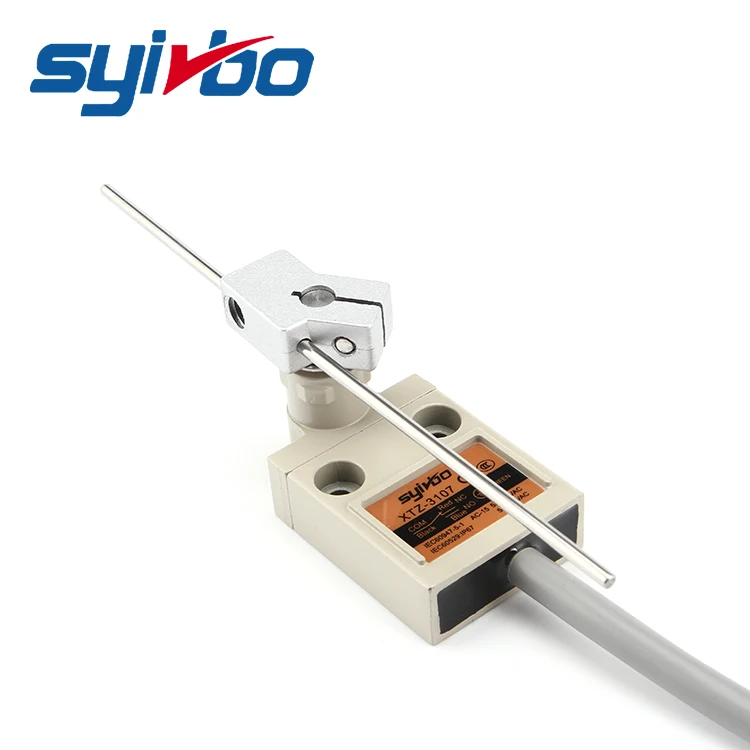

XINGBO waterproof adjustable metal limit switch rod/hydraulic limit switch

Rated voltage

Non-inductive Load(A)

Inductive Load(A)

Resistance Load

Lamp Load

Inductive Load

Motor Load

NC

NO

NC

NO

NC

NO

NC

NO

125VAC

5(0.1)

1.5

0.7

3

2.5

1.3

250VAC

3

1

0.5

2

1.5

0.8

8VAC

5(0.1)

2

5

4

3

14VDC

5(0.1)

2

4

4

3

30VDC

4(0.1)

2

3

3

3

125VDC

0.4

0.05

0.4

0.4

0.05

250VDC

0.2

0.03

0.4

0.2

0.03

Rated value

5A 125V, 3A 250VAC

Operation speed

1mm-2m/s

Operating frequency

Mechanical: 120 operations/minute Electrical: 30 operations/minute

Contact resistance

15MΩ Max. (initial value)

Insulation resistance

100MΩ min. (at 500VDC)

Dielectric strength

1000VAC, 50/60Hz for 1 minute between terminals of the same polarity

1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts

1500VAC, 50/60Hz for 1 minute between each terminal and ground

Vibration

10-55Hz, 1.5mm double amplitude

Shock

Mechanical durable: 1,000m/ Sec² (about 100G’ S)

Malfunction: 50m/ Sec² (about 30G’ S)

Ambient temperature

-10℃- 7℃ (with no icing)

Humidity

95% RH

Life

Mechanical: 10000,000 operations above (under rated OT) Electrical: 200000 operations above

Weight

Approx. 360g(cable length 3m) Approx. 540g(cable length 5m)

Protection

IEC specification: IP67
