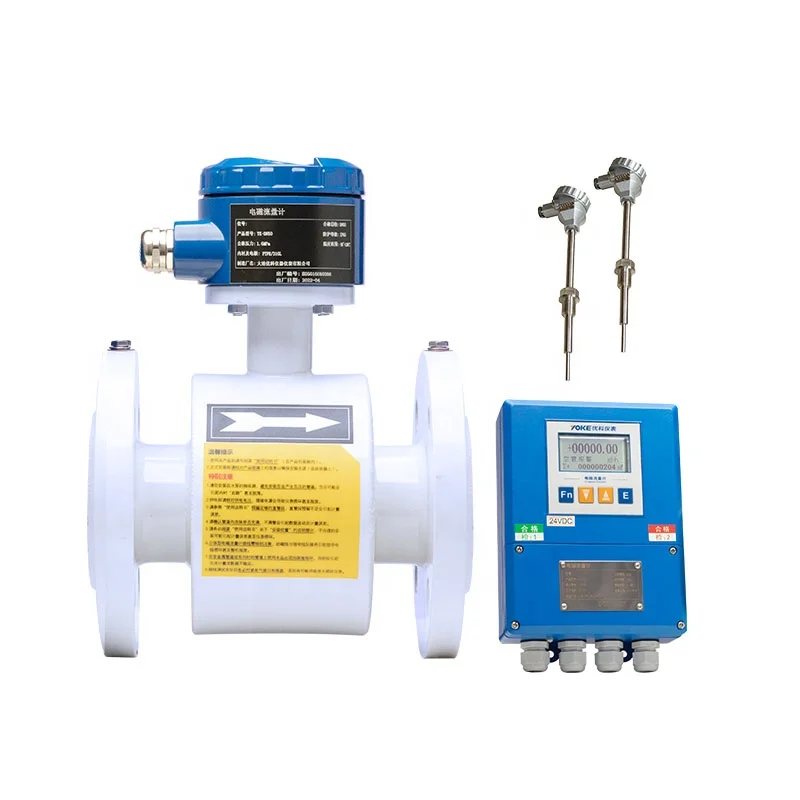

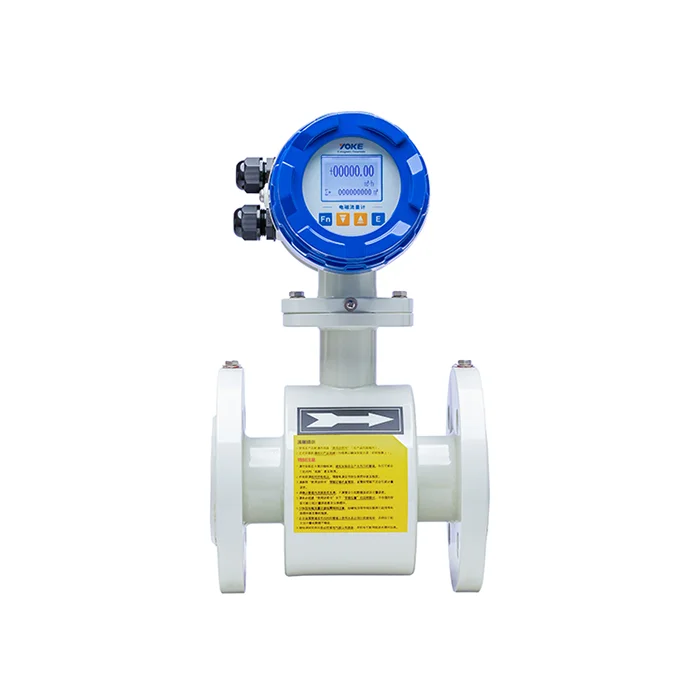

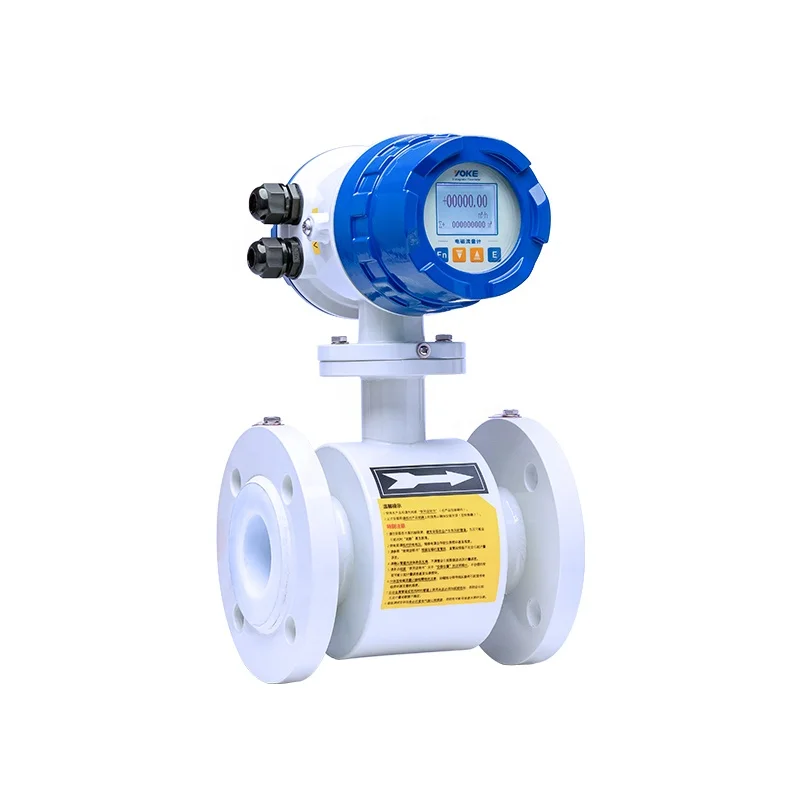

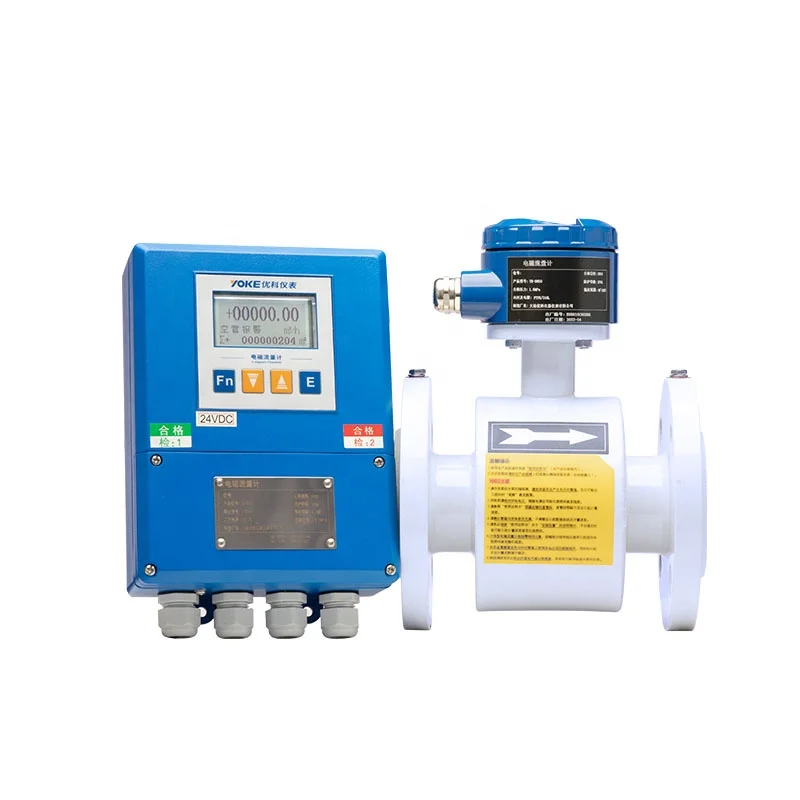

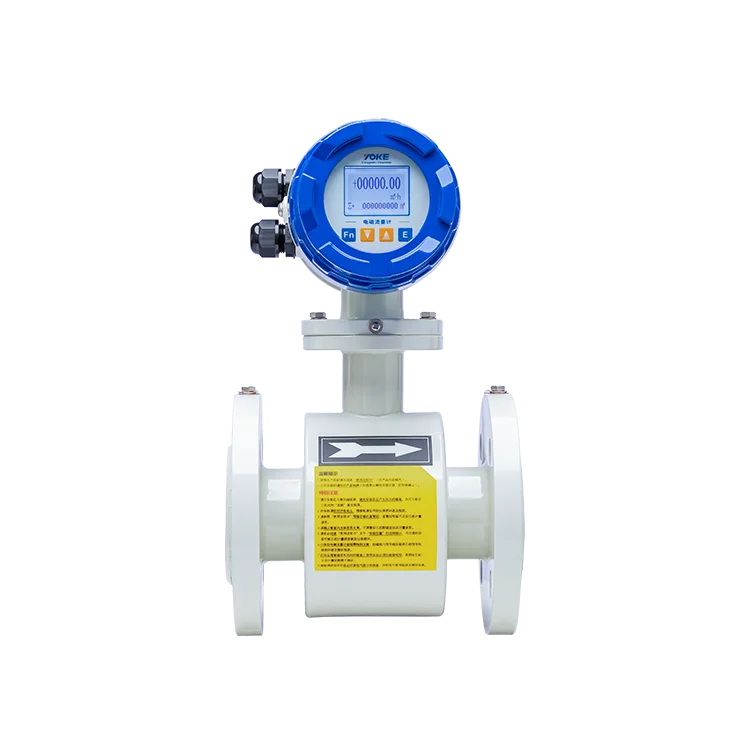

RS485/4 20ma electro magnetic flow meter electromagnetic meter corrosion resistant electromagnetic field meter
RS485/4-20ma electro magnetic flow meter electromagnetic meter corrosion resistant electromagnetic field meter
RS485/4-20ma electro magnetic flow meter electromagnetic meter corrosion resistant electromagnetic field meter
RS485/4-20ma electro magnetic flow meter electromagnetic meter corrosion resistant electromagnetic field meter
RS485/4-20ma electro magnetic flow meter electromagnetic meter corrosion resistant electromagnetic field meter
RS485/4-20ma electro magnetic flow meter electromagnetic meter corrosion resistant electromagnetic field meter
RS485/4-20ma electro magnetic flow meter electromagnetic meter corrosion resistant electromagnetic field meter

RS485/4 20ma electro magnetic flow meter electromagnetic meter corrosion resistant electromagnetic field meter

Share on (62097410674):


Price:$300.00

Quantity:


Product Overview

Description





Main Application
Conductive Liquid(Water,Sewage,Chemical,Slurry etc)
Measuring Principle
Electromagnetic
Nominal Diameter Range
DN15 to DN1200
Wetted Materials
Liner:CR;PTFE;Telflon;PU
Electrode:SS316L;Ti;Ta;Pt
Measured Variables
Current Flow
Totalized Flow
Velocity
Measure Precision
0.5%(0.2% optional)
Velocity Range
0.1-15m/s
Range Ratio
150:1
Repeatability
±0.1%
Conductivity Range
≥5μs/cm
Max Processed Pressure
PN6-PN40
Medium Temperature Range
Liner CR:-20~+90℃
Liner PTFE:-30~+160℃
Liner Telflon:-30~+120℃
Liner PU:-20~+60℃
Ambient Temperature Range
Stainless Steel:-40~+60℃
Carbon Steel:-10℃~+60℃
Sensor Housing Material
Carbon Steel with Protective Varnish
Stainless Steel
Degree of Protection
Standard IP65
Optional IP68
Explosion Proof Grade
Exd[ia]qIICT5
Display/Operation
4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available


Outputs
1)4-20 mA RS485 (active/passive)
2)4-20 mA (active/passive)
3)Pulse/frequency/switch output (active/passive)
4)Relay output
Digital Communication
Modbus RS485;HART
Power Supply
DC 24 V
AC 100 to 230 V
3.6V Lithium Battery




Q1:Are you the Manufacturer?Why you are both trading company and manufacturer?
A1:We are manufacturer which is verified by Alibaba.
We also have our owntrading indentification for more service for our clients.
Q2:How long is your warranty?
A2:Normally our warranty is 18 months.
Q3:How do you support the aftersale service?
A3:By phone call,by video chat,by sending our engineer to your work field.
Q4:How do you pack and ship your products?
A4:We pack our product with protective filler inside(such as foam),and packed with stable paper or wood carton outside.Normally we ship by air,for big quantity we ship by sea.
Q5:Do you provide the free sample?
A5:Normally we do not provide free sample,but we can deduct the sample charge when you set final order.
Q6:Could we buy through trade assurance?
A6:Absolutely,we higuly recommend you to trade through the trade assurance service of Alibaba.
Q7:How is the panment term?
A7:It is Negotiatable.Normally if the trade amount is less than $15000,the term need to be 100%T/T in Alibaba.
