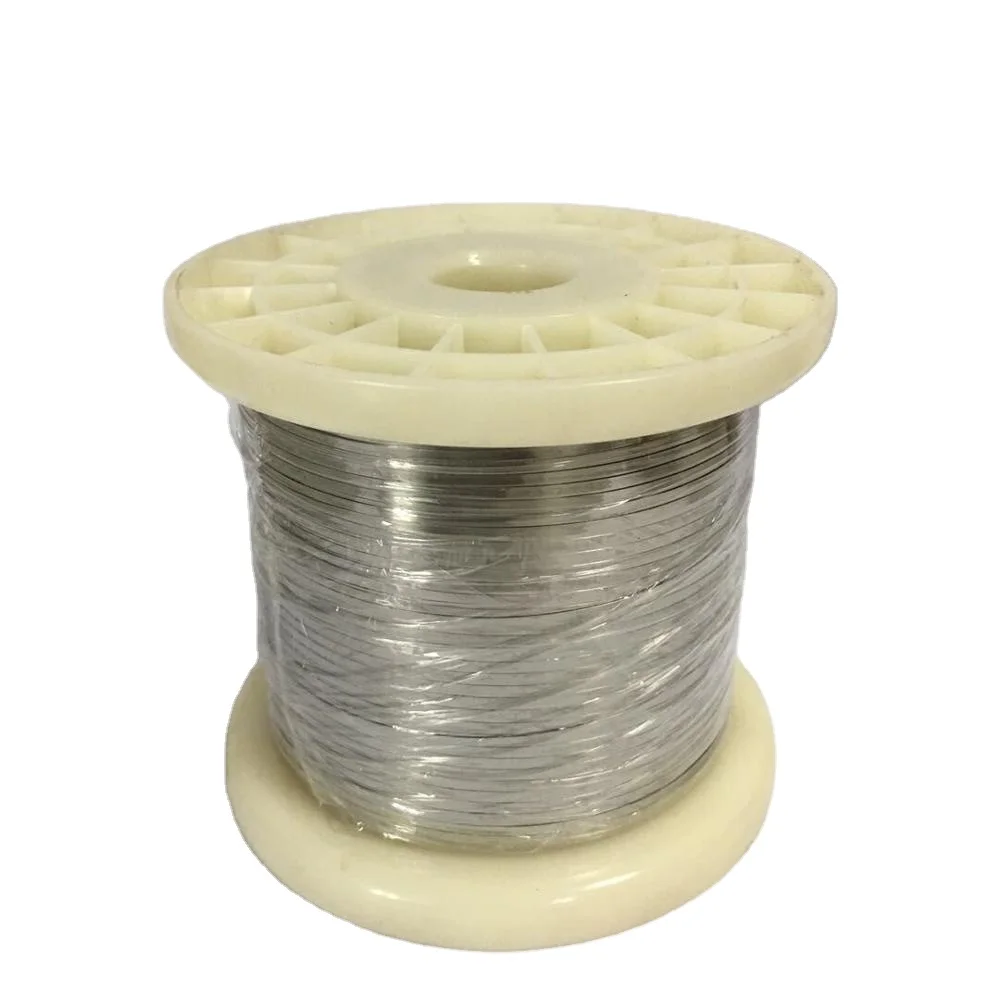

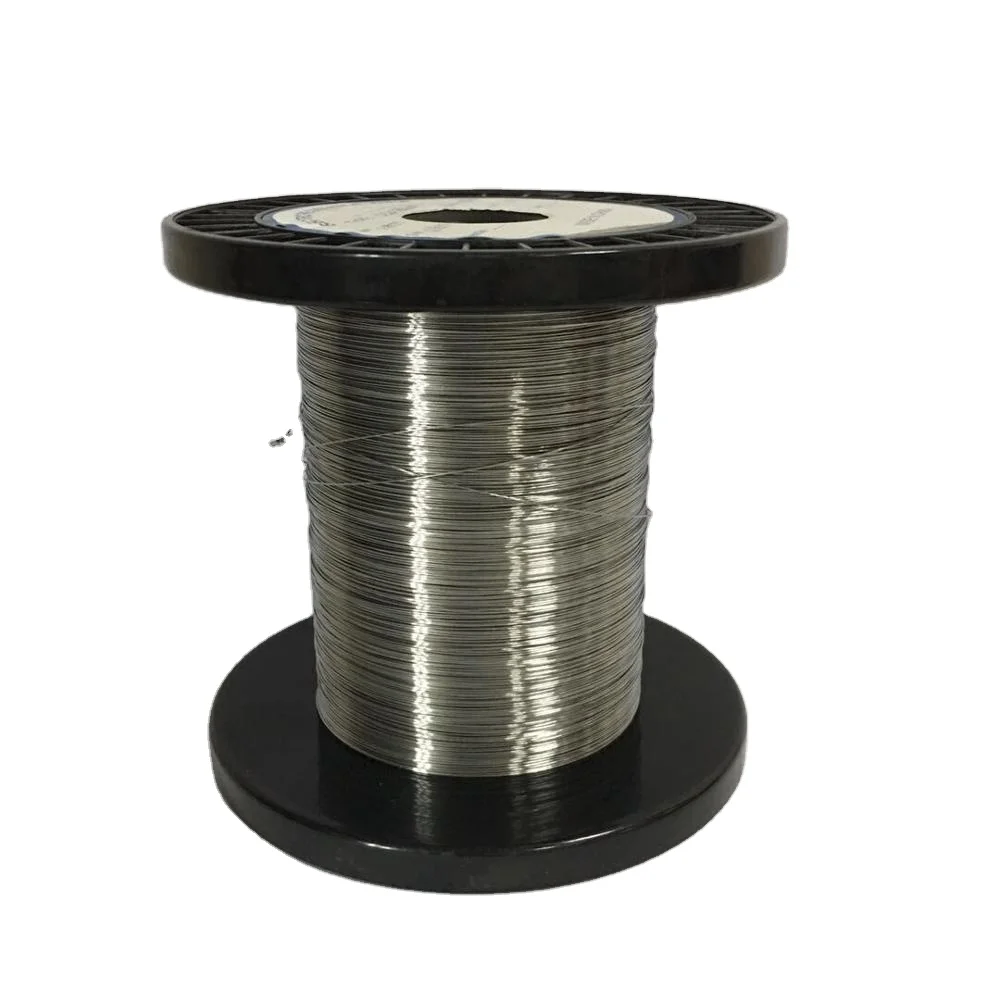

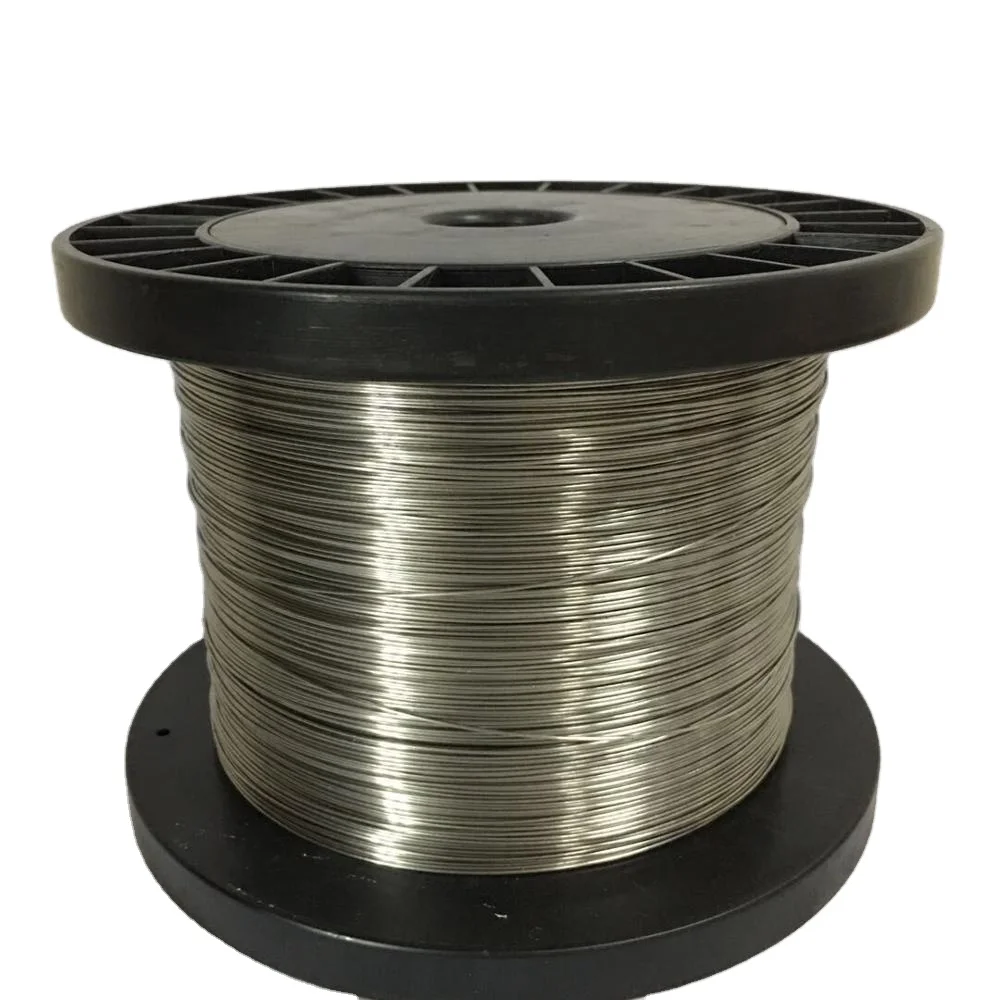

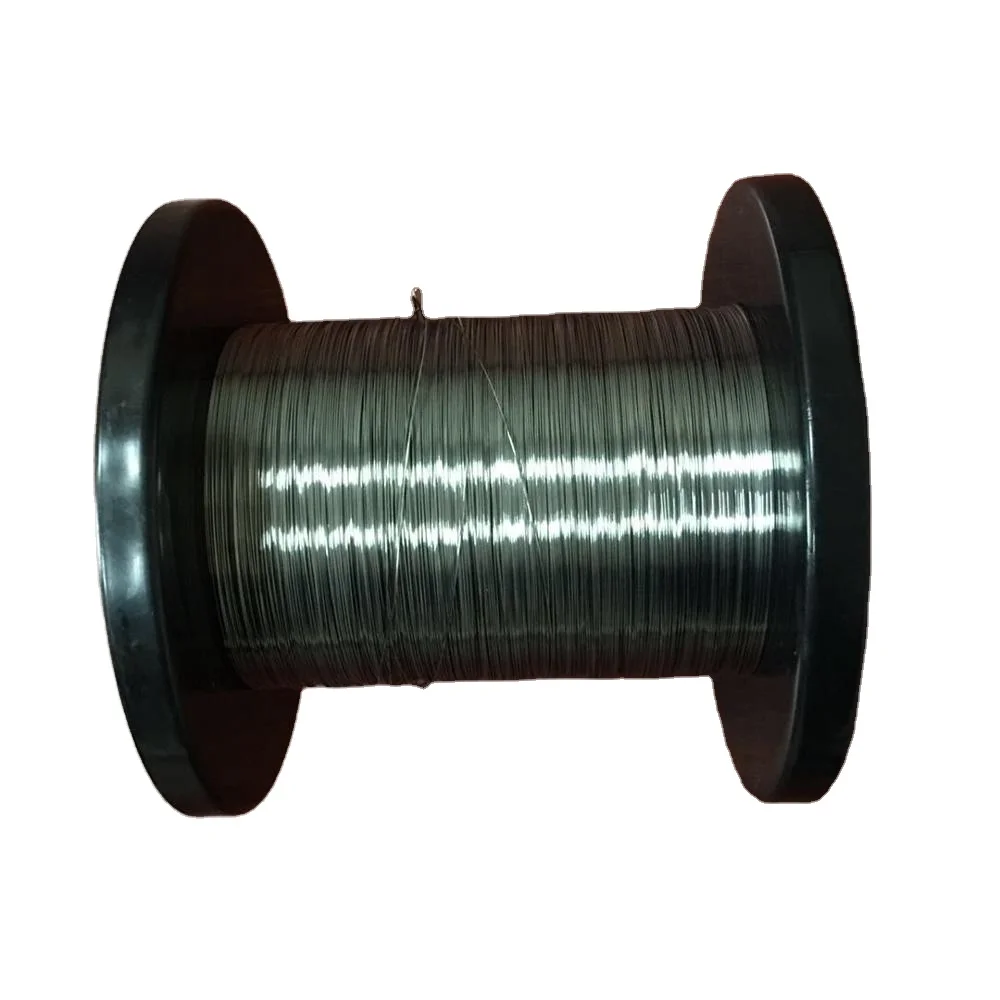

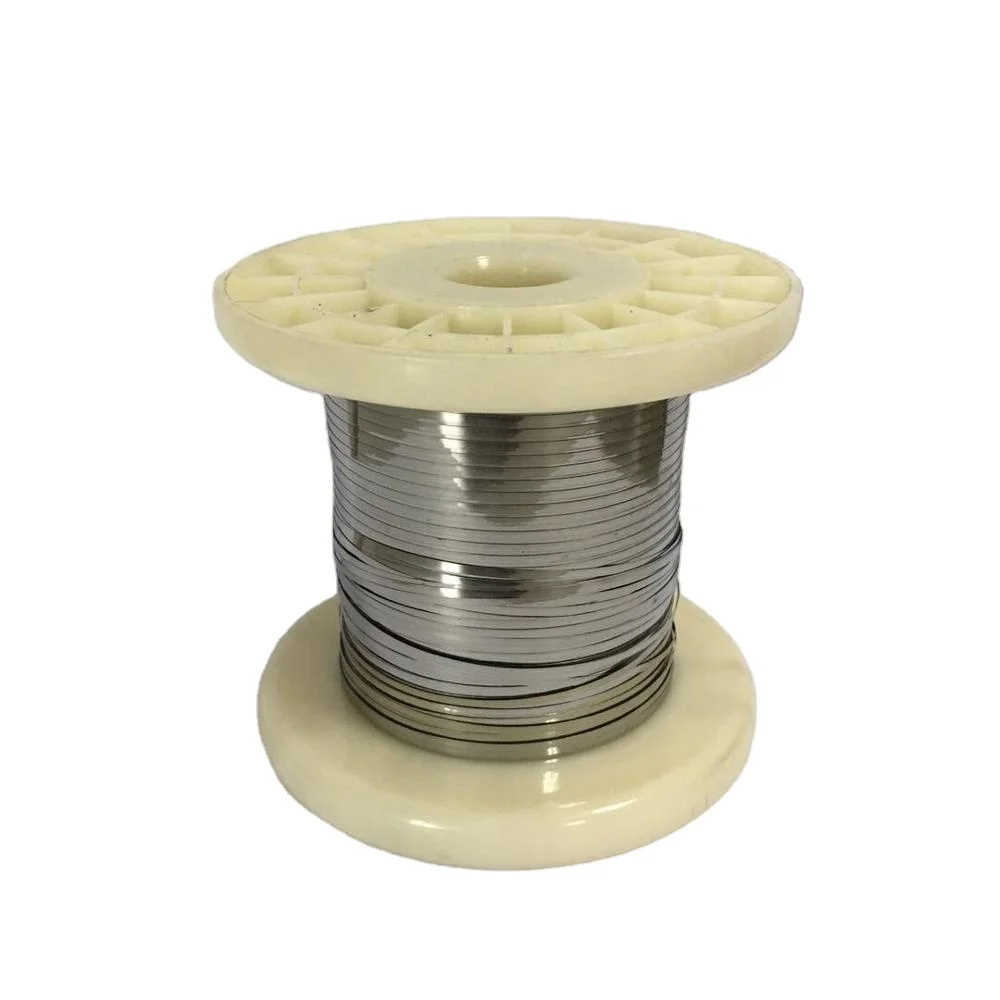

hot sale FeCrAl electric resistance wire 0Cr27Al7MO2, 0CR25AL5, 0CR21AL4, 0Cr13AL4 Heating wire for heating elements
- Category: >>>
- Supplier: Changzhou Huiyou Electrical Heating Tech Co. Ltd. [Jiangsu China]Changzhou
Share on (62097453929):
Product Overview
Description
Product Description

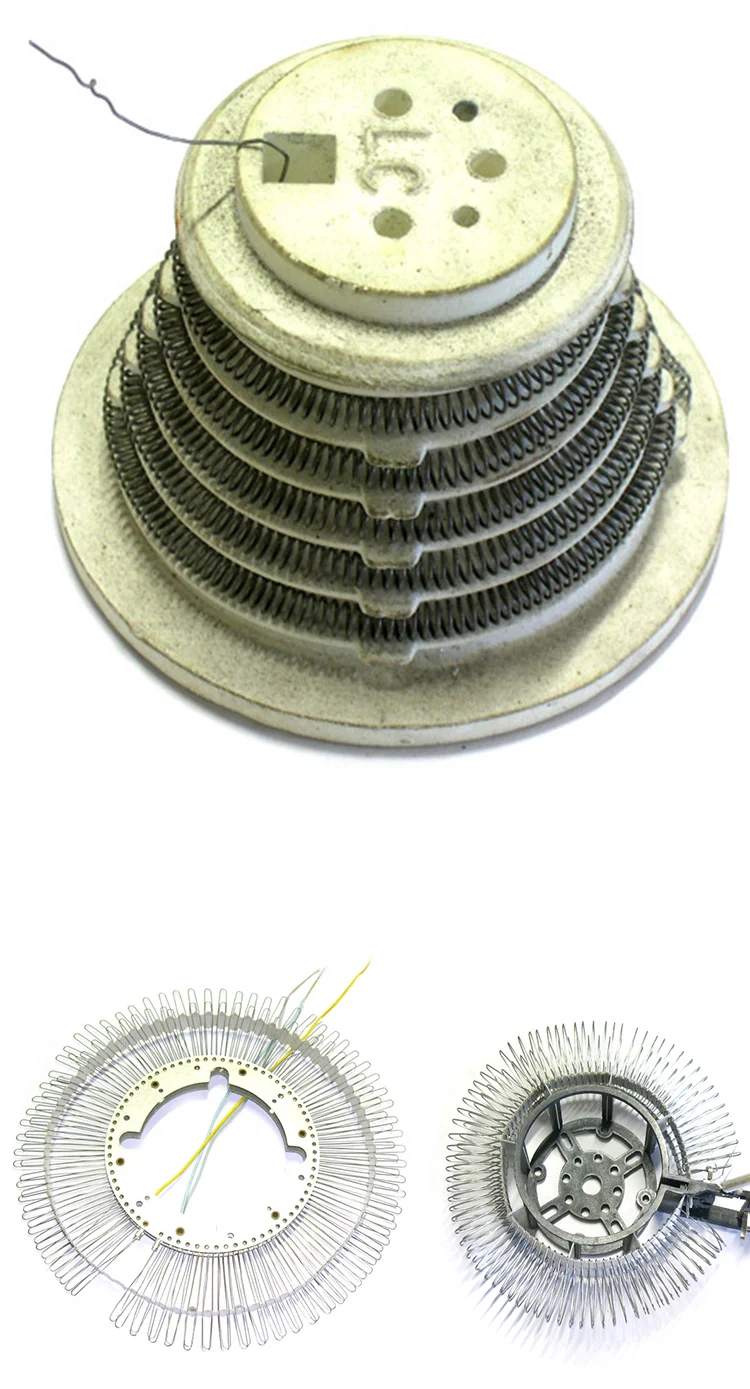

FeCrAl alloy resistance wire posses high resistance, low temperature coefficient of resistance. high working temperature and good corrosion resistance. this alloy resistance wire is widely used in surfur and sulfide environment. and producing industrial electric furnace,household electrical appliance and far infrared ray device., FeCRAL alloy resistance wire include:0Cr27Al7Mo2, 0Cr25Al5(KANTHAL A) 0Cr23Al5(kanthal D) , 0Cr21Al6Nb, 0Cr21Al6, 0Cr21Al4 and 0Cr13Al4
Packaging & Shipping
certificate:ROHS, ISO9001 QUALITY MANAGEMENT SYSTEM

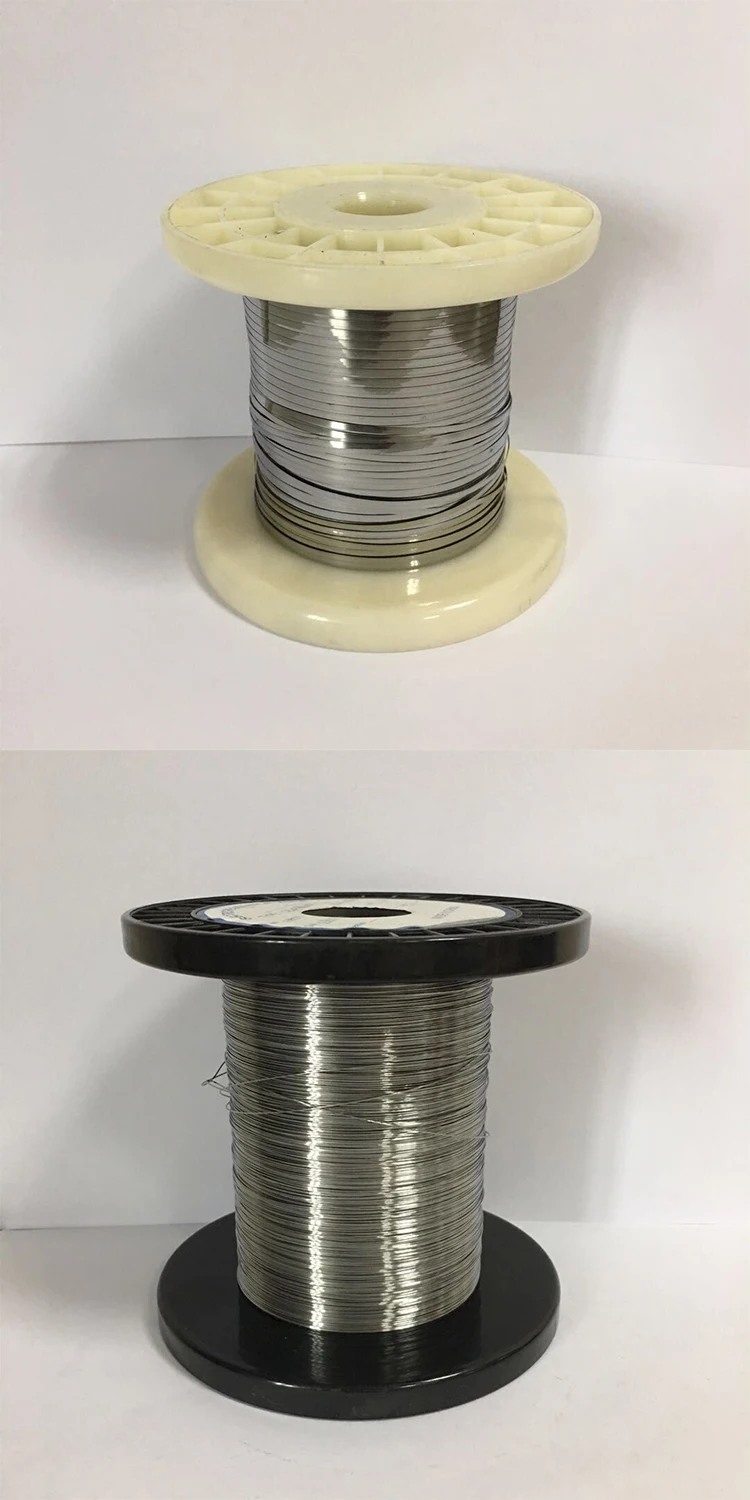

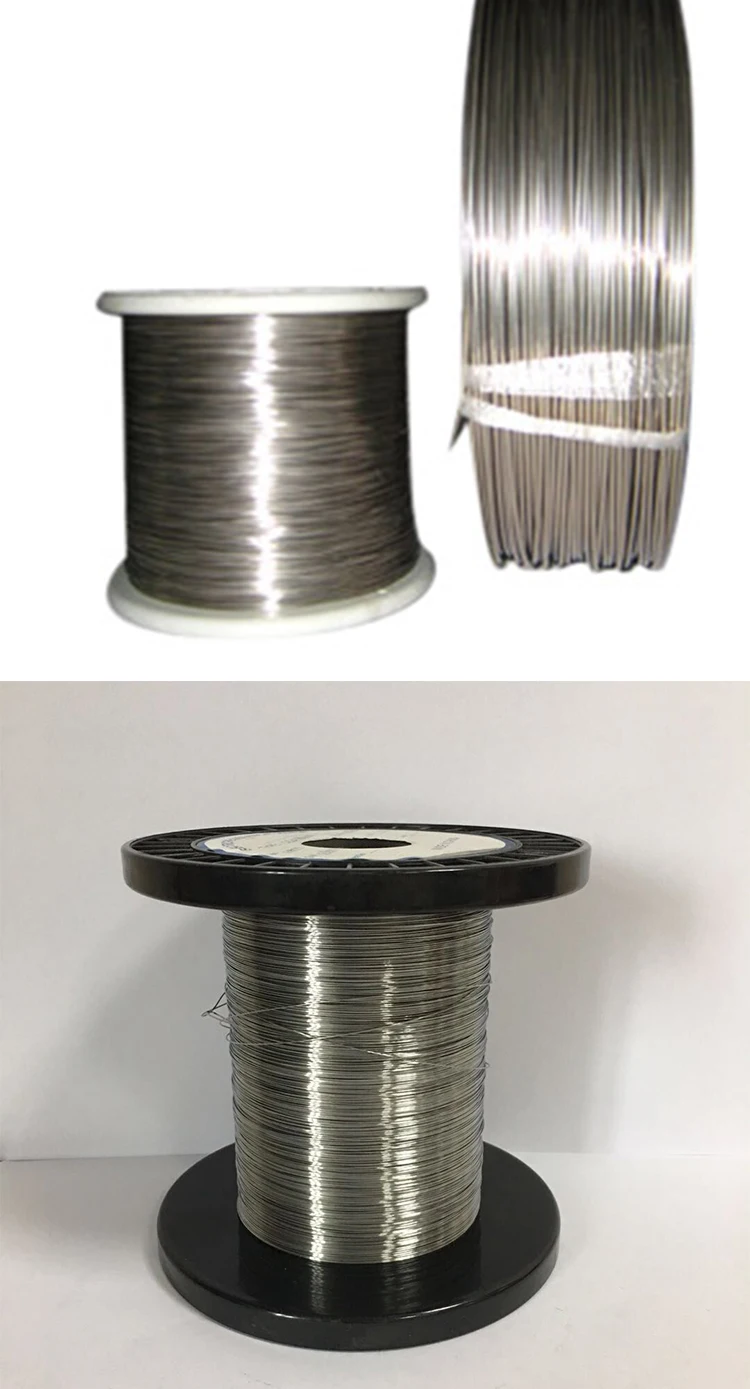

size: round wire 0.02mm-10.0mm and strip 0.05mm-2.5mm thickness *0.50-250mm width

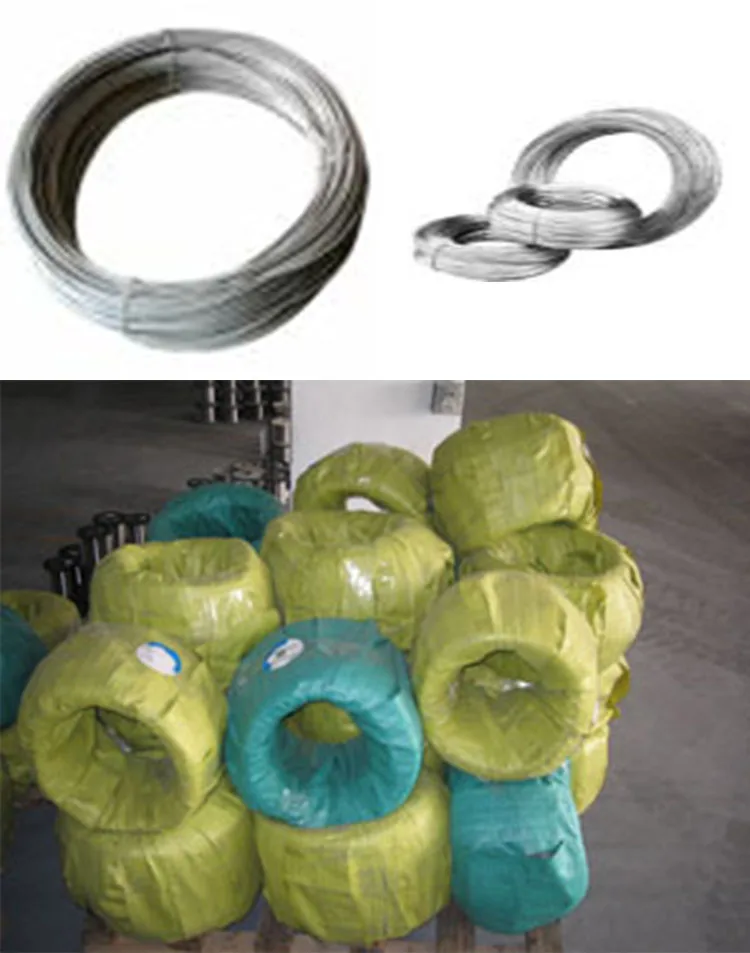

package: plactic belt for big sizes(>1.0mm) + pallet and spool+carton+pallet or wooden case for <1.0mm) or according to customers' requests
delivery time: according to the quantity of orders
shipping port:shanghai port, ,china
Main physical propery and chemical composition
| main property | type | 0CR13AL4 | 0CR21AL4 | 0CR25AL5 | 0CR21AL6NB | 0CR27AL7MO2 | 0CR23AL5 |
| main chemical composition | Cr | 12-15 | 17-21 | 23-26 | 21-23 | 26.5-27.8 | 20.5-23.5 |
| Al | 4-6 | 2-4 | 4.5-6.5 | 5-7 | 6-7 | 4.2-5.3 | |
| Fe | rest | rest | rest | rest | rest | rest | |
| Mn | ≤0.7 | ≤0.7 | ≤0.7 | ≤0.7 | <0.2 | ≤0.7 | |
| max working temperature°C | 950 | 1100 | 1300 | 1350 | 1400 | 1250 | |
| density g/cm³ | 7.40 | 7.35 | 7.10 | 7.10 | 7.10 | 7.25 | |
| resistivity | 1.25 | 1.23 | 1.40 | 1.43 | 1.53 | 1.35 | |
| melting temperature°C | 1450 | 1500 | 1500 | 1500 | 1520 | 1500 | |
| tensile strenth | 588-735 | 637-784 | 637-784 | 637-784 | 637-784 | 637-784 | |
| elongation | >16 | >14 | >12 | >12 | >12 | >12 | |
| bending frequency | >5 | >5 | >5 | >5 | >5 | >5 | |
| hardness | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
