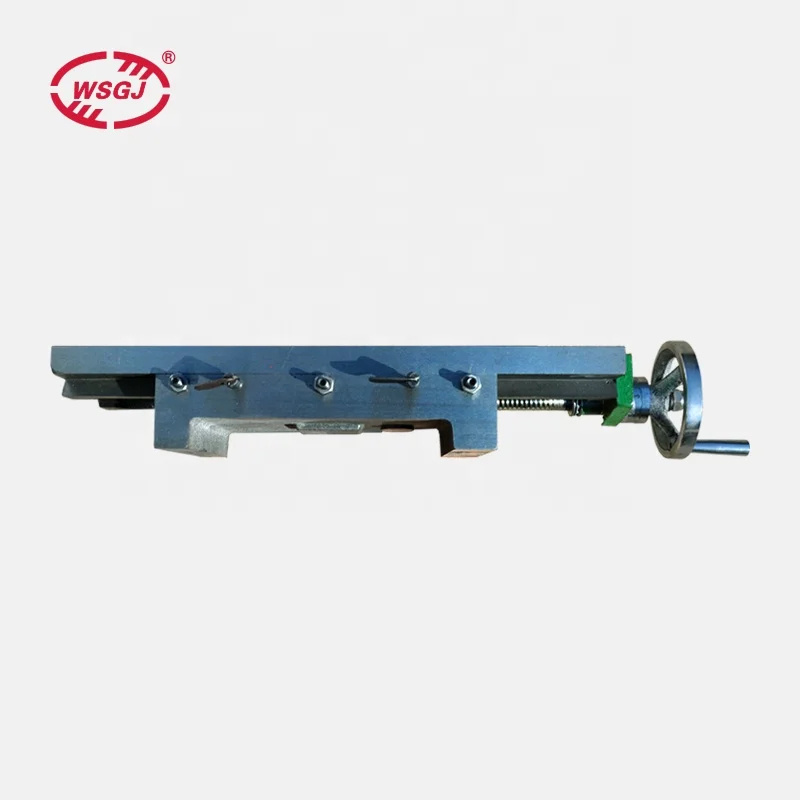

Cast iron one axis x dovetail slide guides manual slide table for milling and drilling machine
- Category: Table >>>
- Supplier: Lishui JUYOU Automation Manufacture Co. Ltd.
Share on (62097496861):
Product Overview
Description
Product Description
PARAMETER
Unit: mm.
Model | WS450MX | WS450MXY | WS550MXY | WS650MXY |
Accuracy | ±0.02 / 100 | |||
X-axis Travel | 180 | 180 | 255 | 390 |
Y-axis Travel | 0 | 100 | 130 | 150 |
Table Top Dimension | 445X169 | 445X169 | 550X190 | 640X205 |
Base Dimension | 259X169 | 260X228 | 295X318 | 320X235 |
Base Hole Distance | - | 140X160 | 160X260 | - |
Screw Diameter | 18 | 18 | 20 | 24 |
Screw Pitch | 4 | 4 | 4 | 4 |
Scale | 0.05 | 0.05 | 0.1 | 0.04 |
Dimension | 570X200X103 | 570X350X140 | 680X440X145 | 1055X520X205 |
Net Weight | 18 kg | 26 kg | 36 kg | 61 kg |
Material | Cast Iron | |||
Guide Rail | Dovetail Guide | |||
Drive Type | Manual Operation | |||
About Us
FAQ
Is your company a manufacturer or trading company?
We are the professional automation manufacturer founded in 2005. Welcome to visit us.
Can you provide the customization service?
Yes, we are good at customizing the products for you. We can also design the products without pay.
How to choose the suitable model of the product?
Please provide your requirements, we will recommend you the suitable product for you as soon as possible.
Can I order one set / piece?
Yes, one set / piece is ok.
what services can you provide?
Accepted Delivery Terms: FOB, CFR, CIF, CIP, DDP.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, L/C, D/P, D/A.
How to receive the quotation?
Please send us the inquiry via Alibaba or send us an email, we will provide the quotation within 24 hours.
