Product Overview
Description
BRIEF INTRODUCTION

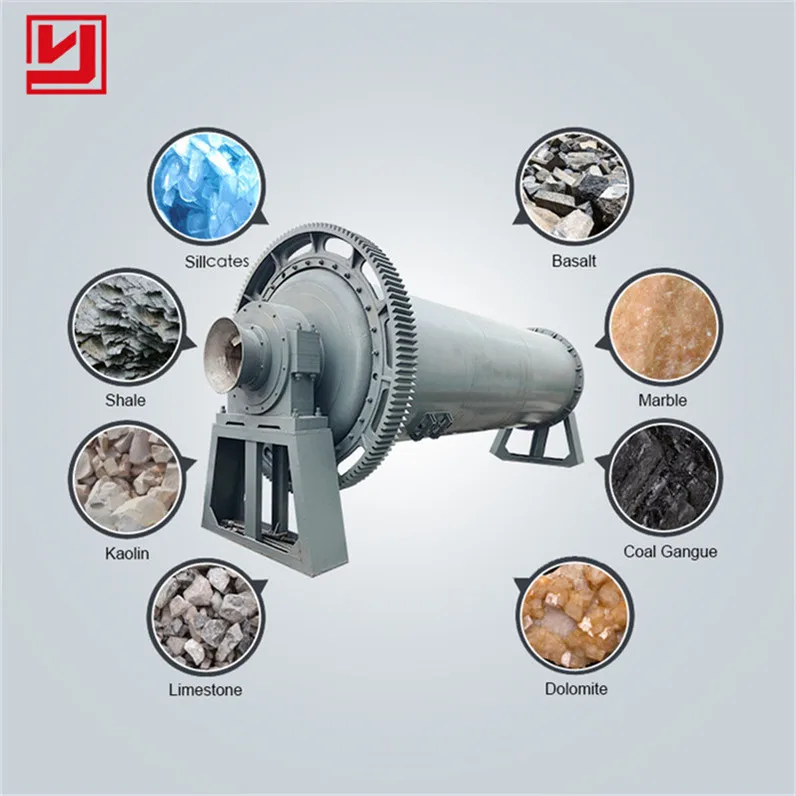

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.

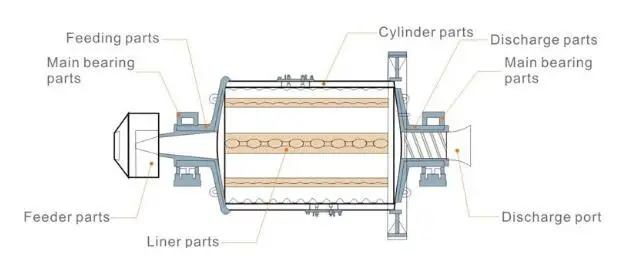

WORKING PRINCIPLE
1. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which has step or waved lining with steel balls in different specifications.
2. Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall. Thus it will give a heavy blow to materials, playing a role of grinding.
3. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding.
4. Powder shall be discharged from discharging grating, ending the milling process.

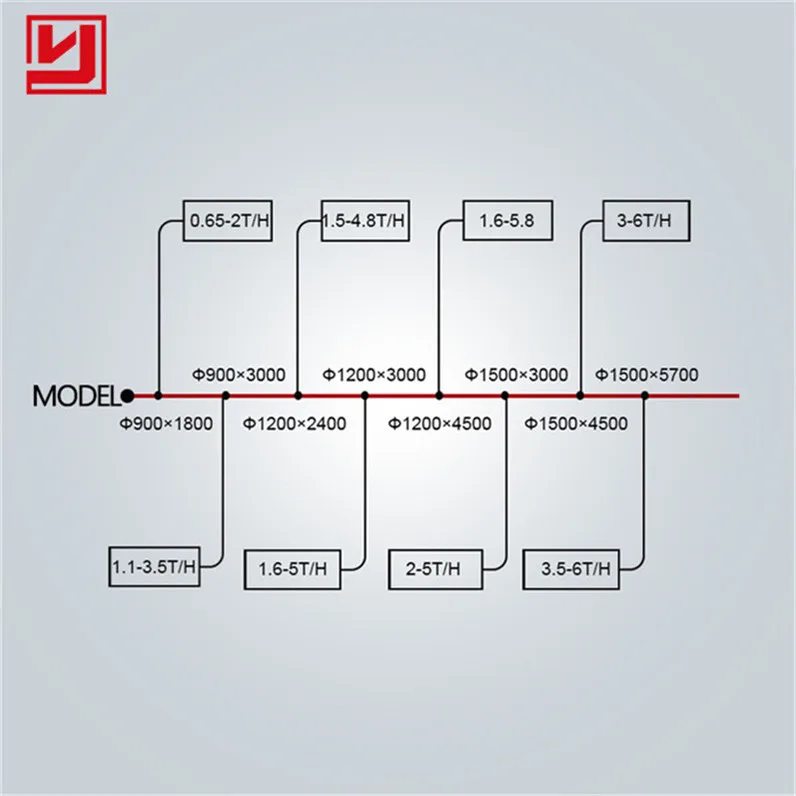

PRODUCT PARAMETERS
Model | Shell rotation speed | Ball load | Feeding size | Discharging size | Capacity | Motor | Weight |
(r/min) | (t) | (mm) | (mm) | (t/h) | (kw) | (t) | |
900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.5 |
900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.7 |
1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 12 |
1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.8 |
1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 16.8 |
1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 29 |
1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 35.5 |
1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34.8 |
2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 38 |
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
CONTACT SUPPLIER
Q2: What are the requirements for ball mill material?
A2: Our Yuhong has a high standard on choosing material of ball mill.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
CONTACT SUPPLIER
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2. raw material size before grinding?
3. raw material size after grinding?
4. What is the capacity per hour or per day?
CONTACT SUPPLIER
