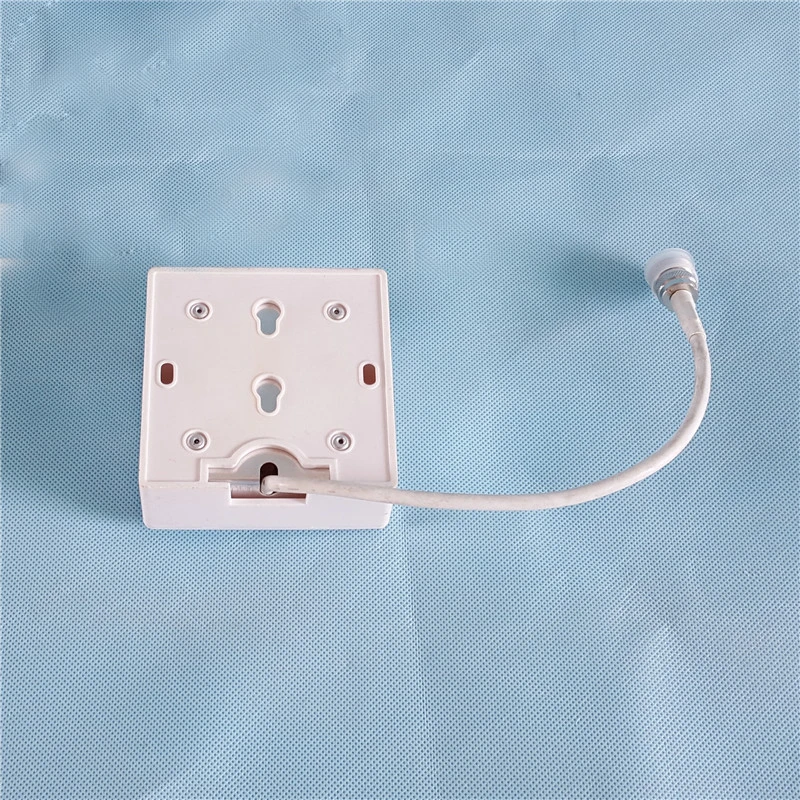

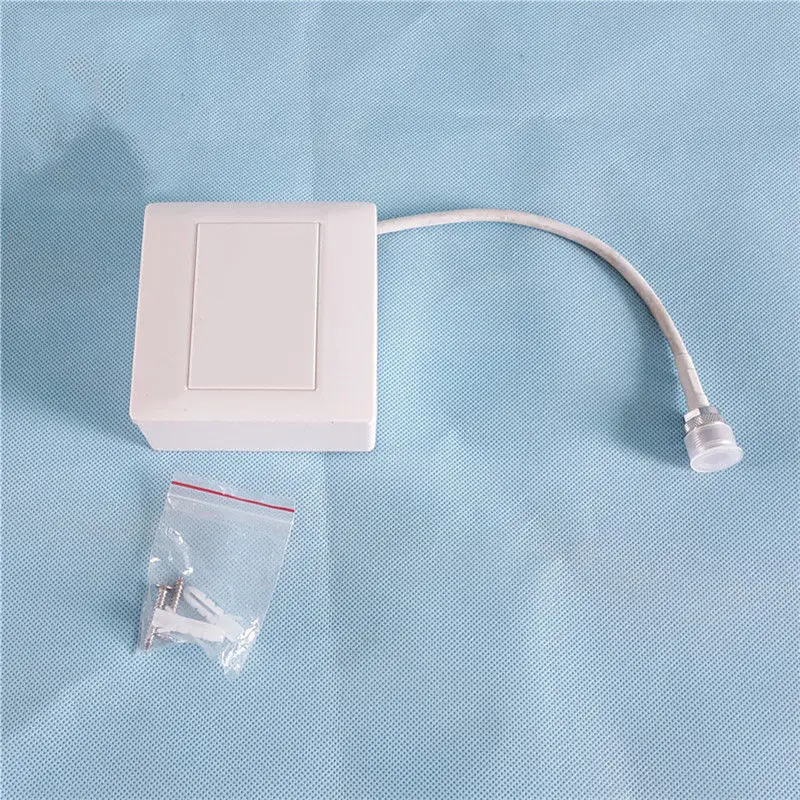

Beautify the antenna switch type Indoor beautification antenna Mini plate antenna
- Category: >>>
- Supplier: Shenzhen ZD Tech Co. Ltd.
Share on (62097816646):
Product Overview
Description
Beautify the antenna switch type Indoor beautification antenna Mini plate antenna
Product Description
Electrical parameters | ||||
Frequency Range(MHz) | 880-960 | 1710-2400 | 2400-2500 | 2500-2700 |
Gain(dBi) | 2 | 3 | 3.5 | 3.5 |
Horizontal-3dB Beamwidth(°) | 90±10 | 75±10 | ||
Vertical-3dB Beamwidth(°) | 85±5 | 65±5 | 60±5 | 55±5 |
VSWR | ≤1.5 | |||
Input Impedance(Ω) | 50 | |||
Max Input Protection(W) | 50 | |||
Intermodulation IM3(dBm) | -85 | |||
Front-to-back ratio(dB) | ≥10 | ≥15 | ||
Connector | N-Female | |||
Mechanical parameter | ||||
Antenna Dimension(mm) | 86 X 86 X 43 | |||
Weight(kg) | 0.26 | |||
Cover Material | ABS | |||
Application
Related Products
Company Information
FAQ
Q: Can offer the free sample?
A: Yes, we offer 1 free sample (But customer pay the shipping charge), or more samples need to pay on your account, the sample cost will be refunded once order confirmed.
Q: How do normally take payments?
A: T/T, Paypal, we also accept West Union.
Q: If goods are not the same as described in the contract pictures or samples provided?
A: Contact us within 48 hours: Return in exchange for replacement; Return in exchange for full refund.
