Product Overview

Description

Product Description

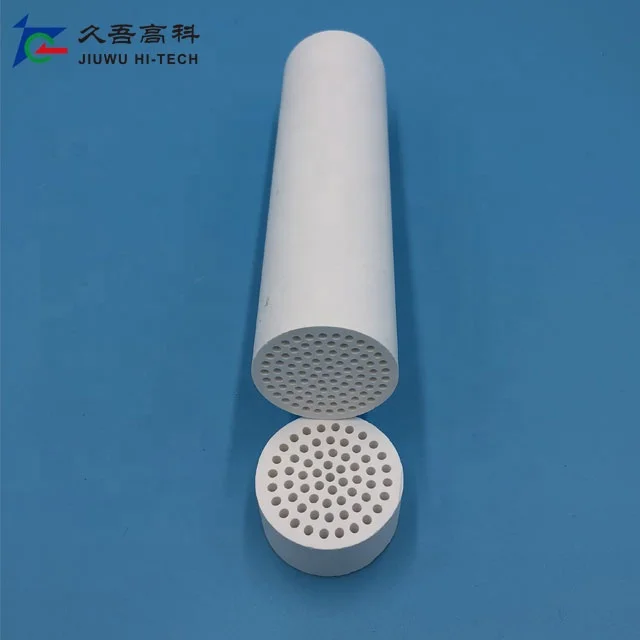

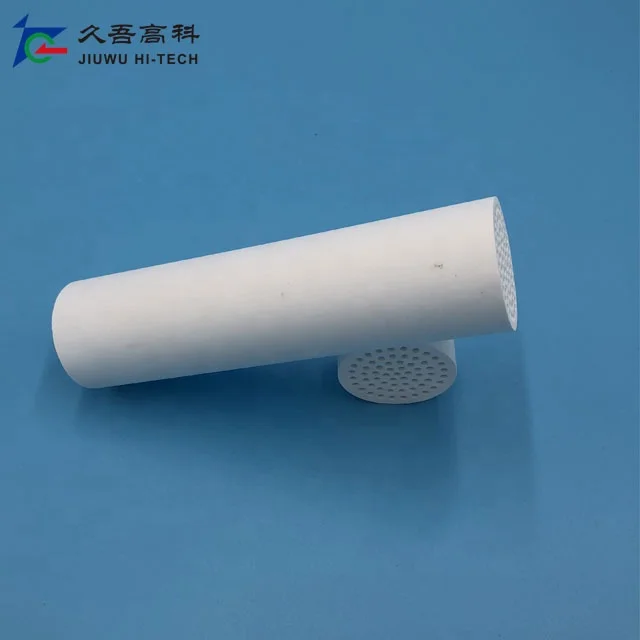

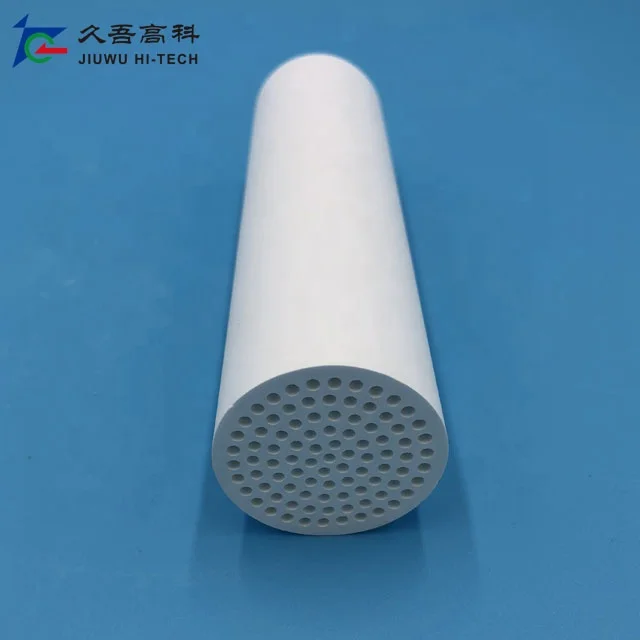

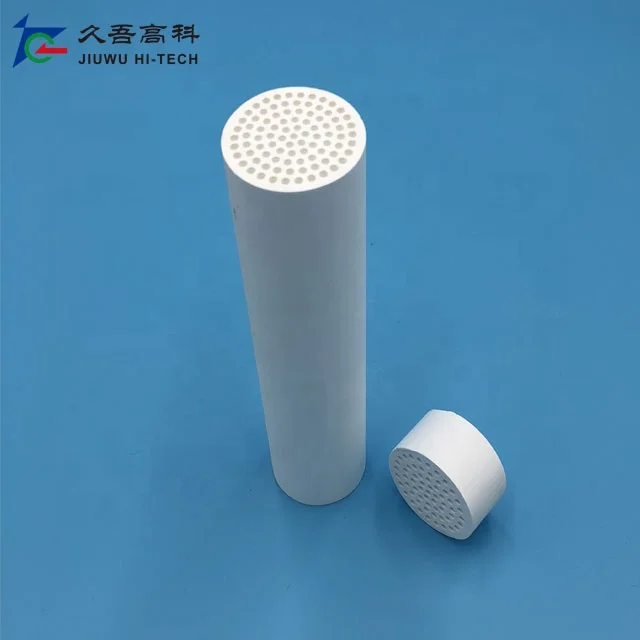

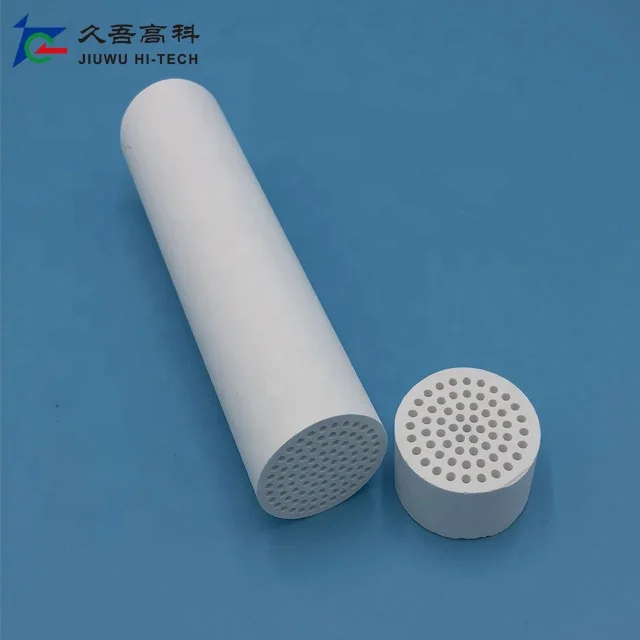

Ceramic microfiltration membrane element is made from alumina and zirconia which is an asymmetric membrane structure with multi-channel tubular shape. The pore is on the channel. Driven by operation pressure, the liquid is running in the membrane. The part less than pore size is permeation, the part lager than pore size is concentrated liquid, so as to achieve the separation, concentration and purification purposes.

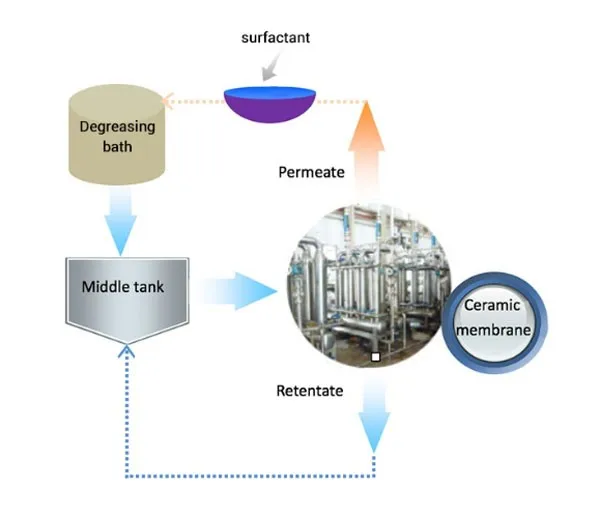

Selecting the appropriate ceramic membrane filtration precision, by utilizing the characteristics that oil molecules and water molecules differ by tens of times in size and hydrophilic membrane surface properties of ceramic membrane, oil molecules can be effectively rejected, and water, degreasing bath, and surfactant small molecules can be recycled through the membrane surface. The degreasing bath is concentrated by the ceramic membrane system, and the volume of the discharged waste liquid is greatly reduced.

Ceramic membrane
Model
CMF19040 CMF37036
Raw Material
α-Alumina/Zirconia
Pore size
50 nm, 100nm,200nm
Length
1200 mm
Membrane area
0.24 m2, 0.29 m2, 0.418 m2, 0.5 m2
Outside diameter
30 mm, 40mm
Channel Diameter
4.0 mm, 3.6mm
Channel Qty
19, 37
Gross Weight
1.5 kg, 2.5kg
Construction
Multi-channel tubular element
Operating conditions
Typical Operating Pressure
29-145 psi (2-10 bar)
Maximum Operating Temperature
302°F (150°C)
Maximum Cleaning Temperature
176°F (80°C)
Allowable pH - Continuous operation
0-14
Allowable pH - Clean-In-Place (CIP)
0-14
Application area
Food & Beverage
Bio- pharm
Chemical & Petro- Chemical
Water & Wastewater treatment
Features
Advantages
Exceptional mechanical resistance
Suited to high fouling liquids, viscous products, high concentration factors
Ability to withstand upset conditions and high frequency backpulsing cycles
Long service life
Wide chemical and pH compatibility(0-14)
Easily sanitizable and sterilizable
Suited to treating acid or alkaline feed
Long service life
Excellent thermal stability
Suited to continuous hot temperature operation and numerous CIP cycles
Long service life
Cross-flow filtration
Continuous process
No filter cake
Easy cleaning, CIP
Excellent inorganic materials
Easy maintenance, low maintenance cost
Long work life


Detailed Images

Ceramic Membrane System

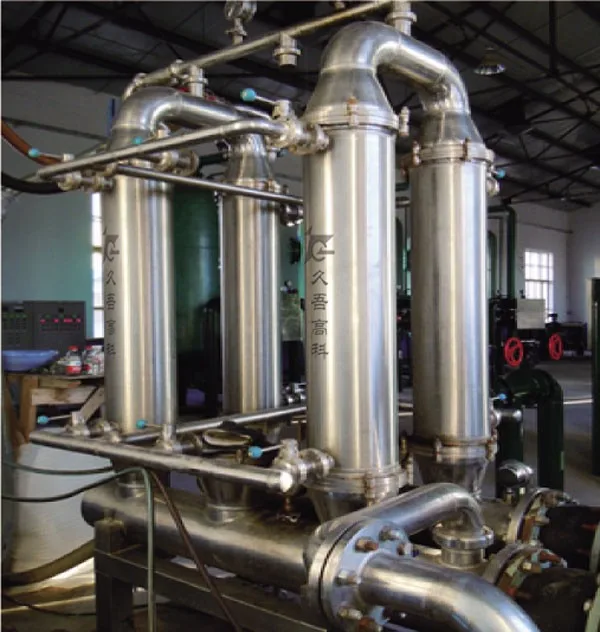

Skid-mounted device (Ceramic Membrane Filtration System) effectively allocates and stores machine for process and modular systems in the field of solid-liquid separation. A CMF skid-mounted device is designed by order and fully optimized as process flow, which includes CMF unit, power part, control part and supporting pipelines, valves and instruments. The device can be designed as a containerized device.

Ceramic Membrane Module

Housing is designed with standard connectors (flange, clamp, whorl coping) to attach with incoming and outgoing piping. This includes a manifold, which directs incoming flow to all ceramic membrane elements in the housing. The housings are produced from different types of stainless steel, coated steel or plastic, titanium, as required by the application. The sealing material holds elements in the weakest place in housings. A wide array of materials (EPDM, Fluoro rubber, silicon) is available by customer's needs.

Ceramic Membrane Element

As a core technology, JIUWU has become the largest ceramic membrane element producer and a world leader in cross-flow filtration. JIUWU ceramic membrane element is tubular composite membranes on an open porous carrier tube made of high purity α-alumina oxide (AL2O3) and titanium oxide (TiO2). The ceramic membrane element is optimized for maximum water permeability and high mechanical stability.

certificate
Packing & Delivery
Destination
Express delivery
Air cargo and ship cargo
America
√
√
Europe
√
√
Southeast Asia
√
√
Africa
√
√
Company Information

JIANGSU JIUWU HI-TECH CO.,LTD (referred to as "JIUWU HI-TECH") was founded in 1997. In 2017, JIUWU HI-TECH has listed on Shenzhen stock exchange (stock code: 300631). Now it becomes the largest ceramic membrane manufacturer in the world.

FAQ

What Are The Advantages Of Ceramic Membrane?

Compared with such traditional filter like polymer membrane, ceramic membrane has many unique advantages:High separate accuracy, limpid and transparent filtrate with little content of impurity;

● Pure aluminium oxide brings membrane excellent performance on resistance to acid and alkali and makes the membrane longer working life;
● No additive needed, the dense bacterial residue can be recycled as feed, so it's an environmental friendly technology;
● Operate under normal temperature and obturation, which ensure product activity. More of the original flavour and aroma of the fruit is retained;
● Higher yield rate of high quality products;
● The membrane pore size keeps asymmetric distribution and low slow decay, and maintain high flux filtration;
● Greatly reduce the discharge of waste;
● Membrane runs with high strength and excellent wear resistance
● Controlled by PLC automatically
● Less grounding necessary for installation &small footprint

How Does Ceramic Membrane Work?

During filtration by means of ceramic membrane made by JIUWU the medium to be filtered flows through the channels of the membrane carrier. All particles whose size exceeds the pore radius of the membrane are retained. The particles /molecules build up in the concentrate. The filtrate permeates through the pores and depending on the procedure is subjected to subsequent process stages. This filtering method is also called "cross-flow filtration" or "dynamic filtration" . Cross-flow management can achieve stable fluxes. Cleaning is performed by means of backward flushing or chemical cleaning.

Does Ceramic Membrane Need To Be Cleaned?

Membrane fouling is a major obstacle to wide spread application of the membrane. It is the phenomenon whereby the membrane permeated flux decreases and the transmembrane pressure (TMP) rise with the passage of time due to the membrane fouling. To solve the problem, cleaning step is must be took, or the membrane after using can be exchanged.

What Is The Structure Of Ceramic Membrane?

From the perspective of microstructure, the inorganic ceramic membrane has two structures: "symmetric ceramic membrane" and "asymmetric ceramic membrane". Since asymmetric ceramic membrane has better mechanical strength and higher permeation flux, which has dominated industrial application. Industrially applied and widely promoted porous ceramic membrane is mainly composed of three layers: the supporting layer, transition layer, separation(membrane) layer.
