Solid surface polish artificial marble granite tile polishing machine
- Category: >>>
- Supplier: Foshan Nanhai Zhuodi Machinery Co. Ltd.
Share on (62097883732):
Product Overview
Description
Product Description

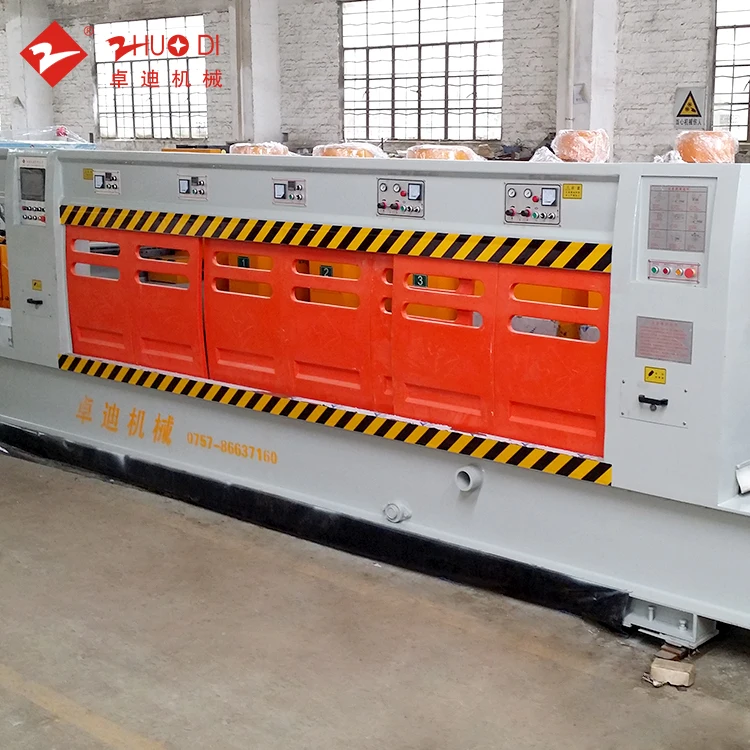

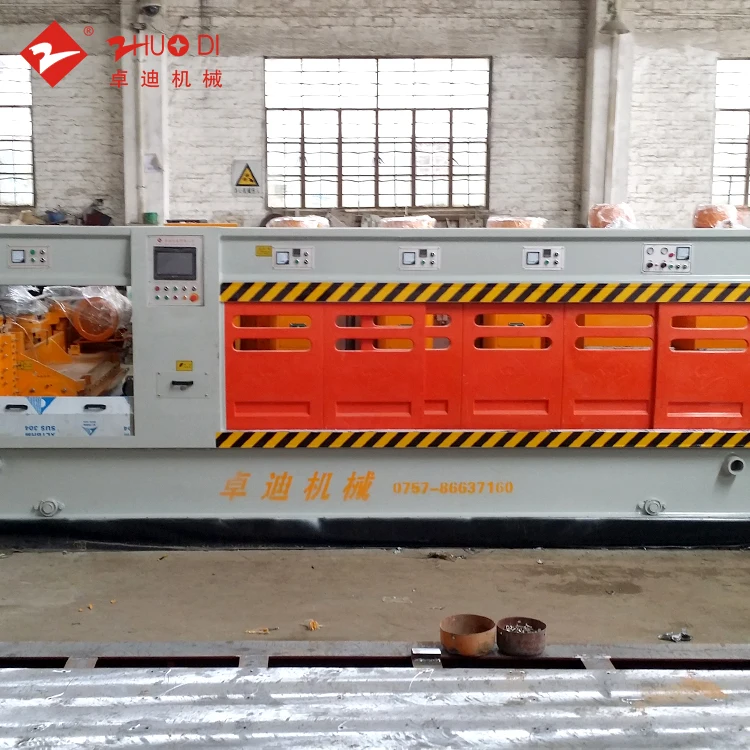

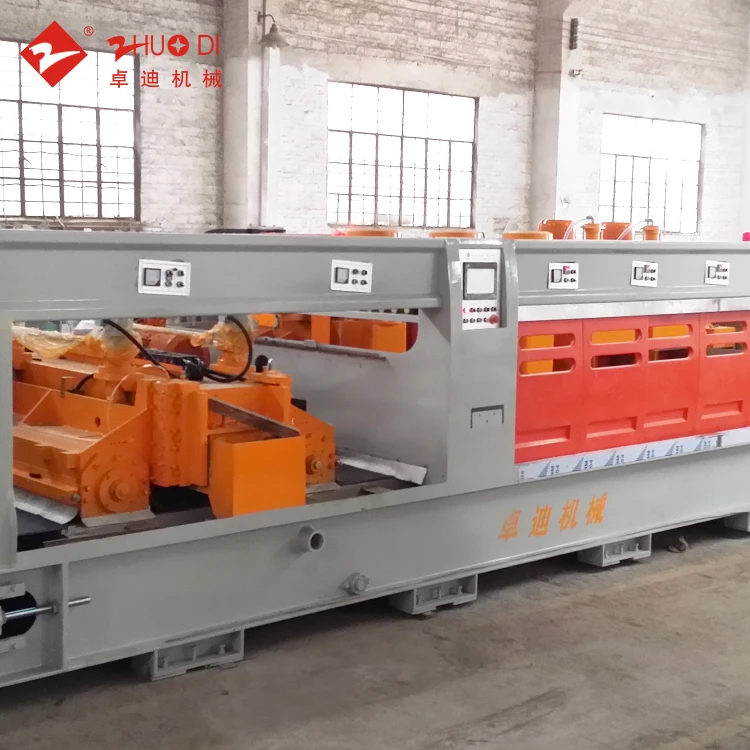

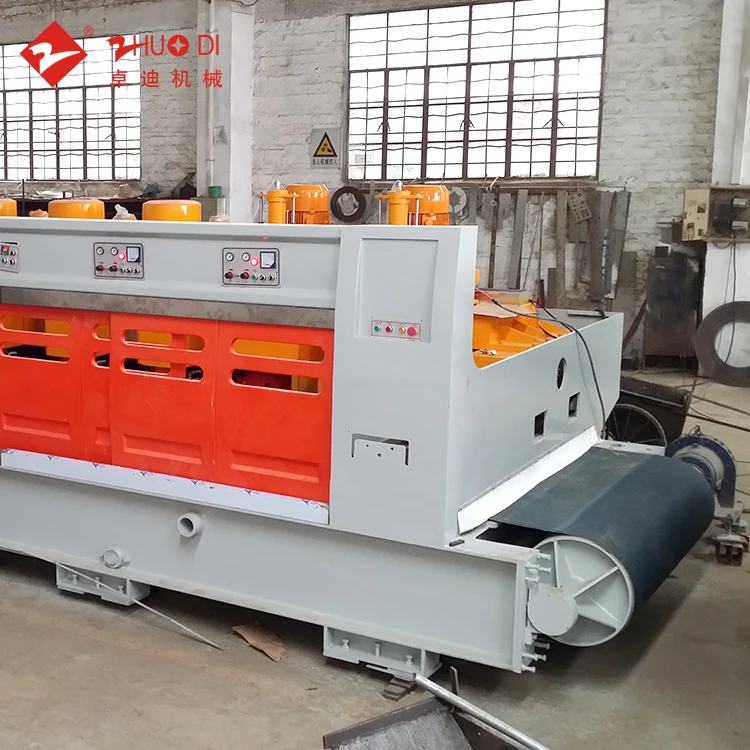

Crank Structure Polishing Machine This machine is our latest revolution polishing machine. Other than the traditional design, a double crank structure is introduced into the oscillating system. Driven by the double helical gear reducer with frequency control, the oscillating amplitude can be controlled by adjusting the length of the crank. Thanks to the new design, the polishing process is running more stable, no impact, no grinding dark mark, perfectly solve the water mark problem, and increasing the polishing precision. Automatic lifting waterproof door can reduce the working intensity and ensure the safety of workers. This design is with independent intellectual property rights |
| Tchinical Parameters | ||
| Item Code | ZPSY1650 | |
| Grinding Heads(optional) | 12 | |
| Grinding Heads Power | 11kw | |
| Swing Power | 2*4kw | |
| Main Driving Power | 3kw | |
| Water Consumption | 400L/min | |
| Gas Consumption | 260L | |
| Dimension | 13210*3300*3000mm | |
1. Can you provide me with the product parameters
one polishing line two press lines semi-Auto distribution.
full production line dimension:117800*76840*14300mm(L*W*H)
Final slab dimension:760*2440mm;800*3100mm
thickness:10-30mm
daily capacity:360 slabs/day(20 hours)
annually capacity:260.000sqm/year
3. What is the size of the whole factory
one polish line can support 2 press lines
whole line dimension:136250*98280*10500mm(L*W*H)
Final slab dimension:1600*3200mm
thickness:10-40mm
daily capacity:480 slab/day(20hours)
annual capacity:720.000sqm/year
4. Do you have a perfect after-sales service system
with professional R&D team,providing pre-sales services,and timely solution.
12 year in engineered quarts stone production experiences,we can provide full training and technical support for our customers.we will
grow with our customers and develop new products with our customers.
with zhuodi machinery ,it's possible to produce any design of quartz.we also can customize and design the machine according to the actual demand,
ensure the easy operation during the production with the low cost,high production and high quality.
