5 Color Traffic Signal Sign Screens Trailer Mounted Variable Message Display Control Traction Moving Vms
- Category: Traffic Signs >>>
- Supplier: Yiwu Hankun Electronics Technology Co. Ltd.
Share on (62097943934):
Product Overview
Description
Product Description

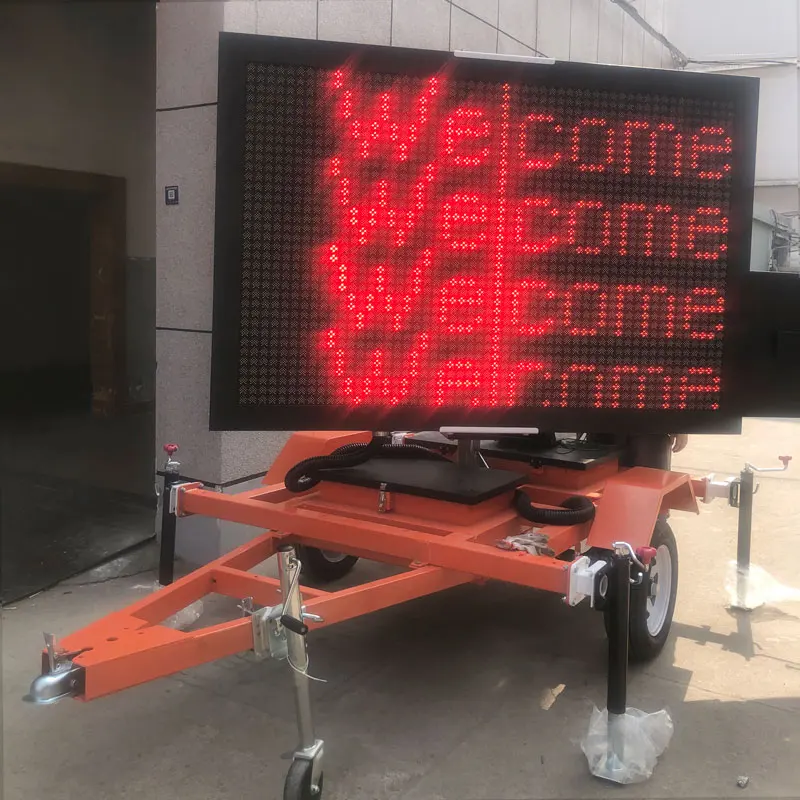

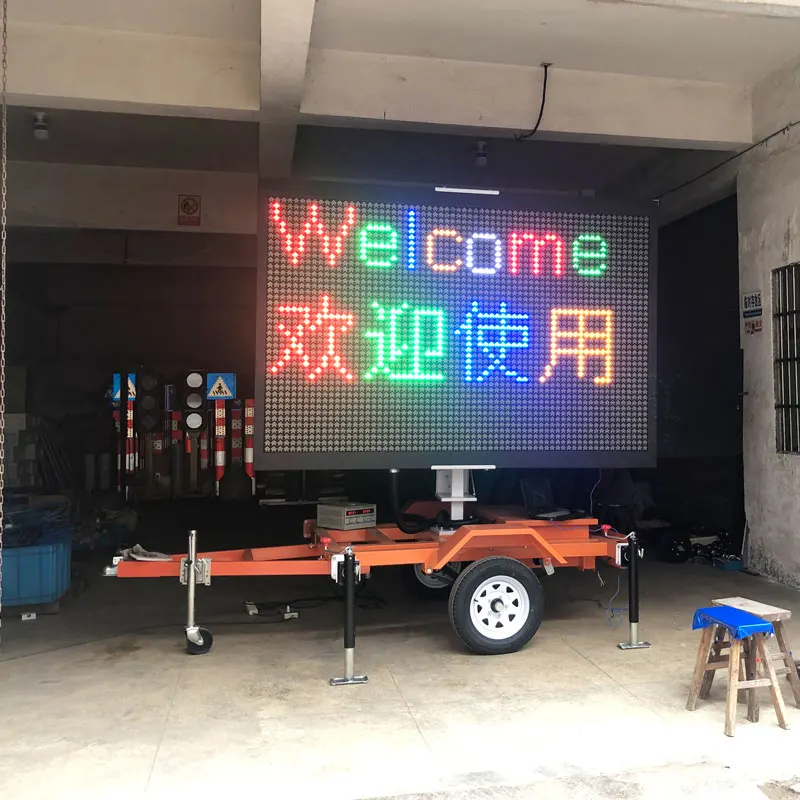

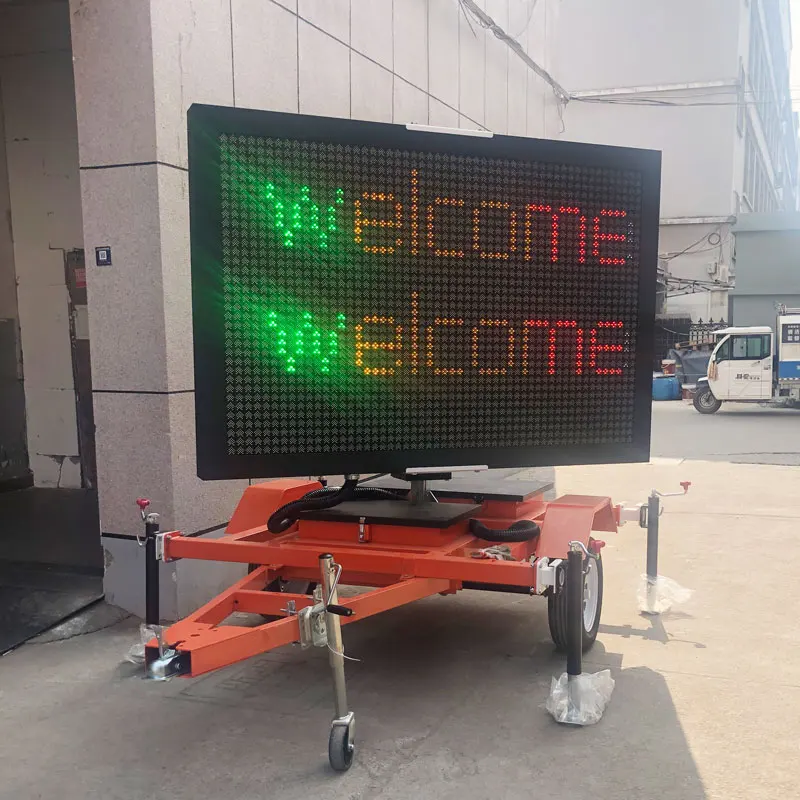

Color Traffic Signal Sign Screens Trailer Mounted Variable Message Display Control Traction Moving Vms
Product Introduction
- Variable Message Signs,otherwise Known as VMS boaeds
- They are traditionally used in traffic management,road works and other projects
- The words are clearly and runs 24 hours a day,7 days a week,in any weather condition
- Trailer Signs deliver,set up and secure your VMS (electronic message board)
- We program your message remotely and can change it for free at any time
- Have street frontageTrailer Signs (Eletronic Message Boards)
- Also it will be a graet way to establish traffic management at your event,function or business site
Product Parameters
| Trailer | Itme | Parameter |
| Material | Square steel tube(80*80*40 mm),8*8*4cm,channel steel customzied | |
| Color | Amber or orange/customized | |
| Fender | Good radians between wheels and fenders made it stable | |
| Damping spring | Double spring 750*50*5P,chassis shockproof protect the display | |
| Wheel | 175 / 70R13, bearing 675kg. Maximum speed 100KM / H, maximum load 1.5T | |
| Guide Pulley | Adustable lifting±30cm,load-bearing 2000LB(907K) | |
| Trailer Jack | 360 degree rotation,height:55cm,open height:85cm Rotate the handle to adjust the height of the car body support | |

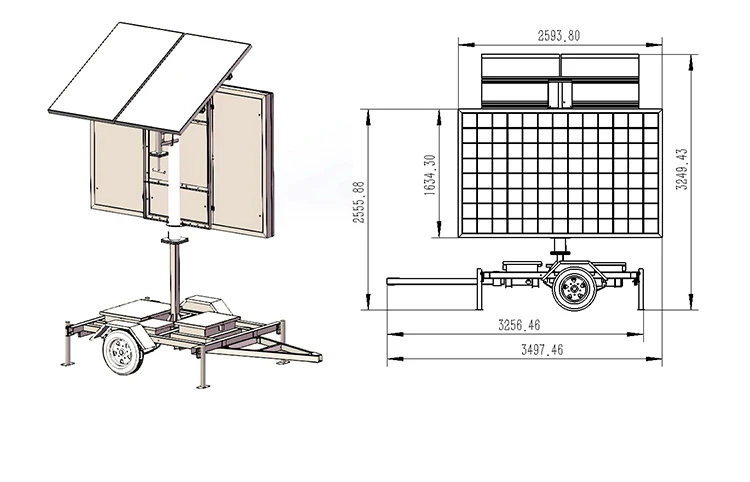

| Trailer Size | 350W*2050H*2700D(mm) Specifications according to LED screen body | |
| Brake System | Non-brake or with brake or automatic- brake / customized | |
| Screen Rotation | 360 degree rotation of the screen, any point lock function / customized | |
| Rear Light Function | The electric brake is used together with the power source, and the turn signal, width indicator and brake light/customized | |
| Reflect Sheet | Customized | |
| Lifting System | The display screen has electric and hydraulic system lifting options,1200MM | |
| Draw Bar | Length:120cm/customized | |
| Trailer Speed Limit | 70KM/H | |

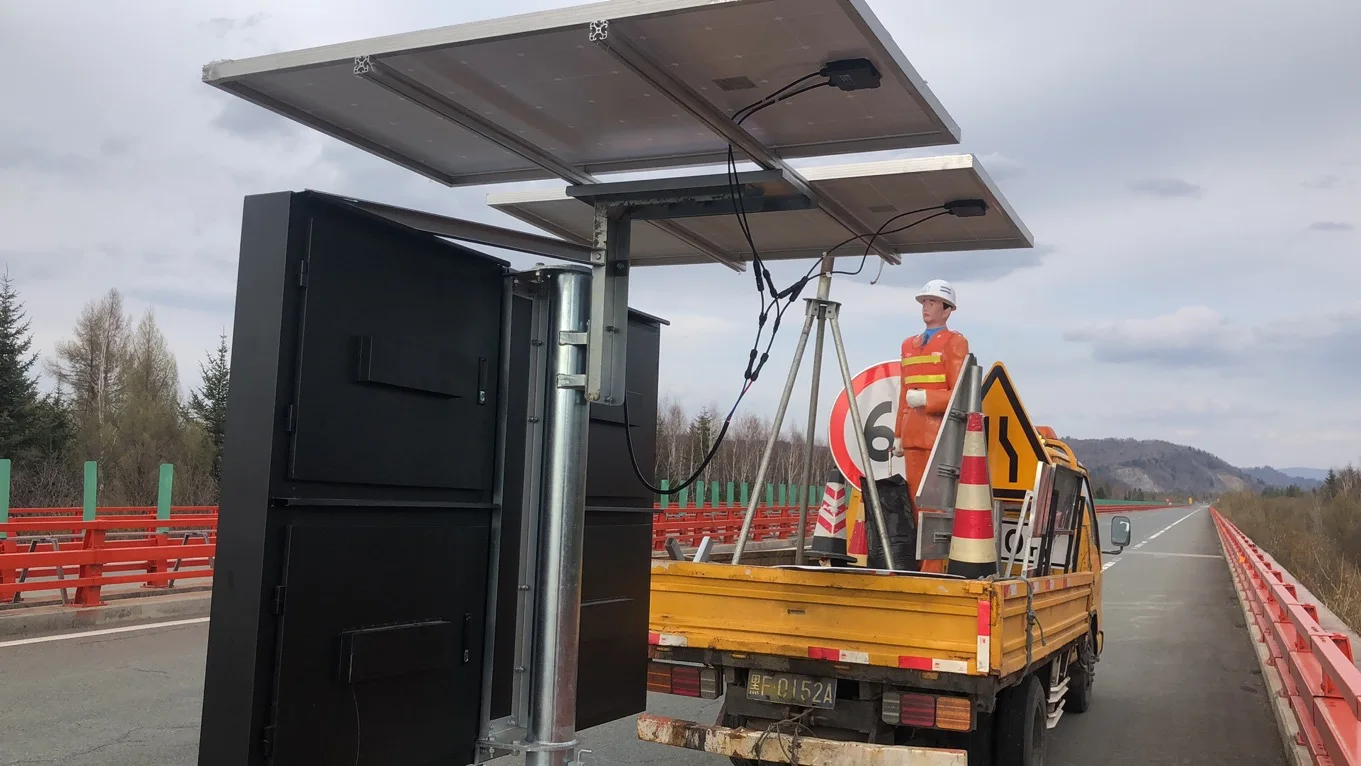

| Solar System | Solar Panel | 18V/250W * 2P mono-crystalline silicon solar panels |
| Solar Charge System | 60-100A charge manager and the mains charge management | |
| Battery | Lead-acid valve control battery 12V/250AH * 2P Warranty 3 years | |

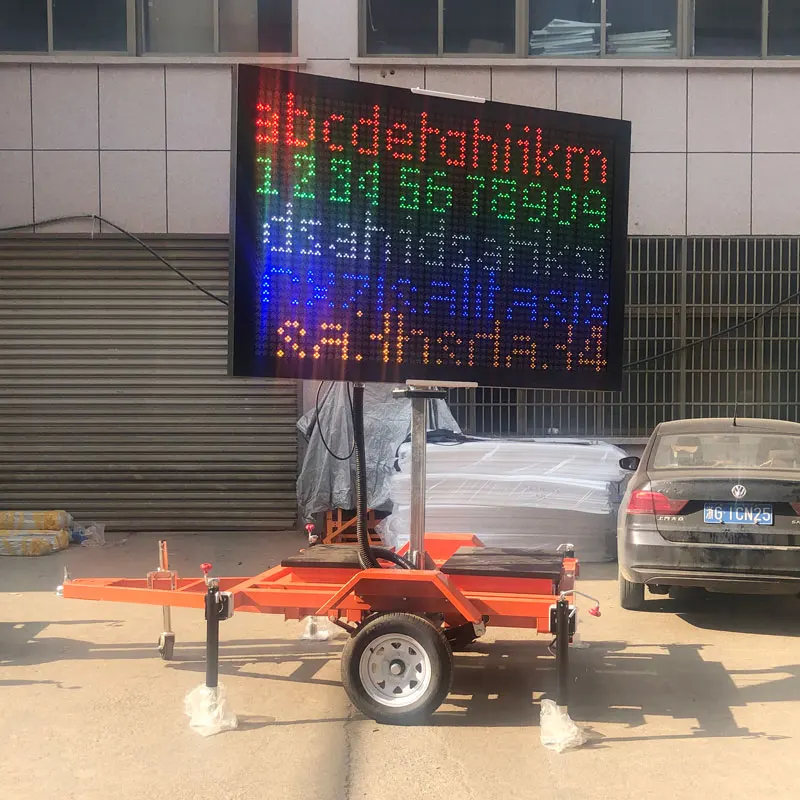

| LED Display | Size | 1200W*1600H(mm)/customized |
| Brightness | ≥8000MCD/ M2 | |
| The consumption of energy | ≤800W/M2 | |
| Pixel Distance | P10/P16/P20/P33.3/customized | |
| Waterproof | IP35/58 | |
| Chip | Wafer/customized | |
| Software Control System | WIFI / computer / mobile phone / USP / USB and so on | |
