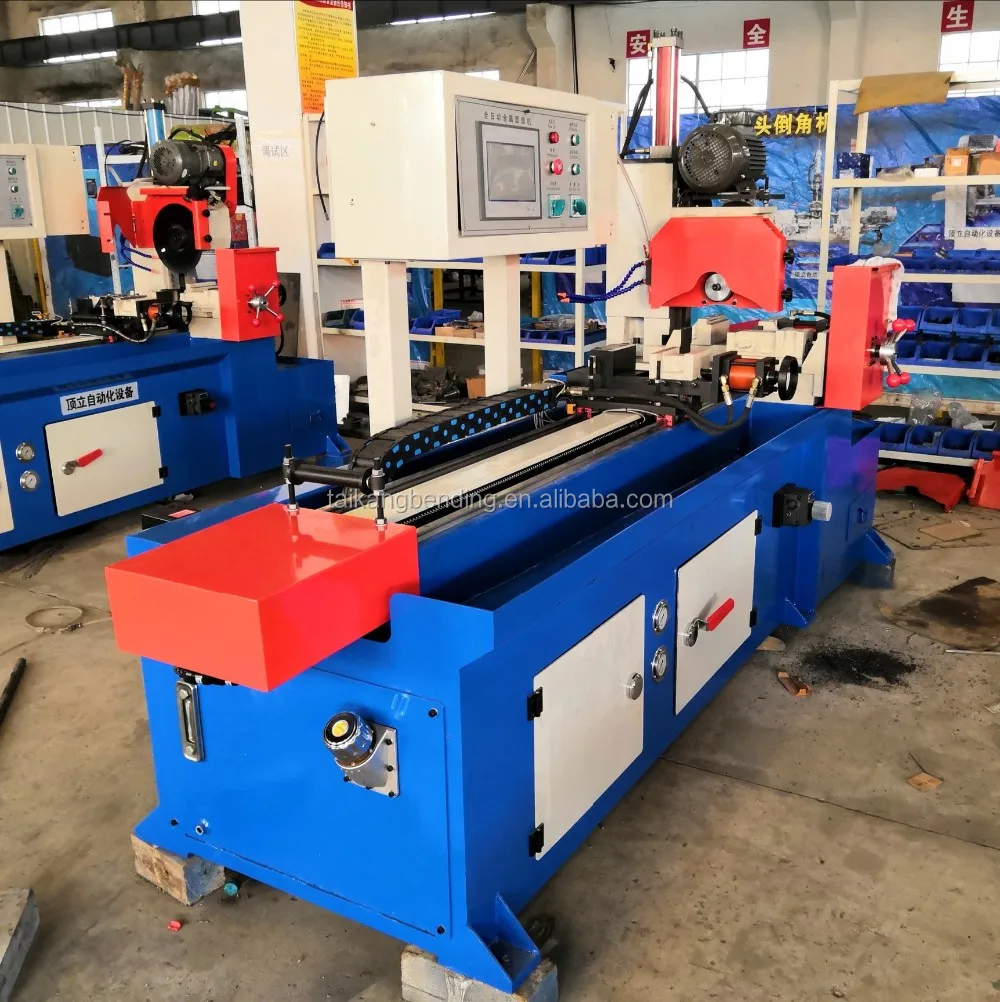

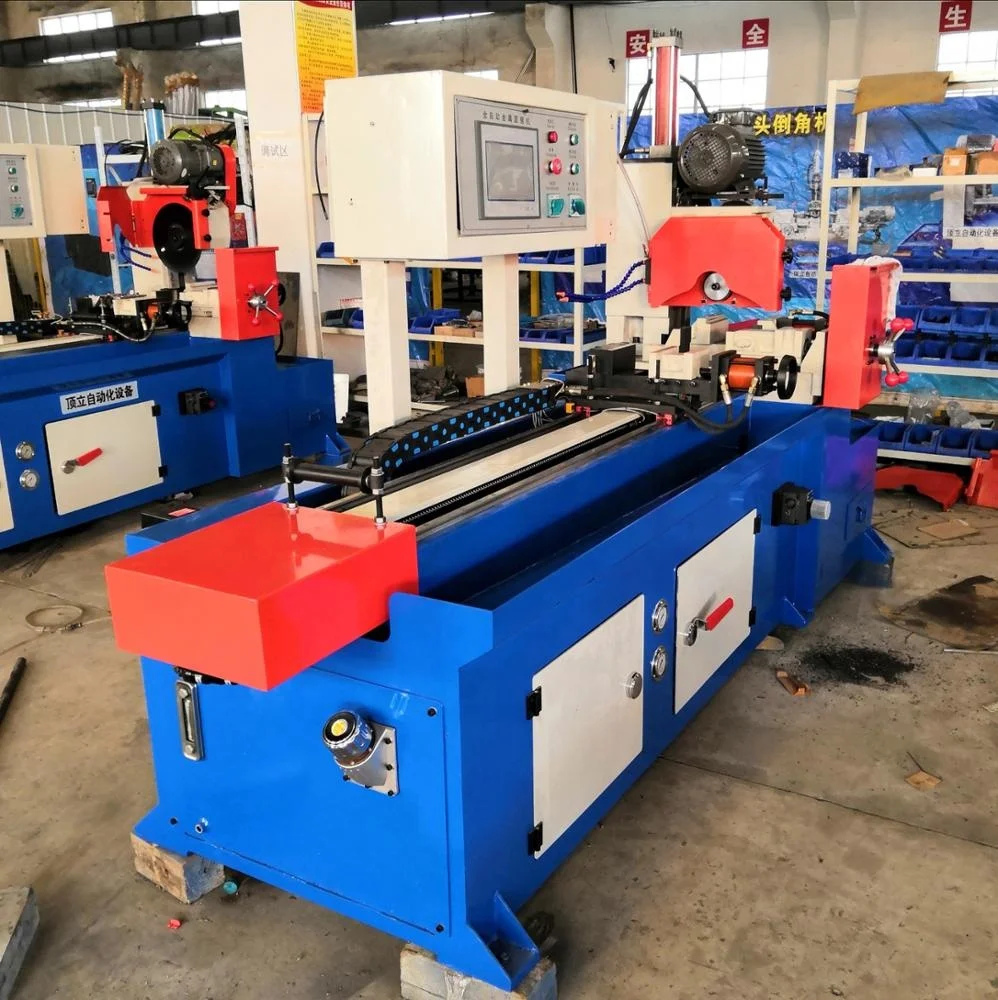

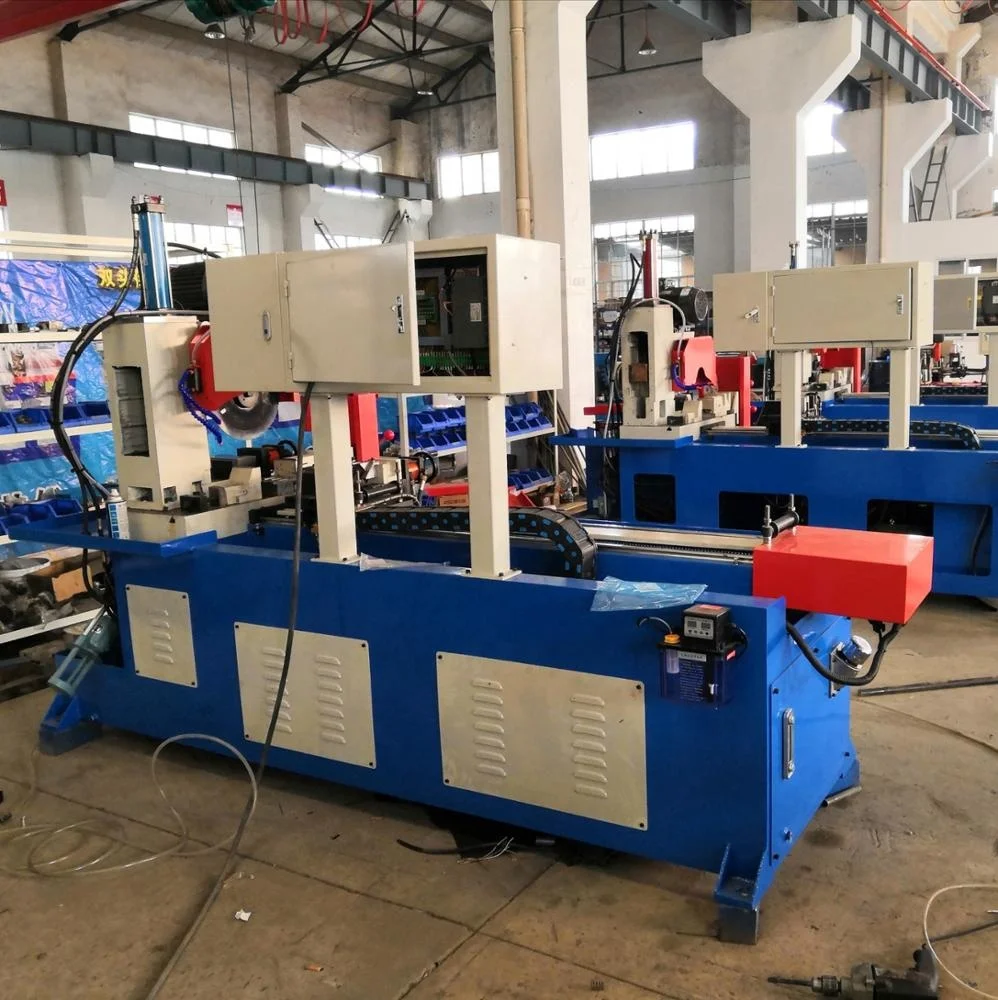

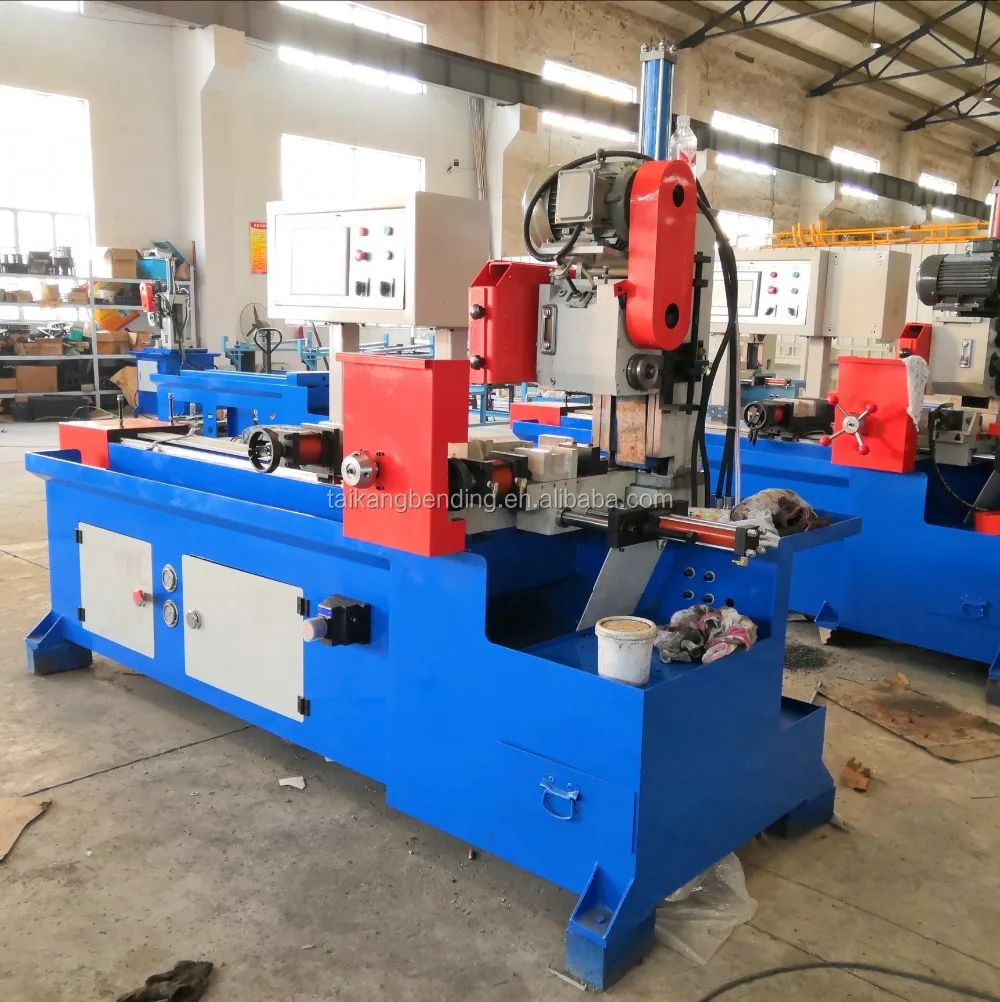

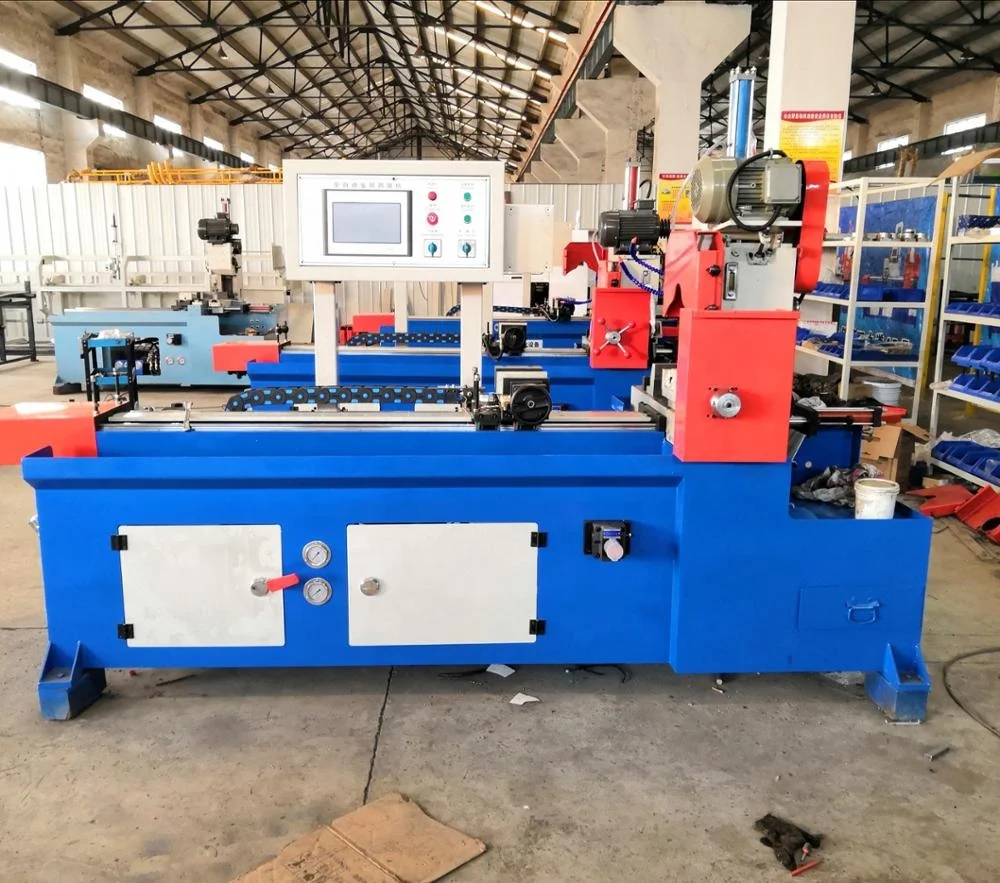

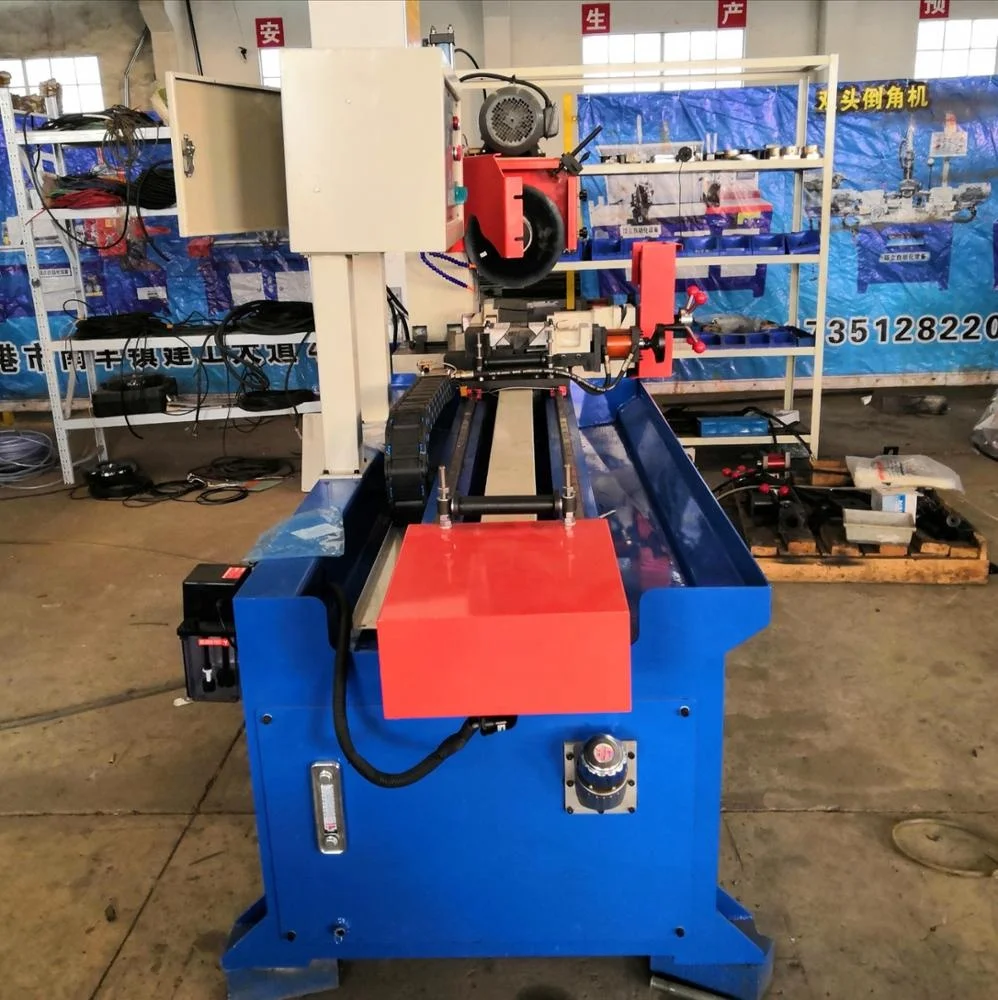

Mc 425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine
Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine
Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine
Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine
Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine
Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine
Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine

Mc 425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine

Share on (62098089699):


Price:$9,000.00 - $9,800.00

Quantity:


Product Overview

Description


Product Description

Product Application

Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine with PLC control system. Servo feed for cutting. Touch screen panel display English and the Language you required, servo feeding leght can be selected from 6mm to 1000mm, dialogue operation on touch screen , you can choose manual , semi-automatic and full automatic operation, portable pedal switch with start and emergency stop function.

\t
Item No.
\t
Name
\t
Parameters
\t
\t
1
\t
Master motor
\t
3.3/5kw
\t
\t
2
\t
Spindle speed
\t
96/48 RPM
\t
\t
3
\t

Apply cutting blade
\t
Outer Diameter
\t
Φ300-500mm
\t
Center hole
\t
Φ32mm
\t
Pin hole
\t
2XΦ11X65mmPCD
\t
4
\t
Feed length
\t
1000mm, option can be extended to 1500mm
\t
\t
5
\t
oil pump system
\t
2.2kw,4 motor, Double oil pump, Working Pressure25-35 Bar
\t
\t
6
\t
cooling system
\t
0.09kw motor,Automatic cooling cycle
\t
\t
7
\t
Machine weight
\t
1200KG
\t
\t
8
\t
Machine Size
\t
2700x1300x2000mm
\t
\t
Cutting ability (mild steel)
\t
\t
\t
\t
Specifications/Model
\t
MC-425SL CNC
\t
Remarks
\t
Cutting blade size
\t
Φ400mm×3mm
\t
The CNC pipe cutting machine is automatic feeding, clamping and cutting.
\t
Type
\t
○ Round pipe
\t
Φ150mm
\t
□square hollow pipe
\t
125x125mm
\t
□ Rectangle hollow
\t
160x80mm
\t
● Solid bar
\t
Φ100mm
\t
■Solid square bar
\t
80x80mm

Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine

Main Features

Mc-425SL CNC Circular Saw Stainless steel Pipe Cutting Machine Metal Cutting Machine profile cutting machine

1) The cutting head sliding down and up on rail driven by hydraulic pump, stable cutting force and increase the service life of cutting blade.


2) Special design for gearbox suitable for heavy cutting, improve precision and stability

3) The machine foundation structure is strong with little vibration, service lifelong

4) Cooling automatic circulation, ensure the workpiece cutting edge smooth.

5) PLC control, centralized operation, sensitive, easy for maintenance and repair.

6) Floating feeding system, accurate and rapid, no damage on workpiece surface.

7)Clamping pressure adjustable, to avoid deformation during clamping the workpiece.

8)Equipped with electronic protection for cutting blade wear, automatic shutdown.

9)Counting scale can be set number and stop function.

Detailed Images

Machine Parts

Name: Hydraulic clamping system

Brand: Hengli

Original: China

the clamping force can be adjusted to avoid workpiece surface damage or deformation .

Electrical Part

Name: Electrical switch
Brand: ZhengTai
Original: China
Domestic famous electrical switch brand, high reliability

Machine Parts

Name: Auto lubrication pump
Brand: Yu PUI
Original: China
Every working shift make setting and automaticly lubricate moving parts

Main Features

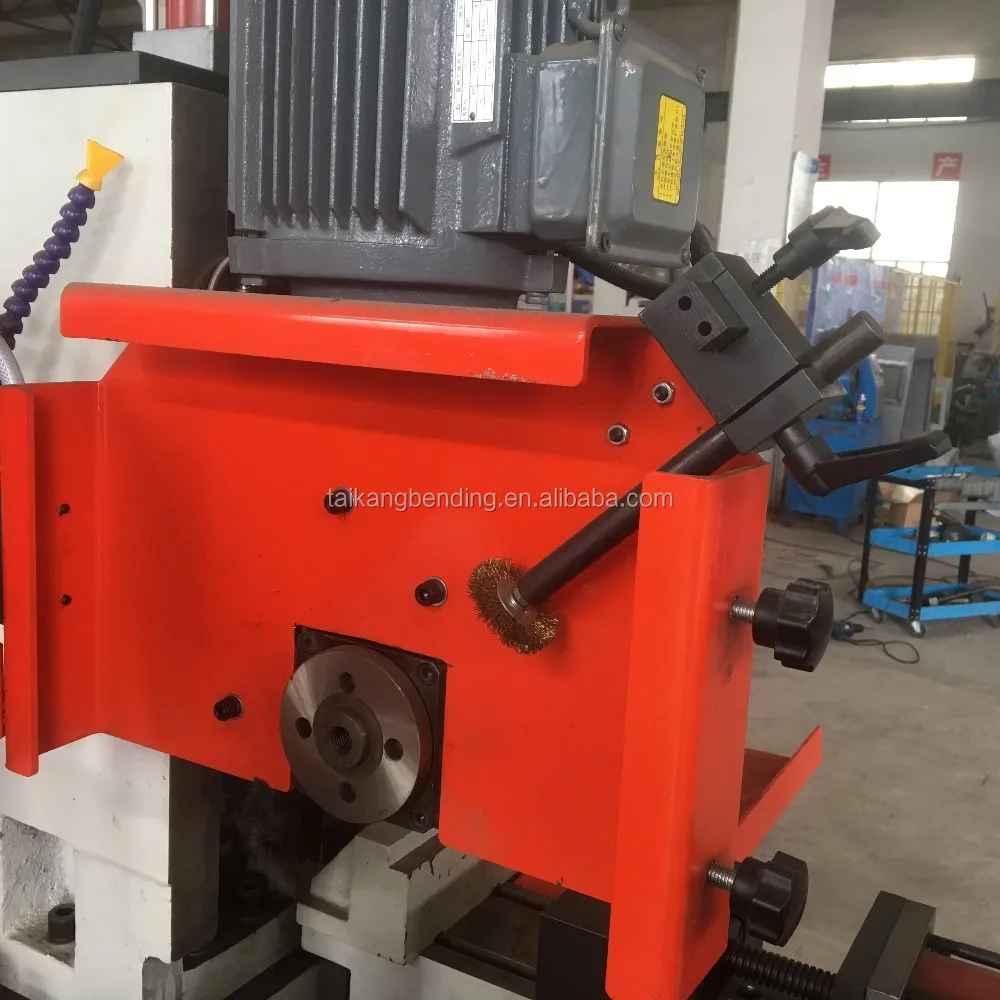

Name: Brush
Brand:
Original: China
Automaticlu remove iron dust from cutting blade, improve cutting ability

Samples
Our Service

Pre-Sales Service

* Inquiry and consulting support.
*Provide technical suggestion and package solution
* Sample testing support.
*Reply within 24 hours
*Provide progress information
* View our Factory.

After-Sales Service

*Test the machine before shipment
* Provide technical training relate to use the machine.
* Engineers available to service machinery overseas.
* Free spare parts within one-year warranty period
* Reasonable price for spare parts after warranty
* Provide long-term technical assistance.

Our Company

About our company.

Suzhou TaiKang Machinery Co.,Ltd. Founded 2015.One of top manufacturer in China.Specializing in design and manufacturermachines for pipe process equipment and
tailor made solutions for the global supplier.
Our business philosophy is Client First,Quality First and Honesty First. We sincerely welcome worldwide potential buyers and overseas distributors to contact and visit us for cooperation.
