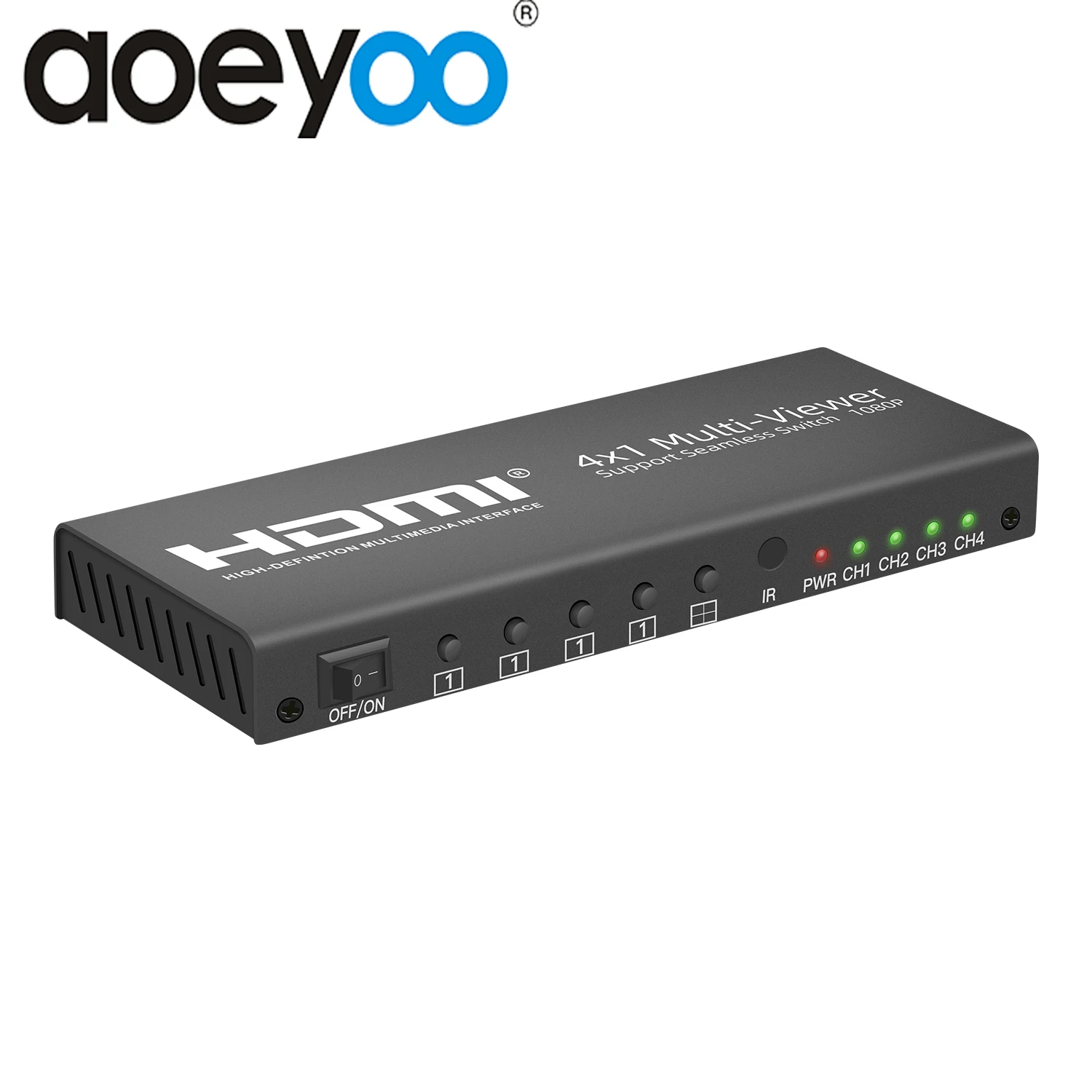

AOEYOO HD 4x1 Multi viewer Switcher Support Seamless Switch High Quality with Different 5 Display Mode and IR Remote Be 225mhz
- Category: >>>
- Supplier: Shenzhen Aoeyoo Times Technology Co. Limited
Share on (62098204840):
Product Overview
Description
Product Description
Detailed Images
Packing & Delivery
Introduction:

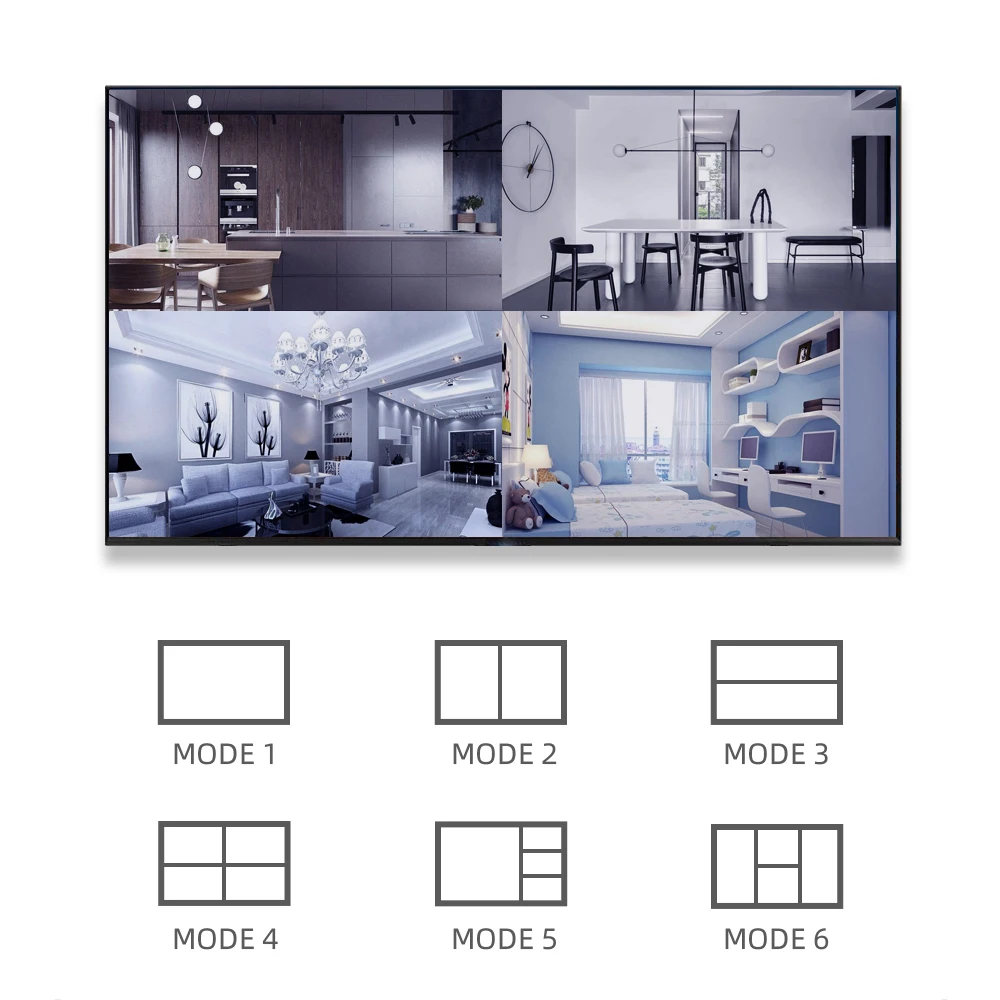

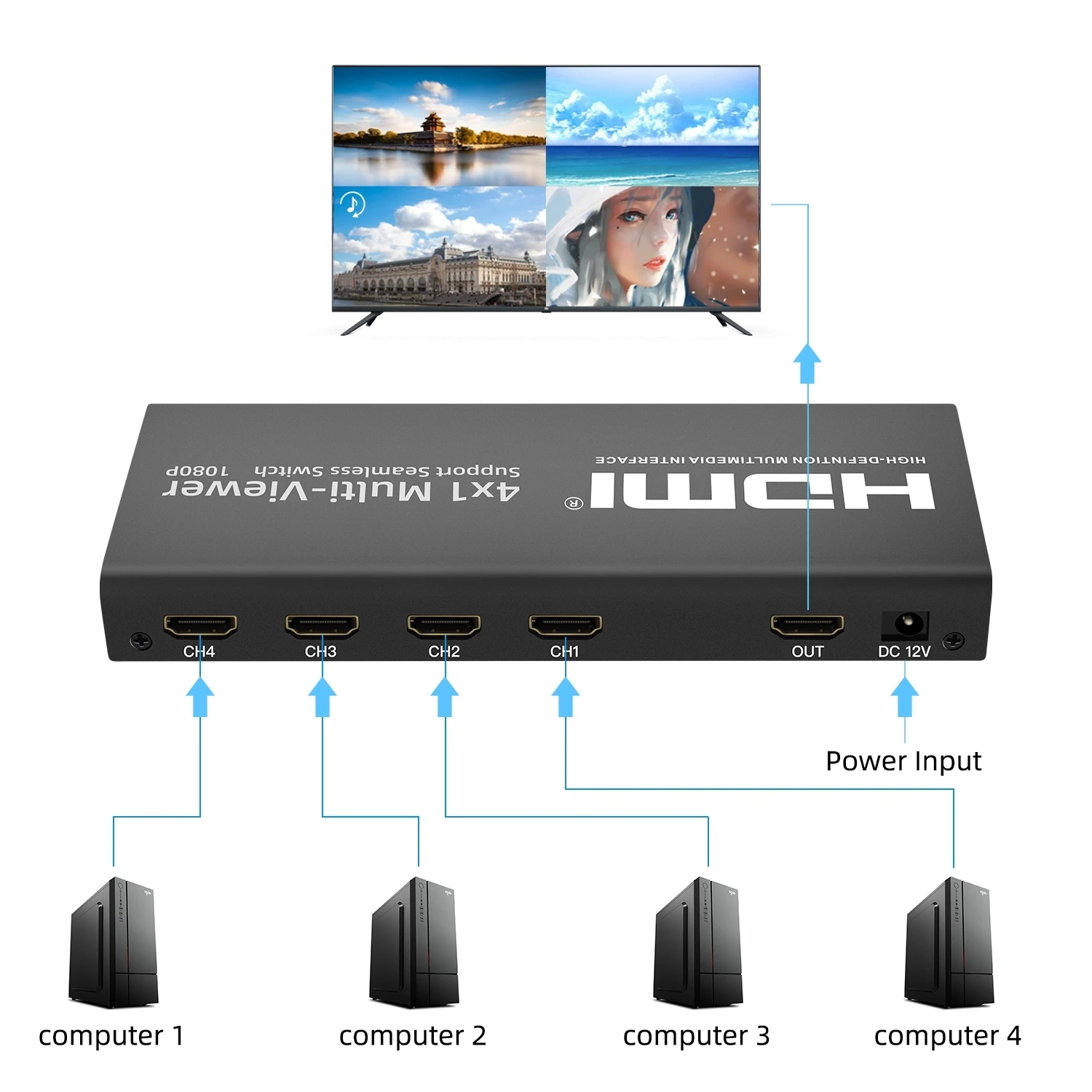

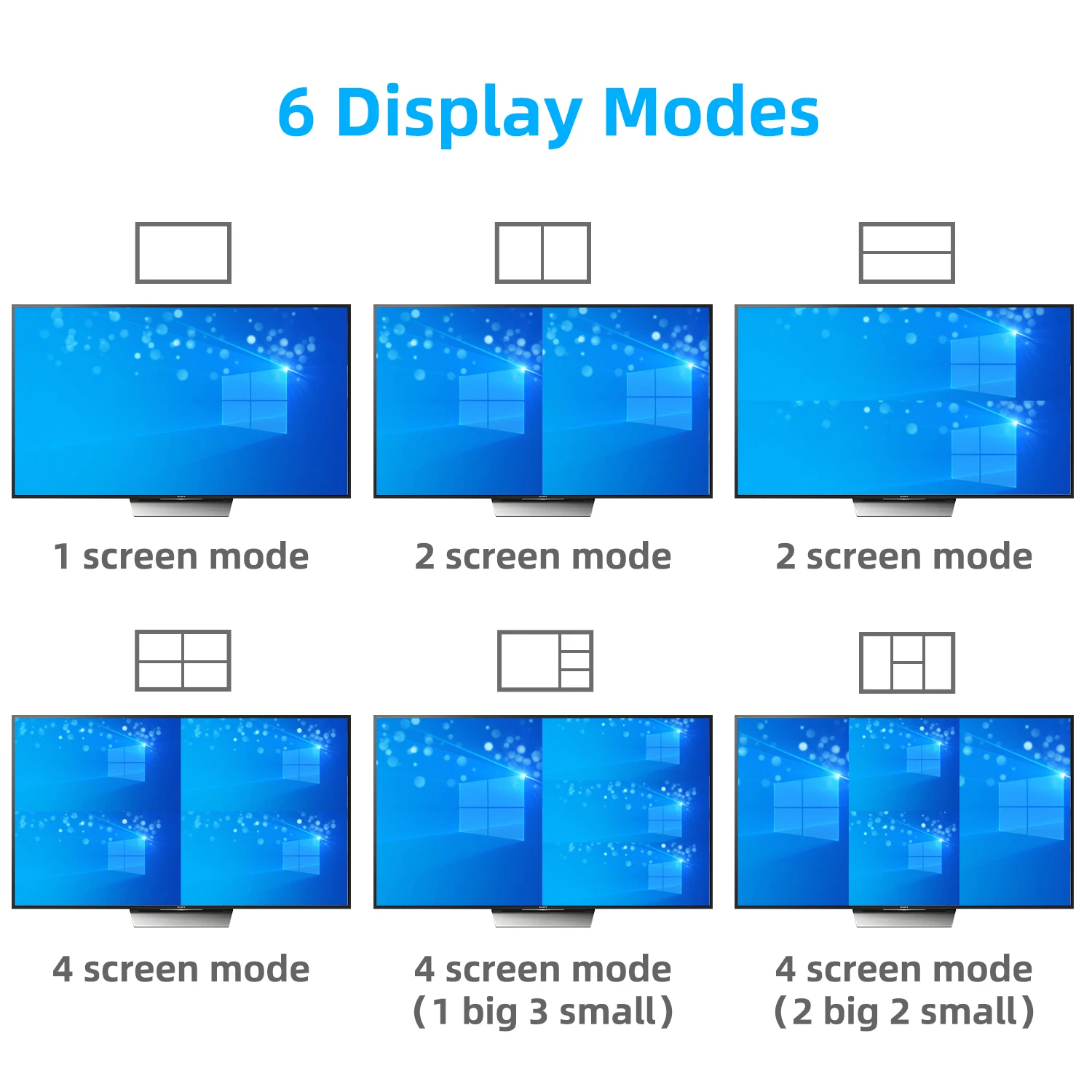

This is a high-performance HDMI 4 in 1 out Mulit-Viewer, also 4 in 1 out switch. It can display 4 screens on the same screen and has multiple split display modes. It is very intuitive and flexible to control by buttons and remote control, and it is easy to operate. Ideal for surveillance venues, game studios, conference rooms, home theaters, etc.
Features:
1.Compatible with HDMI 1.3, HDCP 1.22.Support 1920x1080@60Hz HD resolution input
3.Support 1080p resolution output
4.Support audio switching
5.Support fast and seamless switching
6.Support equalizer TMDS signal output: 25MHz 225MHz TMDS clock
7.Support Blu-ray 24/50/60fps/HD-DVD/xvYCC

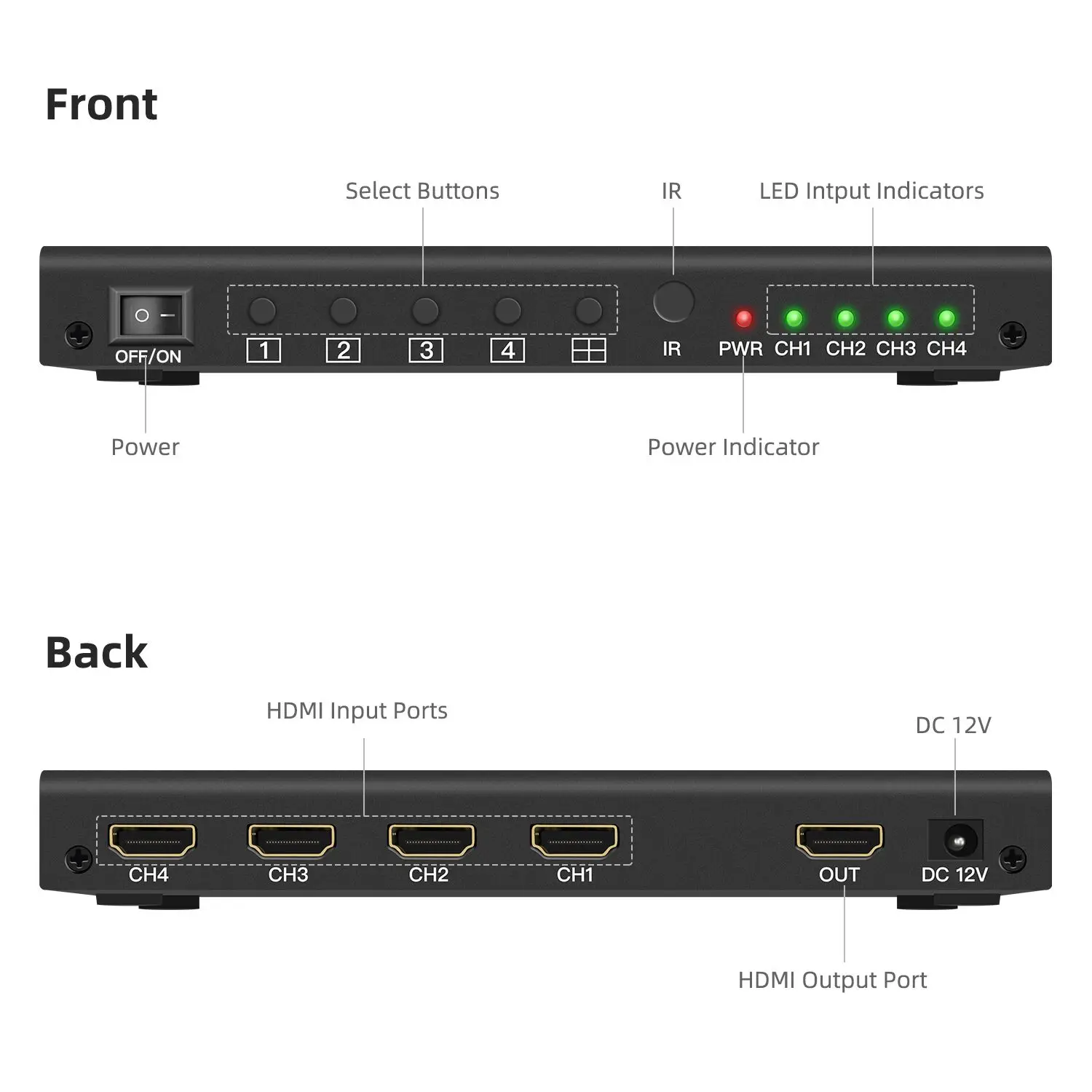

8.Switch input by infrared remote controller, or control by button
9.Compatible with DVI and connected to DVI adapter via HDMI interface
10.Support plug and play
11.LED signal indication
12.Quick installation
Specifications:
HDMI input resolution......................................................... .480i\\576i\\ 480P\\576P\\720P\\1080i\\1080P\\640X480\\800X600\\1024X768\\1280X720\\1280X800\\1280X1024\\1360X768\\1366X768\\1400X1050\\1440X900\\1680X1050\\1600X1200\\1920X1080\\1920X1200
HDMI output resolution...........................................720p/1080p/60Hz
Support video color format......................24bit/deep color 30bit, 36bit
Frame rate........................................................ .....720/1080p@60Hz
Maximum transmission bandwidth................................. .......225MHz
Maximum transmission speed........................................ .......6.7Gbps
1080P input cable length.................5m AWG26 HDMI standard cable
1080P output cable length...............5m AWG26 HDMI standard cable
Maximum working current............................................... .............1.3A

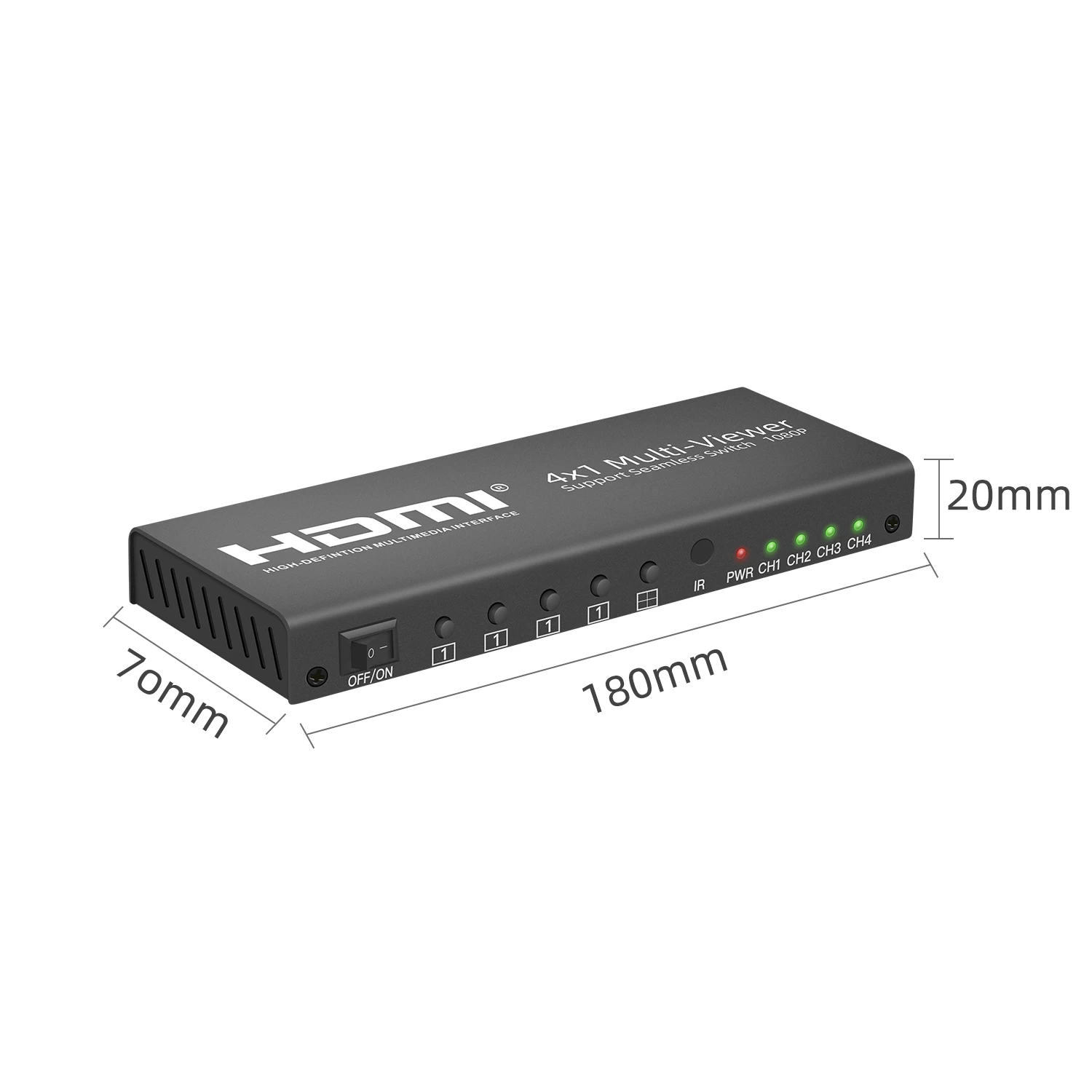

Shell size................................................................... ...180x72x21mm
Weight................................................................ .........................580g
Thank you for choosing our products.We focus on
producingprofessional,high-quality,cost-effective high-tech products. Let you
easily enjoy high-definition digita
l life brought by technology.
For the optimum
performance and safety,please read these instructions carefully
beforeconnecting,operating or adjusting the product. And please keep this
manual for future reference.
