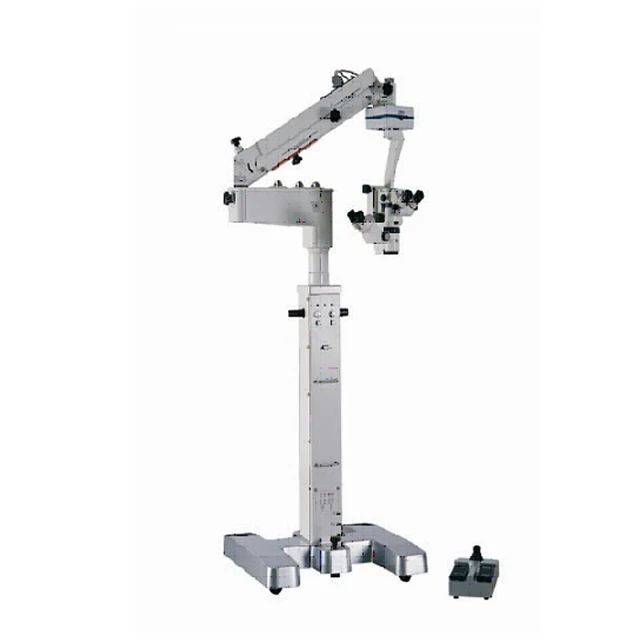

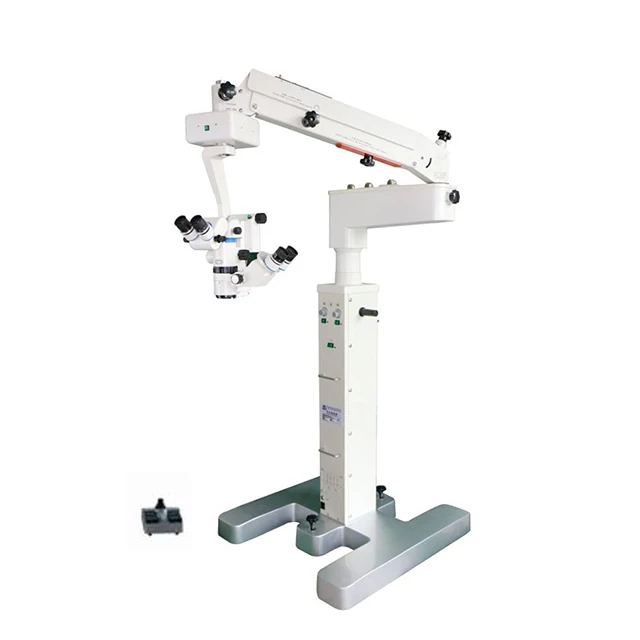

ASOM 3 ophthalmic Operating Microscope with zoom for two men
- Category: >>>
- Supplier: Nanjing Redsun Optical Co. Ltd.
Share on (62098264890):
Product Overview
Description
ophthalmic Operating microscope
ASOM-3
Technical Data
ASOM-3 operation microscope has a super optics system, it can give the biggest depth of field. And it has a special diaphragm, so we can change the depth of field slightly. For ophthalmology.
Biinocular tube 30°~90° (0°~200° optional )

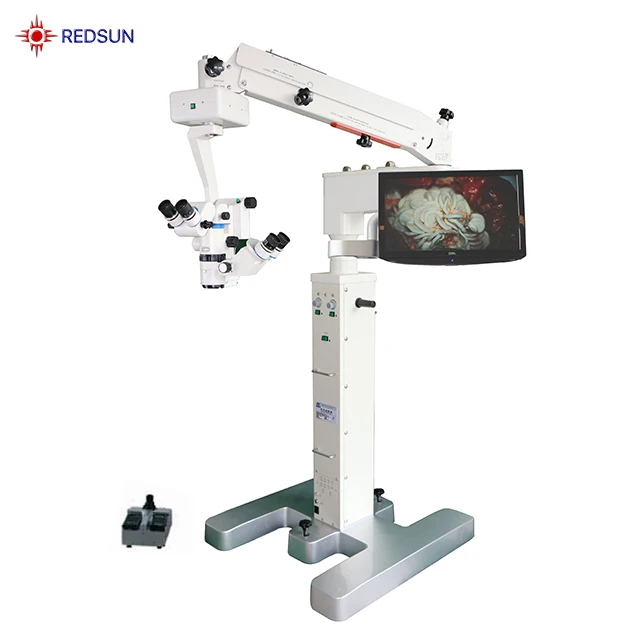

Can add HD CCD.and 19" LED screen.
| Eyepiece Magnifications | 12.5×/18B |
| Binocular Tube | 30°~90° (0°~200° optional ) variable angle binocular tube, add new pupil distance adjustment |
| Objective Lens | f=200 (f175, f250,f300,f350,f400 optional) |
| Working Distance | 170mm |
| Magnification for Main Microscope | 4.6×~27×motorized and manual control continuous magnification |
| Magnification for Assistant Microscope | 6.8x,11.4x,18.2x field of view Φ34mm,Φ20mm,Φ13mm |
| Diameter of Field | Φ44~Φ7.7mm |
| Diopter Adjustment | ±6D |
| Pupil Distance | 55mm~75mm |
| Maximal Resolution | 119 LP/mm |
| Focusing Range for Assistant Microscope | ≥30mm |
| Illumination Source | 12V/100W,cold reflection halogen lamp for medical us |
| Illumination Type | 6°+0°coaxial illumination of cold light source, 26°oblique illumination |
| Coaxial Illumination | illumination diameter of light spot Φ50mm, illumination intensity 100000lux |
| Oblique Illumination | 80000 lux |
| Reaching Radius of Arm | 1200mm |
| Stand | swing angle of the carrier arm 0 ~300°,height from objective to floor 800mm<H<1250 |
| Fine Focusing Speed and Range | motorized, range +/-25mm, speed 33s/whole distance |
| Speed for X/Y and Range | move in X-Y direction motorised, range +/-30mm |
| Input Voltage | AC220V±22V/50Hz±1Hz,AC110V±11V/60Hz±1Hz |
| Power | 170VA |
| Fuse | AC250V T4.04.0444.0000A ,AC1250V T8.0588.0A |
| Electrical Safety Standard | Executive standard:GB9706.1-2007,Class I |
| Foot switch | waterproof,8 function steps |
| Total Weight | 164kg |

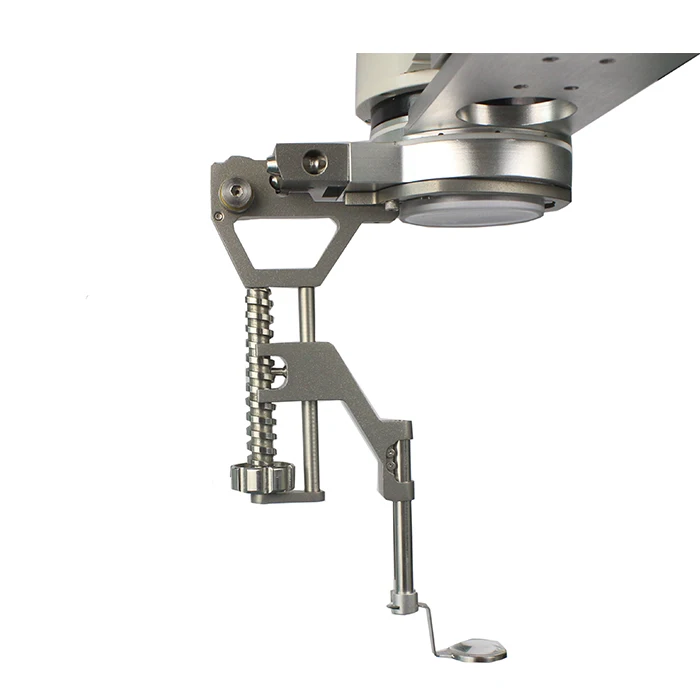

BIOM kit technical data and picture
Size | 138*50*170mm |
weight | 0.5KG |
Storage and operating conditions | Temperature:+10℃ to +40℃ |
sterility | Sterilize before use |
materials | Surgical grade materials
|
Device | Platform | Objective lens | Applicable model |
Condenser lens assembly | Manual | 175mm |
|
Manual | 200mm |
| |
Lens positioning unit | Rotational Assembly | 175mm |
|
Rotational Assembly | 200mm |
| |
Lenses | Wide Angle | 130° |
|
Small Diameter Wide Angle | 90° |
| |
Mounting kits |
|
| Zeiss |
|
| Leica | |
|
| Topcon | |
|
| Takagi | |
|
| CORDER |
