110v power supply 12v 5a power supply ac dc switching power supply
Product features:
wide voltage input AC 90V - 260V
Compatible with E/M lock, access controller, exit push button and RFID reader
Control various types of electric locks by settign NC/NO outputs
Can reduce the load of access controller, save wiring to reduce the hidden trouble
lock time can be adjusted with 0 -15 seconds
Automatic protection function for dangerous situation: overload / over voltage / short circuit
Protection mechanism :power may be temporarily disconnected or the fuse auto insured
Compact design and light weight
Product Parameters
Product Name | Access control supply |
Item NO. | ZUCON 503W |

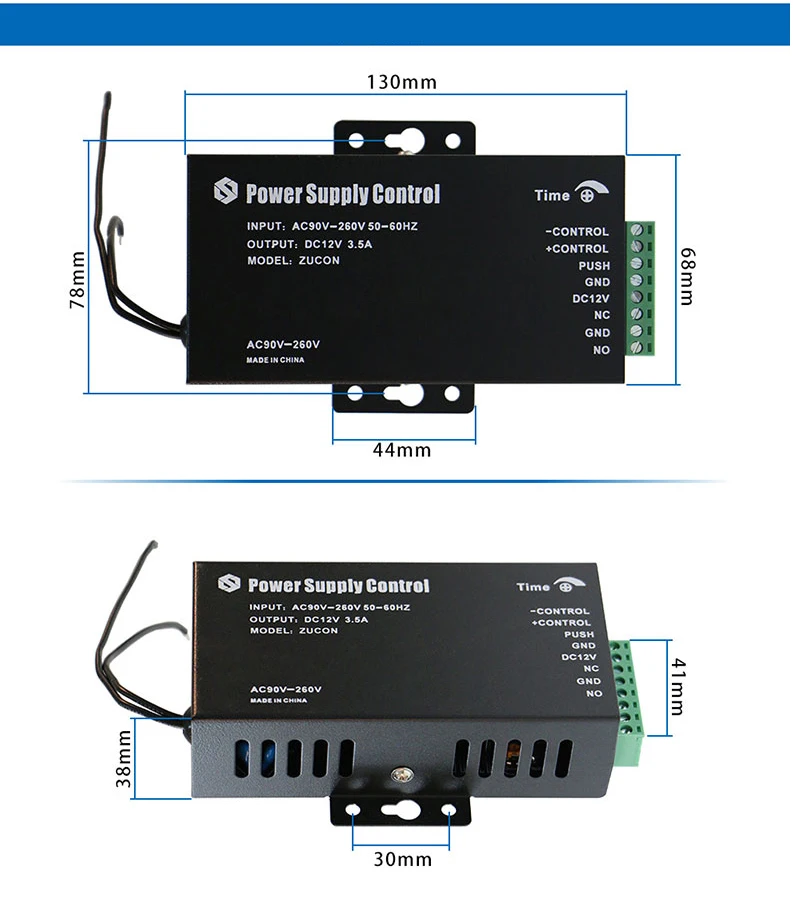

Dimension | 130*68*38mm |
Input Voltage | 90V--260V |
Input frequency | 47HZ--- 60HZ |
Output voltage | DC12V |
Output current | 3A |
Output power | 36W |
Working Temperature | -20°C--70°C |
Weight | 0.32kg |
Housing Material | Steel |
