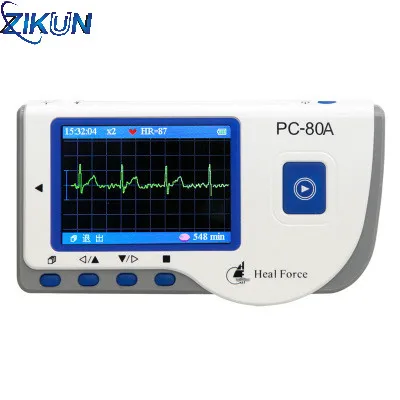

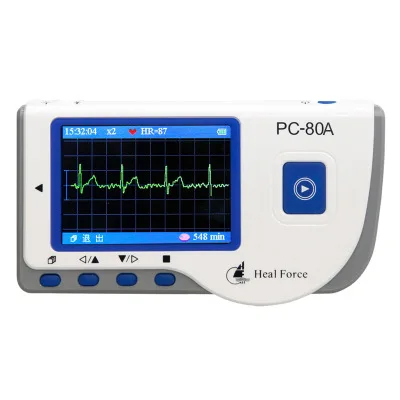

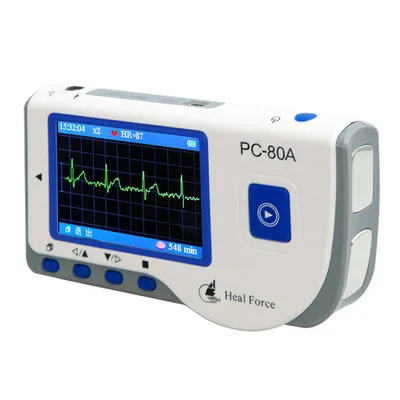

PC-80A is a compact, portable handy device for patients (or professionals) to record 30 seconds of ECG data anytime or anywhere, comfortably, with or without electrodes.
Its large, high resolution LCD display gives clear, easy to read results and is suitable for use in hospitals, clinics, health centres, nursing homes, residential homes, offices etc. It gives accurate and reliable readings at your most convenience if it is for private use. It is also cost effective to health professionals as patients are screened and filtered at this stage before referring them to hospitals.

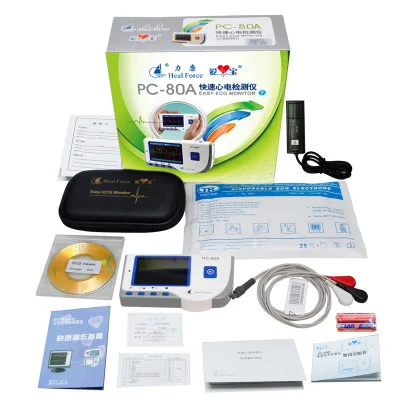

If you have any questions or concerns in any of the ECG records, you can capture the recording and mention it to your health professionals for advice. Data can be transferred to PC, laptop etc should it need to be shown and analysed further by health professionals. A cable for data transfer plus the ECG waveform viewer software CD are also included to aid you a hassle-free transfer. In addition to this, a manual with picture illustrations is enclosed to walk you through the process.

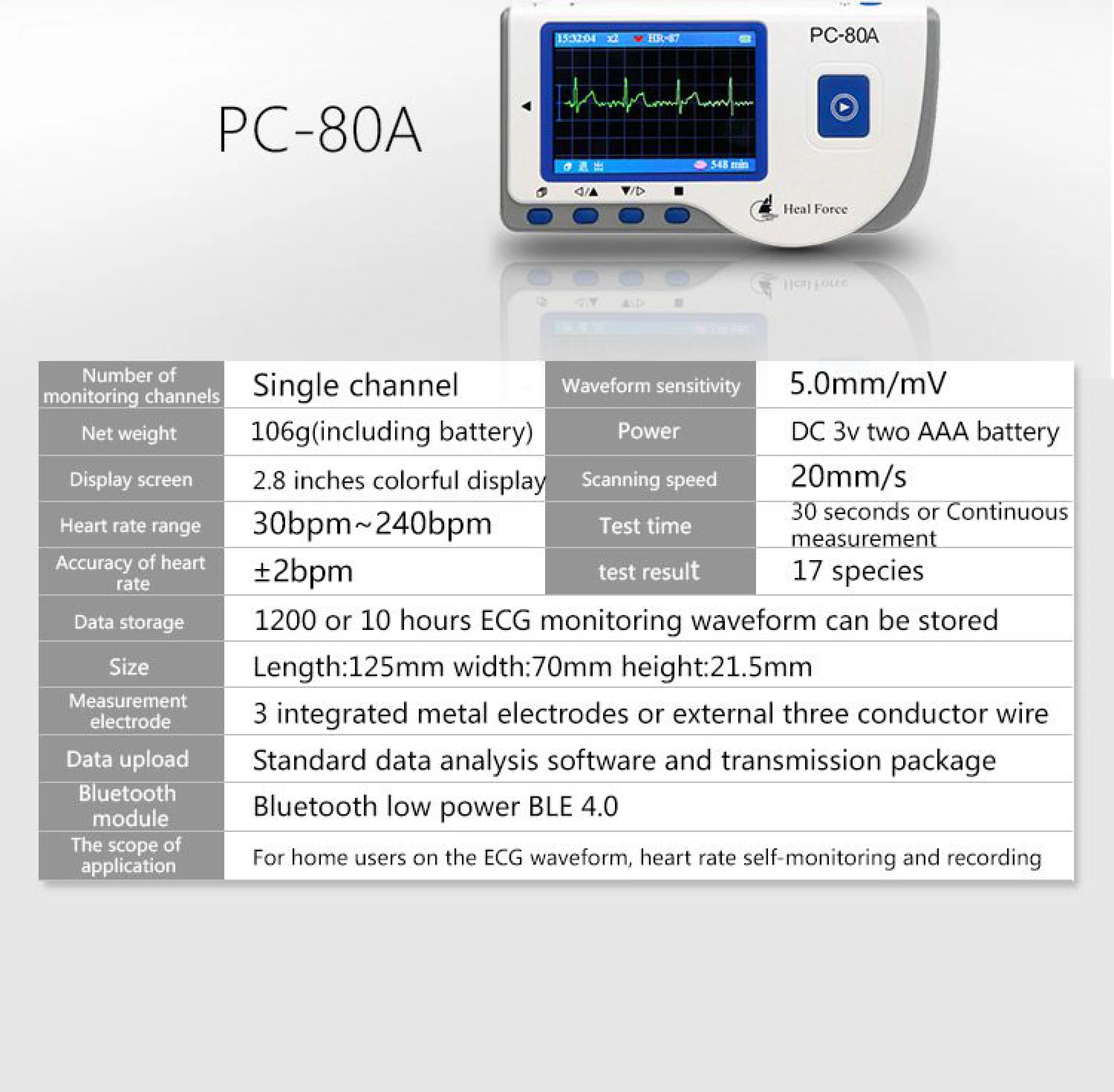

Display
Display Mode: Color LCD display
Screen Size (mm): 240*160
ECG Measurement
The number of measuring channel: Single channel ECG signal

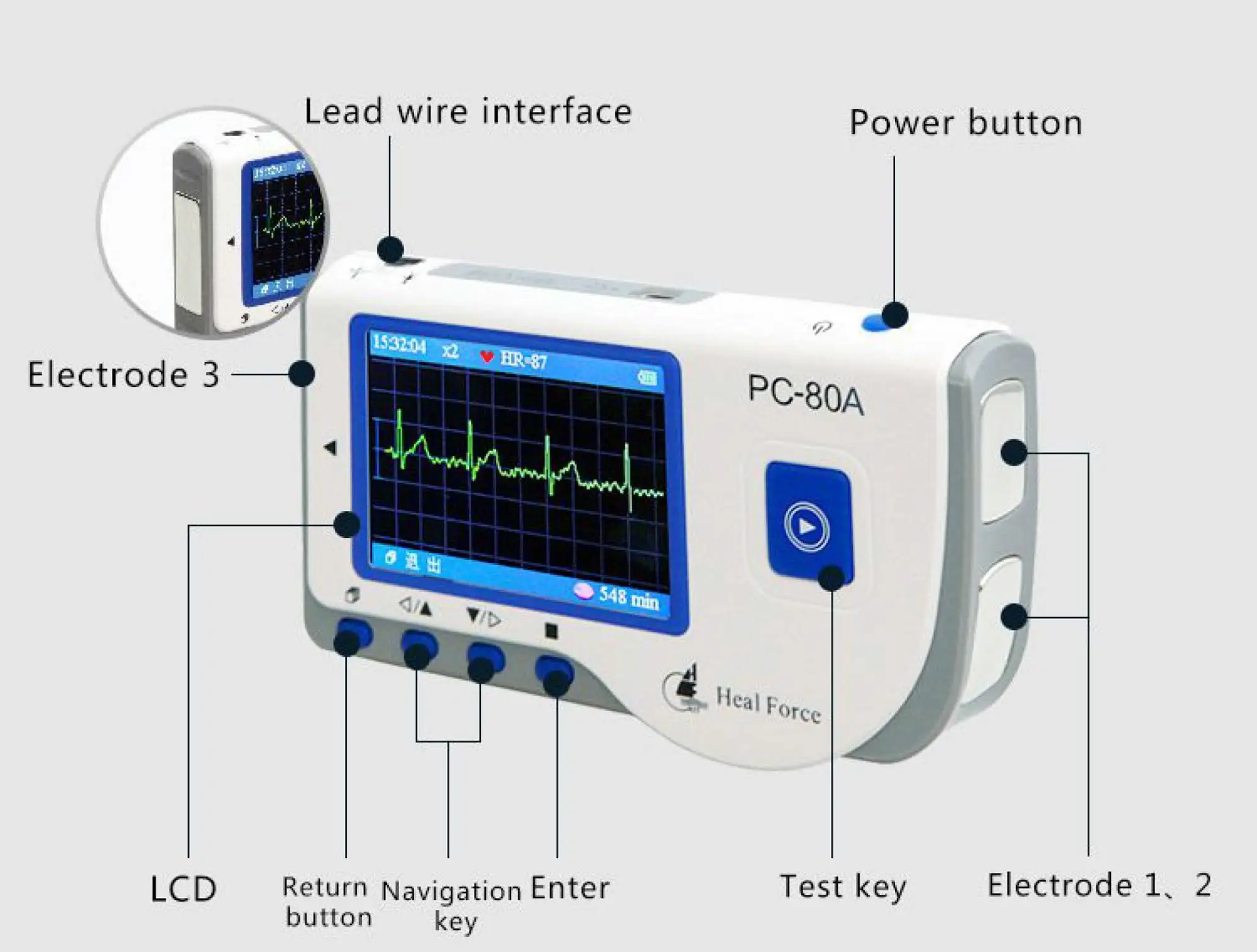

Electrodes: 3 embedded metal electrodes or 3 adhesive ECG pads connected to the connector of the device with lead wire
Heart Rate Range: 30-240bpm
Heart Rate Accuracy: ±2bpm or ±2%, whichever is greater
Display Scale: 5mm/mV ±10%
Common-mode rejection ratio (CMRR): ≥60dB
Wave Form Sweeping Speed: 20mm/s±10%
Measurement Modes: the detecting ECG signal can be detected by the following. Lead selection:
1, Palm (both hands on unit)
2, Chest (right hand and chest)
3, Leg (right hand and left leg)
4, ECG lead wire
Power
Power Supply: 2*AAA alkaline batteries
Supply voltage range: 2.7-3.3VDC
Max average working current: ≤50mA
Auto power-off: 35s±5s (without operation)
Classification
The type of protection against electric shock: Internally powered equipment
The degree of protection against electric shock: Type B appiled parts
The degree of protection against harmful ingress of liquid: Ordinary equipment without protecting against ingress of liquid
Electro-magnetic Compatibility: Group I, Class B
Data Memory
Up to 10-hour data records can be saved in the built-in memory

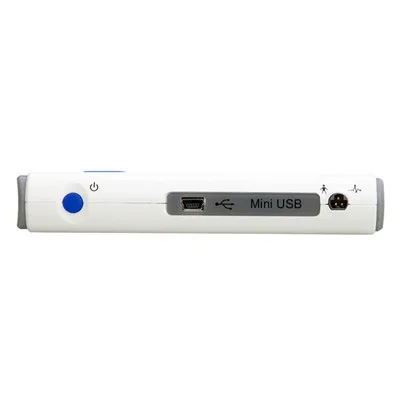

Stored data records can be uploaded to the computer by data cable
Operating environment
Operating Temperature: 5°C-40°C
Operating Humidity: 30%-80%
Atmospheric pressure: 70kPa-106kPa
Bluetooth transmission
Measurement results transmission to PC for future review and analysis.
Synchronous detection data for device and PC or Android.
Energy saving technology
Power supply management function, for 1 minutes automatic shutdown without signal
