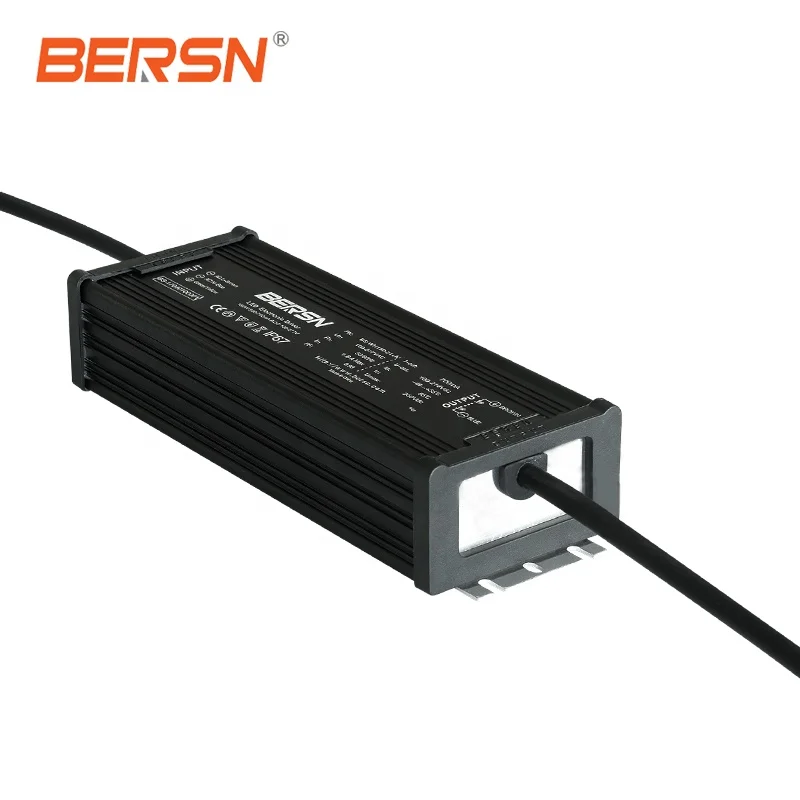

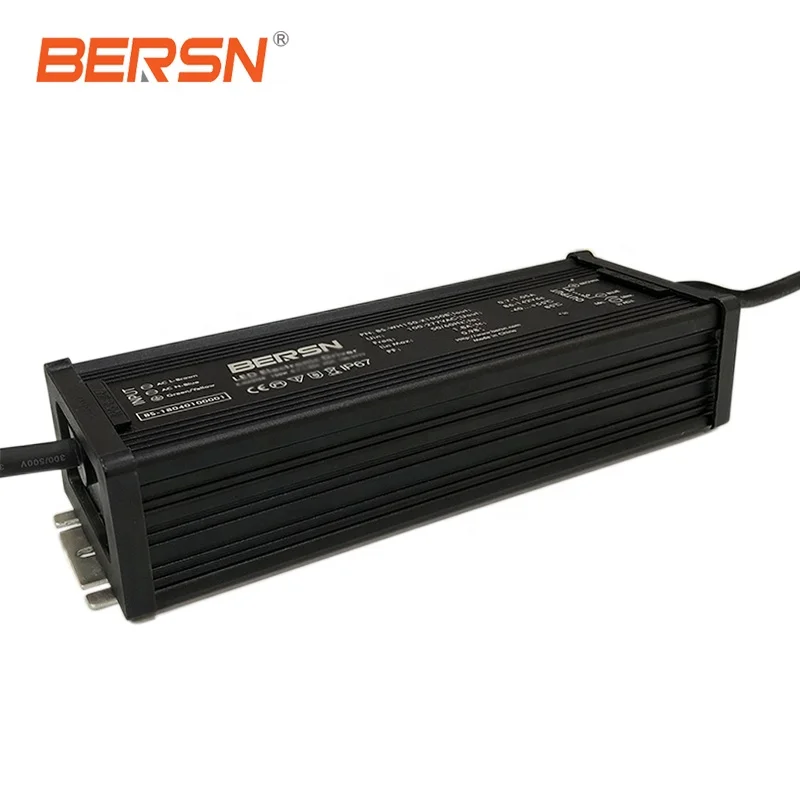

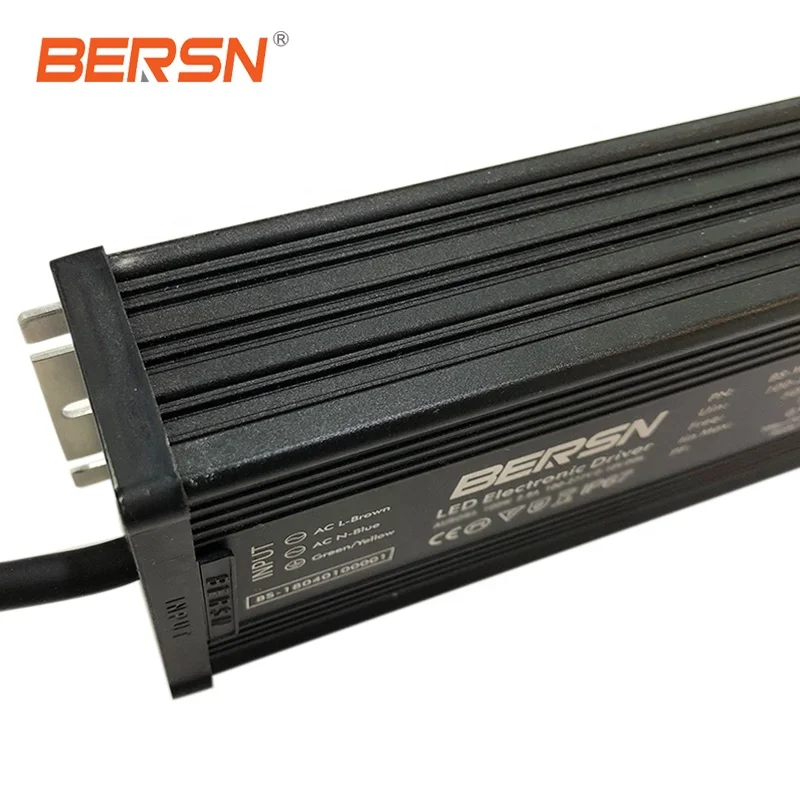

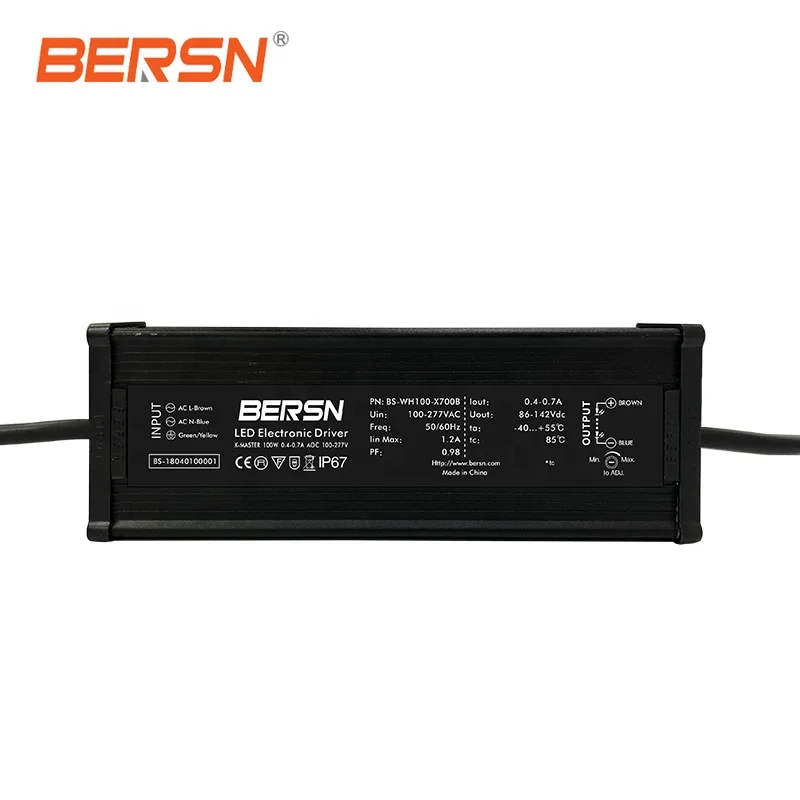

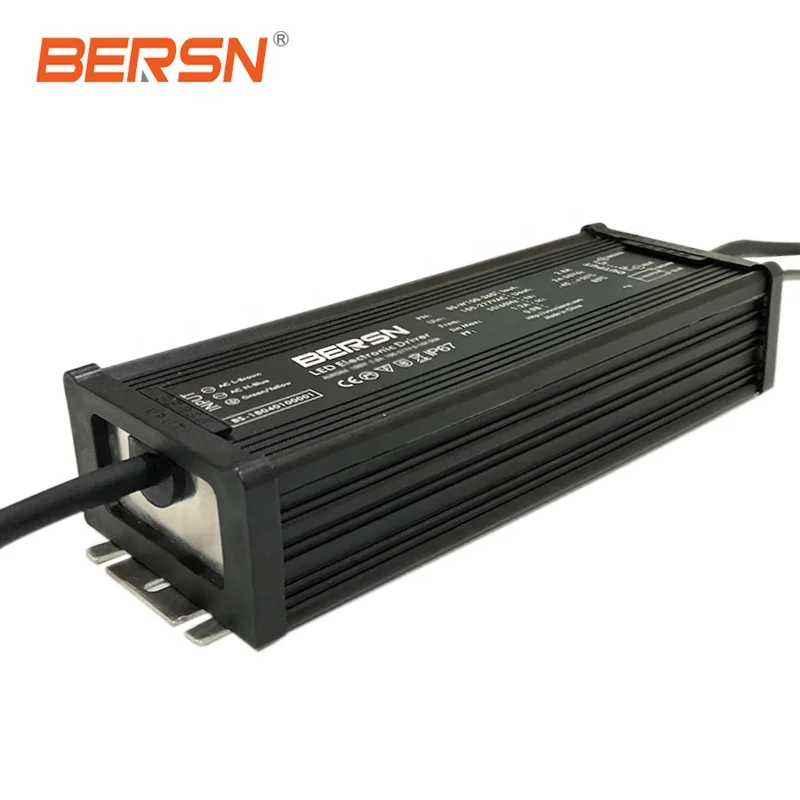

12V 8.3A 100W Outdoor Led Driver 12Vdc Led Power Supply with PFC for Road Light

Share on (62098495905):


Price:

Quantity:


Product Overview

Description


Built in PFC 100Watt Waterproof led driver 8.3ma for grow light street light





Product Description



  •  Wide AC input/ Full range(100-277V)

  • Built-in active PFC function

  • High efficiency up to 92%

  • Protection:Short circuit/Over current/Over voltage/Over temperature

  • IP67 design for outdoor installation

  • Lighting surge:line to line 4KV; line to ground 6KV


we can customize production according to your needs,please click here to contact us.





Electrical Data






















































































































































































































ModelMax Output PowerOutput CurrentOutput VoltageInput VoltagePFEficiencyDimming

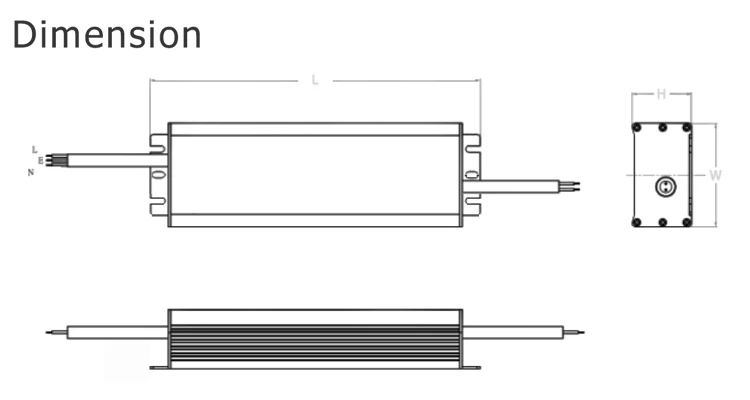

Size(mm)


L*W*H


BS-WH100-X1050A100W1050mA60-95Vdc100-277V≥0.9591%NO216*73*42
BS-WH100-X700A100W700mA86-142Vdc100-277V≥0.9591%NO216*73*42
BS-WH100-X700B100W400-700mA86-142Vdc100-277V≥0.9591%AOC216*73*42
BS-WH100-X1050B100W700-1050mA60-95Vdc100-277V≥0.9591%AOC216*73*42
BS-WH100-X700D100W0-700mA86-142Vdc100-277V≥0.9591%0-10V/PWM216*73*42
BS-WH100-X1050D100W0-1050mA60-95Vdc100-277V≥0.9591%0-10V/PWM216*73*42
BS-WH120-X700A120W700mA86-172Vdc100-277V≥0.9591%NO216*73*42
BS-WH120-X1050A120W1050mA86-114Vdc100-277V≥0.9591%NO216*73*42
BS-WH120-X700B120W400-700mA86-172Vdc100-277V≥0.9591%AOC216*73*42
BS-WH120-X1050B120W700-1050mA86-114Vdc100-277V≥0.9591%AOC216*73*42
BS-WH120-X700D120W0-700mA86-172Vdc100-277V≥0.9591%0-10V/PWM216*73*42
BS-WH120-X1050D120W0-1050mA86-114Vdc100-277V≥0.9591%0-10V/PWM216*73*42
BS-WH150-X1050A150W1050mA86-142Vdc100-277V≥0.9592%NO216*73*42
BS-WH150-X700A150W700mA100-214Vdc100-277V≥0.9592%NO216*73*42
BS-WH120-X1050B150W700-1050mA86-142Vdc100-277V≥0.9592%AOC216*73*42
BS-WH120-X700B150W400-700mA100-214Vdc100-277V≥0.9592%AOC216*73*42
BS-WH120-X1050D150W0-1050mA86-142Vdc100-277V≥0.9592%0-10V/PWM216*73*42
BS-WH120-X700D150W0-700mA100-214Vdc100-277V≥0.9592%0-10V/PWM216*73*42






Product details

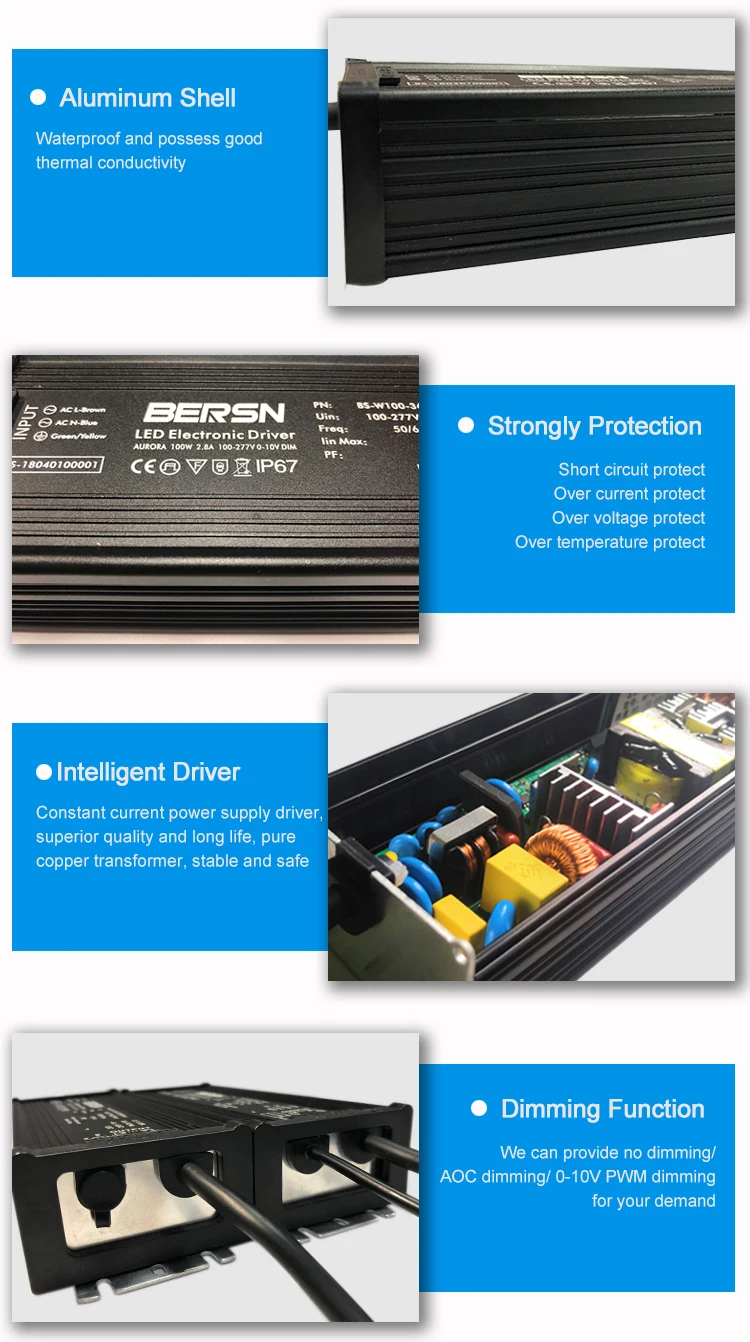

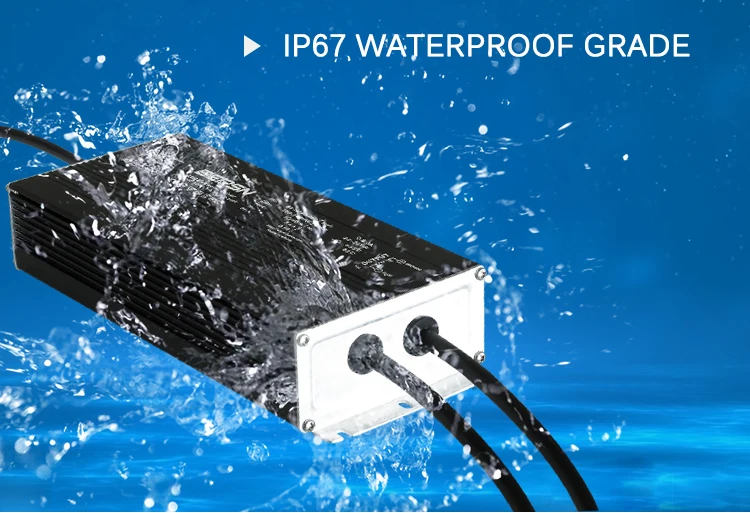

led-driver-_03led-driver-_05





Hot sale products


















Our company


led-driver-_09


BERSN is innovative electronics designer and manufacturer of outdoor lighting and industrial lighting since 2001. BERSN passed ISO9001:2015 and authorized National High-Tech enterprise and LED benchmarking enterprise in Guangdong, China. Since 2009, BERSN has became PHILIPS China OEM partner. Main products line includes Smart Lighting Control System for Road & Street Light, Smart LED Driver, HID Electronic Ballast, & Outdoor LED Lighting Luminaries.  The products pass the national and international quality certificates, including CCC, CE, RoHs, SAA, UL, FCC.


Working on the market of lighting controls solutions for over 18 years, BERSN grown to become an industry recognized developer and most progressive company with Head Office in Shenzhen, China. BERSN provides both ODM and OEM services. The company’s mission is to develop innovative, turn-key, fully integrated solution for lighting industry.


led-driver-_11





Packing & Shipping







Contact Us







FAQ


Q1. What about the lead time?


A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


Q2.Do you have any MOQ limit for order?


A: Low MOQ, 1pc for sample checking is available


Q3. How do you ship the goods and how long does it take to arrive?


A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q4.Is it OK to print my logo on product?


A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q5: Do you offer guarantee for the products?


A: Yes, we offer 5 years warranty to led street light
