China New design OEM 3km Laser Rangefinder Module With RS232 Output
- Category: >>>
- Supplier: Chongqing Diaoran Photoelectric S&T Co. Ltd.
Share on (62098745518):
Product Overview
Description
Products Appearance
roducts Appearance

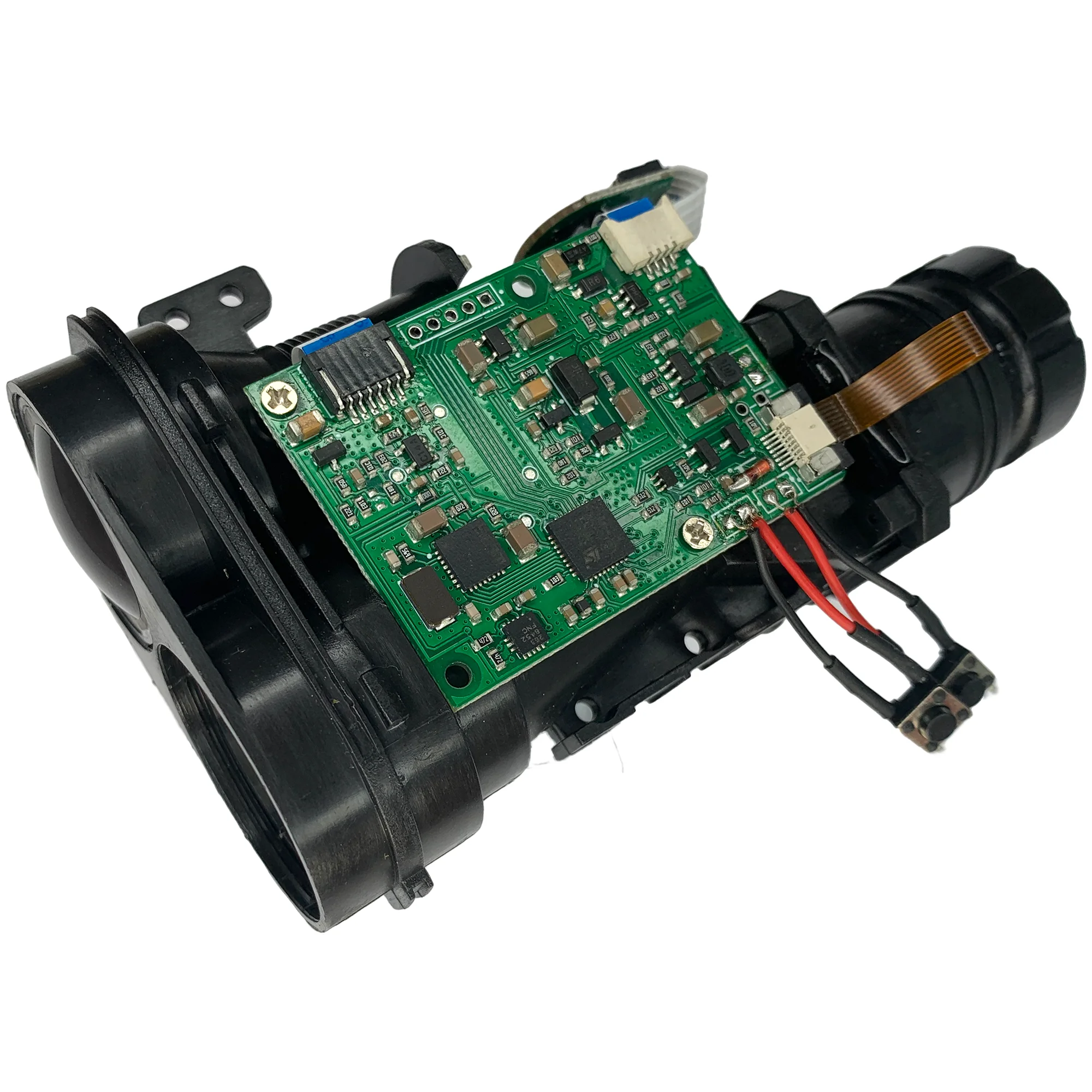

| Front | Back |
 |  |

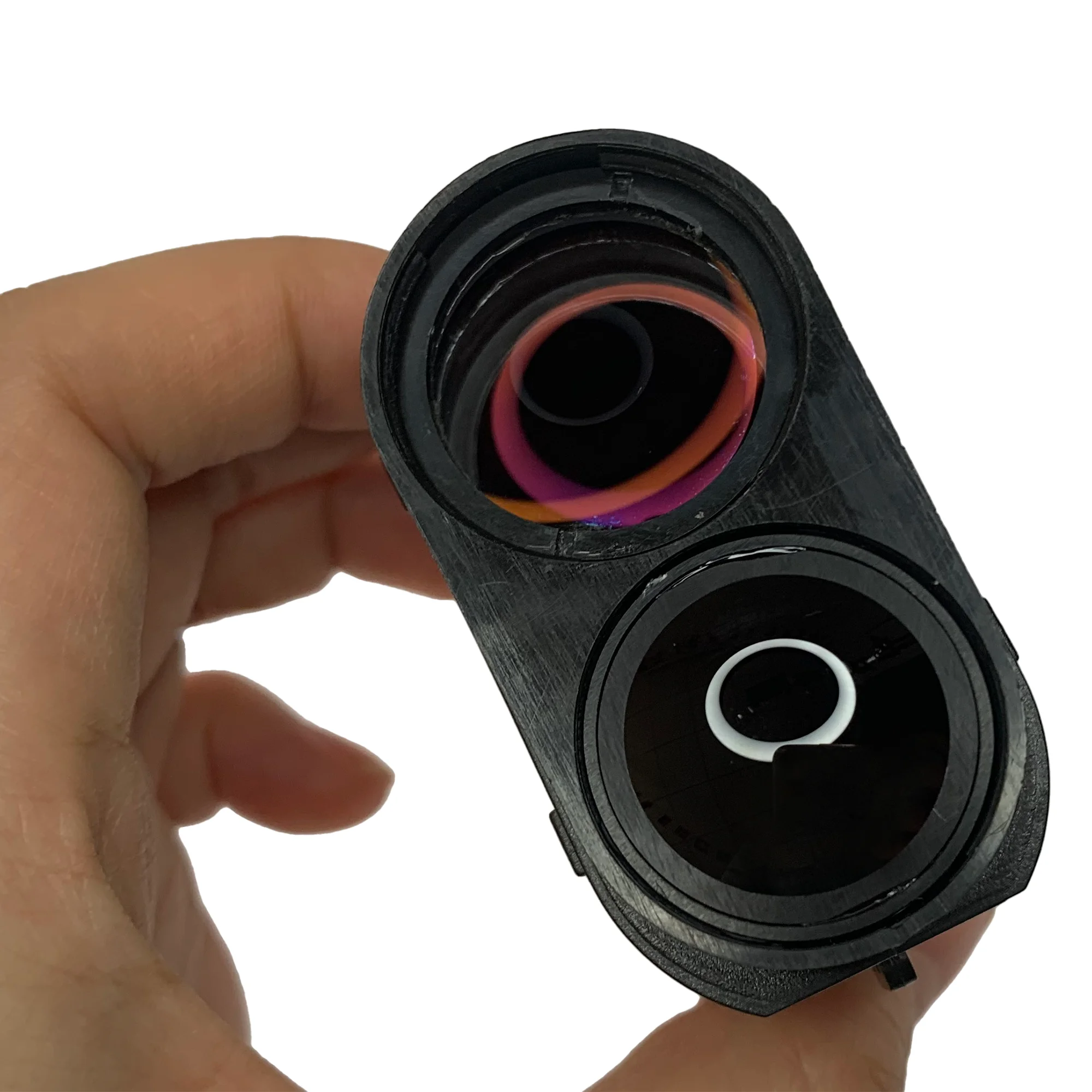

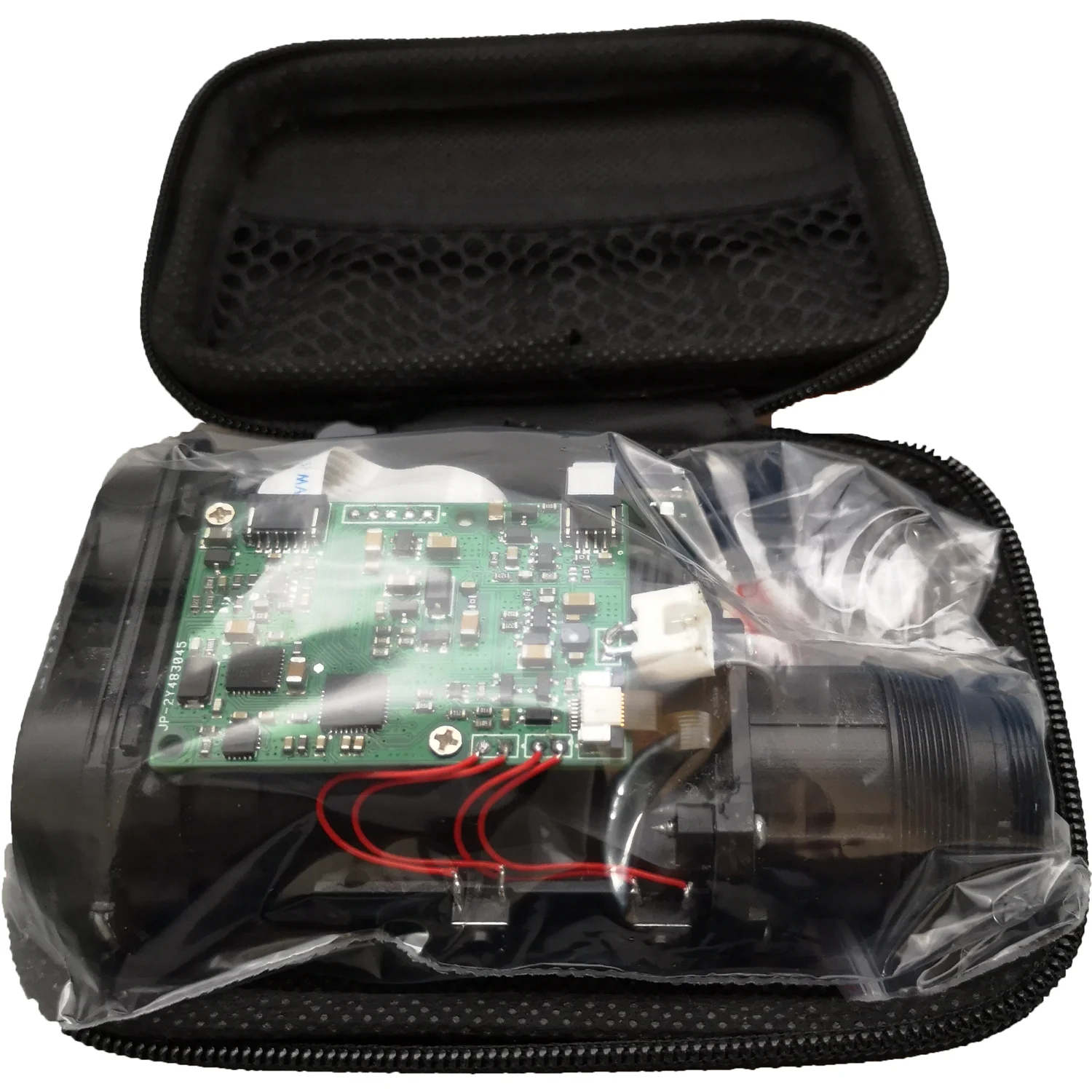

| Objective Lens | Package |
 |  |
Products Specification
Products Specification
| Technical Index: | Details: |
| Wavelength: | 905nm |
| Max Ranging Distance: | 3000m |
| Ranging Method | Semiconductor laser ranging (no harm to the human eye) |
| Ranging Error | ± 0.3m ± 0.1 %,resolution 0.1m |
| Ranging display mode | Built-in LCD Display |
| Effective Objective Lens Diameter | 20mm |
| Magnification | 5.8 (6.8) x |
| Field of View | 5.6 (4.95) x |
| Measuring Height and Angle | ± 90 ° |
| Objective Diameter | 25mm |
| Outlet Diameter | 3.8mm (4.1) |
| Exit Distance | 12mm |
| Focus Mode | Eyepiece Focus in Manually |
| Ranging of Vision | 122m/1000m |
| Lens Coating | Multi-layer Coating |
| Ranging Mode | RAIN; RELF; >150; no display is standard mode. |
| Min Ranging Distance | 1m |
| Distance Resolution | 1m |
| Power Supply | 3V |
| Working Temperature | -10°C ~ +50°C |
| Dimensions | 33x63x100mm/33x63x76mm(with/without eyepiece) |
| Weight | 72/56g(with/without eyepiece) |
| Function | 7 Mode: Ranging, Speed, Angle, Parabola, Horizontal, Vertical, Continuous Measure. |
Products Integrated
Products Integrated

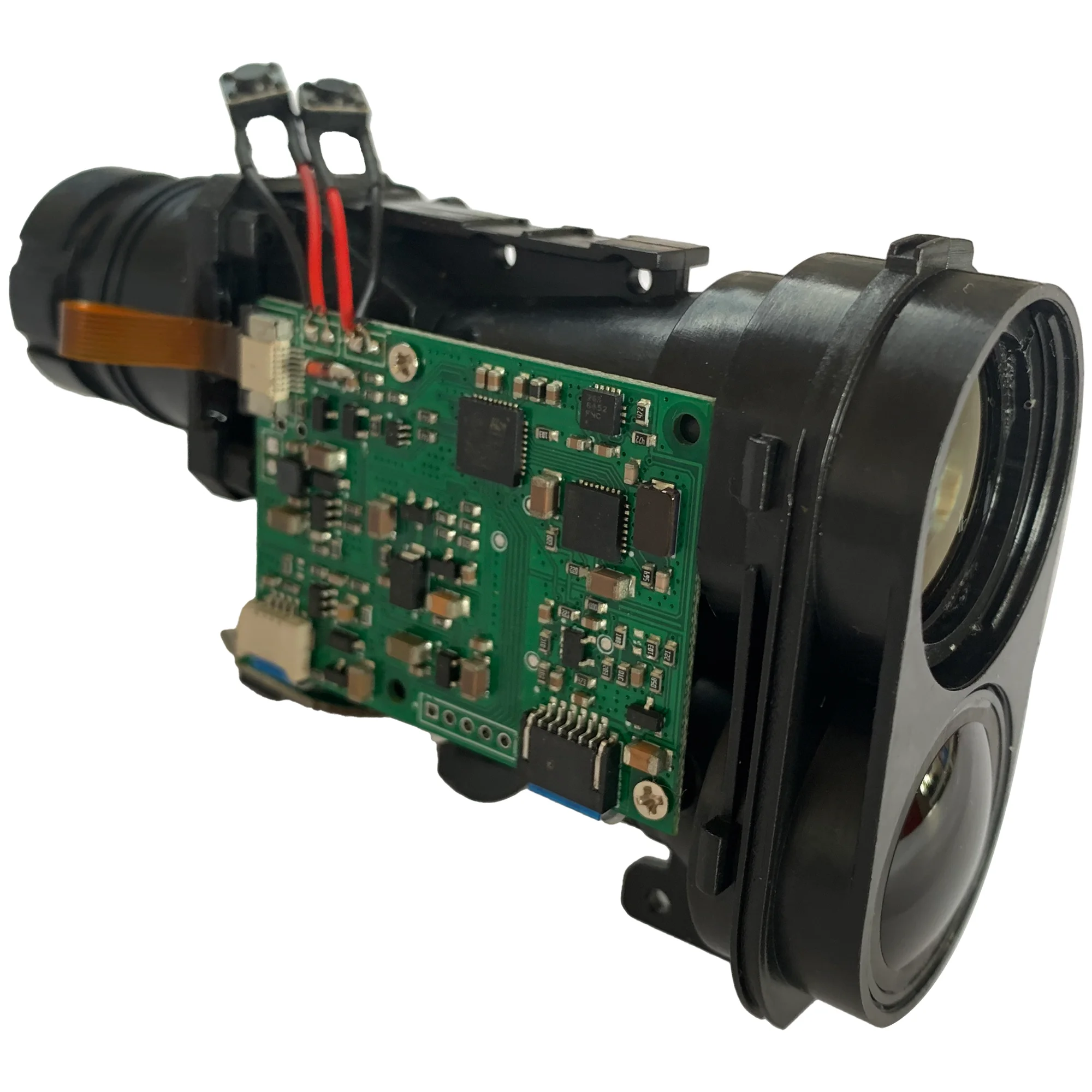

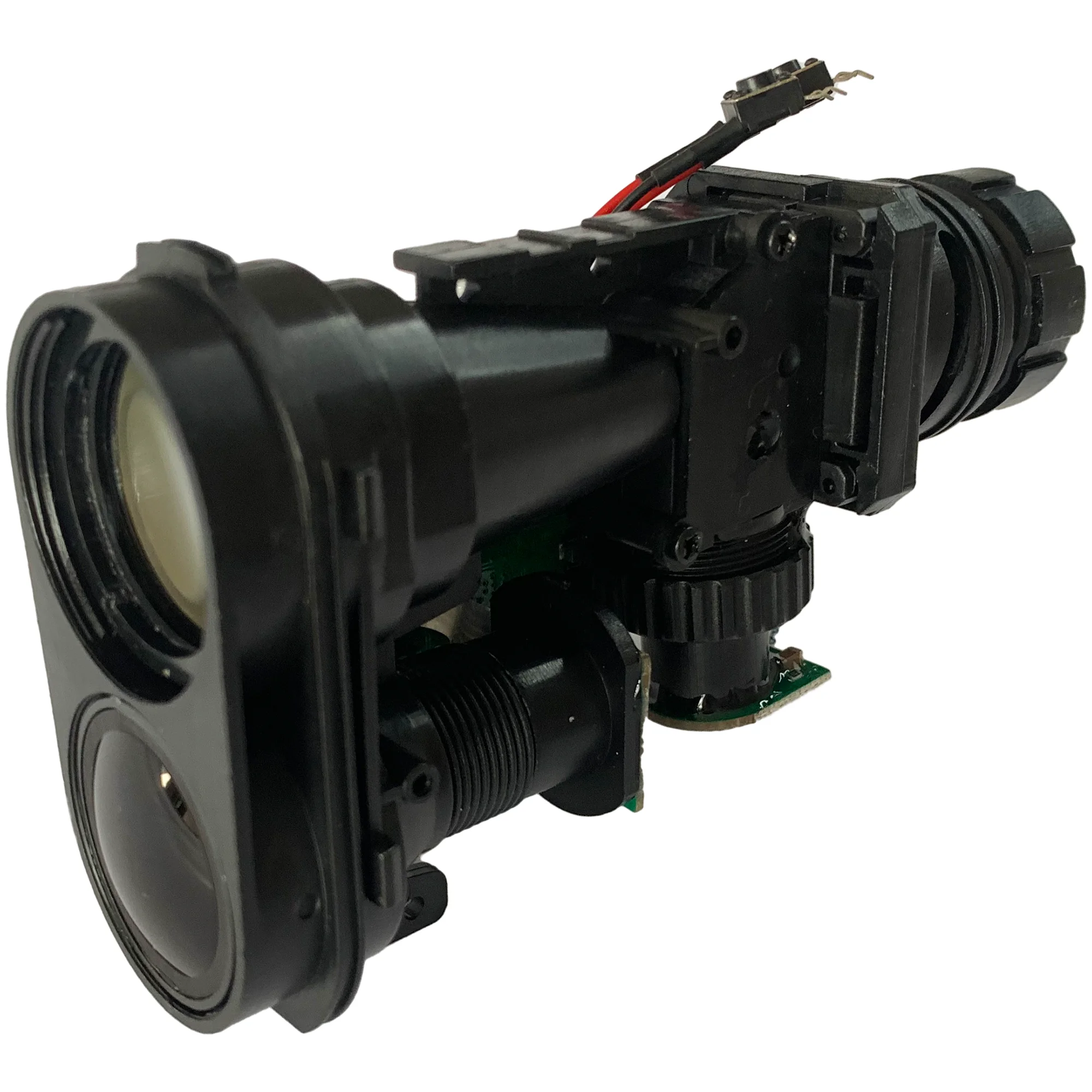

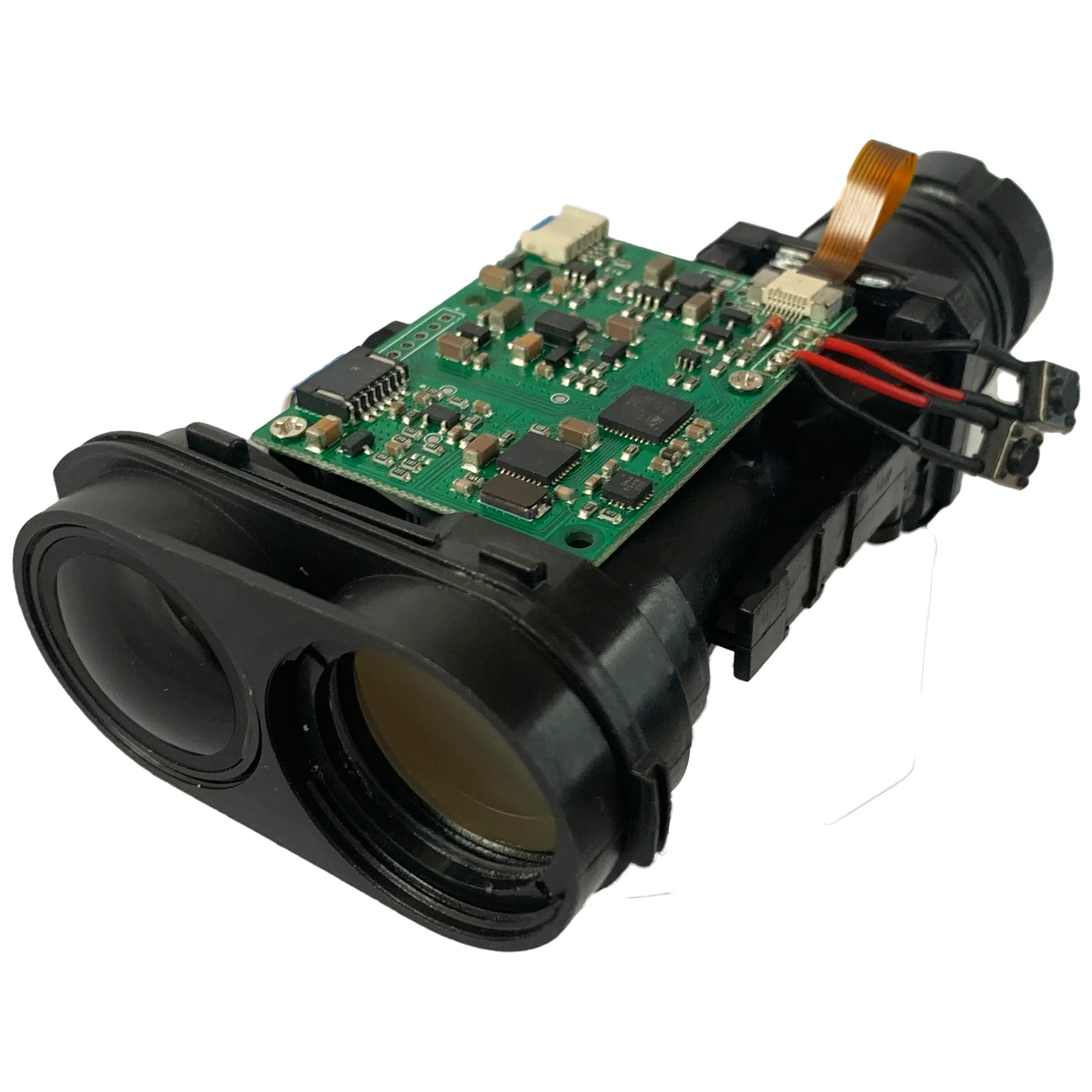

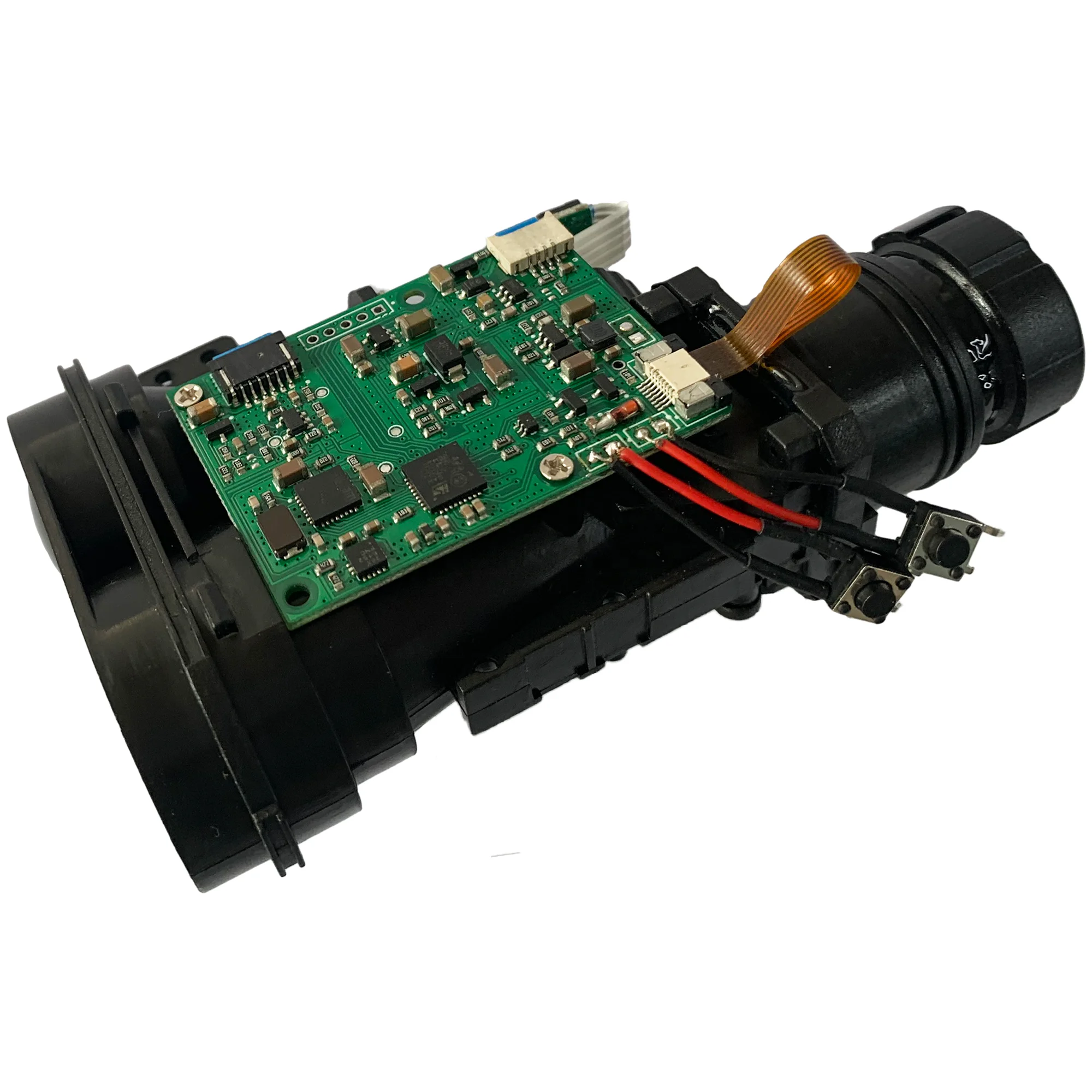

1.0 Module View
 | 1. RX: Receiving Lens. 2. TX: Launching laser. 3. Mode: “MODE” Button, to select measuring mode. 4. Measure: Power and Transmitting. 5. Display: LCD. 6. Power Supply: DC 3V. 7. GND: Connect to ground. 8. Sight Adjustable Eyepiece. 9. Receiving Lens: Launch and Receiving. |

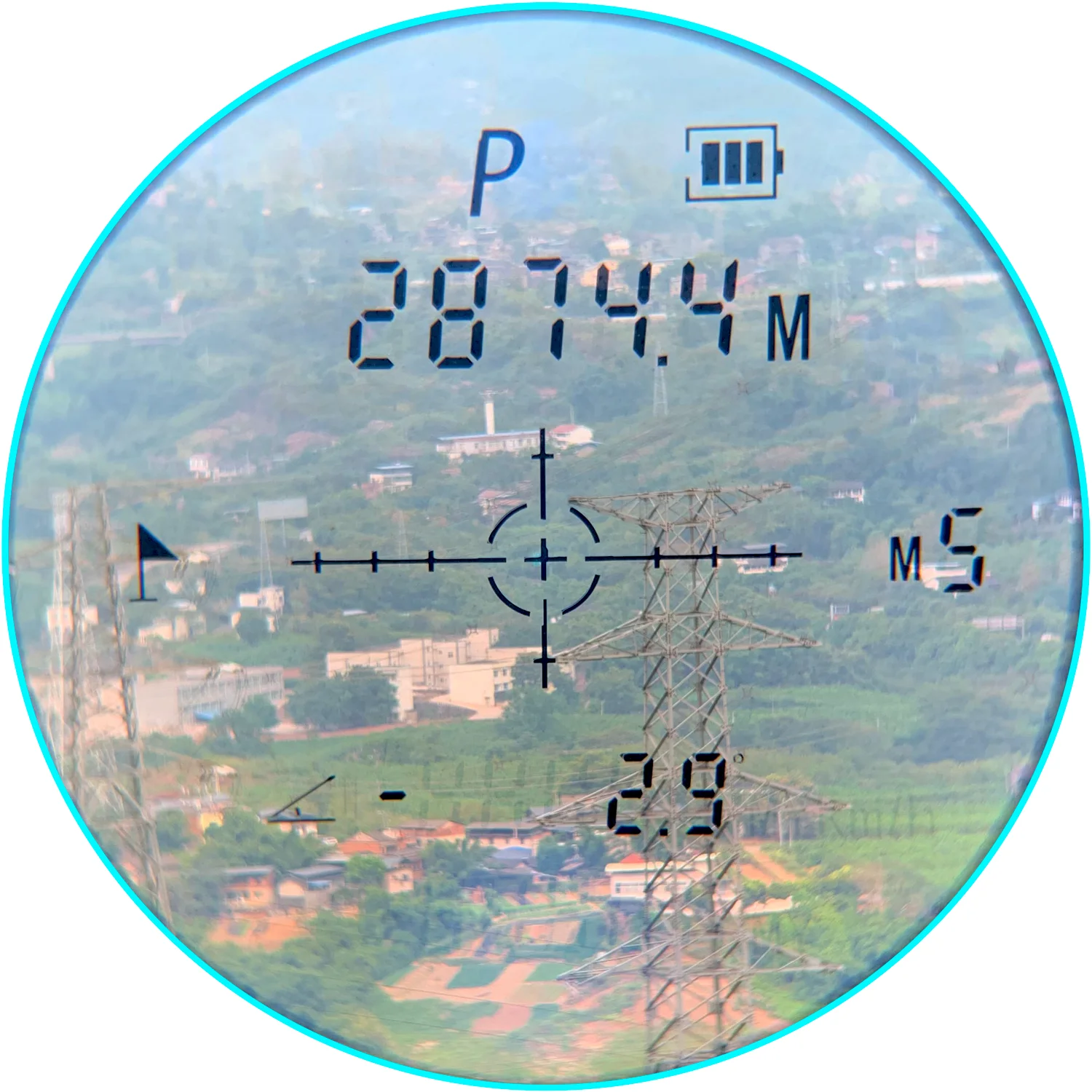

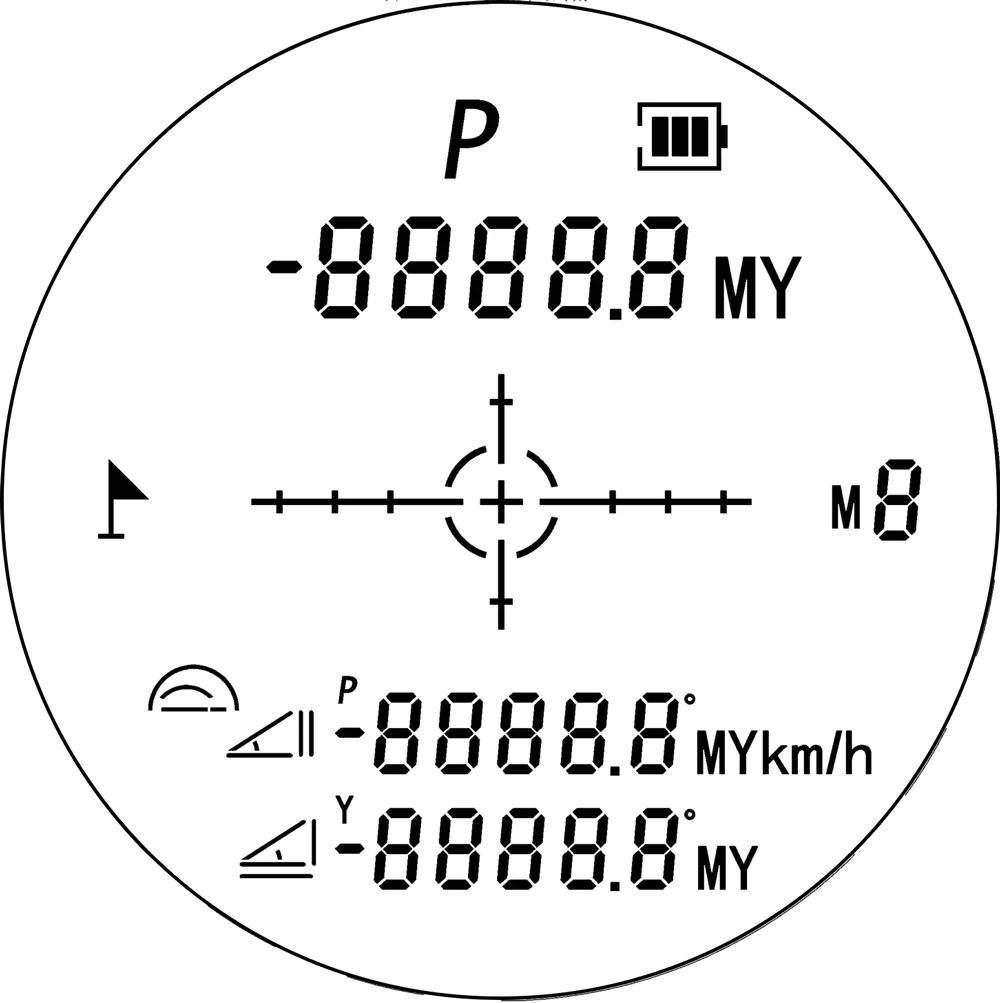

2.0 Display
 |  |
3.0 Connect Method

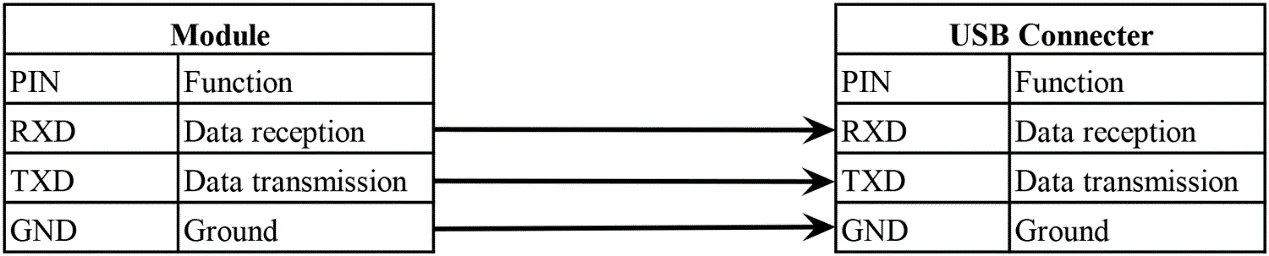

Module Connect to PC
The instrument output is a serial port, uses a USB port to connect with the computer.
Serial communication: The baud rate is 115200bps, 1 stop bit, 8 data bits, no parity.
