Synmot 80mm 700w 3000rpm servo motor with gear 220V

Product Overview

Description

Synmot  80mm 700w 3000rpm  servo motor with gear 220V

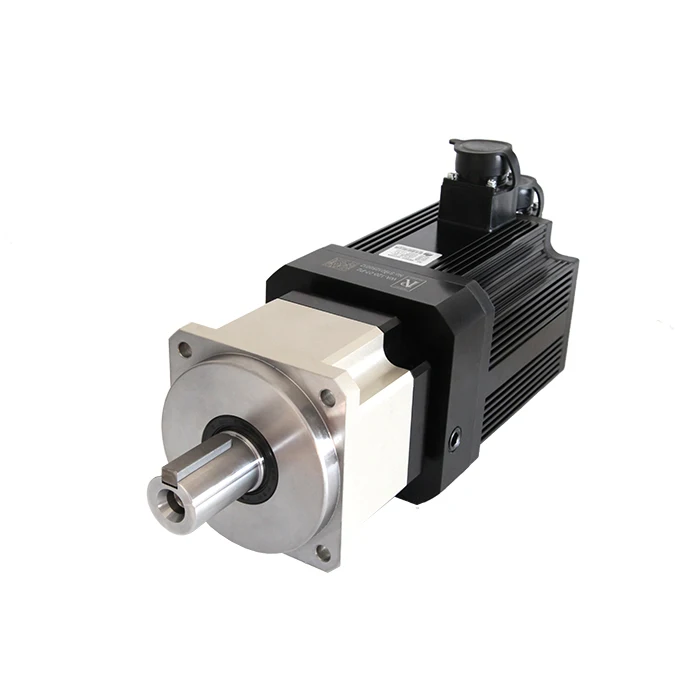

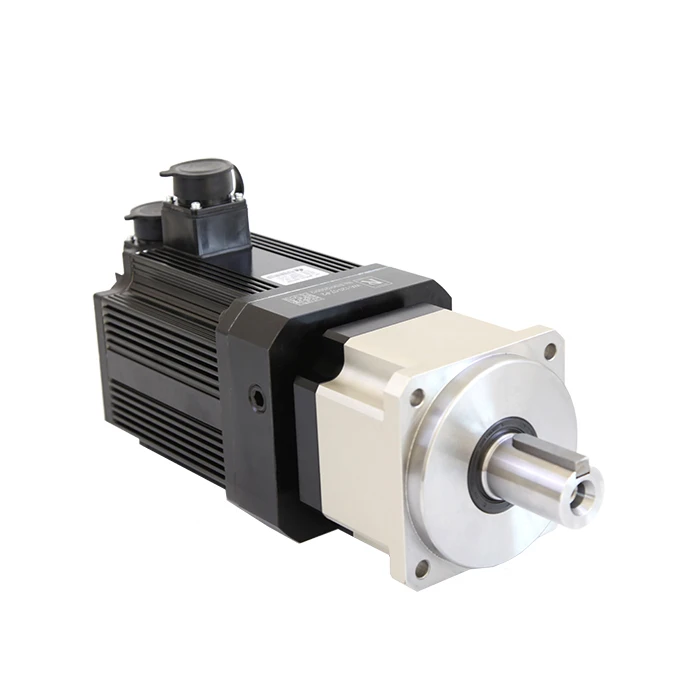

Product picture:

Product Description:



Synmot servo motors are permanent magnet synchronous motors,the main features including :ultra energy-saving .high response and accuracy .low noise and low temperature rise.the rotor is made of high-performance rare-earth permanent magnet material .works reliably and tomaintain less.With low rotary inertia .it is easy to improve the rapidity of system .small volume.high speed and high torque.using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.it control the current according to D-P principal axis transformation .which increase the torque control accuracy from 5% to 2% .Synmot servo motor have been widely used in injection molding machienry .textile machinery.CNC machinery etc.



Product Parameter:



	Rated Power kw	Rated Current A	Reduction Ratio N:1	Output Torque Nm	Output Speed rpm	D1 Register Diameter mm	L5 Register Length mm	D2 Shaft Diameter mm	L6 Shaft Length mm	L3 Key Length mm	L9 Flange Square mm	D3 Fixing Hole Dia. mm	D4 Fixing Hole Dis. mm	L8 Length mm
60A20B30C-RGx	0.20	1.6	5	3	600	50	7	16	36.0	25	62	5.5	70	205
			7	4	428
			10	6	300
60A40B30C-RGx	0.40	2.7	5	6	600	50	7	16	36.0	25	62	5.5	70	225
			7	9	428
			10	13	300
80A70B30C-RGx	0.75	3.1	5	11	600	80	10	22	49.0	30	90	6.6	100	330
			7	16	428
			10	22	300
130A10C20C-RGx	1.00	4.1	5	32	400	110	12	32	66.5	45	115	9.0	130	315
			7	45	286
			10	64	200
130A15C15C-RGx	1.50	6.2	5	48	300	110	12	32	66.5	45	115	9.0	130	405
			7	67	214
			10	96	150
130A23C15C-RGx	2.30	9.8	5	73	300	110	12	32	66.5	45	115	9.0	130	455
			7	103	214
			10	146	150
190H33C15C-RGx	3.30	8.2	5	105	300	160	20	55	108.0	65	185	13.0	215	435
			7	147	214
			10	210	150
190H40C15C-RGx	4.00	10.0	5	127	300	160	20	55	108.0	65	185	13.0	215	435
			7	178	214
			10	255	150
190H55C15C-RGx	5.50	13.0	5	175	300	160	20	55	108.0	65	185	13.0	215	465
			7	245	214
			10	350	150
190H75C15C-RGx	7.50	17.0	5	239	300	160	20	55	108.0	65	185	13.0	215	505
			7	334	214
			10	478	150

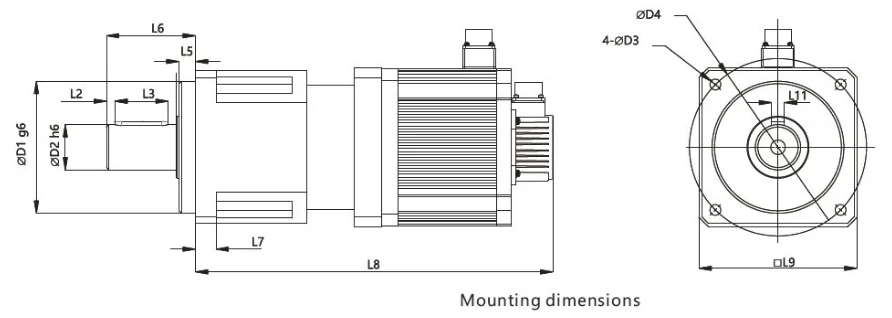

 Mounting Dimensions :







Synmot servo motor main advantage:

1.Ultra energy-saving.high response and accuracy .low noise and low temperrature rise.

2.The rotor is made of high-performance rare-earth.permanet magnet material.works reliably and to maintainless.

3.With low rotary inertia so that it is easy to improve the rapidity of system .small voluime .high speed and high torque.

4.Global optimization using 2D and 3D inite element analysis .with low cogging .low torque-ripple and low noise and vibration .

5.Power range is from 0.4KWto 100KW .with the motor rated speed from 350 RPM to 20000RPM.

6.High acceleration and quick dynamic response .adopting high precision opical encoder (17 bit .33bit) to improve the position control accuracy .it control the current according to D-P principal axis transformation .which in crease the torque control accuracy from 5% to 2%.

Autoritative Certification:

 Transport information:

 FAQ :

1.Q:Can i get sample ?

A:We are hornered to offer you sample for quickly check .

2.Q:Do you have the product in stock ?

A:All standard models we got in stock .special products are manufactured according to your requirement .

3.Q:When do you delivery ?

A:It usually take 3-7 working days .but the exactly time vary from different order at the different time .

4.Q:Are the motors with brake ?

A:The standard without brake .but you can choose to install it or not .so the other size may be different .like length.weight and so on .

5.Q:How long can it works ?

A:Properly use can work for 3 years .

6.Q:Can the motors works in the water?

A:No.our motors can not work in the water.but they can prevent the splash water into the inner .

7.Q:How do you gerrantee your motors ?

A:Quality comes first.all the motor must pass the testing and then packaaged to delivery .

8.Q:Warranty period ?

A:18 months after the days then the products leave our factory .

9.Q:Payment period ?

A:In general.30% by T/T of the amount as deposit .70% by T/T of the  amount need be paid within one week after the day when you receive the copy of the B/L by email or consultations .
