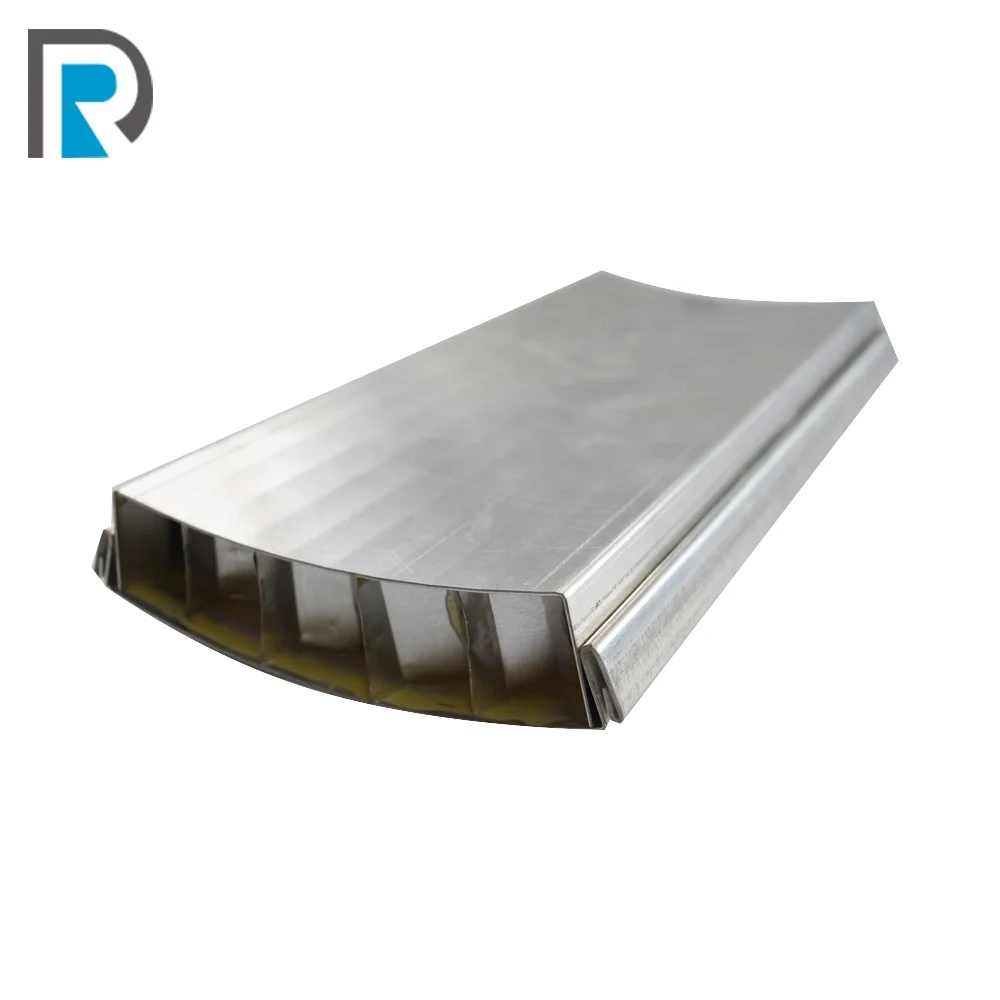

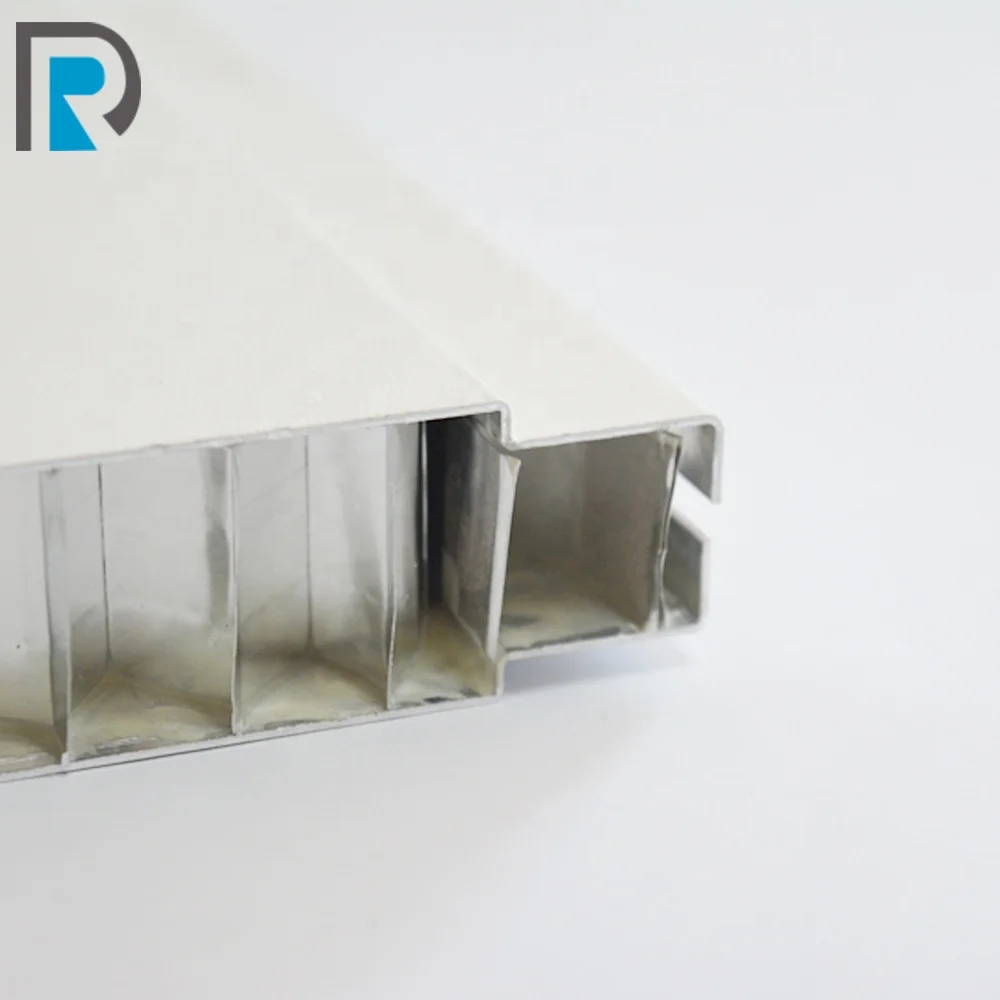

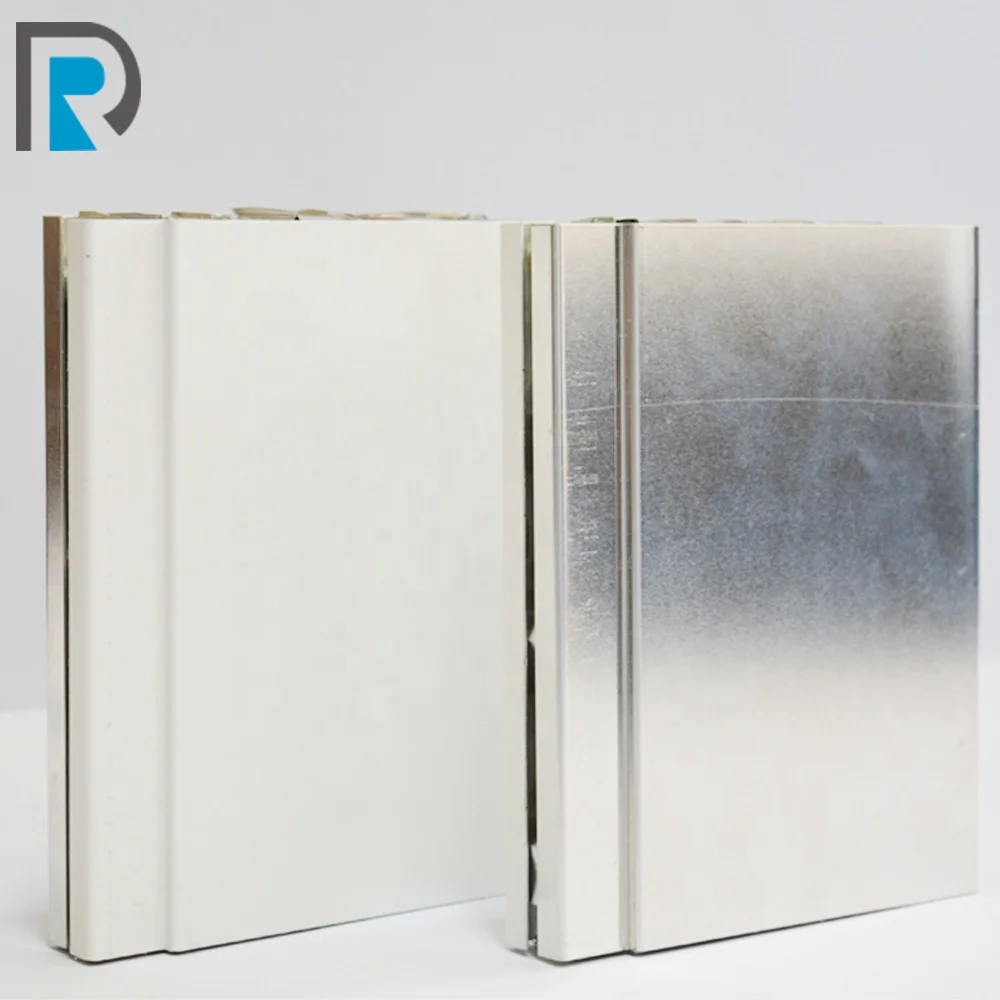

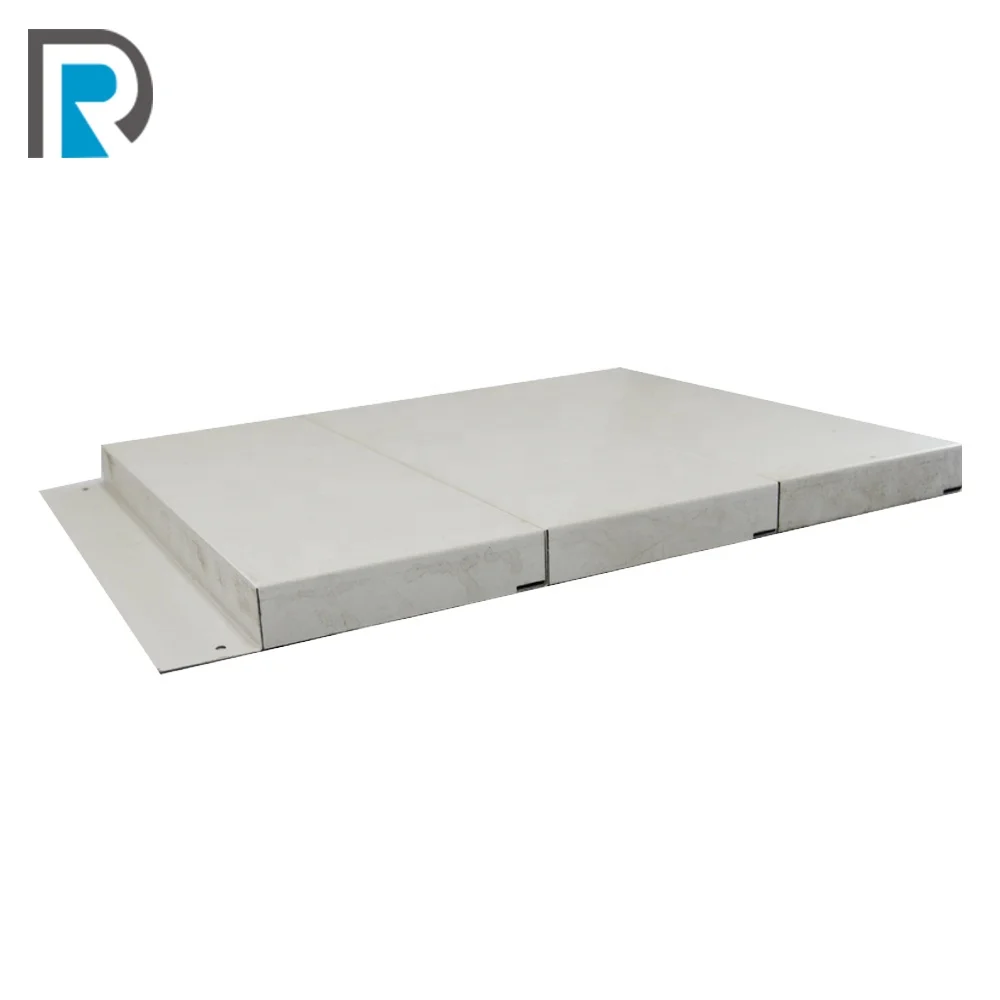

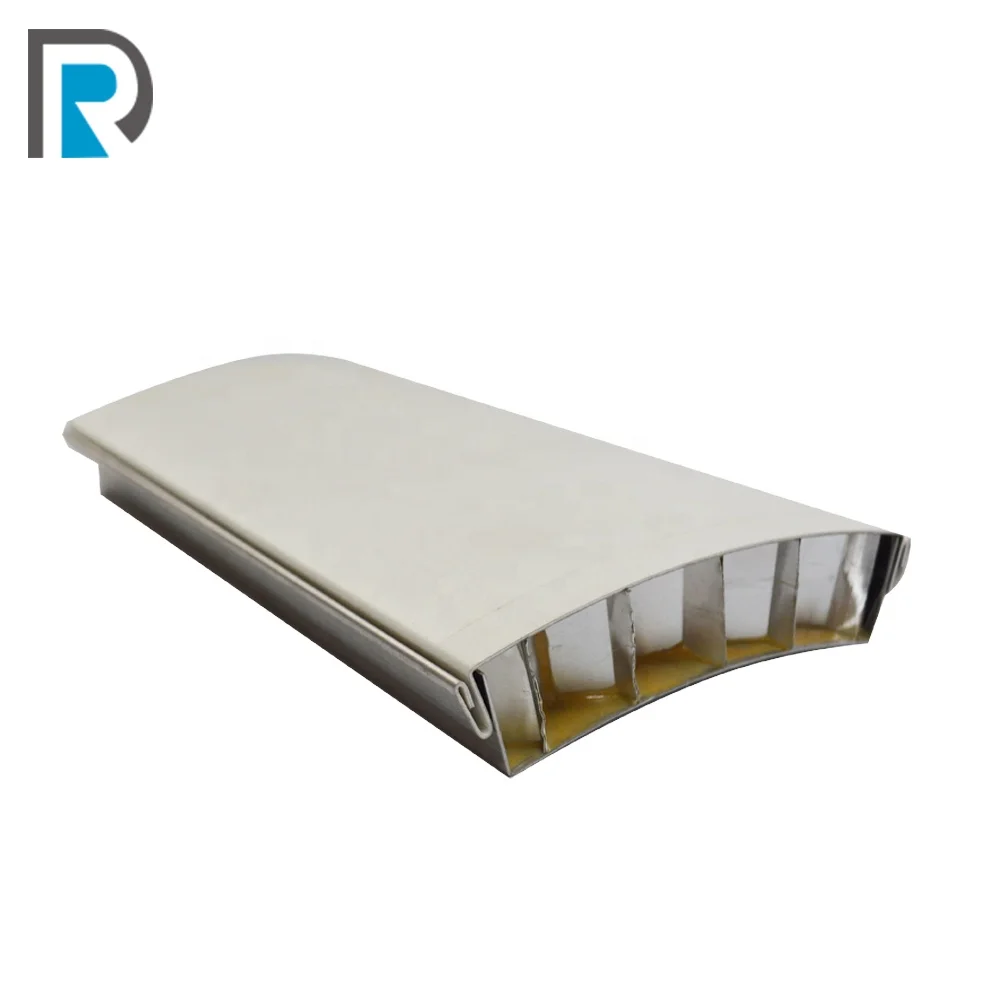

aluminum honeycomb core sandwich panel and marble aluminum honeycomb panel
- Category: >>>
- Supplier: Jiangyin Dongrui Decoration Materials Co. Ltd.
Share on (62099047484):
Product Overview

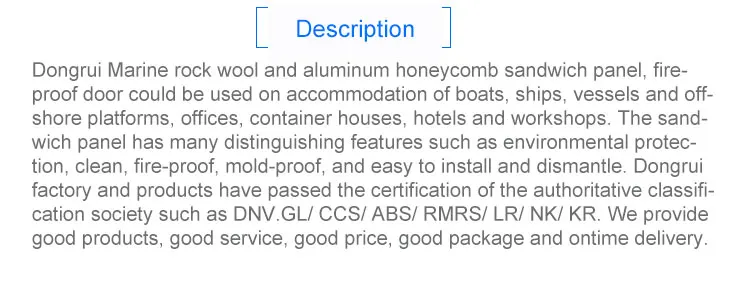

Description
aluminum honeycomb core sandwich panel and marble aluminum honeycomb panel
Product Description

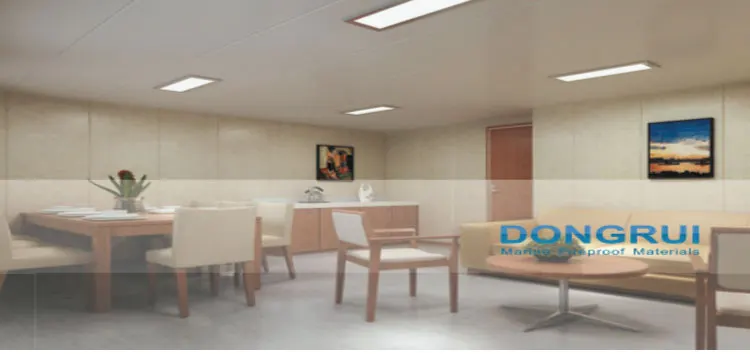

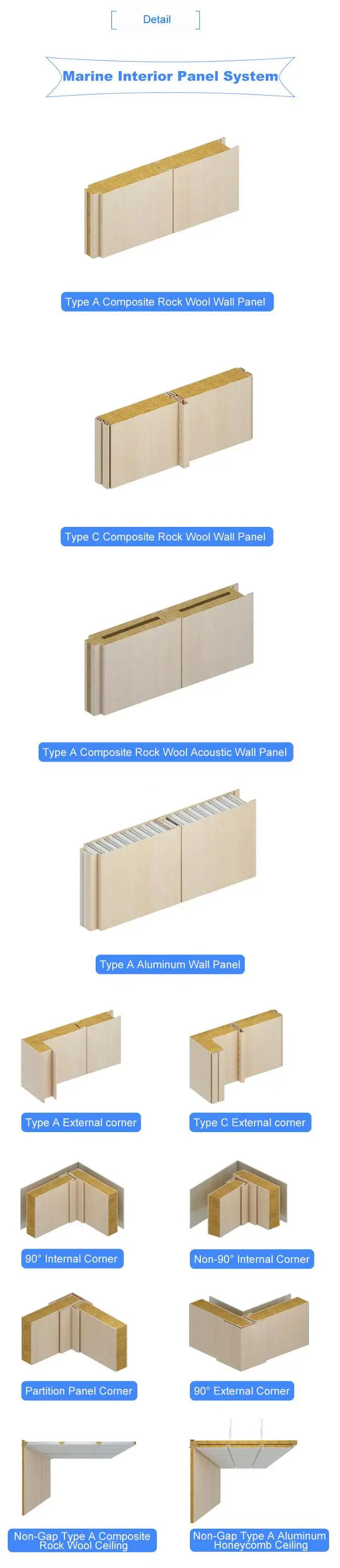

| Marine Interior Panel System | |||||||||
| model | Fire rating | size | weight | Sound insulation value | Heat transfer coefficient | surface material | Core material | tolerance | certificate |
| CLP-P1 | B-15 | 50mm Thickness*550mm width *Required Length (Max 3500mm) | 18.4 kg/m2 | 36dB | 0.68 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ ABS/RMRS/NK/ KR |
| CLP-L1 | B-15 | 30mm Thickness*550mm width *Required Length (Max 3500mm) | 15.8 kg/m2 | 1.13 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ RMRS/KR | |
| CLP-L3 | B-15 | 25mm Thickness*550mm width *Required Length (Max 3500mm) | 15.1 kg/m2 | 32dB | 1.36 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ ABS/RMRS/NK/ KR |
| CLP-P2 | B-15 | 50mm Thickness*550mm width *Required Length (Max 3500mm) | 18.2 kg/m2 | 0.68 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ ABS/LR/RMRS/ NK | |
| CLP-L2 | B-15 | 30mm Thickness*550mm width *Required Length (Max 3500mm) | 15.9 kg/m2 | 1.10 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ RMRS/KR | |
| CLP-L4 | B-0 | 25mm Thickness*550mm width *Required Length (Max 3500mm) | 14.9 kg/m2 | 32dB | 1.13 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ ABS/LR/RMRS/ NK |
| CLP-P7 | B-15 | 50mm Thickness*550mm width *Required Length (Max 3500mm) | 18.6 kg/m2 | 46dB | 0.58 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 150kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | CCS/ABS/LR/NK |
| CLP-P3 | B-15 | 50mm Thickness*550mm width *Required Length (Max 3000mm) | 18.0 kg/m2 | 3.35 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Aluminum Honeycomb | Width(-1,0), Height±3, Thickness(-1,0) | CCS | |
| CLP-L5 | B-0 | 30mm Thickness*550mm width *Required Length (Max 3000mm) | 12.3 kg/m2 | 3.25 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Aluminum Honeycomb | Width(-1,0), Height±3, Thickness(-1,0) | CCS | |
| CLP-L6 | B-0 | 25mm Thickness*550mm width *Required Length (Max 3000mm) | 11.6 kg/m2 | 2.25 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Aluminum Honeycomb | Width(-1,0), Height±3, Thickness(-1,0) | CCS | |
| CLP-C1 | B-15 | 30mm Thickness*550mm width *Required Length (Max 3000mm) | 15.2 kg/m2 | 1.13 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ ABS/RMRS/ NK/KR | |
| CLP-C2 | B-15 | 25mm Thickness*550mm width *Required Length (Max 3000mm) | 14.5 kg/m2 | 1.36 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ ABS/LR/NK | |
| CLP-C9 | B-0 | 30mm Thickness*550mm width *Required Length (Max 3000mm) | 12.3 kg/m2 | 3.25 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Aluminum Honeycomb | Width(-1,0), Height±3, Thickness(-1,0) | CCS | |
| CLP-C10 | B-0 | 25mm Thickness*550mm width *Required Length (Max 3000mm) | 11.8 kg/m2 | 3.25 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Aluminum Honeycomb | Width(-1,0), Height±3, Thickness(-1,0) | CCS | |
| CLP-C11 | B-0 | 25mm Thickness, 600mm*600mm | 9.7 kg/m2 | 1.06 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | CCS | |
| CLP-C6 | B-15 | 60mm Thickness*300mm width *Required Length (Max 4000mm) | 12.1 kg/m2 | 0.43 Kcal/m2h℃ | PVC film (150μ, low flame spread) or powder painted on galvanized steel | Rock Wool 120kg/m2 | Width(-1,0), Height±3, Thickness(-1,0) | DNV.GL/CCS/ ABS/RMRS/NK | |
Company Information

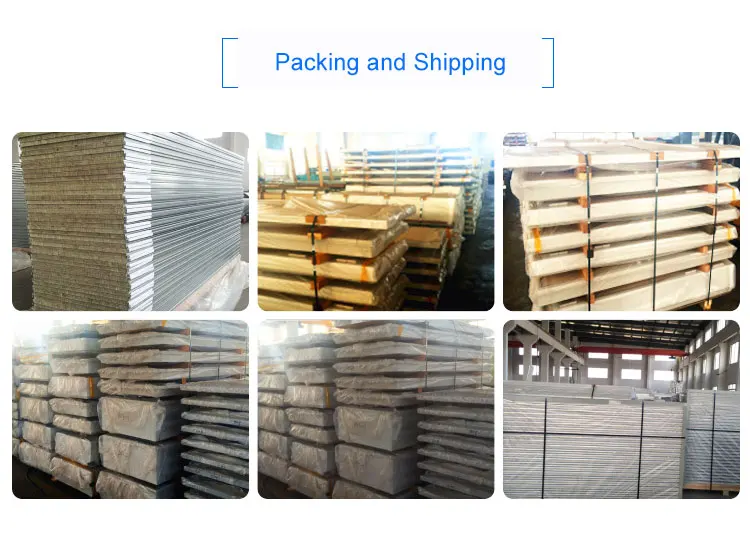

Packaging & Shipping
