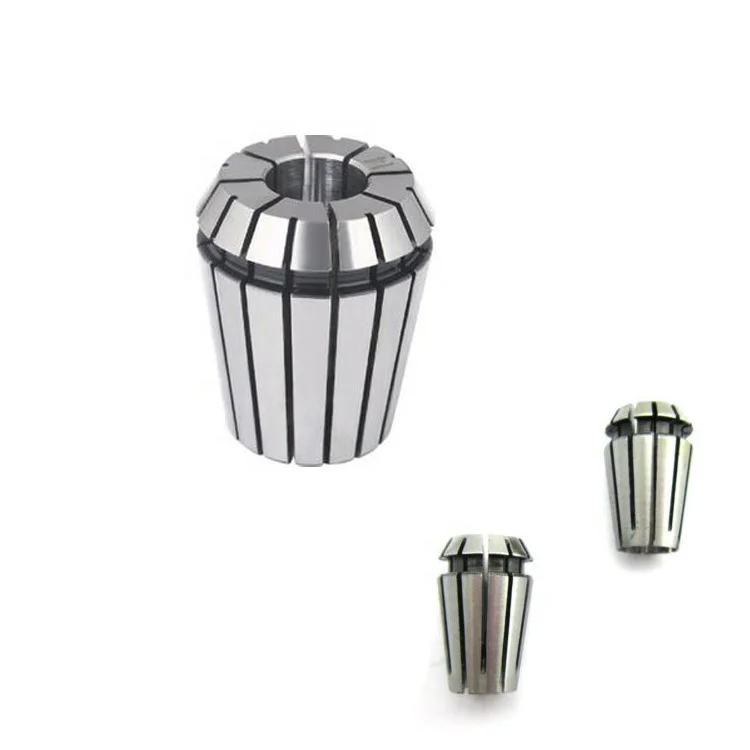

ER8 High Quality Metal Cutting Tools Collet Chuck Spring Collets
- Category: >>>
- Supplier: Shenzhen Acmeewin Technology Co. Ltd.
Share on (62099138927):
Product Overview
Description
Product Description
High Quality Metal Cutting Tools Collet Chuck Spring Collets
ER SERIES COLLECTS
ER collect is a cylindrical fixture used for clamping drilling tools ,tapping tools or milling tools on the spindle of drilling, tapping, milling machines or CNC.
It can also be used to fix and reinforce a fixed locking device that needs to be modified and processed. Its function is to lock the connection between the tool and the spindle.
It can also be used to fix and reinforce a fixed locking device that needs to be modified and processed. Its function is to lock the connection between the tool and the spindle.
Material :65 Mn Steel
Size:ER8，ER11，ER16，ER20，ER25，ER32，ER40，ER50
Precision :0.005mm ,0.008mm
Clamping range:
ER8: 1mm -5mm
ER11: 1mm -7mm
ER16: 1mm to 10mm
ER20: 1mm to 13mm
ER25: 1mm to 17mm
ER32: 2mm to 32mm
ER40: 3mm to 30mm
ER50: 6mm to 36mm
Size:ER8，ER11，ER16，ER20，ER25，ER32，ER40，ER50
Precision :0.005mm ,0.008mm
Clamping range:
ER8: 1mm -5mm
ER11: 1mm -7mm
ER16: 1mm to 10mm
ER20: 1mm to 13mm
ER25: 1mm to 17mm
ER32: 2mm to 32mm
ER40: 3mm to 30mm
ER50: 6mm to 36mm

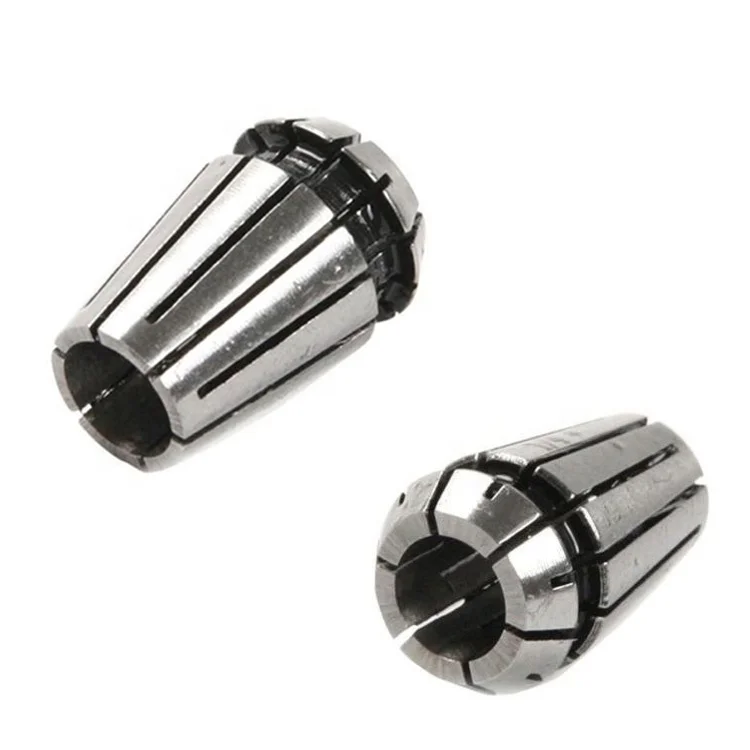

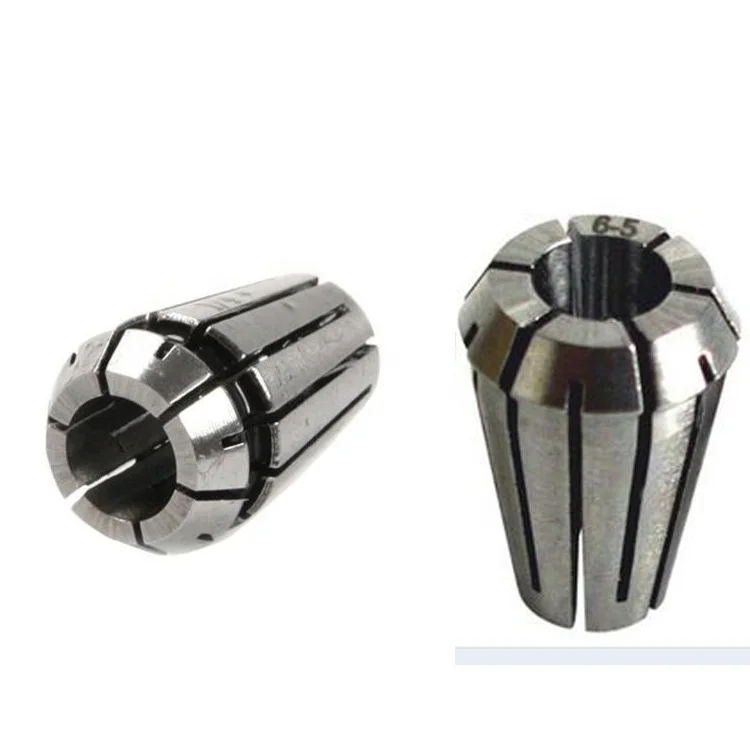

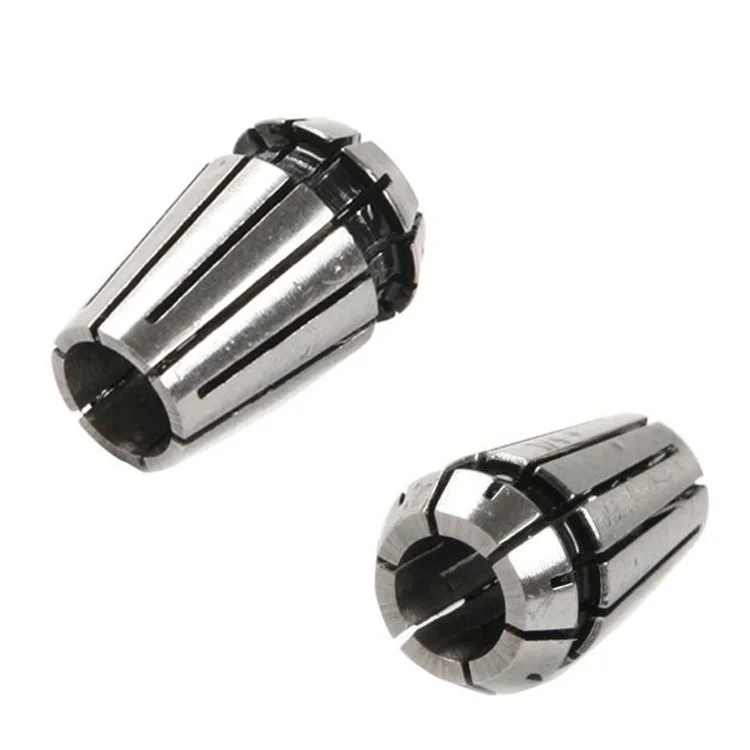

Detailed Images

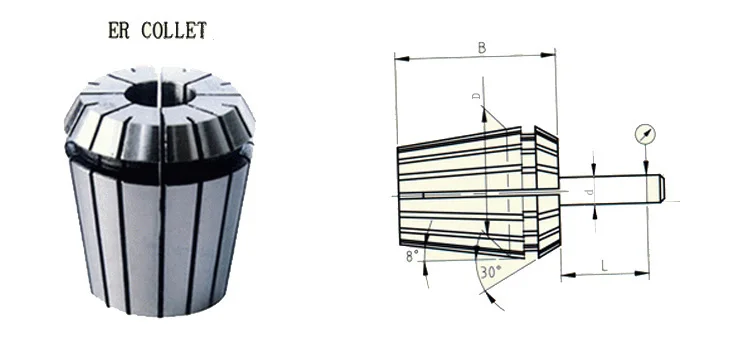

Model NO. | d | D | B | Collapsible capacity |
ER8 | 1.0-5.0mm | 8 | 13.5 | 0.5 |
ER11 | 1.0-7.0mm | 11 | 18 | 0.5 |
ER16 | 1.0-10.0mm | 16 | 27.5 | 0.5-1.0 |
ER20 | 1.0-13.0mm | 20 | 31.5 | 0.5-1.0 |
ER25 | 2.0-16mm | 25 | 34 | 1.0 |
ER32 | 3.0-20mm | 32 | 40 | 1.0 |
ER40 | 3.0-26.0mm | 40 | 46 | 1.0 |
ER50 | 10.0-35.0mm | 50 | 60 | 2.0 |
Recommend Products
Thread plug gauges
Thread ring gauges
Tungsten steel pin gauge

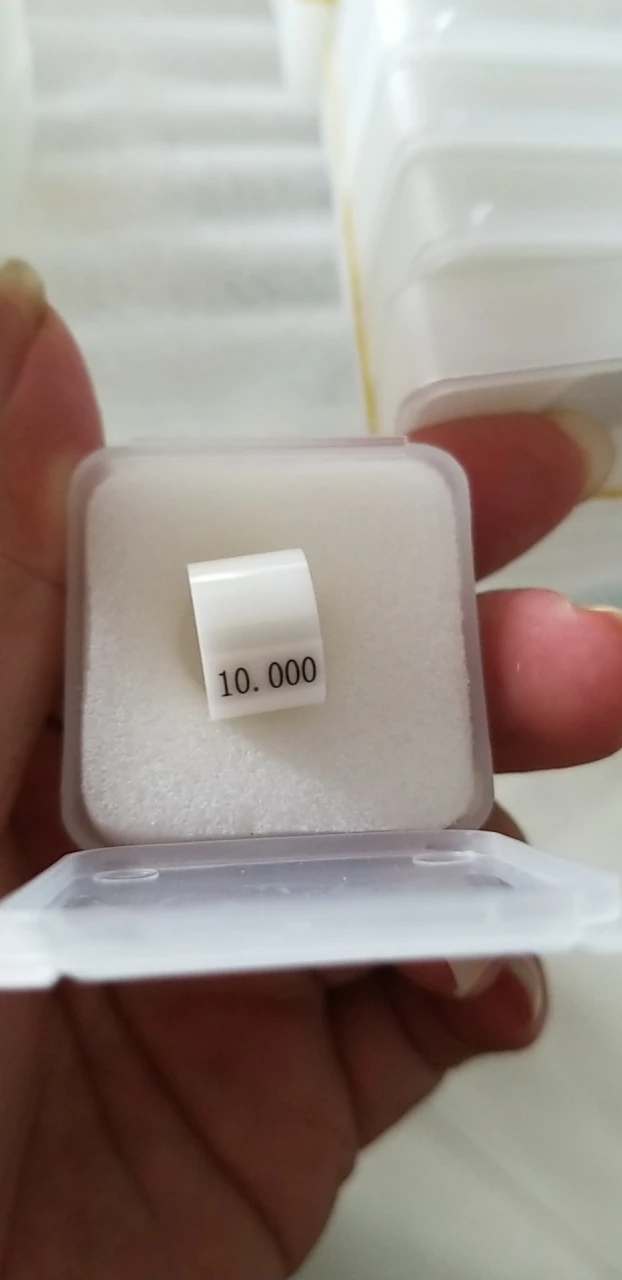

Ceramic pin gauge
Block gauge
Ceramic Block gauge
NON STANDARD CUSTOMIZED CERAMIC BLOCK GAUGE
NON STANDARD CUSTOMIZED PIN GAUGES
Packing & Delivery
Packaging : Carton and Wooden Box Are Both Available ,We Also Can Be Customized Package According To Customer's Requirements.
Shipping: We Suggest DHL,UPS,TNT,Fedex,EMS ,Special Line etc. If You Have Special Required , Just Email Us.
FAQ
Q: Can you product non-standard products ?
A: Yes ,We can be customized according to customer's requirements.
Q: What do we need to provide before ordering non-standard products?
A: If there is no special requirements ,you need to provide us 2 D and 3 D drawings.
Q: Could you offer samples for non-standard products?
A: Yes ,of course ,sometimes sample fee will be charged .
Q: What is your delivery time ?
A: For standard products ,the sample will be shipped out within 3 days ,and for bulk order ,usually it will take about
5-7 working days .For non-standard products ,it depends on products'complexity and its processing technics.
Q: What's your terms of payment ?
A: For inventory product ,100% in advance , and customized products ,50% T/T in advance ,balance before shipment .
A: Yes ,We can be customized according to customer's requirements.
Q: What do we need to provide before ordering non-standard products?
A: If there is no special requirements ,you need to provide us 2 D and 3 D drawings.
Q: Could you offer samples for non-standard products?
A: Yes ,of course ,sometimes sample fee will be charged .
Q: What is your delivery time ?
A: For standard products ,the sample will be shipped out within 3 days ,and for bulk order ,usually it will take about
5-7 working days .For non-standard products ,it depends on products'complexity and its processing technics.
Q: What's your terms of payment ?
A: For inventory product ,100% in advance , and customized products ,50% T/T in advance ,balance before shipment .
