vinyl cutter machine cutting plotter
US $258.00-$308.00
Виниловый режущий плоттер MYCUT CE 24 '2 фута
- Category: Graph Plotter >>>
- Supplier: Huansheng Intelligence (shenzhen) Co. Ltd.
Share on (62099244490):
Product Overview
Description

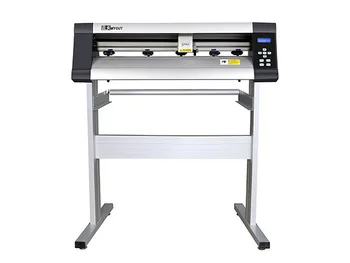

MYCUT CE 24'' 2ft contour cutting vinyl cutter plotter
Product Description
Model | MK630(29'') | MK1200(55'') | MK1500(64') |
Main Board | High-performance & intelligent ARM 32 CPU; 64MB memory | ||
Driver | High speed stepper motor, micro-step driver | ||
Max Paper Feed Width | 730mm | 1400mm | 1600mm |
Max Cutting Width | 630mm | 1280mm | 1500mm |
Max Cutting Speed | 650mm/s | ||
Cutting Force | 0-500g/0-1000g (optional configuration) | ||
Mechanical Precision | 0.05mm | ||
Repeatable Precision | < +-0.1mm | ||
Plotter Instruction | DM-PL/HP-GL Automatic Identification | ||
Interfaces | USB / Serial port / U-Disc port | ||
Power Supply | AC110V /220V±10%, 50Hz/60Hz | ||
Software | Compatible with Singmaster, CDR, Flexi10, Artcut, Signcut | ||
Compatible knife | R oland | ||
Noise at Work | ≤50 DB | ||
External Dimension | 1000*320*390mm | 1670*320*390mm | 1900*320*390mm |
Shipping Weight | 22kgs | 32kgs | 42kgs |

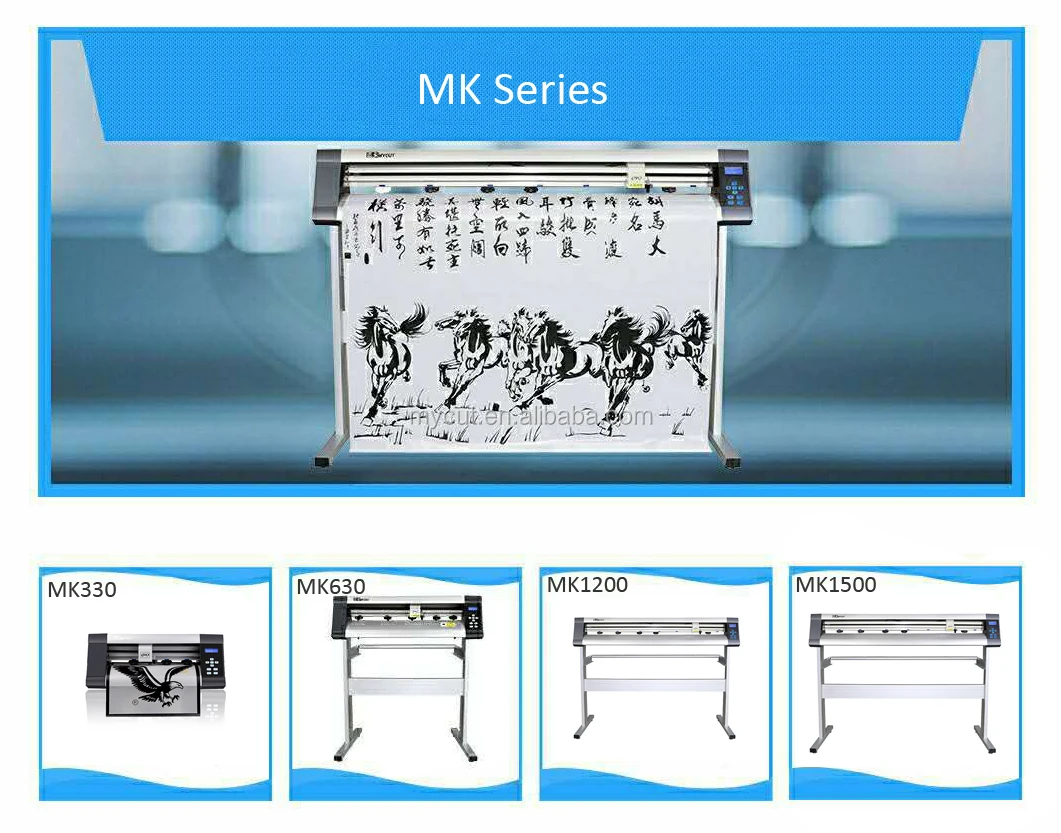

MK Series Main Features:
The cutting plotter MKU630 is ideal for the creation of adhesives, the cutting of designs for thermotransferible stamping, cutting in vehicular graphics, decoration in walls, windows or objects, there are many applications that can be achieved with this machine.
1. High force(0-500/0-1000g) to cut different materials easily;
2. Real high speed 256MB memory;
3. High precision integrated steel roller: guaranteed 5m without deviation of paper feeding;
4. High accuracy machine structure allows to cut 2mm letters without distortion;
5. High performance 32-bit processor with ARM Cortex-M3;
6. Low noise: ultra quiet design;
7. Aluminum alloy body makes it more durable and elegant;
8. CE RoHs approved.

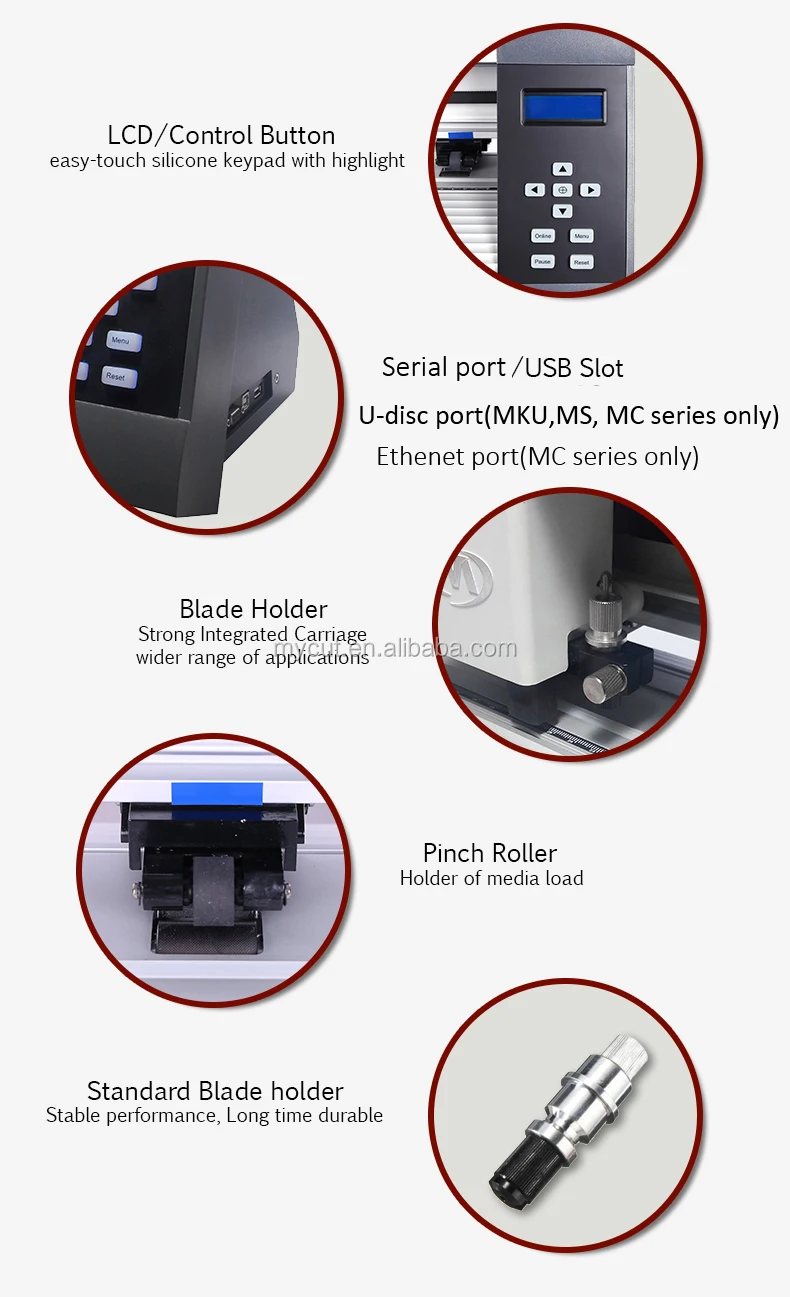

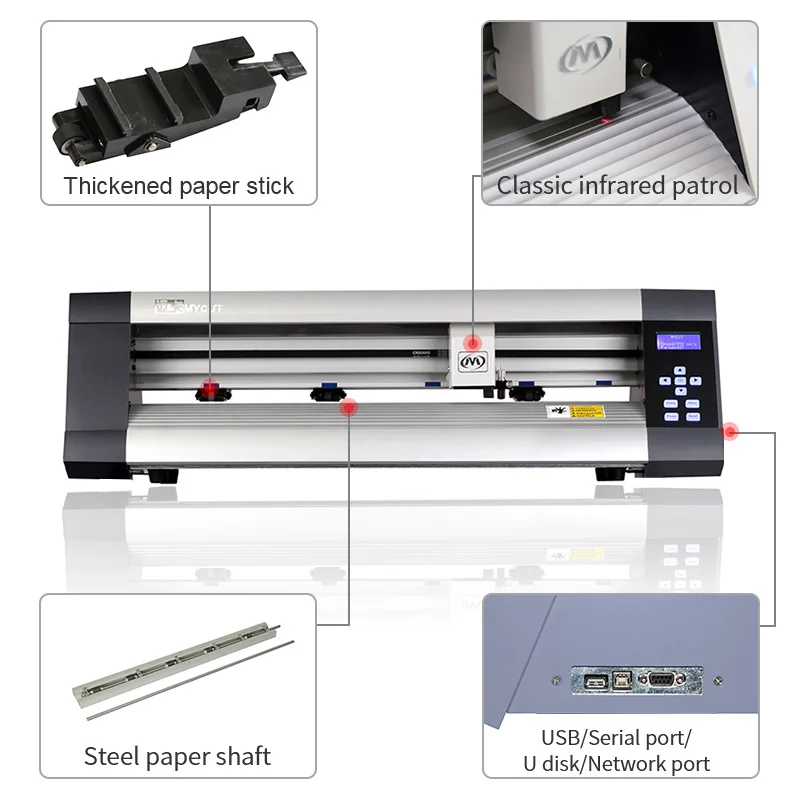

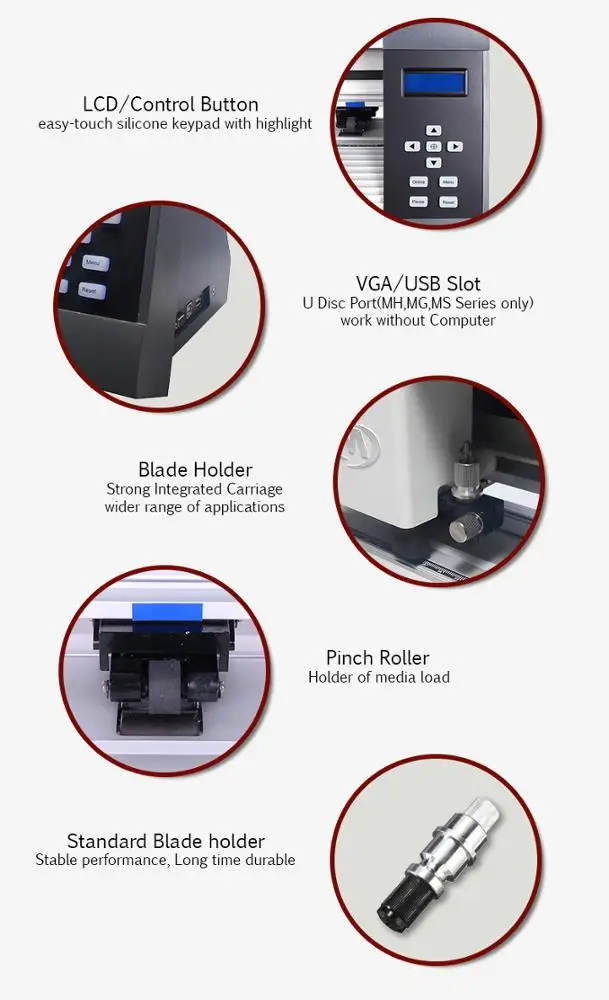

Strong Integrated Carriage
wider range of applications like advertisement engraving, diatom ooze, Glass sandblasting etc.
Integrated Grit Roller
High precision
Big LCD Display
easy-touch silicone keypad with highlight
Strong Pinch Roller
attractive and durable

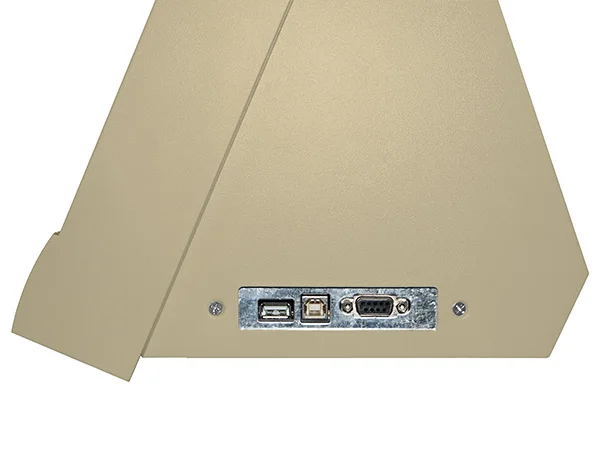

Three Interfaces
U Disc Port(MH,MG,MS Series only),work without Computer
Standard Blade
Each machine with 1 blade holder,3 blades
Packaging & Shipping
The device comes in a cardboard box with all its accessories, this is the list of the components included:
- 1 cutter MK630
- 1 floor stand
- 1 power cable
- 1 knife holder
- 3 knives
- 1 pencil holder
- 1 RS232 data cable
- 1 USB cable
- 1 user manual
Delivery Info
within 7 days for order less than 100 units.
Within 15 days for order more than 100 units.
Our Services
1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
5.We provide door to door technical support to agents, if necessary.
