Auto Spray Paint Booth for car
- Category: Spray Booths >>>
- Supplier: Yonrise Technology Co. Ltd.
Share on (62099273249):
Product Overview
Description
Product Description

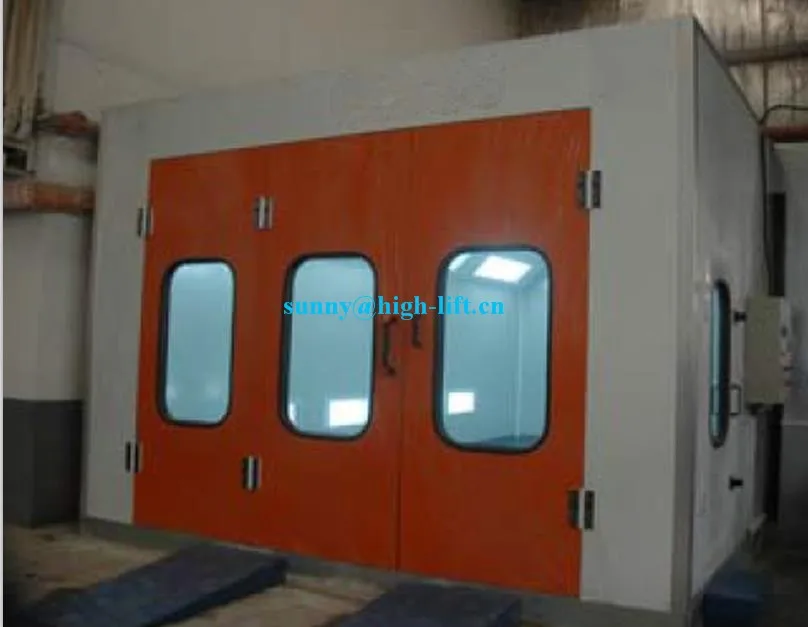

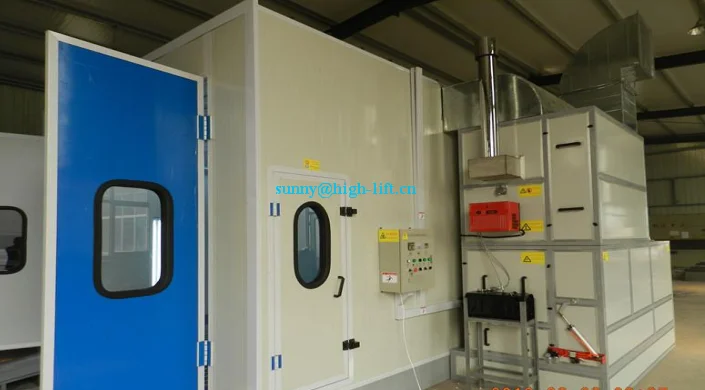

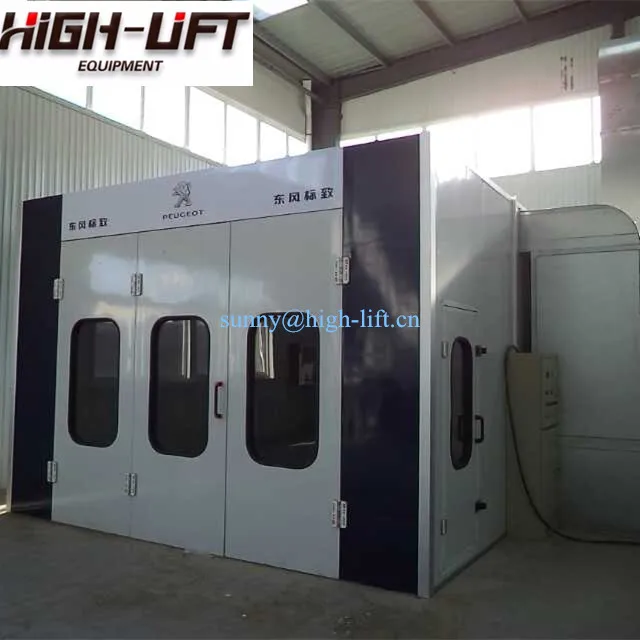

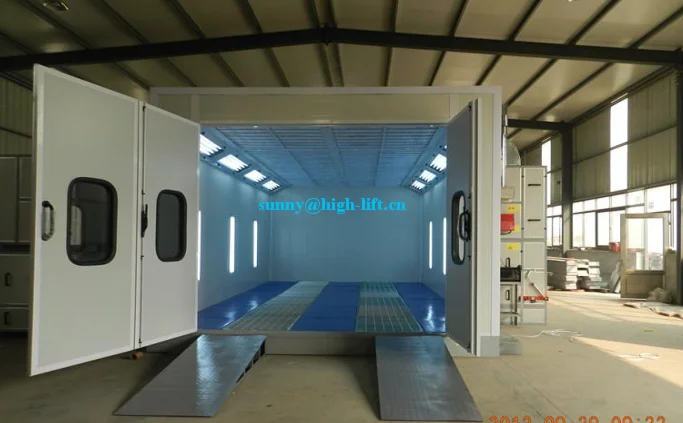

Spray Booth for car
YL-S700 Specification
Inside: Dimension\t\t6900×3900×2650mm(L×W×H)
Outside: Dimension\t\t7020×5220×3300mm(L×W×H)
Main Door: 3-folds, 3000×2450mm(W×H)
Personal Door: 1fold ,900×1800mm(W×H)
Wall Panels: EPS (epispastics polystyrene) colorful steel skin board,
wall panel: 50mm thick, 0.426mm steel,
tongue & groove style compound construction, Aluminum-alloy frame,
anti-flame and heat-insulation, galvanized steel roof panel
Basement and Floor: Galvanized steel assemble,Full metal foundation, height is 280mm, two rows flat steel grids and three rows metal non-slip diamond plates, 2 pcs of ramps, 620×2000mm (W×L), diamond plate construction
Lighting: Ceiling lights:8 units×3pieces =24pieces ×16W;LED
Side lights:6 units×2pieces =12pieces ×16W;LED
Generator Setting Type: Side upper intake air, quadrate steel frame, coated steel.
Inlet Fan: 2×3KW YDW double-intake centrifugal fans, total air capacity: 20000m³/h
Exhaust Fan: 1×3KW YDW double-intake centrifugal fans, total air capacity:12000m3/h
Heating System: 1set : RIELLO G20 diesel burner, max baking temperature is 80°C .
heating productivity: 200000 Kcal/h, stainless steel heat exchanger.
Filter System:
1) the primary filter can capture granules larger than 10μm.
2) Ceiling filter can capture granules bigger than 4μm. Its filtering rate Filter System reaches 98%. Air pressure balance gauge, TSP≤1.4mg/m3 .
3) floor filter(fiberglass filter).
4) activated carbon filter.
Control System: Lighting switch, spraying, heat spraying, baking, temperature controller,time setting, emergency stop.
Total Power 11.3KW
Our Company
OEM IS SUITABLE FOR US
HIGH LIFT EQUIPMENT CO.,LTD. is a professional manufacturer and trading combination enterprise in auto maintenance equipment area .Our factory is located in Auto Maintenance Industrial Park,Yingkou City, Liaoning Province,China.Yingkou is auto maintenance equipment distributing center in China.
We are engaged in car lifts, Tyre Changer, Wheel Balancer and Wheel Alignment and etc. and production with advanced CNC mechanical equipment ,completely automated painting line and high efficiency assembly line. A complete production technique and quality management system was created by our excellent and experienced R&D Team. It ensures all products with reliable quality and warranty service for our customers. Our products have been shipped to global markets in the quantities of 1000 sets per month, such as Europe, North & South America, Africa, Australia, the Middle East, Asia as well as different provinces in China.
EXIBITION ABROAD

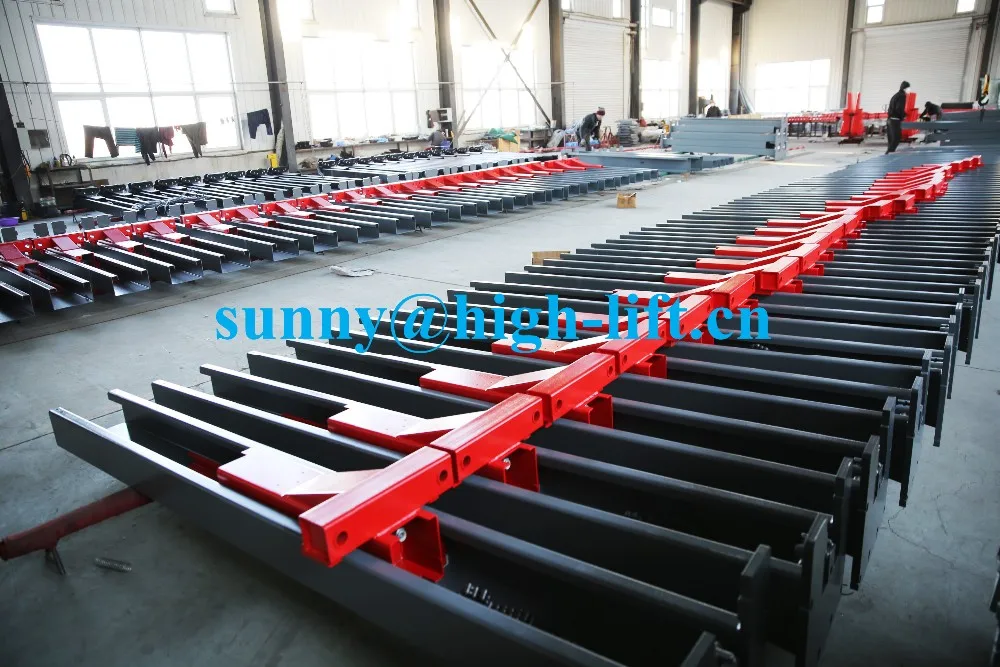

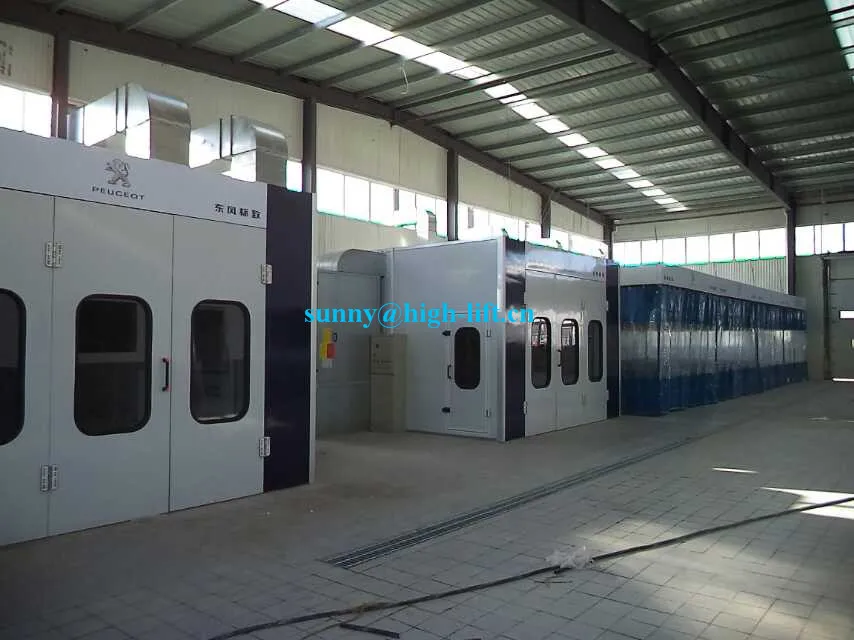

Workshop

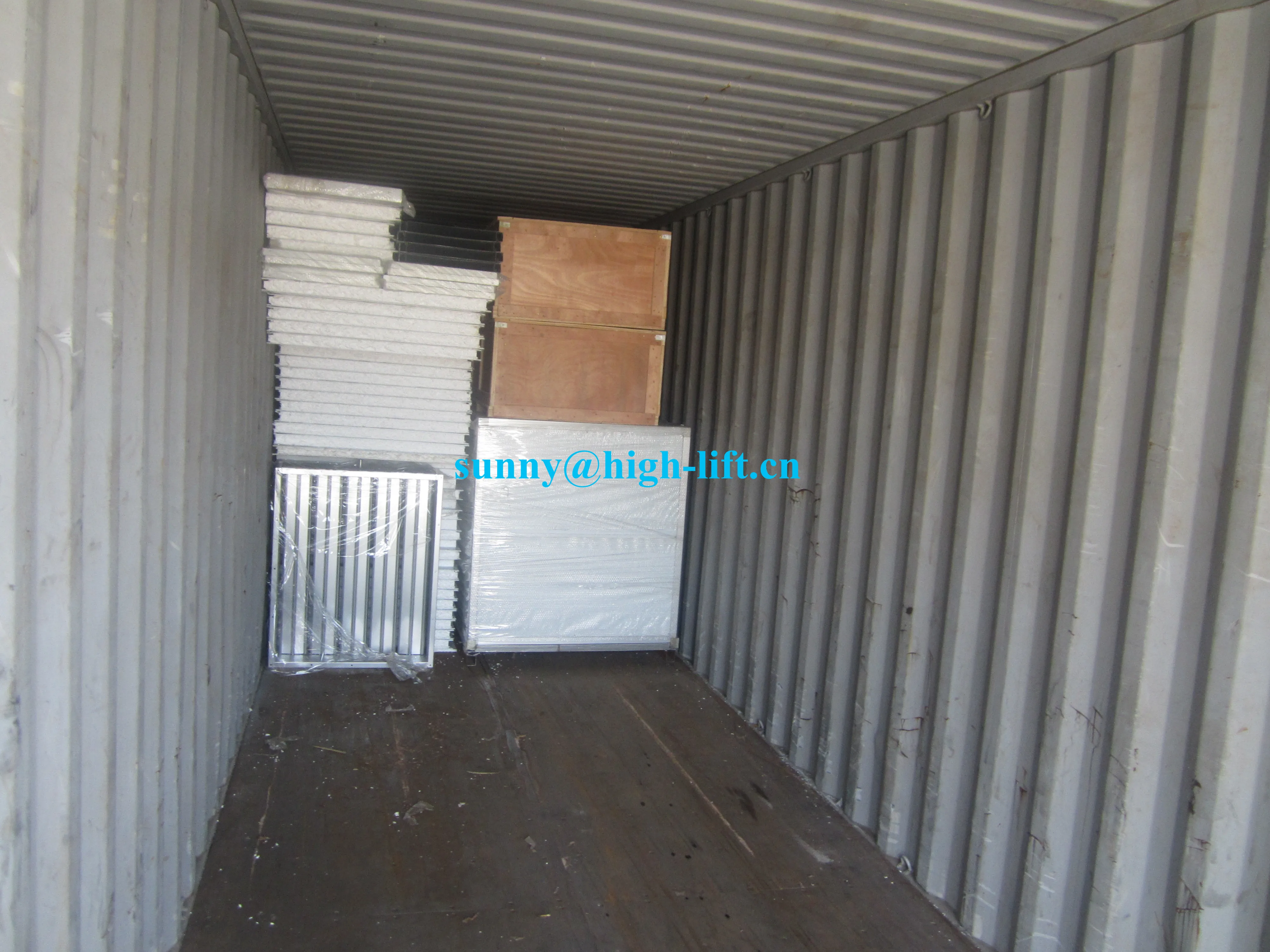

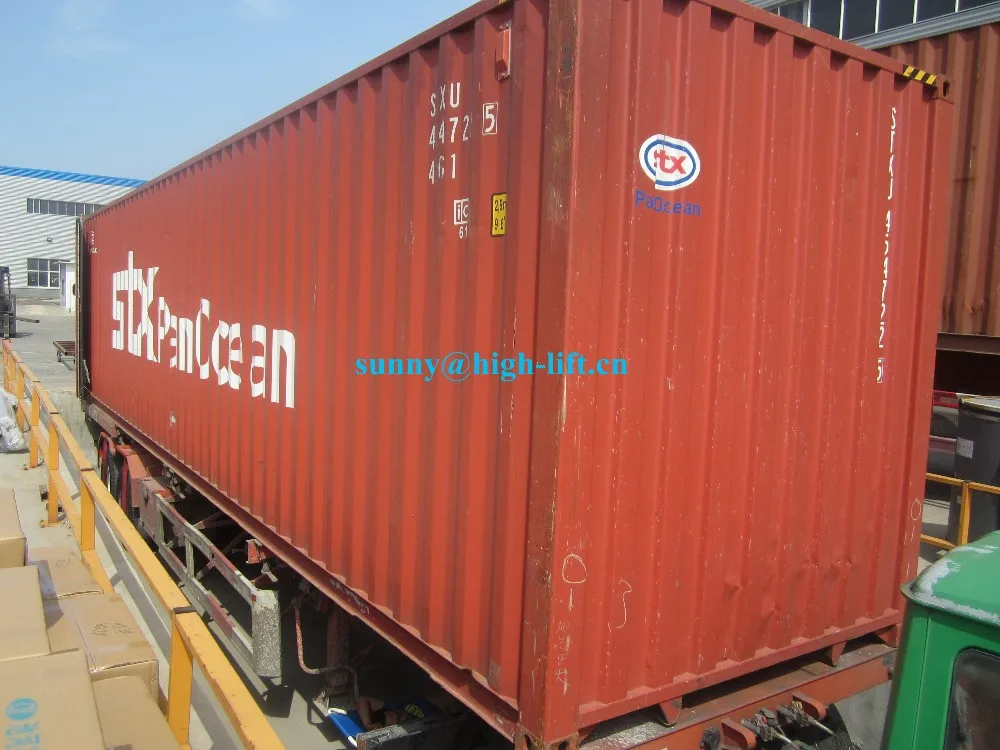

Packing & Delivery
FAQ
1. Why should I choose HIGH LIFT car lift?
There are several reasons you should strongly consider purchasing from HIGH LIFT:
•\tTop raw materials from only the finest plants
•\tOnly professional cost-effective equipment
•\tLow prices with high quality revenue producing products
•\tIncrease productivity for your customers
•\tThe best customer service.
•\tGreat Warranty
2. How safe are HIGH LIFT 4 post car lift?
Our 2&4 post lifts have been tested and CE certified for safety. They also meet the American
and Australian Standard.
3. Should I keep repair and replacement parts in stock?
Yes, most all commonly required repair and replacement parts should always keep in stock.
4. Are HIGH LIFT car lift designed for commercial use?
All of our lifts can be used in commercial applications without any problems.
5. Do you offer any custom designs?
Yes, HIGH LIFT provide OEM/ODM services to partners. HIGH LIFT can also produce according to your designs.
6. Another model or type of car lift I can get from HIGH LIFT
2 Post car lift, clear floor car lift, 4 post car lift, scissor lift, wheel changer, V-3D-TL and etc.
