3000w portable solar testing high voltage DC power supply
Key feature:

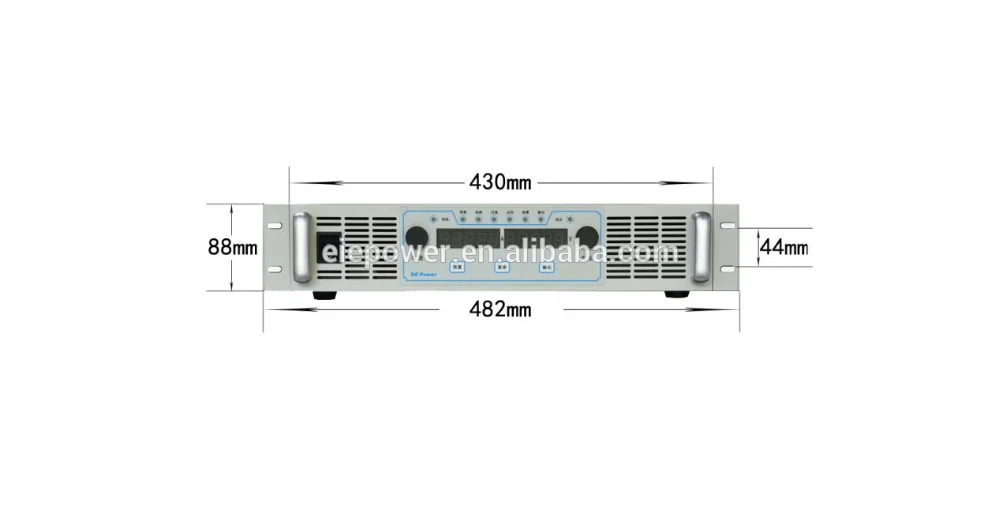

1. Standard 19-inch 2U chassis for tabletop operation and rack-mount integration
2. Small size, light weight, high precision and strong stability
3. Adopt PWM modulation, high gain amplifier circuit design, the core components
are imported components to ensure long-term full load operation, stable and reliable

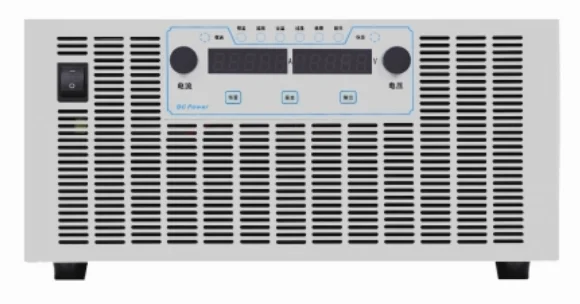

4. The panel comes with preset button, which can set the voltage and current value
in advance.
5. Perfect function protection: It can set output over-voltage, over-current,
over-temperature, short-circuit and other off output protection functions;
6. Can be connected with a PC to form a PC monitor intelligent power supply
7.With standard RS232/RS485 digital communication interface,0-10V/4-20mA analog
communication interface.
8.Special Customization: Provide special specifications, dimensions, parameters,
power supply design customization, and the company can customize dual-range
high-precision switching 2-in-1 power supply.
specification
AC output
single-phase: ACC220V±10%,50Hz/60Hz,≤5KW series
three-phase: AC380V ±10%,50Hz/60Hz,≥5KW series
DC output
refer to the models
Voltage stability accuracy
≤0.3% +10 mV
Current stability accuracy
≤0.5% +10 mV
Line regulation
≤0.3% (according to 10%-90% load)
Load regulation
≤0.5% (according to 10%-90% load))
Power ripple
≤0.3% +10 mV (Regulated state)
≤0.3% +10 mV (Regulated state)
Display
4 ½
Resolution
voltmeter:0.1V
ammeter:0.1A
(about detailed data,refer to the models)
Protection
overvoltage, overcurrent, overtemperature, short circuit
Communication interface
RS232/RS485 digital interface,0-10V/4-20mA analog interface
Output polarity
arbitrary choice (+ or -)
>800V output,default(-)
Radiating
adopt to international fan
Operational(indoor)
temperture:0℃-40℃
humidity:10%-85% RH
Storage
temperture:(-20℃)-70℃
humidity:10%-90% RH
EP300W Series
EP600W Series
Model
Output
Model
Output
EP1520
15V/20A/300W
EP1540
15V/40A/600W
EP2015
20V/15A/300W
EP2030
20V/30A/600W
EP3010
30V/10A/300W
EP3020
30V/20A/600W
EP6005
60V/5A/300W
EP6010
60V/10A/600W
EP3000W Series
EP4500W Series
Model
Output
Model
Output
EP30100
30V/100A/3000W
EP30150
30V/150A/4500W
EP5060
50V/60A/3000W
EP5090
50V/90A/4500W
EP6050
60V/50A/3000W
EP6075
60V/75A/4500W
EP10030
100V/30A/3000W
EP10045
100V/45A/4500W
EP15020
150V/20A/3000W
EP15030
150V/30A/4500W
EP30010
300V/10A/3000W
EP30015
300V/15A/4500W
EP60005
600V/5A/3000W
EP6007.5
600V/7.5A/4500W
EP6000W Series
EP9000W Series
Model
Output
Model
Output
EP30200
30V/200A/6000W
EP30300
30V/300A/9000W
EP50120
50V/120A/6000W
EP50160
50V/160A/9000W
EP60100
60V/100A/6000W
EP60150
60V/150A/9000W
EP10060
100V/60A/6000W
EP10090
100V/90A/9000W
EP15040
150V/40A/6000W
EP15060
150V/60A/9000W
EP30020
300V/20A/6000W
EP30030
300V/30A/9000W
EP60010
600V/10A/6000W
EP60015
600V/15A/9000W
EP 12KW Series
EP 15 KW Series
Model
Output
Model
Output
EP30400
30V/400A/12KW
EP30500
30V/500A/15KW
EP50240
50V/240A/12KW
EP50300
50V/300A/15KW
EP60200
60V/200A/12KW
EP60250
60V/250A/15KW
EP100120
100V/120A/12KW
EP100150
100V/150A/15KW
EP15080
150V/80A/12KW
EP150100
150V/100A/15KW
EP30040
300V/40A/12KW
EP30050
300V/50A/15KW
EP60020
600V/20A/12KW
EP60025
600V/25A/15KW
EP 18KW Series
EP 24KW Series
Model
Output
Model
Output
EP30600
30V/600A/18KW
EP30800
30V/800A/24KW
EP50360
50V/360A/18KW
EP50480
50V/480A/24KW
EP60300
60V/300A/18KW
EP60400
60V/400A/24KW
EP100180
100V/180A/18KW
EP100240
100V/240A/24KW
EP30060
300V/60A/18KW
EP30080
300V/80A/24KW
EP60030
600V/30A/18KW
EP60040
600V/40A/24KW
EP 30KW Series
EP 45KW Series
Model
Output
Model
Output
EP30100
30V/1000A/30KW
EP301500
30V/1500A/45KW
EP50600
50V/600A/30KW
EP50900
50V/900A/45KW
EP60500
60V/500A/30KW
EP60750
60V/750A/45KW
EP100300
100V/300A/30KW
EP100450
100V/450A/45KW
EP150200
150V/200A/30KW
EP150300
150V/300A/45KW
EP300100
300V/100A/30KW
EP300150
300V/150A/45KW
EP60050
600V/50A/30KW
EP60075
600V/75A/45KW
Our Company
Our company have 10 years experiences Focus on electron industry In China! Company with excellent service and innovation market idea;
With high ratio of performance quality and reasonable price for the purpose of service to all customers.
We are not only provide high quality products, and constantly enhance the level of service standard.
Believe we will do better!

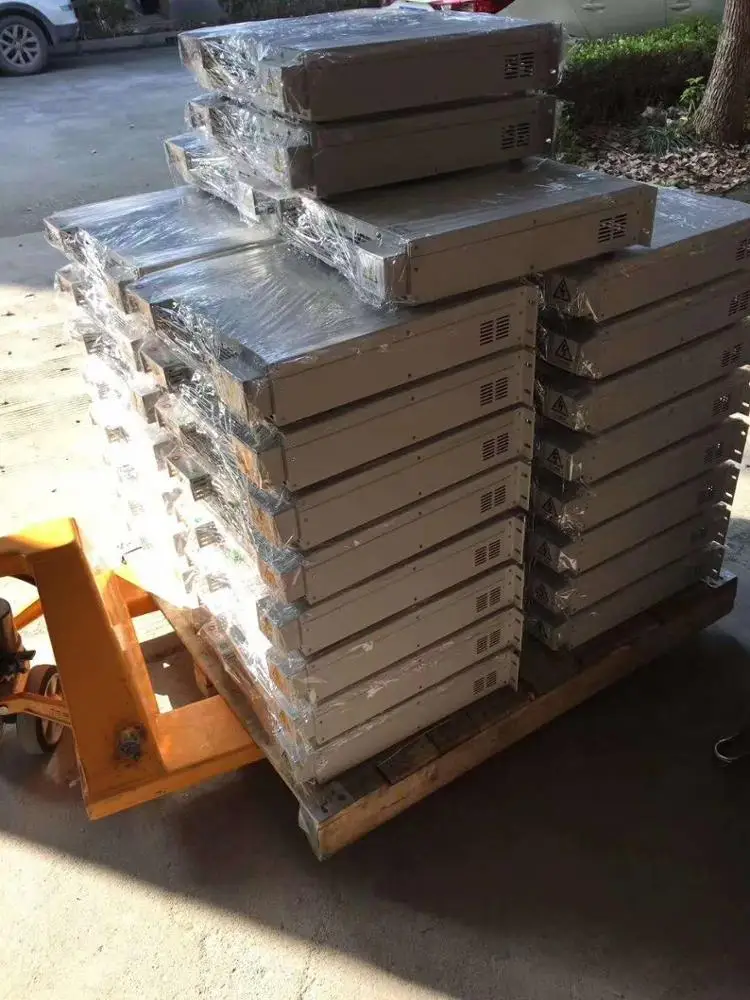

Packing & Delivery
Packing:
Factory Original Packaging.
Our Services
We supply the New & Original parts only!
And we had sophisticated logistics service.
Delivery:
Short time & Safety delivery!
FOB Beijing or as your request trade terms.
Let's cooperate once and become friends!
FAQ
Q:What is your MOQ? A: If you just need only 1 piece,is also ok.
Q:How long is your delivery time? A:Generally it is 3-5 days if the goods are in stock. it is according to quantity.
Q:What is your advantage? A:1.Our company have 10 years experiences Focus on electron industry In China! 2.Short delivery time and good quality product with international standard.
If you have other question, pls feel free to contact us
