DYH 1807 single side retractable mechanism extension cord reels retractable reels
- Category: Power Cords & Extension Cords >>>
- Supplier: Choice & Chance (hunan) Electric Technology Co. Ltd.
Share on (62099513349):
Product Overview
Description
Product Description

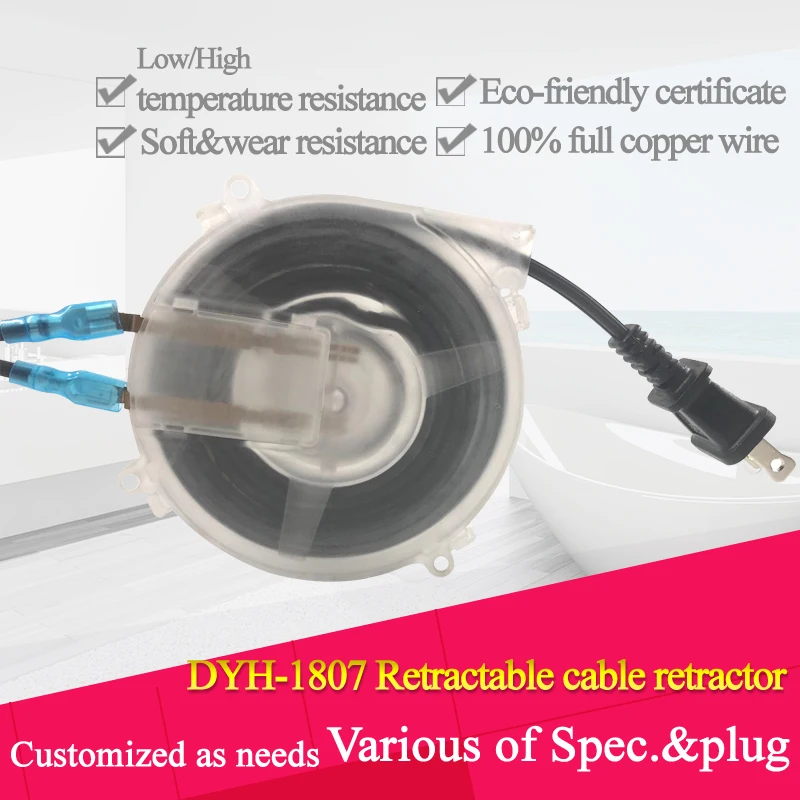

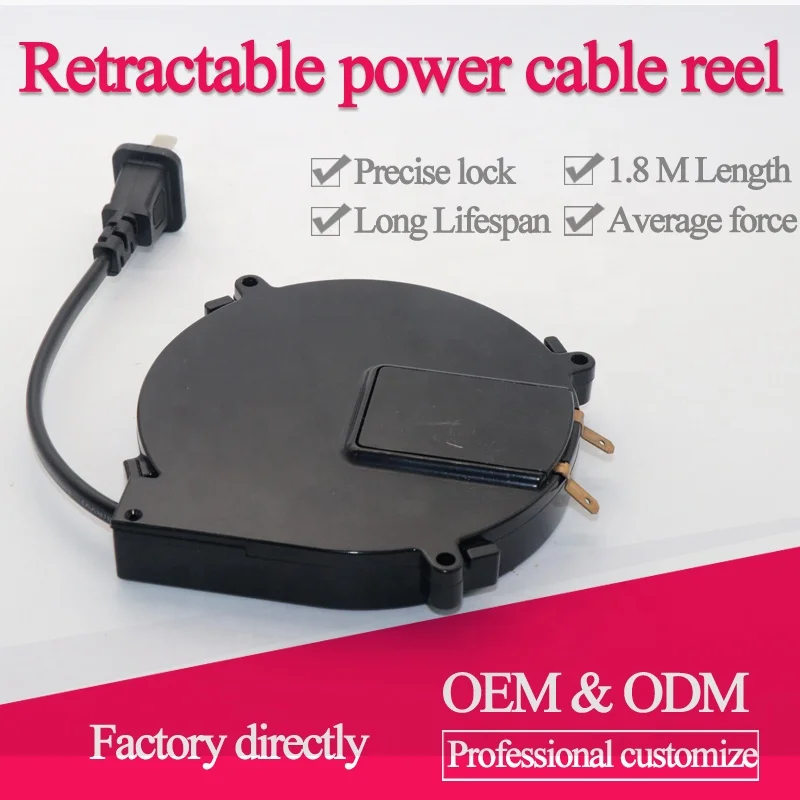

DYH 1807 single side retractable mechanism extension cord reels retractable reels
Extremely compact, 2-pole cable rewinder, Single-layer MAX 2m FLAT cable, catch brake system, EU plug, AU plug, USA plug is available.
Technique solution for retractable mechanism - Customize is acceptable.
If need OEM&ODM, contact with us for detail information.
Wechat/Whatsapp: + 86 18273136972
* Drive system:
Spring Drive:
Constant force spring instead of spiral spring with SUS 304 stainless steel; main spring not Rolling spring;
Electric Drive:
In addition to the spring force, cables can be rolled up electrically by means of electric motor and gearbox.
* Contact System:
Axial Contact:
The axial contacts with up to three contact points, along the axis. Up to 3-pole.
Radial Contact:
The radial contacts up to five contact points. Up to 10-pole.It works as a rotating part.
Contact systems transmit the power from the stationary part of the winder (case) to the rotating part (drum with cable).
The protective earth contact is part of the contact system in applications without protective insulation (devices of protection class
* Release & Lock System:
1. Multi-function release :
The cable winding can be activated either by pressing a release button on the equipment or also by pulling at the power cord.
2. Button-press release / locking brake:
The cable is wound by pressing a release button on the equipment. The release button operates a locking release system, which has been mounted on the baseplate. It only needs to be pressed once and then released. This will cause the cable to be fully wound.
3. Catch brake system:
No release button is needed on the equipment. Cable locking and release are by pulling briefly at the power cord.
4. Button-press release / brake roller:
The cable is wound by pressing and holding down a release button on the equipment. The release button operates a brake roller system, which is attached to the baseplate. It must be permanently pressed and held down to rewind the cable. Releasing the button stops the cable in any position.
5. Permanent pull:
Means no locking system is present. The cable is constantly under tension (permanent tension) and rolls up as soon as it is released.
Detailed Images
DYH is a comprehensive manufacturer for retractable system for more than 15 years. Retractable extension cord, retractable cord reel, retractable cable reel, electric cord reel, extension cord reel, cable roller, cable management, cable holder, cable winder, tangle free cord retractor is the major product.
Various plugs and connectors are available.
AU plug, EU plug, UK plug,US plug, Italy plug
IEC C7 connectors, IEC C8 connectors,etc.

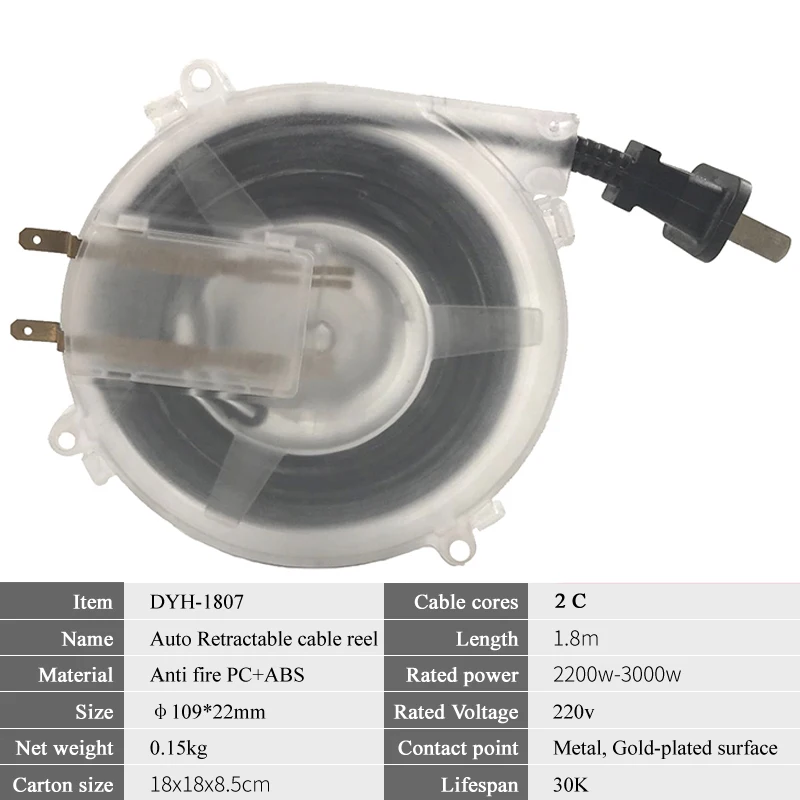

Specification

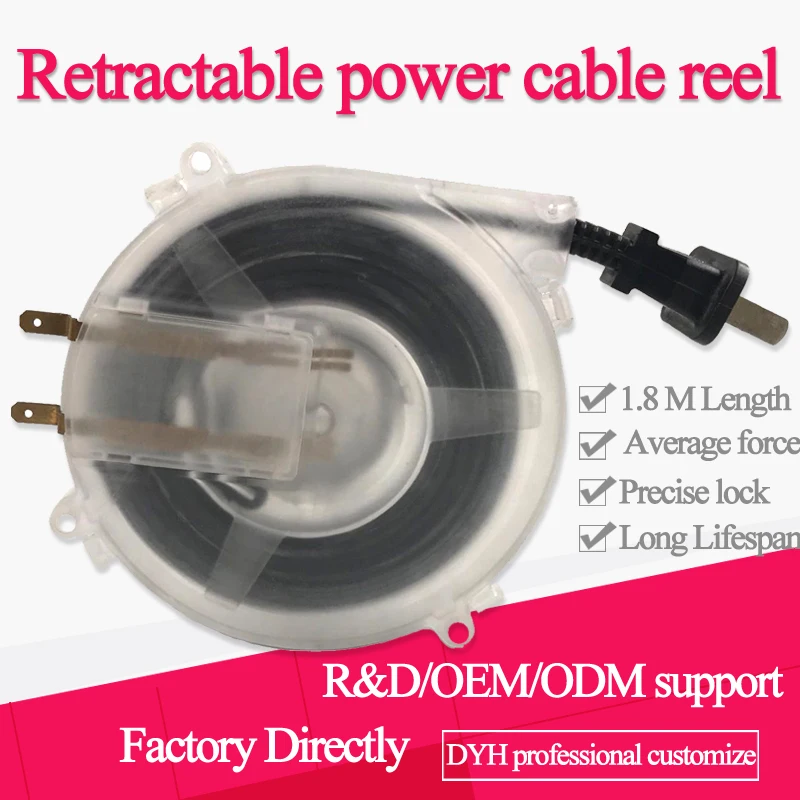

Spring loaded retractable power cord reel, extension cord on reel
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
| \t | \t | ||
Application

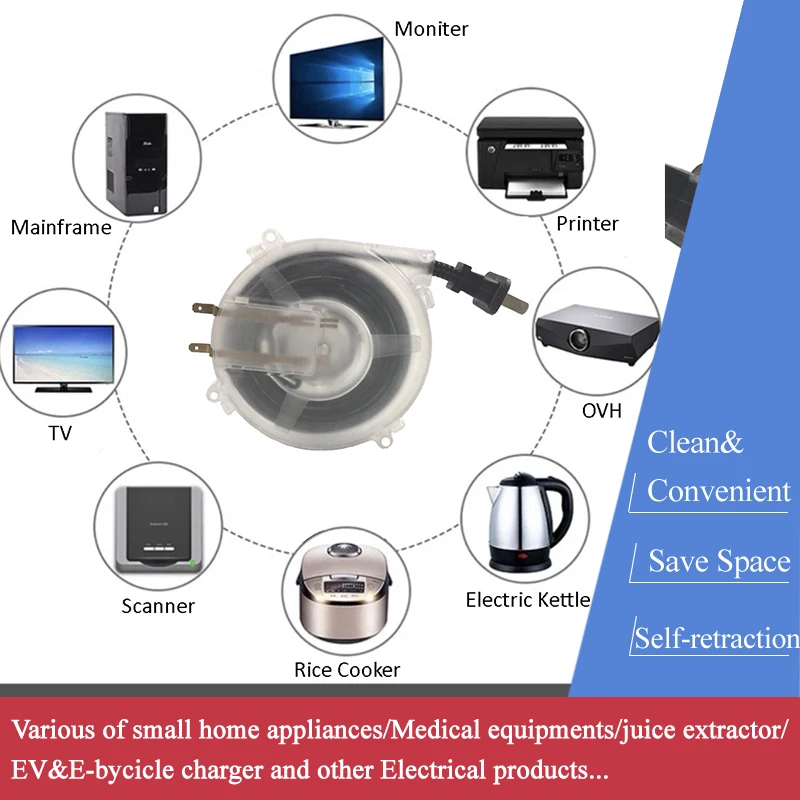

Retractable cable organizer for home appliance

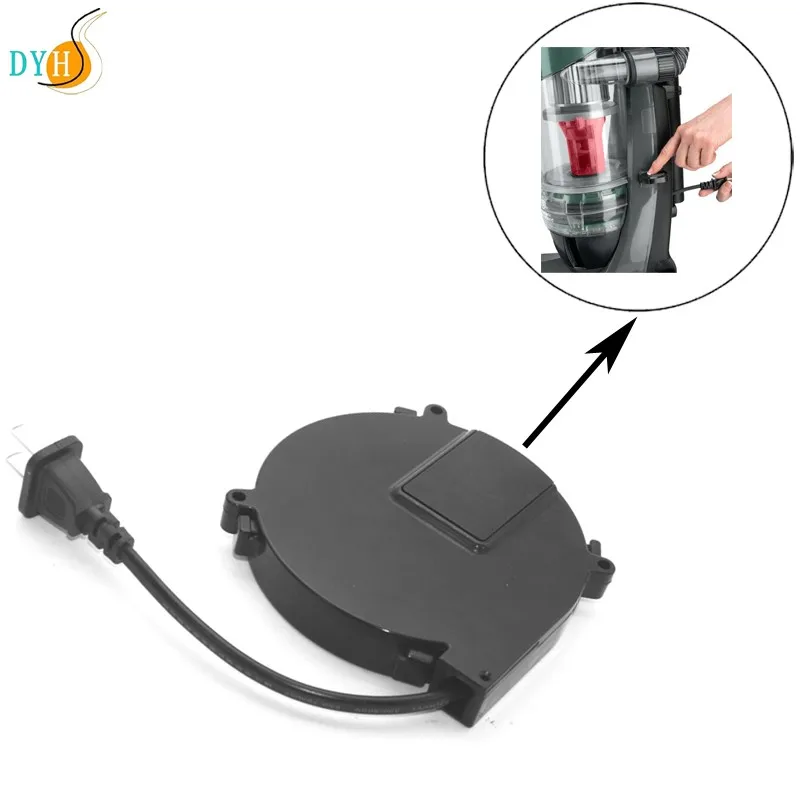

Such as Rice cooker, Electric kettle, Hair dryer, Electric iron, Soybean Milk machine, Juice extractor, Egg-boiler, Electric egg mixer, Food processor, Food Slicer, Sewing machine, Meat chopper, Refrigerated container,Battery charger, Vacuum cleaner, Electric mosquite driver, Dehumidifier, Humidifier,Electronic air cleaner, Electronic refrigerator, Mobile air conditioner, Floor buffing machine, and so on.
Hand mixer with retractable cord

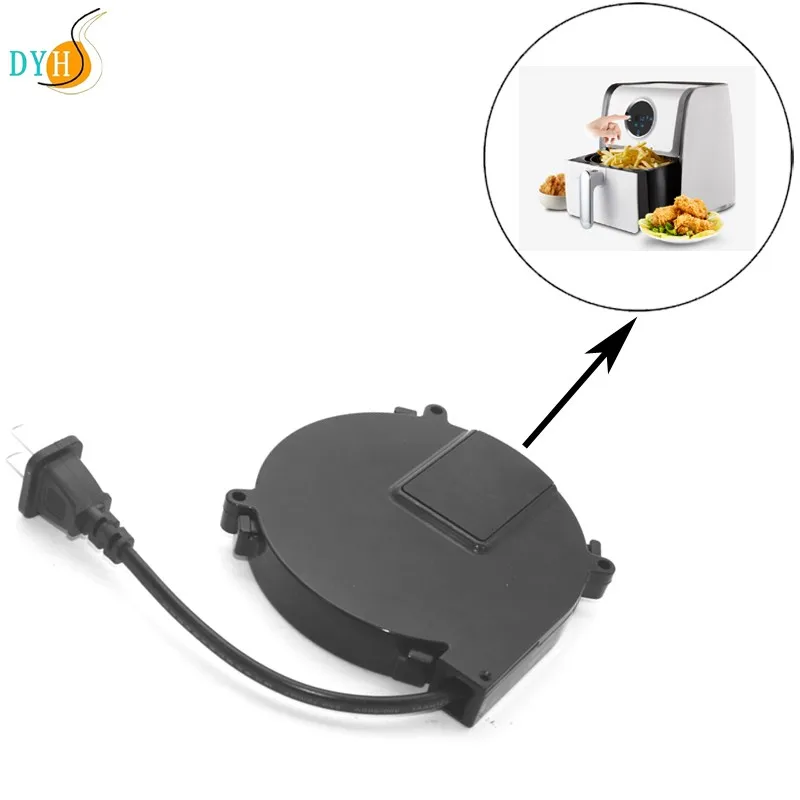

Retractable cable reel for air fryer
Retractable cord reel for toaster/bread maker.

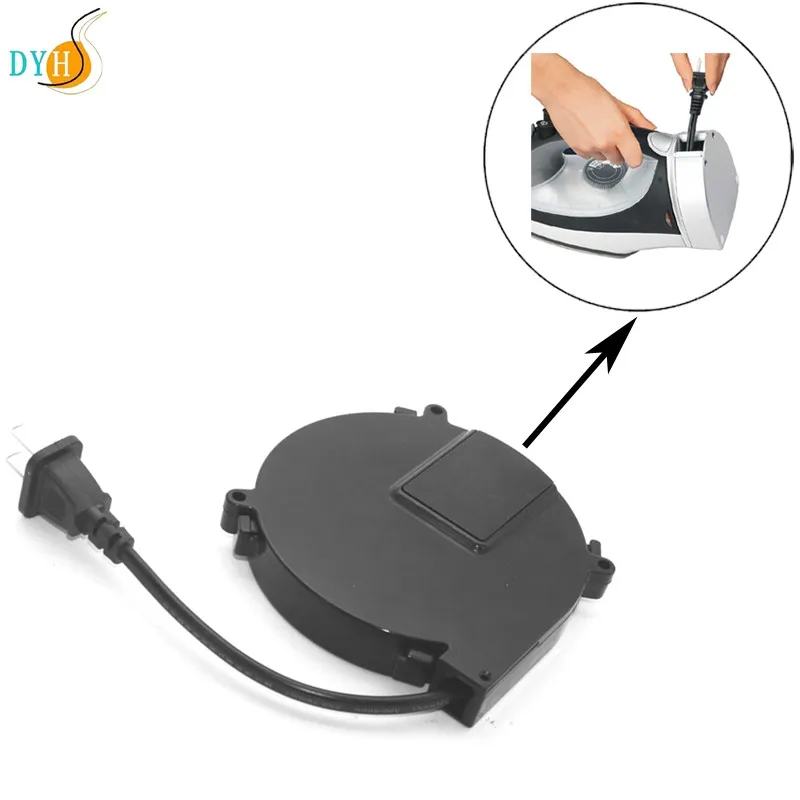

Electric Iron/Steam Iron/Iron station/Iron board extension cord
Food slicer with retractable power cord
Juice extractor/Food chopper cable management

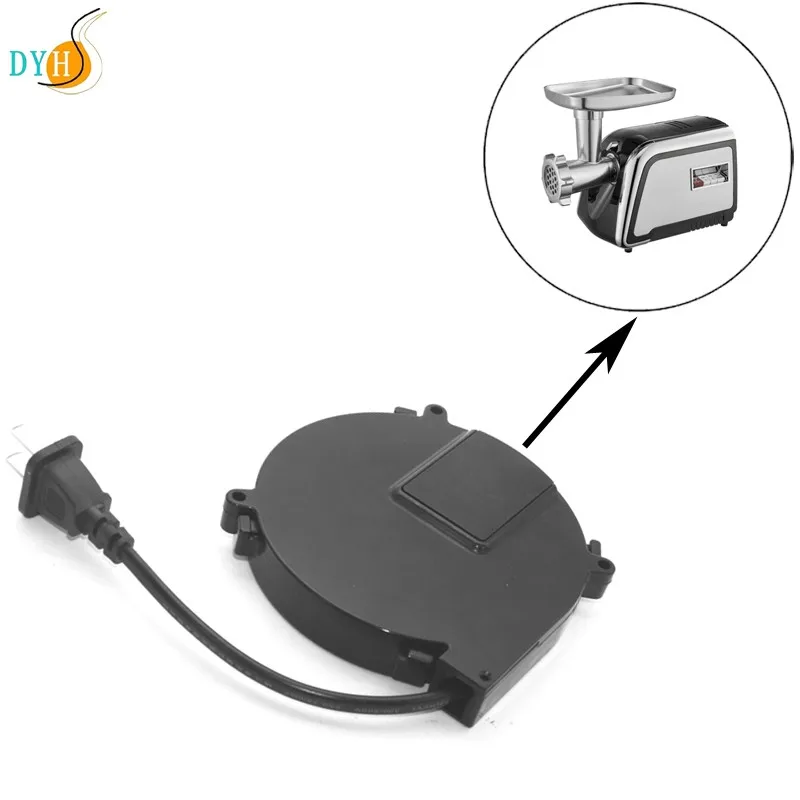

Meat chopper cable organizer

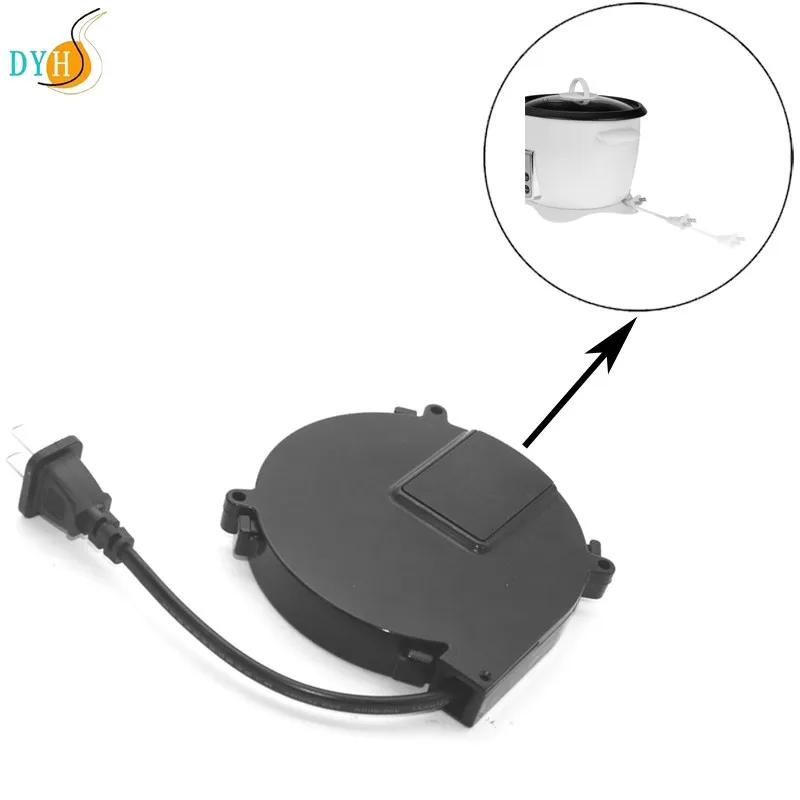

retractable cord used Rice cooker

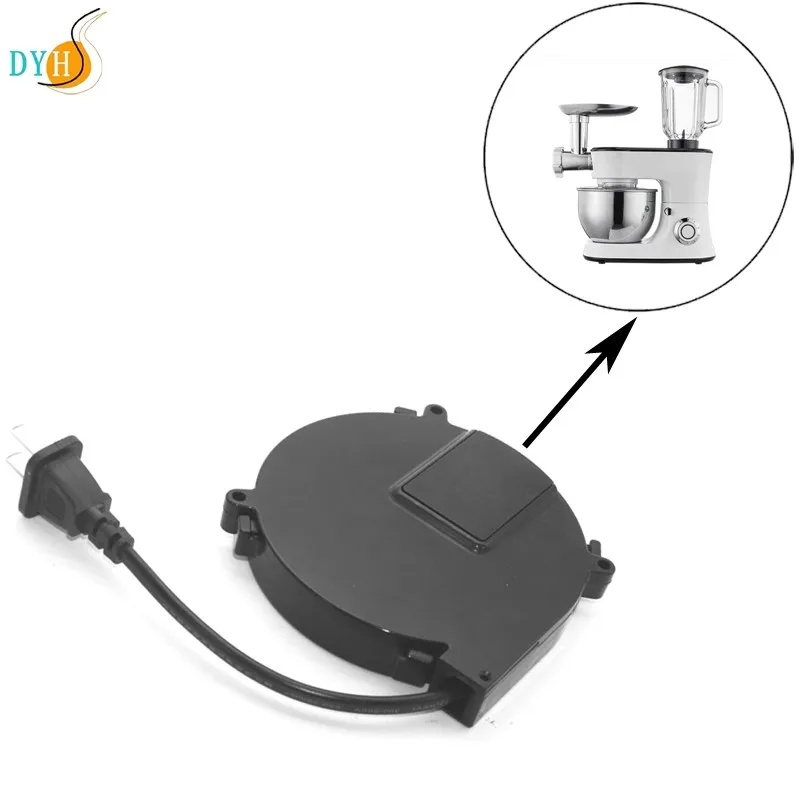

Cable retractor for stand mixer/food processor
Fan heater with tangle free cable retractor

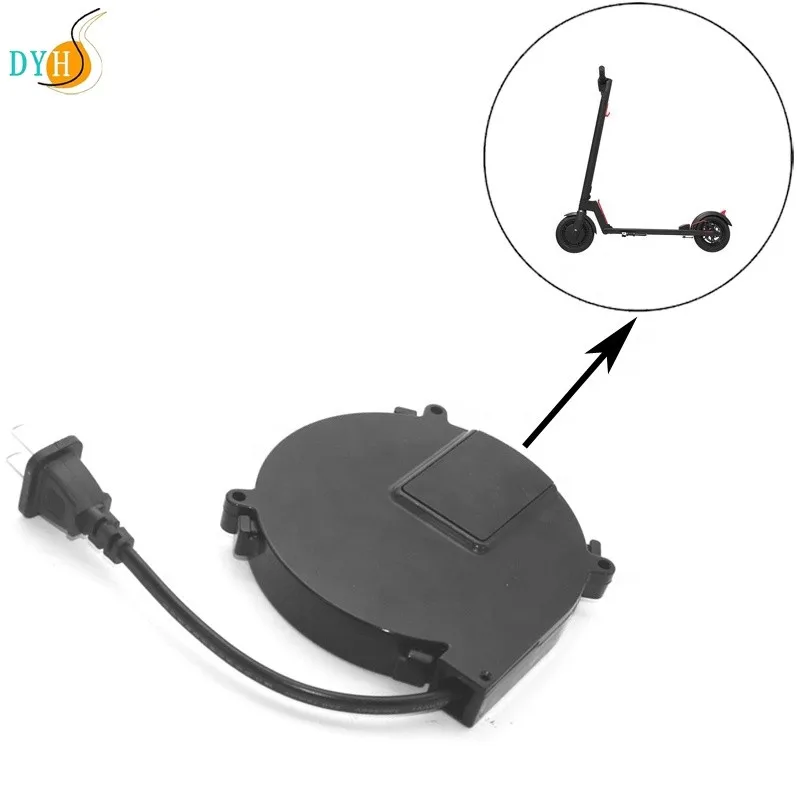

Retractable extension AC power cord for electirc scooter
Electric power cord reel for electrical vehicle carrier
Our Company
The superior manufacturer of retractable cable reel, retractable tool lanyard, retractable security tether, , anti-theft pull box in the world.
Hunan Xutons Metal&Plastic Co.,Ltd(also know as DYH) which is comprehensive manufacturer for retractable cable reel, retractable tool lanyard, anti-theft pull box and various of retractable&security items. DYH had more than 15 years OEM&ODM experience, cooperated with many global brands for years and there are agencies in Europe and North America.
For retractable items the key component is inside spring which decides it retractable mechanism and using life. We start from doing spring and provide spring for Chinese fastest train, so quality can be guaranteed.
DYH take advantage of our advance technology in retractable area, not only make retractable items but also provide solution for wide application of retractable items. Please contact with us for customized.
Why US
1. Stainless steel constant spring
Spring is the key component, decides retractable mechanism and life.
2. Customized cable
Our cable is customized for better performance. The cover is more softer, more wearable than market products.
3. Design, research and develop
Engineers have more than 20 years experience,control every details during design and detection.
Packing & Delivery
Packing:
Packed with PP bag and neutral carton.
Delivery
For sample, it will take 7-15 days. For bulk order it depend on the quantity.
Welcome to visit our factory and place sample order to check the quality.
For more information, please contact with
Margaret Wen
sales04(@)dyhretractable.com
Skype: margaret_wen09
WhatsApp/Wechat: +86-18273136972
