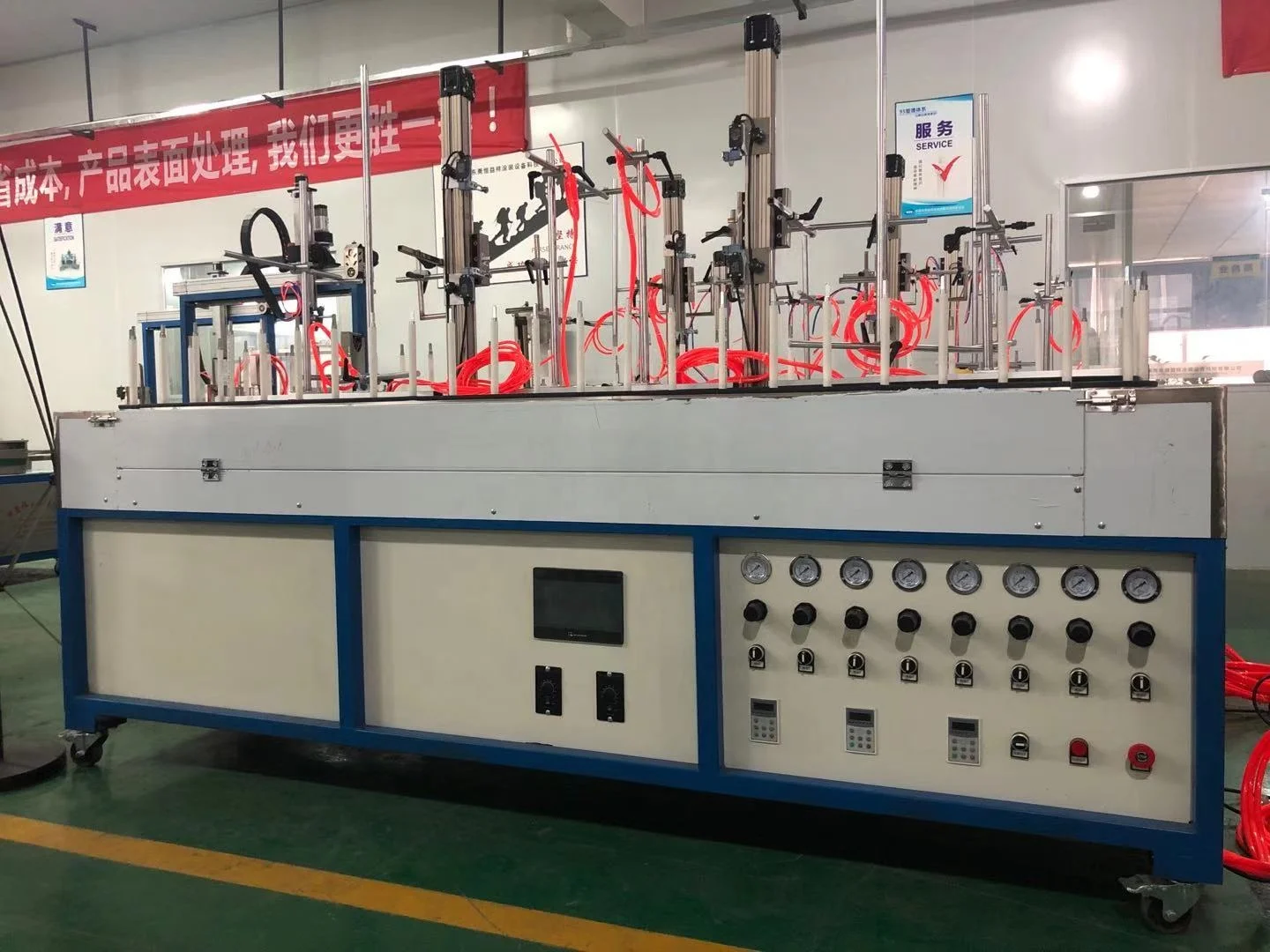

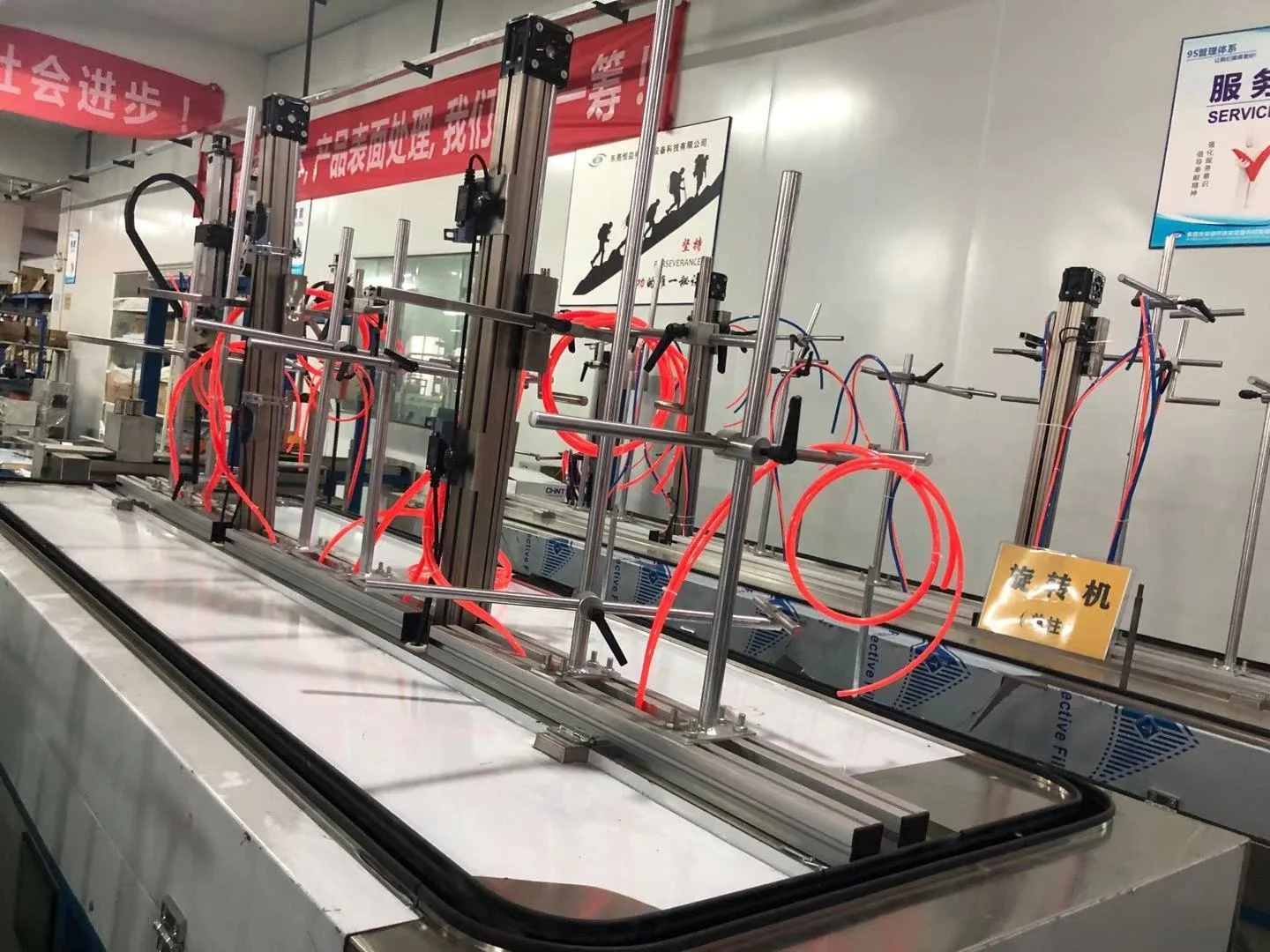

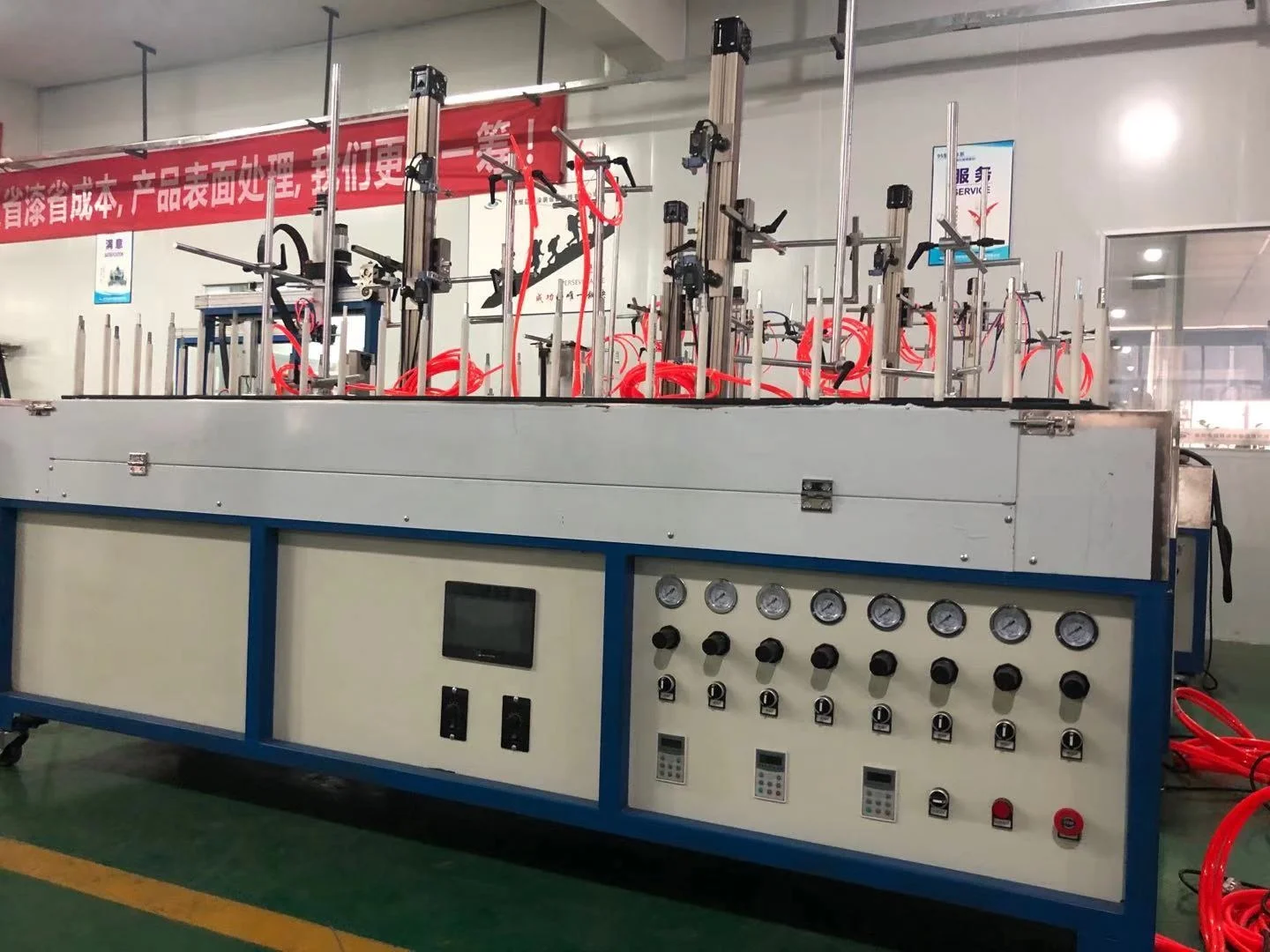

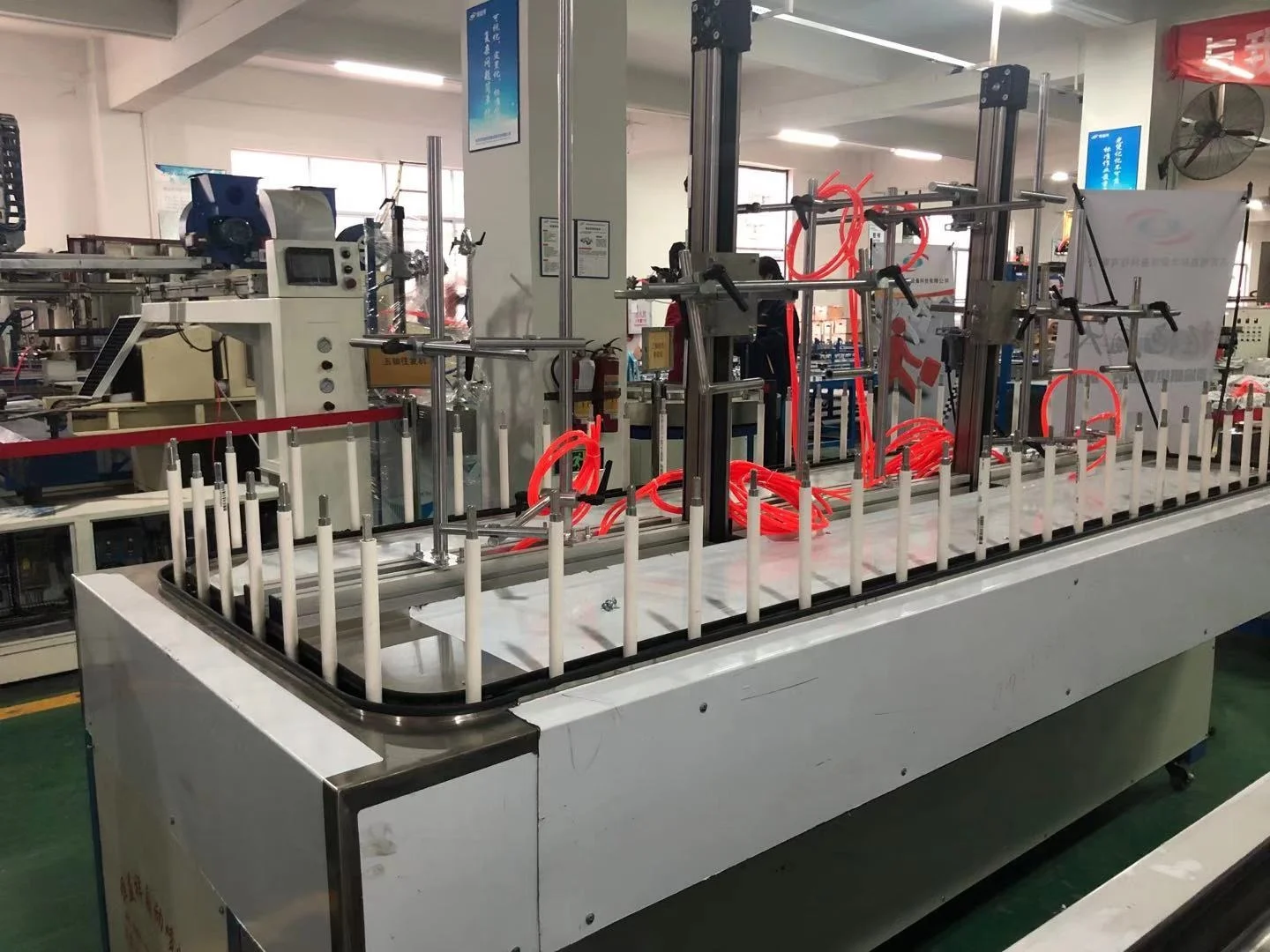

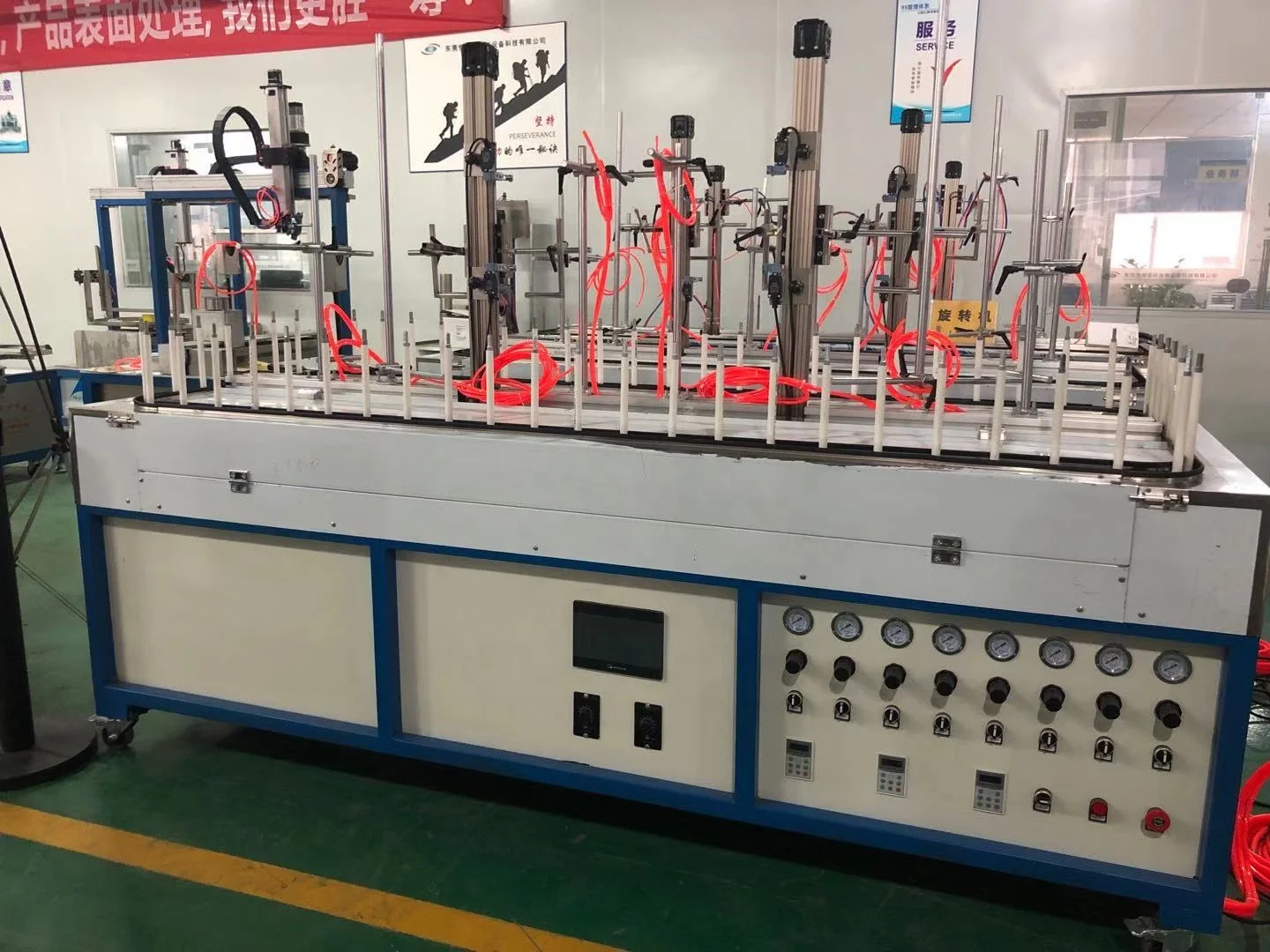

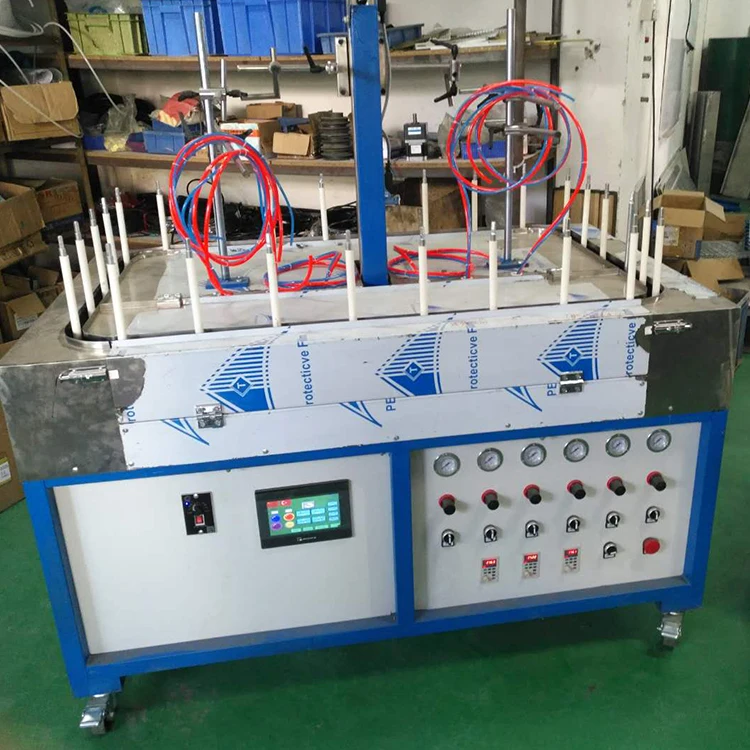

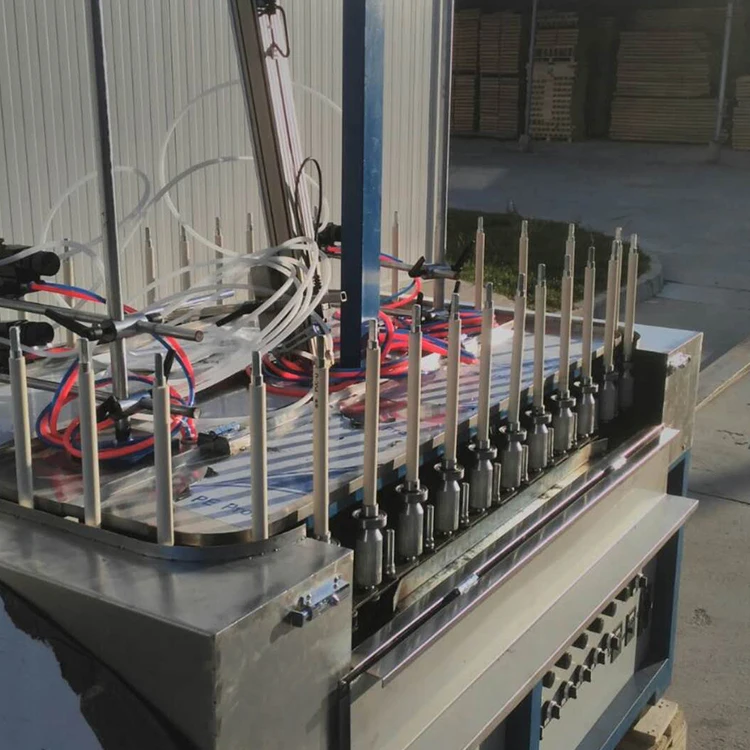

Wholesale CNC reciprocator automatic Surround reciprocating spray painting machine

Product Overview

Description

Wholesale CNC reciprocator automatic Surround reciprocating spray painting machine





Application:
For furniture spray painting, and very popular for sofa legs

Technical Parameter:
1.Conveyer width:700mm 2.Total wattage:6KW 3.Wind fan wattage:200W/220V
4.Conveyer motor wattage:1000W/1P/220V 5.ConveyEr speed:0~10m/min
6.Speed adjustment:Stepless 7. Outer dimension:2000×800×1500mm 8. Net weight:180KG
9. Lamp wattage:3KW/380v×2pcs 10. Max height of production:75mm.
11.Power:380 volt,(3 phases) 50 Hz

Feature:
1.Choose high quality UV lamp. keep long life
2.Reflect cover made by resist aging materials
3.Whole jointing with zinco plate, both portability and firmly
4.Exposal time auto adjustment and controlling
5.High vacuum degree, easy to transfer and copy fine lines
6. Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp
7. High toughness Rubber Layer ensure Film closely cover with frame
