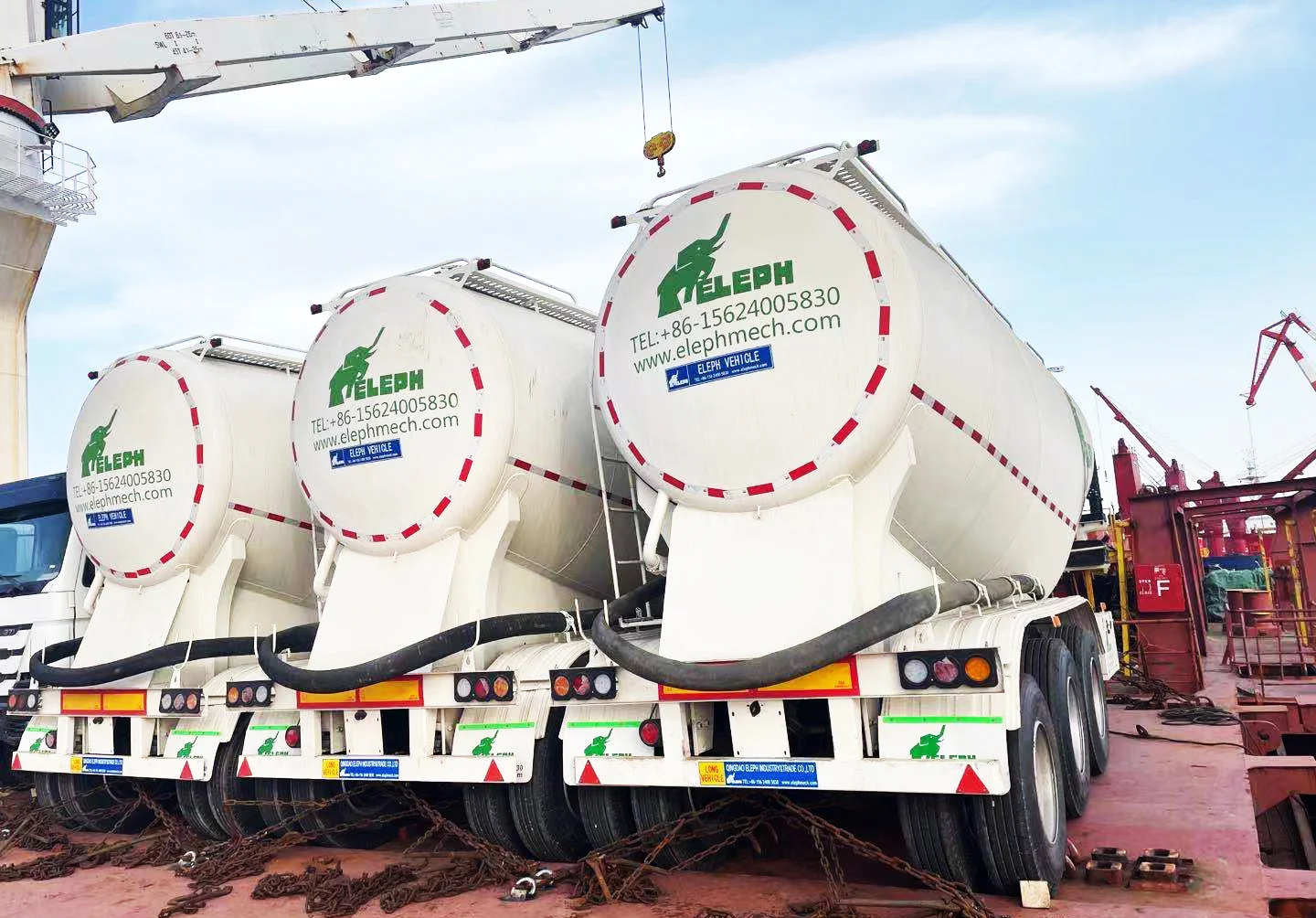

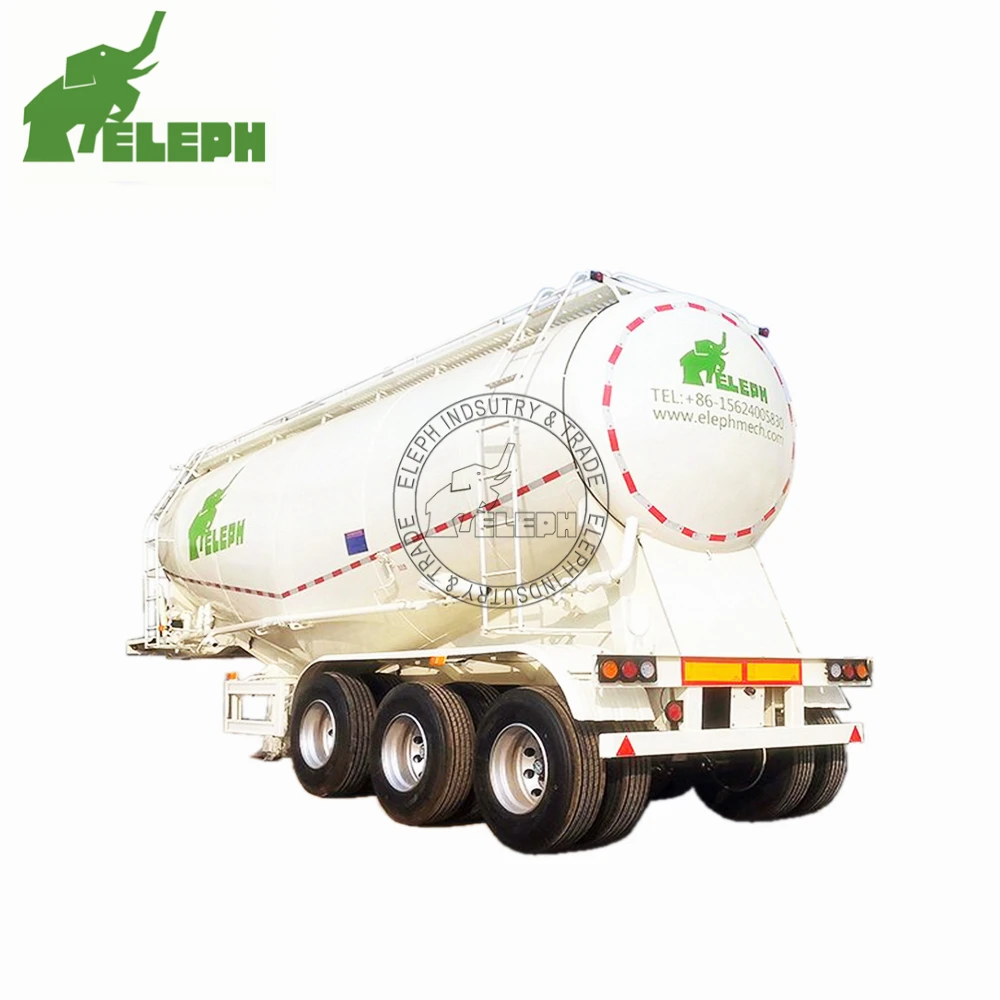

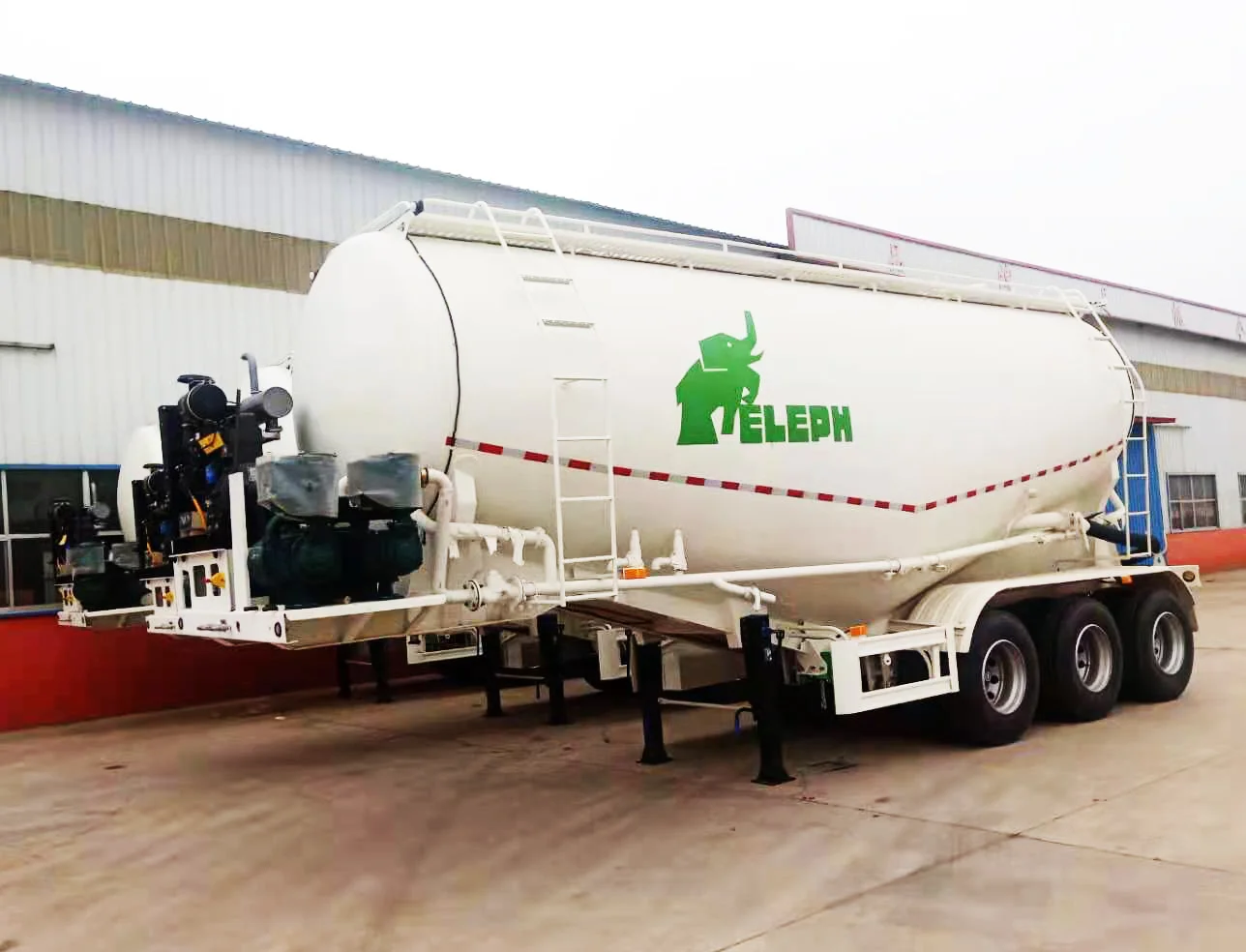

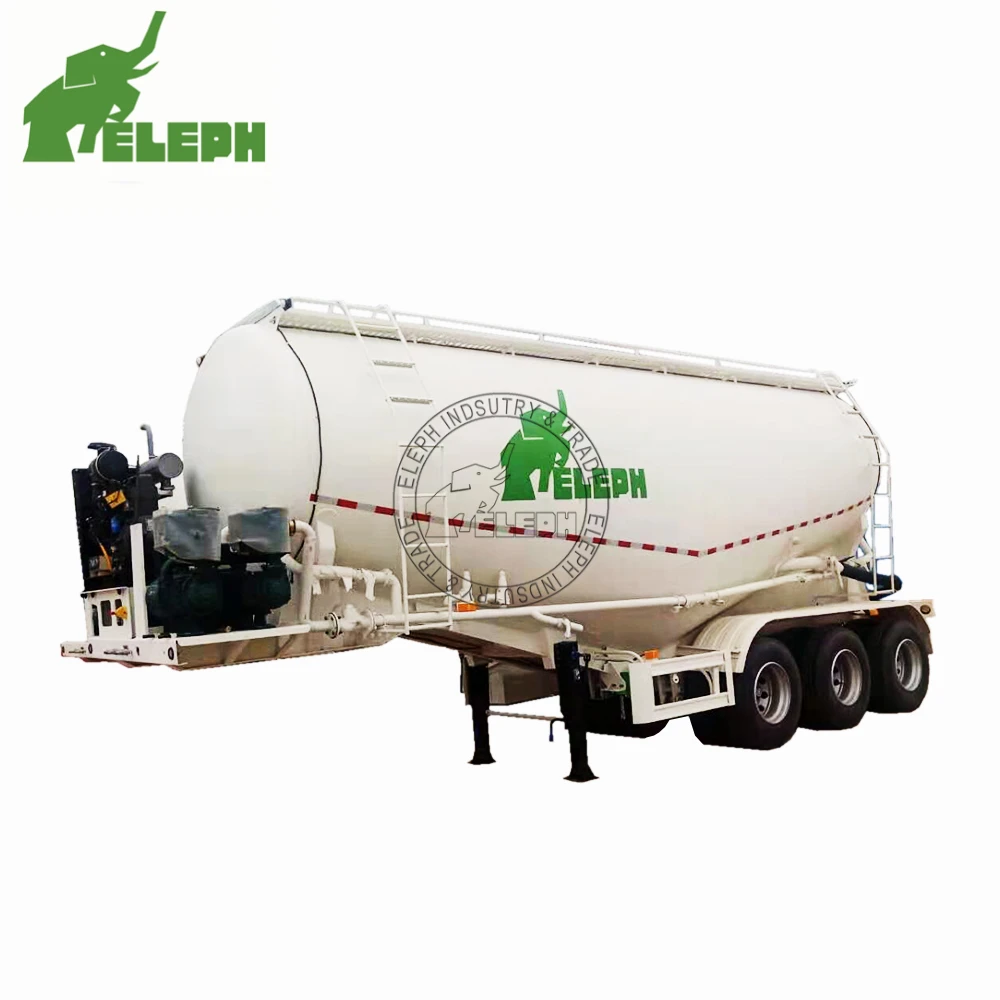

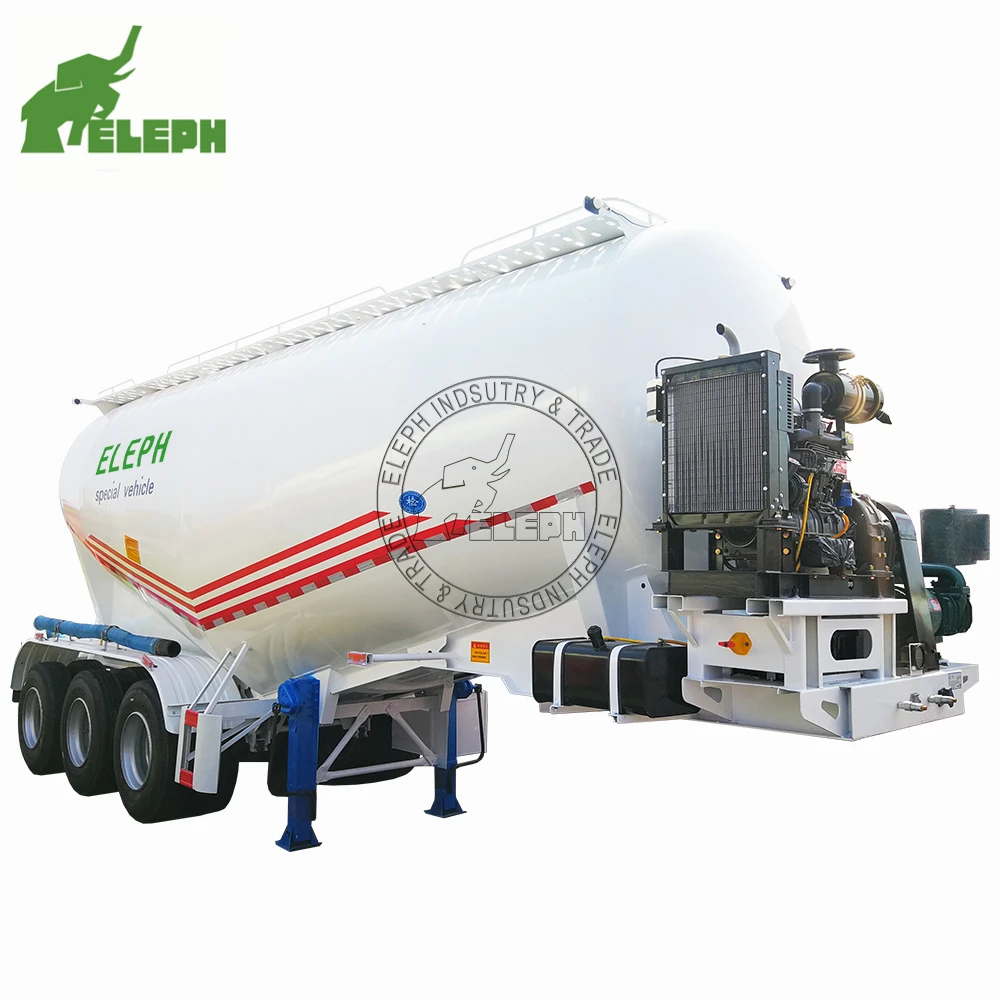

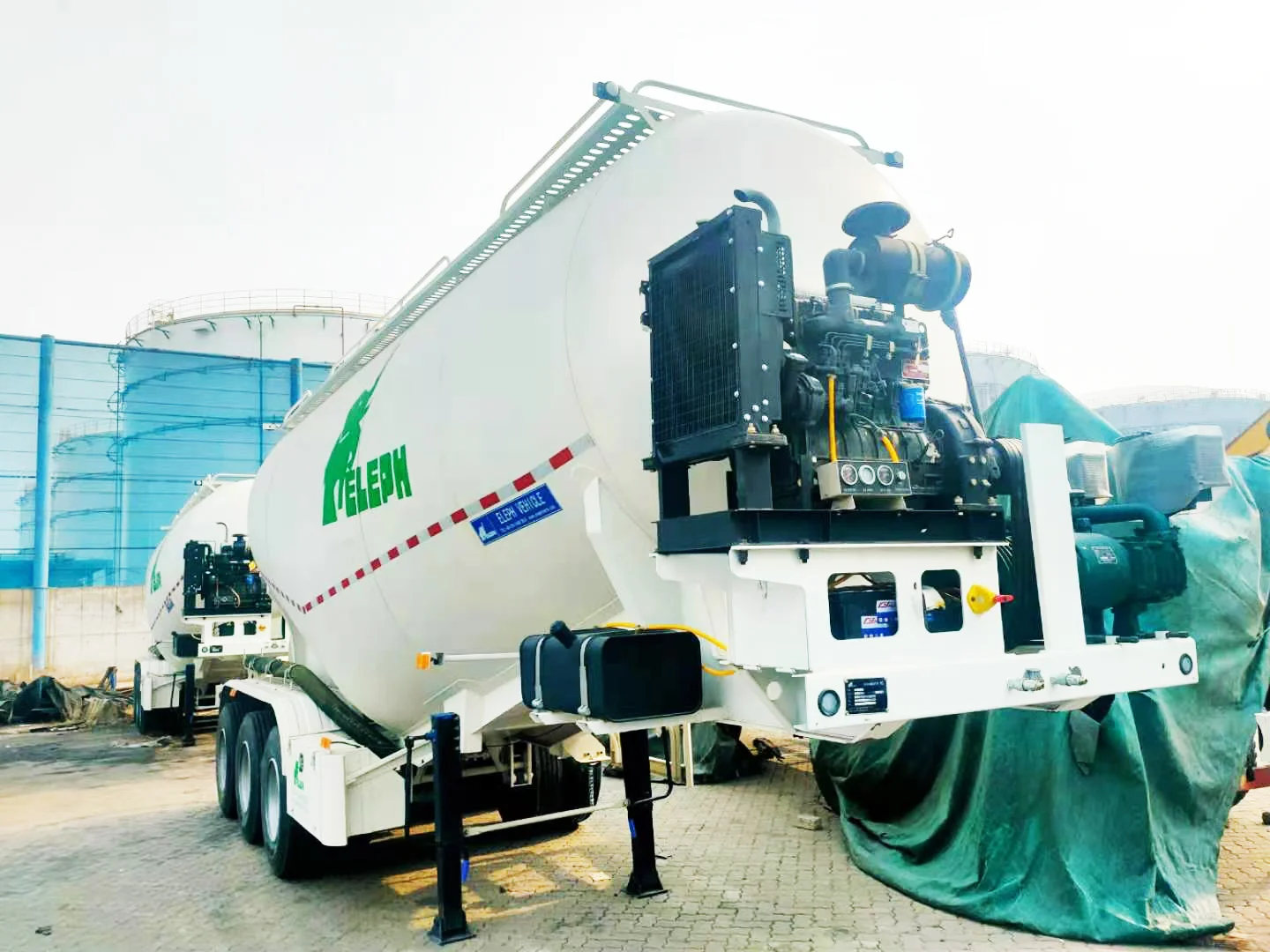

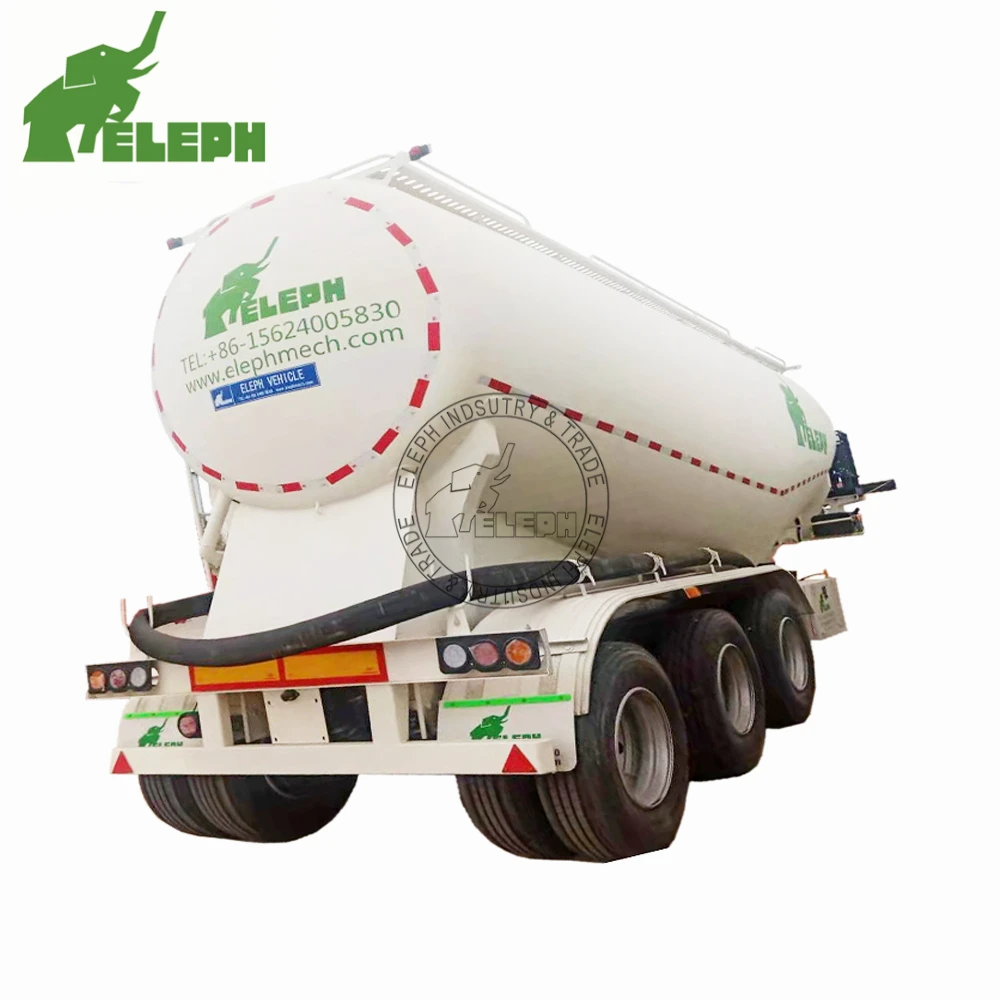

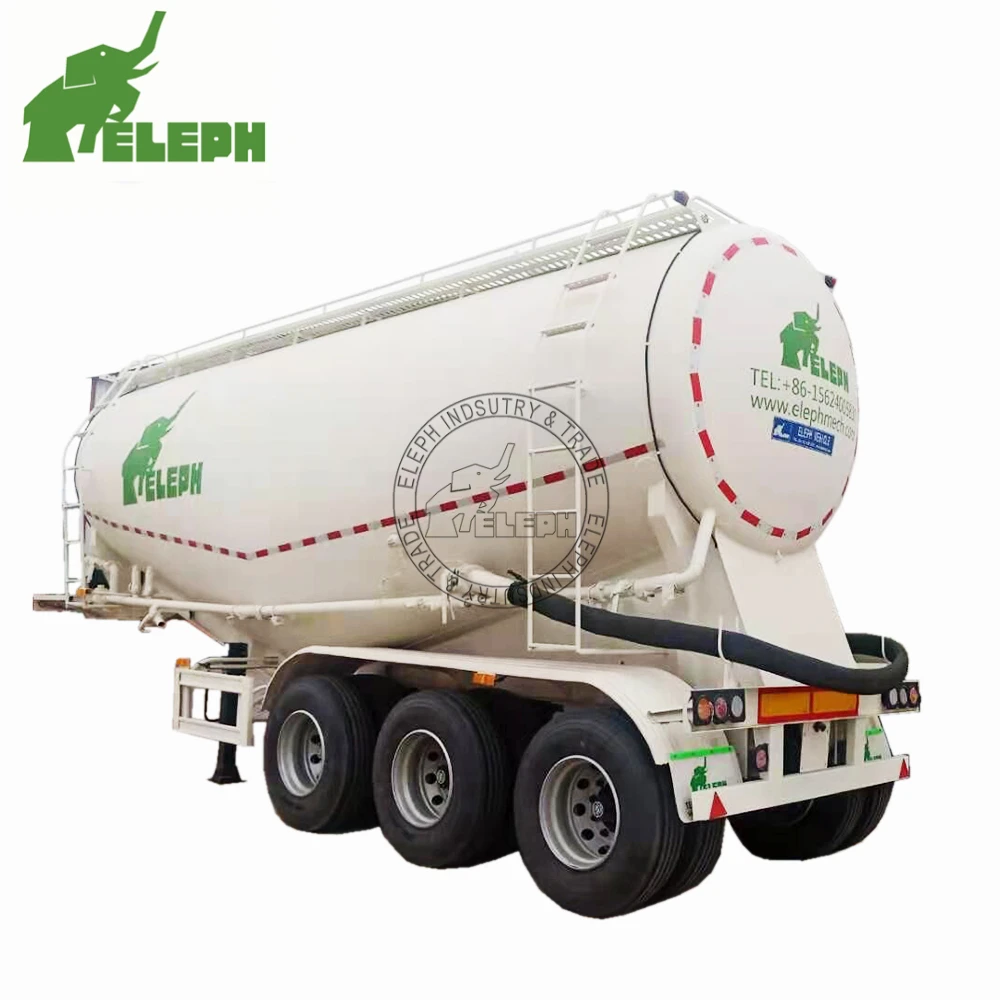

2021 China Factory Price 2V W Shape Dry Powder Tank Bulk Cement Trailer

Bulk Cement /Powder Tank Truck Trailer

Model

ALP9350PTAT

Dimension(Optional)

Axle No.

Rated Load (kg)

Tire No.

Tire Size

10000-30000liters/10-30cbm

2

40000

8

825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)

30000-60000liters/30-60cbm

3

60000

12

Above 60000liters/60cbm

4

75000

16

Manufacture

Qingdao Eleph Industry & Trade Co., Ltd

Wheel Base  (mm)

1310

leaf-spring Pcs

10

Axle

13/16/18 T

Suspension

Heavy Duty Mechanic Suspension with Leaf Springs

Main Beam Material

Q345B manganese plates, automatic submerged arc welded

Brake System

Dual line braking system with automatic braking system/chambers

Brake Air Chamber

Double Model

Kingpin

2' or 3.5' Interchangeable

Landing gear

28T loading capacity with 80T static lifting capacity.

Tanker body

5mm Q235B Steel

Brake System

Dual Lines Braking System With Automatic Air Chambers

Brake Air Chamber

Four double and two single chamber

Electrical System

24V, 7core socket, lights according to European standards.

Mainbeam Size

Upper plate

14mm

Lower plate

16mm

Mid Web

8 mm

Height

500-520mm

Tool Box

1 box of standard tools

Spare tire carrier

2 sets

Pin Height

According to the height of the tractor saddle.

Manhole

2pcs

Body Material

Carbon Steel/ Stainless Steel/Aluminium

Ladders

Steel with anti slipper walking way

Air Compressor

4102 with diesel engine/ pump

handrail

Steel, manual

Application

For Powder/Cement Powder Transportation
