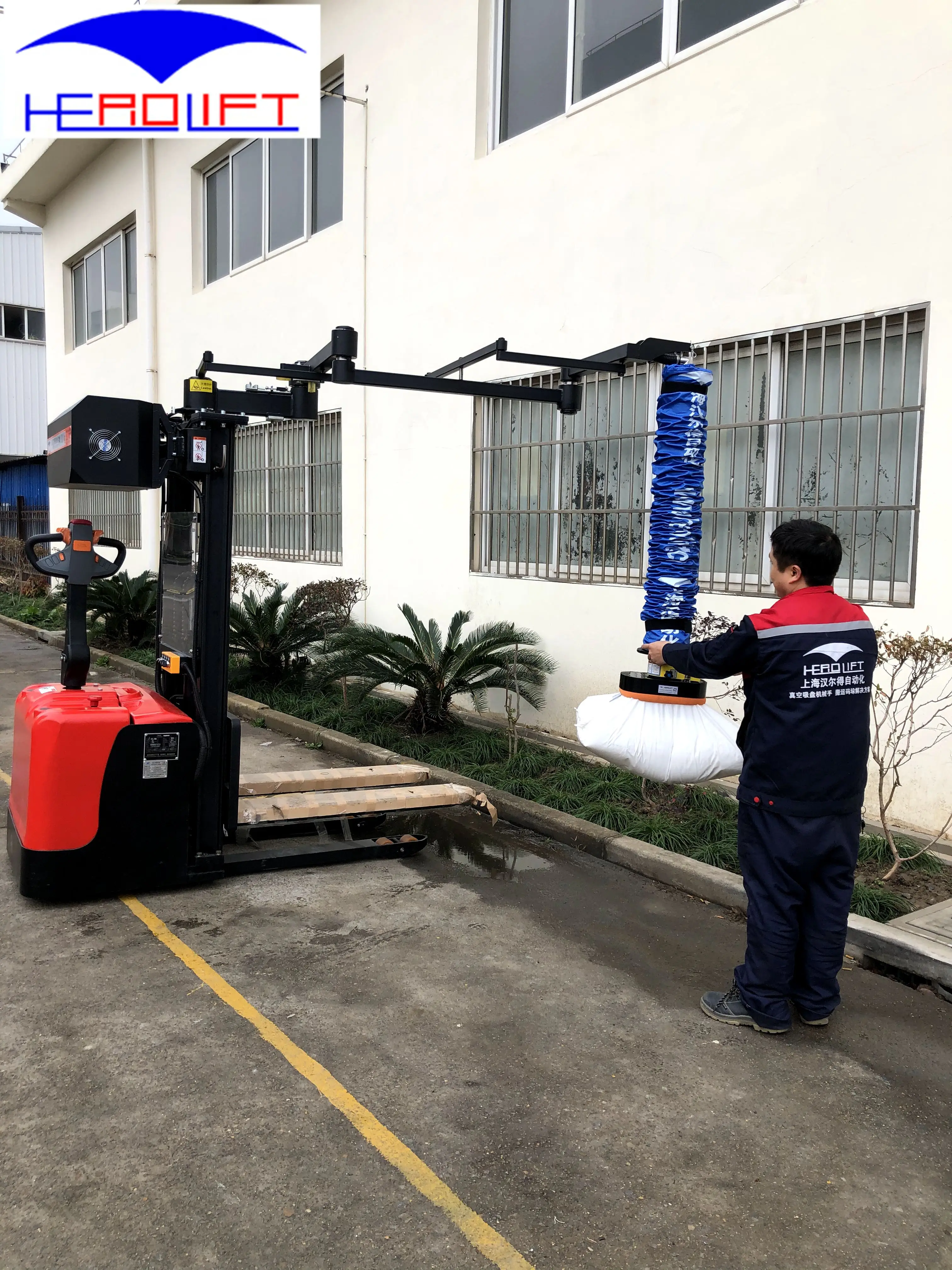

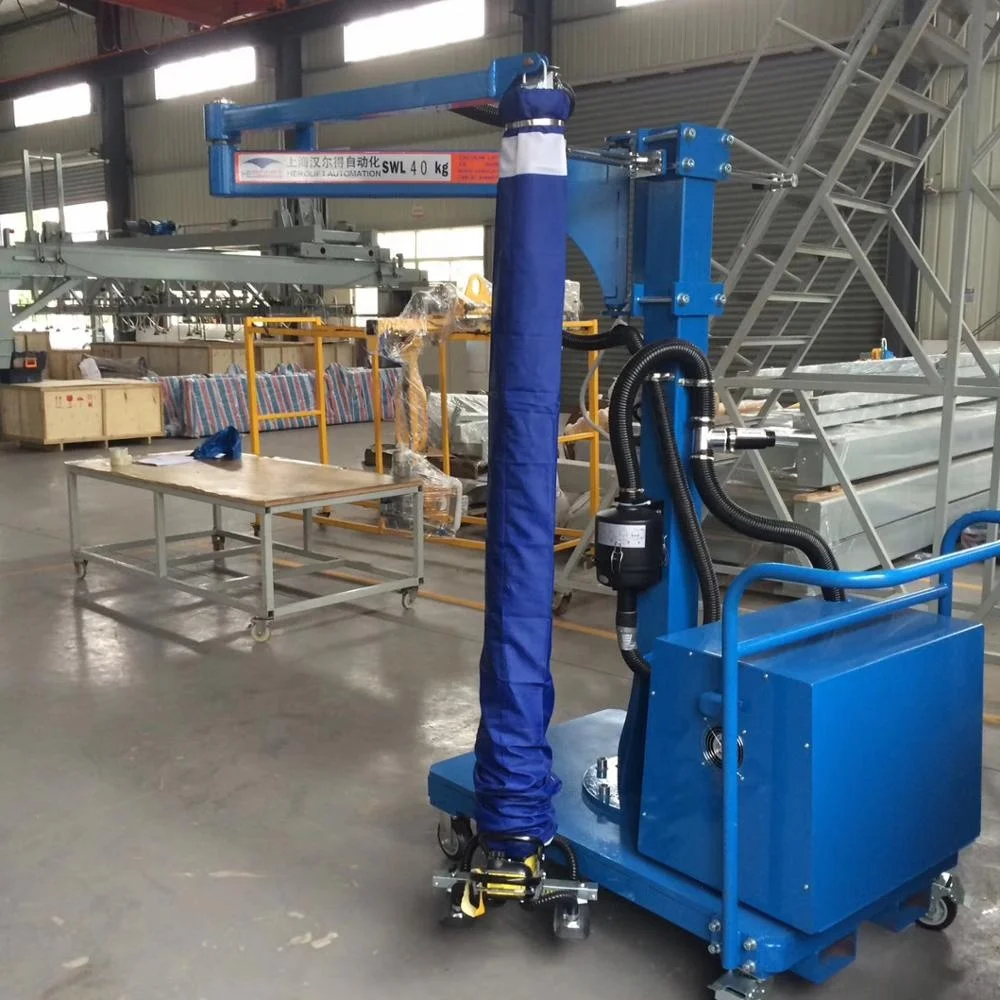

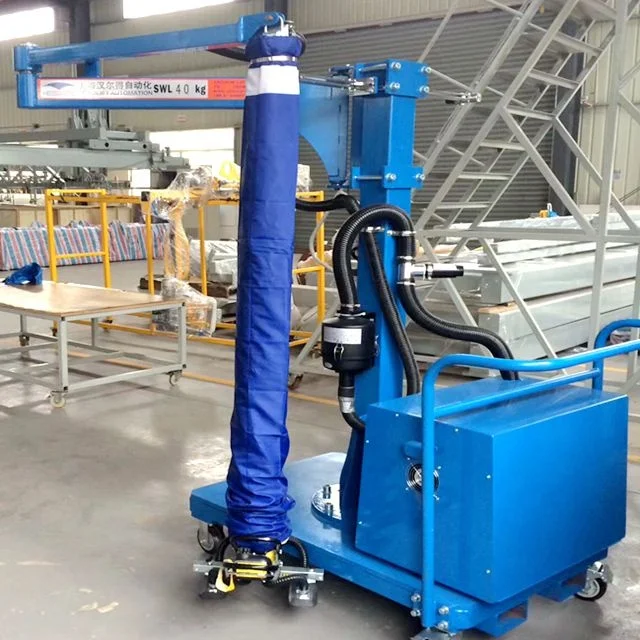

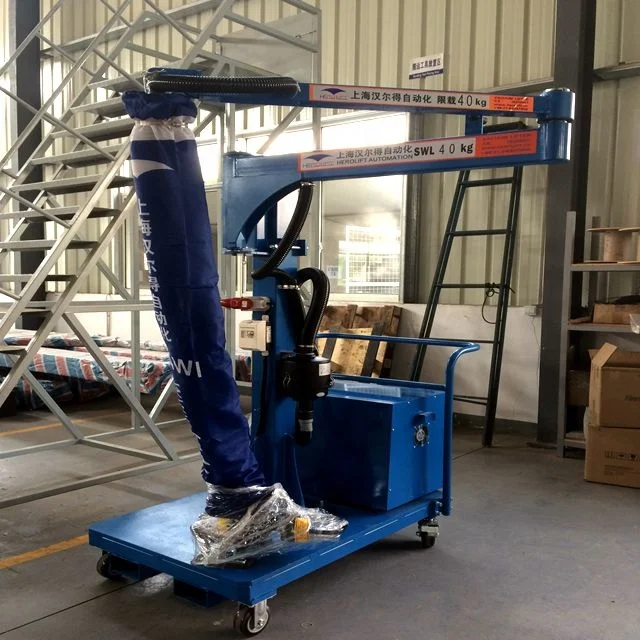

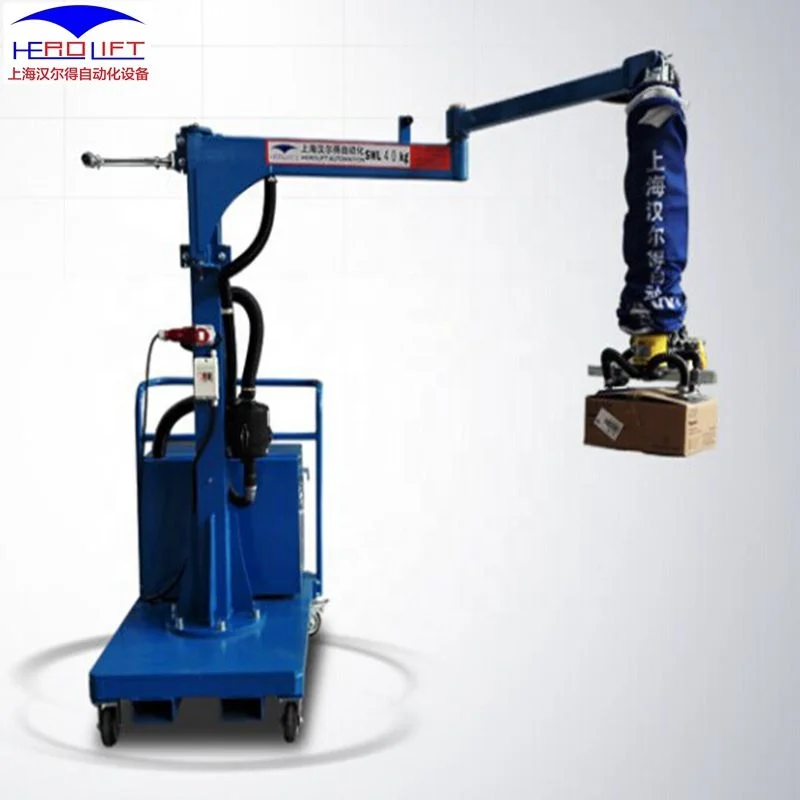

vacuum tube lifter for 35kgs boxes WITH STACKER
- Category: >>>
- Supplier: Shanghai Herolift Automamation Equipment Co. Ltd.
Share on (62099669353):
Product Overview
Description
Vacuum tube lifter for box handling /Vacuum lifter box is one of the handling equipment by vacuum.
Vacuum Tube Lifting Systems are ergonomic lift assist devices that can help increase your productivity while offering an economic solution to your material handling needs. Herolift Vacuum Tube Lifting Systems are easy to use, simple to maintain and require minimal operator training.
************************HEROLIFT Brief Introduction******************
***************************************************************************************************************************************
Vacuum tube lifter is a manual vacuum lifting device that handles almost any type of load. The extremely smooth and quick operation is accomplished by using the same handle to lift, lower and release the load and by using the vacuum to hold and lift the load. Based on a unique concept, VacuEasylift has been developed into a versatile system for simpler, safer and more effective lifting. for handling without damaged, and meanwhile save the labour force
***********************************Product main performance index***********************
Model No. | VEL120/2.5-stand | Max. Load | Horizontal handling 40kg |
Motor power | 3Kw, 380V, 3p, 50Hz | Time of suction &release | Less than 2s; |
Length of lifting tube | 2.5m | Lifting stroke | 1.75m |
Model of control | Manually control, lifting/down/suction/release with one stem.( See the valve working principle diagram) | ||
Specifications of jib crane on column | |||
Material of jib arm | Aluminum alloy guide,2.5Kg/m | Max. load | 80Kg |
Height of column | 3.65m | Height of jib arm | 3m |
Length of jib arm | 3m | Rotary angle | 240 degrees(Can be angle limit) |
*****************************System characteristic description*************************
Our company equipment in strict accordance with the European CE standard EN13155:2003, the main design index is higher than the above standards.
Vacuum tube lifter suction of products exceed the rated load, lifting forbidden. (Function of equipment);
1) In case of power failure protection:
To ensure that the suction material does not fall under the condition of power failure. After power failure, the suction cup suction the products down slowly (Function of equipment);
2) Electric leakage protection:
To prevent the hurt caused by the electric leakage of vacuum system, and overall the insulation is good. (Function of equipment);
3) Electric current overload protection:
To prevent the abnormal current or the overload of damaged the vacuum lifter equipment. (Function of equipment);
4) To be considered the air tube of installing and laying is not collision the interference and necessary protection:
Air tube durable in use good, good sealing performance: Equipment when leaving the factory, after the force testing, the factory installation test, to ensure that each set of equipment are security, the qualified products. Upon completion of the installation., will be clearly marked on the equipment and steel structure with column:
5) When operation of vacuum tube lifter, to operate the equipment must be in strict accordance with the requirements of our operating manual, shall not be arbitrarily changed;
6) Safety suction
Cannot causing damage to the surface of the box body;
7) Be able to adapt to the work environment the temperature of -15℃ ----70 ℃;
