19"LED Display China Factory Price i7 4600u Cpu Industrial Touch Screen Mini Itx PC Tablet Panel All In One Computer gamer 19"LED display china factory price i7 4600u cpu industrial touch screen mini itx pc tablet panel all in one computer gamer

Share on (62099733851):


Price:RUB 48,201.43 - RUB 55,852.45

Quantity:


Product Overview

Description

19"LED display china factory price i7 4600u cpu industrial touch screen mini itx pc tablet panel all in one computer gamer




  • 19 inch led touch panel pc. Typical 1280*1024 resolution. Compact, fully functional,all the power and functionality of a desktop computer in a all in one design,powered by intel core i7 processor, ideal for industrial and commercial applications. suit for multiple application,industries, car repair shops, security, factory, business, fanancial and projects.



  • Barebone system without ram, stroage, free to put momory, ssd, hdd at your own, hardware compatible with all windows/linux distributions



  • Low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation and stable heat dissipation. very slim, can stand on desk or embeded/mountable.

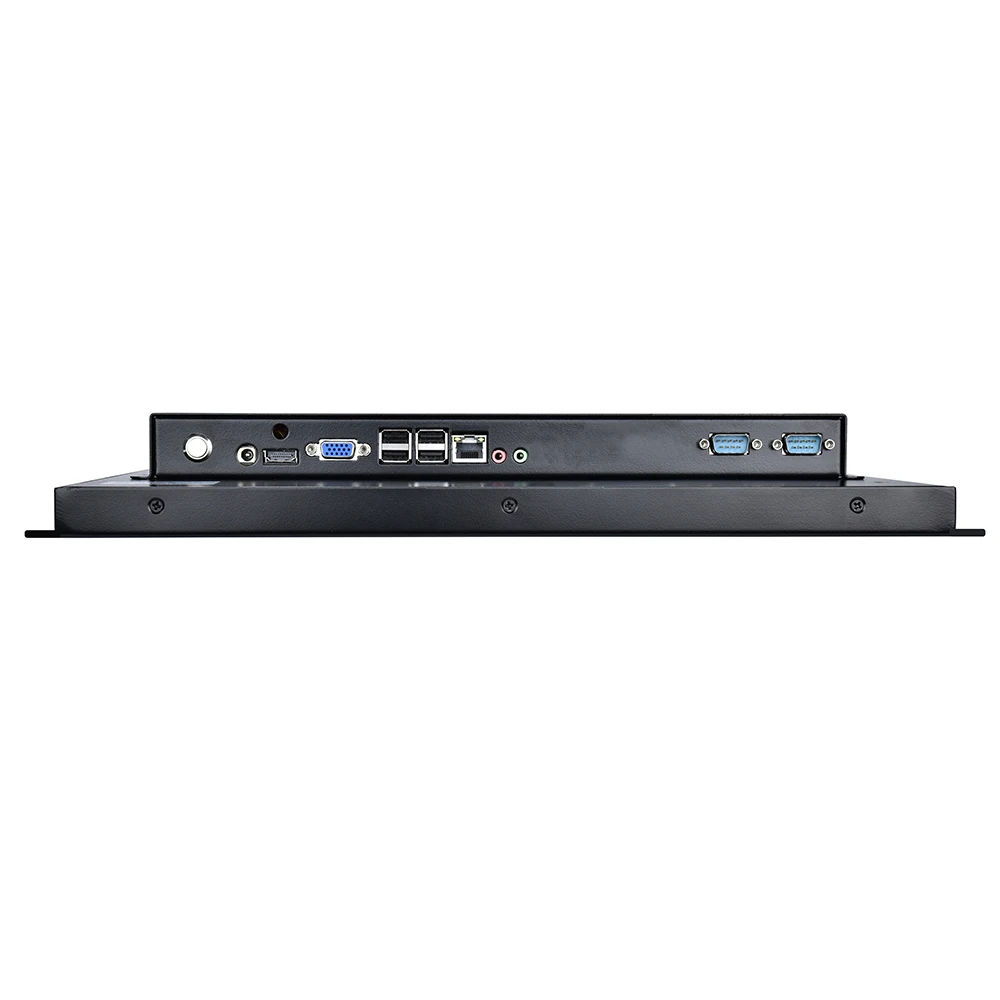

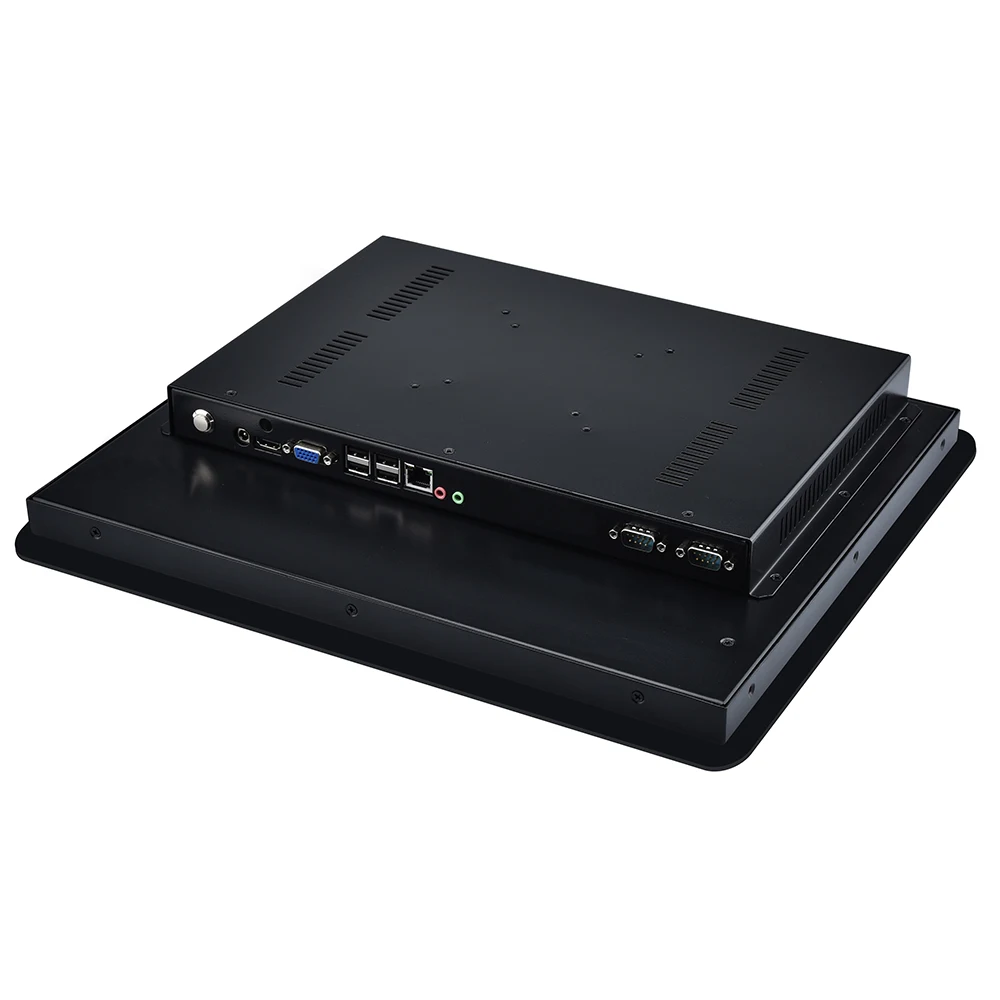

  • Designed with 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out,aesthetic design and reasonable interface layout.



  • Size at 452.5*376.5*59.5(mm),with power cord,auto power-on option could be customized,all use big brand memory and ssd/hdd with quality assurance.
Model Number: Partaker Z16T
Screen Size: 19 Inch
Front Panel: 2MM Ultra Thin
Opening Hole Size: 435*359mm (Length*Width)
Screen Type: Made-In-China 5 Wire Resistive Touch Screen
CPU: Intel Core I7
OS: Windows Or Linux
RAM/SSD/HDD: Max 8G RAM, 1* MSATA + 1*2.5 Inch HDD
I/O: 2*RS232+HDMI+VGA+LAN+4 USB2.0+DC+Audio In &Out
I/O: Optional LPT, Default Without
Physical Dimension: 452.5*376.5*59.5(mm)
Gross Weight: 11.5 KGS
Panel Structure:
Panel Size: 19 Inch LED Screen
Resolution: 1280*1024
Display Brightness: 250cd/m(2)
Contrast: 1000 : 1
Response Time: 5ms
Touch Type: Using high-quality resistance touch screen click life> 1 million times
Usage Environment:
Operating Temperature: -10℃~60℃ Surface Air Flow
Operating Humidity: 10% ~ 95% @ 40 ℃ without condensation
Storage Temperature: -20 ℃ ~ 70 ℃
Installation Method:
1: Embedded (Recommended)
2: Wall-mounted
3: Desktop
4: Cantilevered
5: Other Installation Methods
Motherboard:
BIOS: AMI 32Mbit,Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog And Other Functions
Motherboard: Fan Design
I/O Interface:
Network: 1* Realtek 8111E 10/100/1000M
Audio: RealtekALC662 HD Audio
Package Information:
Package Size: 47.5CM(L)*43.5CM(W)*15CM(H)
Physical Weight: 6.25KG / 7.5KG(Net/Gross)
Power Supply: Input: 180-240V~1.0A 50-60Hz Output: 12VDC 4A MAX
Power Cord: Power Cord*1
Touch Pen: Resistance touch pen*1 (10 capacitive touch screen without touch pen)
Buckle: Embedded Installation Buckle* 1 Set


Specification:

Model Number:

Partaker Elite Z16T

Screen Size:

19 Inch

Opening Hole Size:

435*359mm (Length*Width)

Screen Type:

10 Points Capacitive Touch Screen

CPU:

Intel Core i7 4600U Dual Core 2.1GHz

OS:

Windows Or Linux

RAM/SSD/HDD:

Maximum 8G RAM, 1* MSATA + 1*2.5 Inch HDD

I/O:

4*USB2.0/2*RS232

I/O:

1*VGA/1*HDMI/1*RJ45

I/O:

1*DC/MIC-IN&LINE-OUT

Physical Dimension:

452.5*376.5*59.5(mm)

Gross Weight:

10.5 KGS

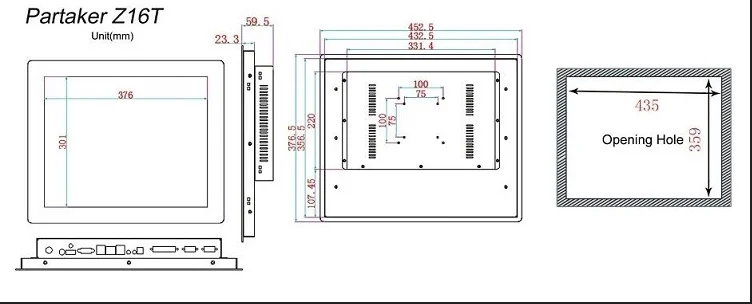

Opening Hole Size Drawing:






1 (1).jpg1 (2).jpg3.jpg4.jpg5.jpg
