Color Printing Machine for aluminum aerosol can making machine

Product Overview

Description

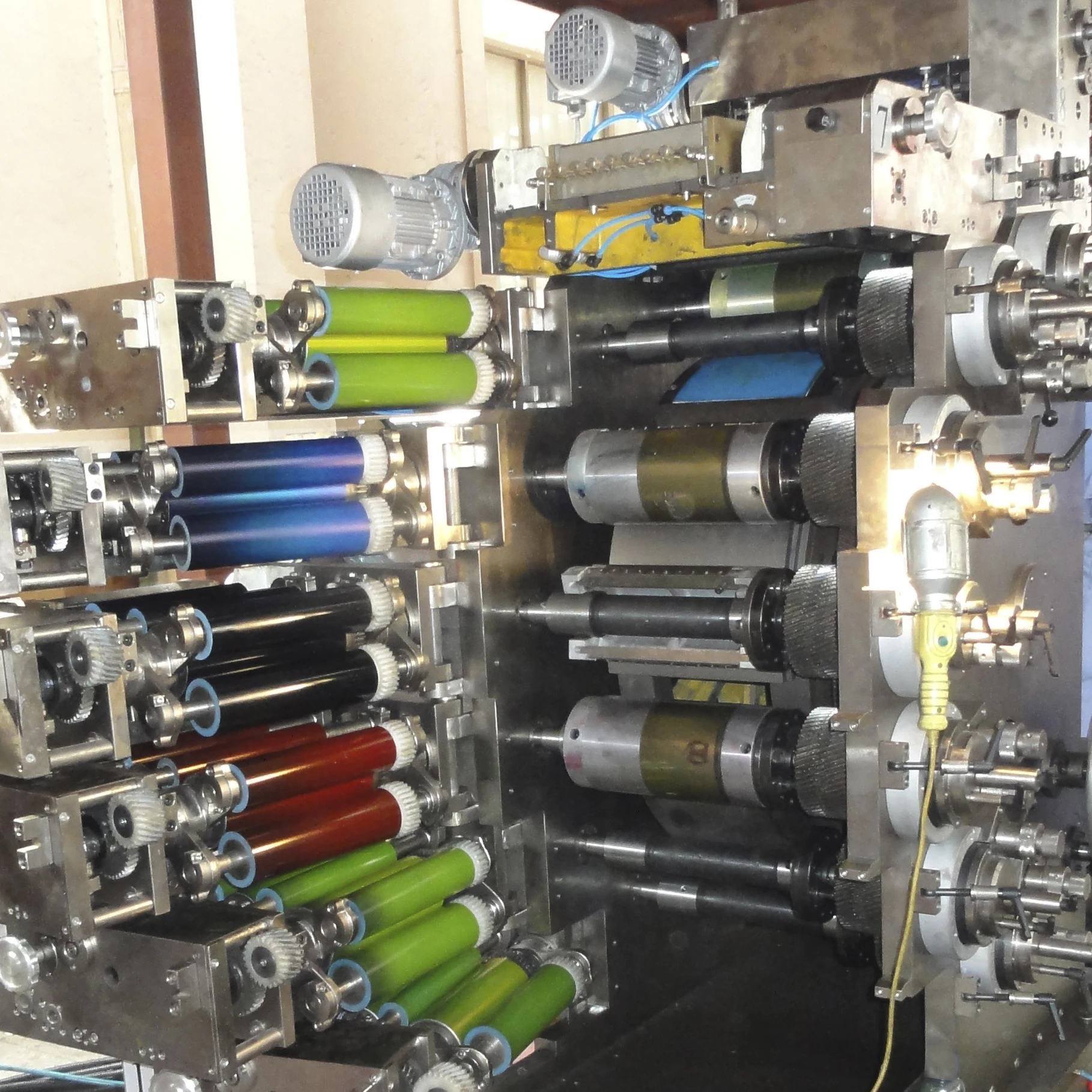

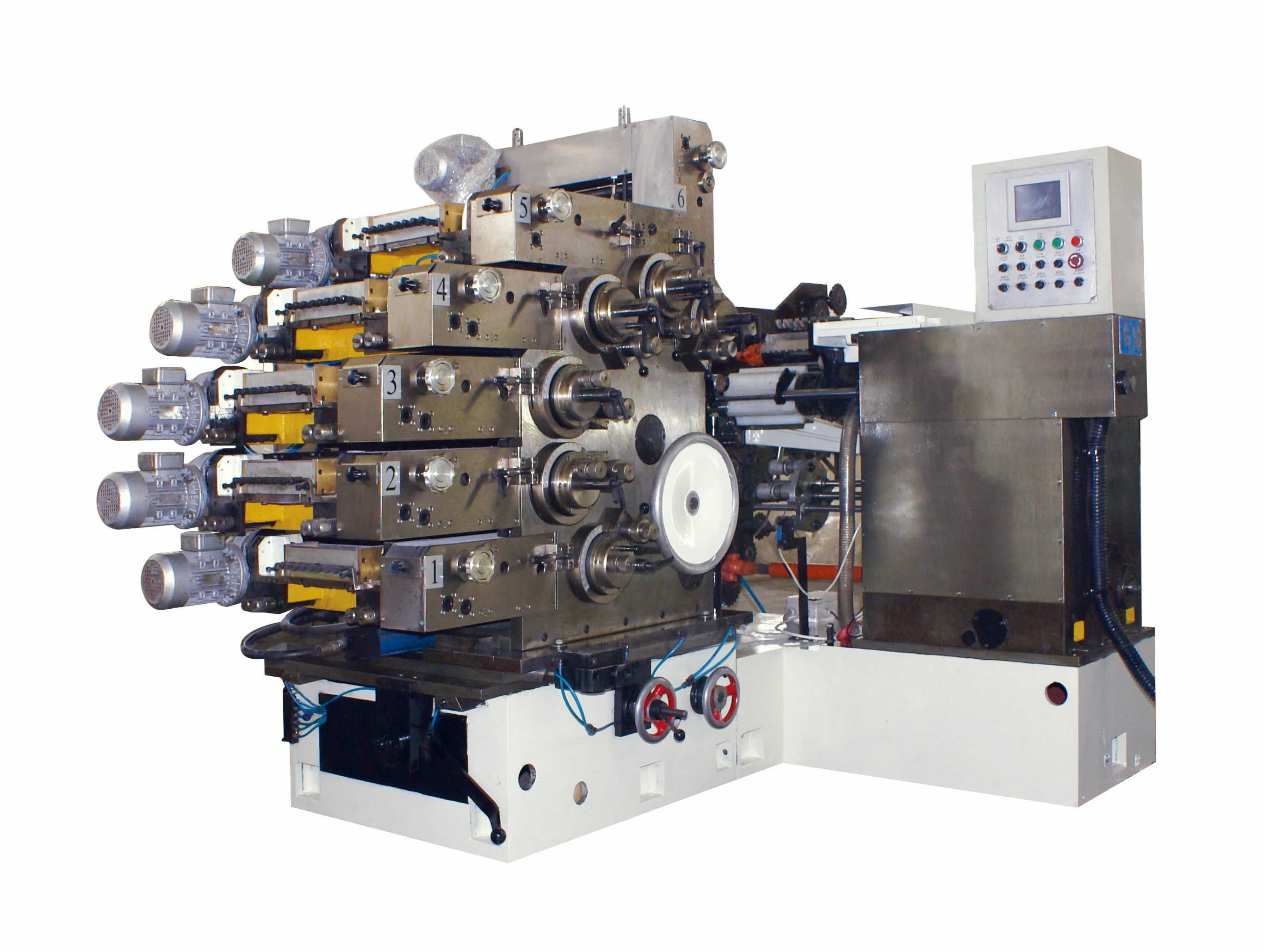

YSC02 8-color Printing Machine

1. Application and operating principle

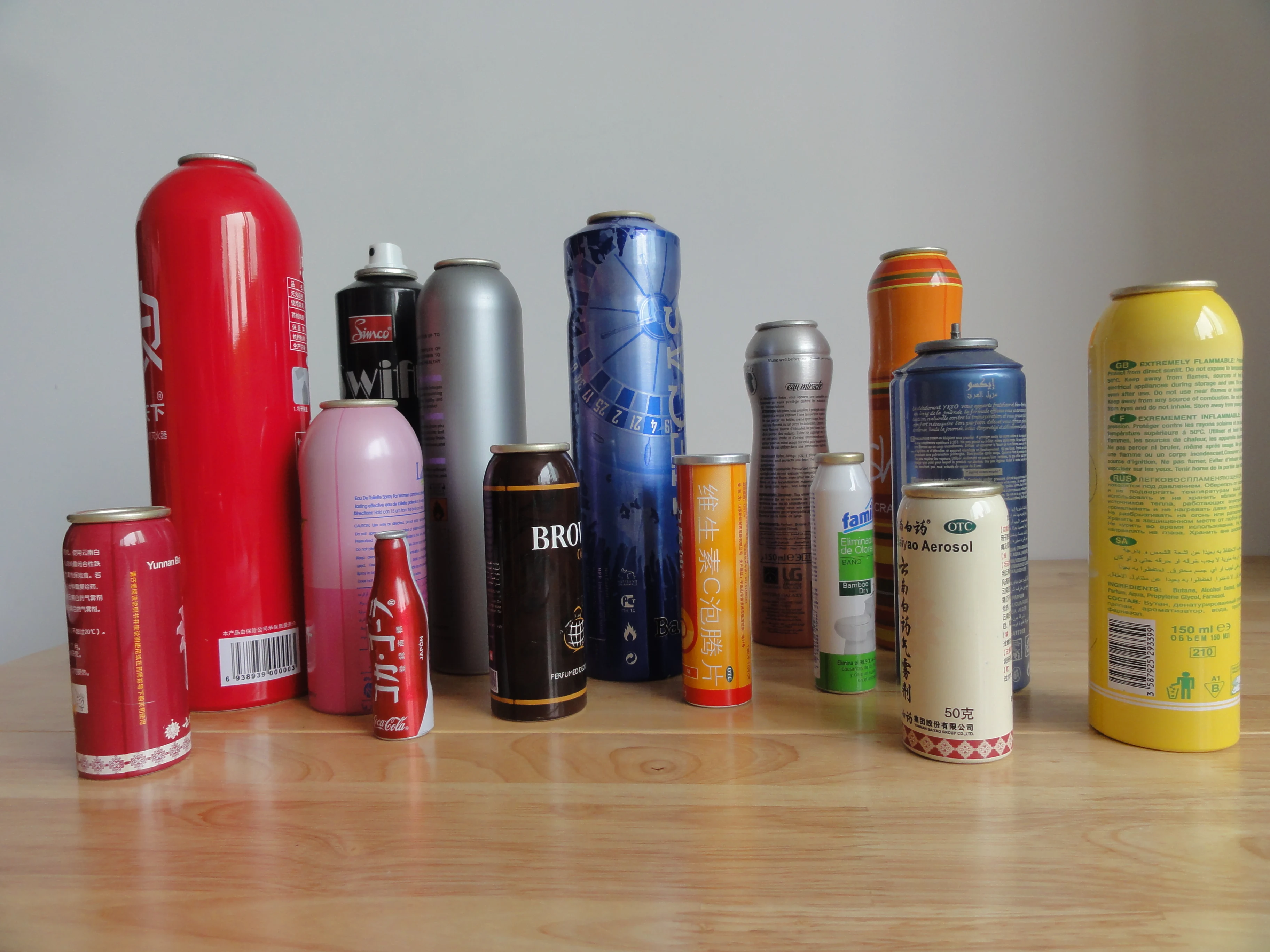

 YSC02 8-color printing machine is suitable for printing the surface of metal cans like aluminum tubes and cans. It can realize polychrome printing of patterns in eight colors.

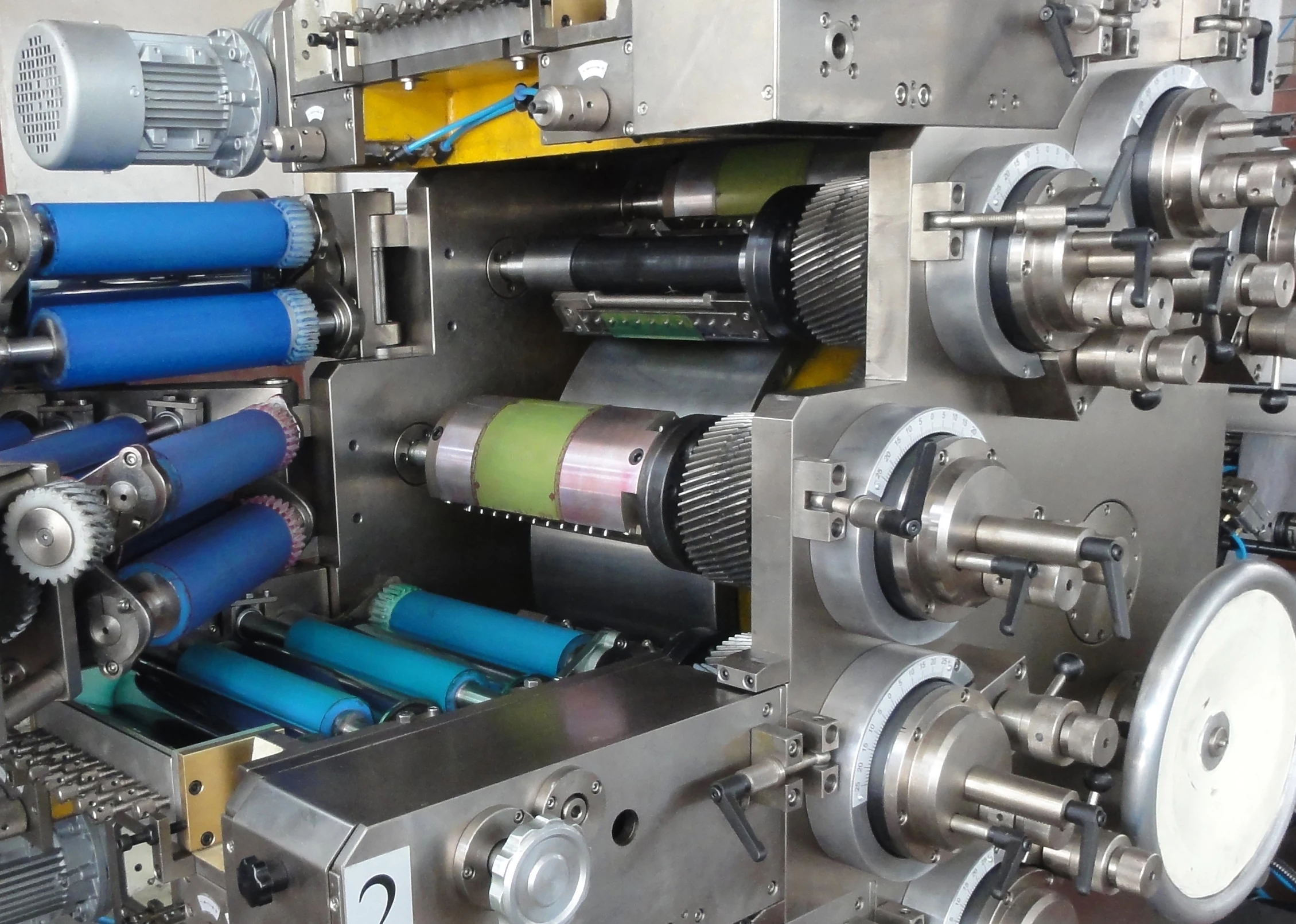

Coated and dried germ cans are absorbed and inserted with printing mandrel by push rod. The ink is transferred to printing plate through ink fountain, ink roller, middle roller, ink vibrator and rubber roller. The printing plate then transfer the pattern to the blanket cylinder with appropriate pressure and prints cans with patterns. The manipulator takes cans away from the mandrel and sends them to the transfer chain towards the drying oven. Aluminum canprinting adopts “circle presses circle” to realize polychrome printing.



2. Main features

A.     It adopts SIEMENS PLC and Pro-face color touch screen to display information of speed and production. The machine has self-inspection system. If cans are not well inserted into the mandrels, the machine will stop working. No tubes, no printing. Printing mandrel rotates automatically and can change frequency and speed. The printing units adopt Branch+ R plate structure which is easy for replacement.

B.     Regulating handle makes it easy to regulate printing.

C.     Draw-out type printing components are convenient for replacement.

D.     Mandrel components adopt integral replacement, which is suitable for different types of aluminum cans and convenient for changing mandrel.

3. Main technical parameters

A.     Can diameter range	φ35mm-φ66mm
B.     Can length range	≤230mm
C.     Production speed	≤100-120cans/min
D.     Motor power	19.17KW
E.     Dimensions	3445×2318×2168mm
F.      Net weight	9600KG
G.    Intake Pressure	0.6MPa





Company Profile



Wuxi Yingrun Machinery Technology Co., Ltd. is located in beautiful Wuxi, China, only 150 kilometers away from Shanghai.

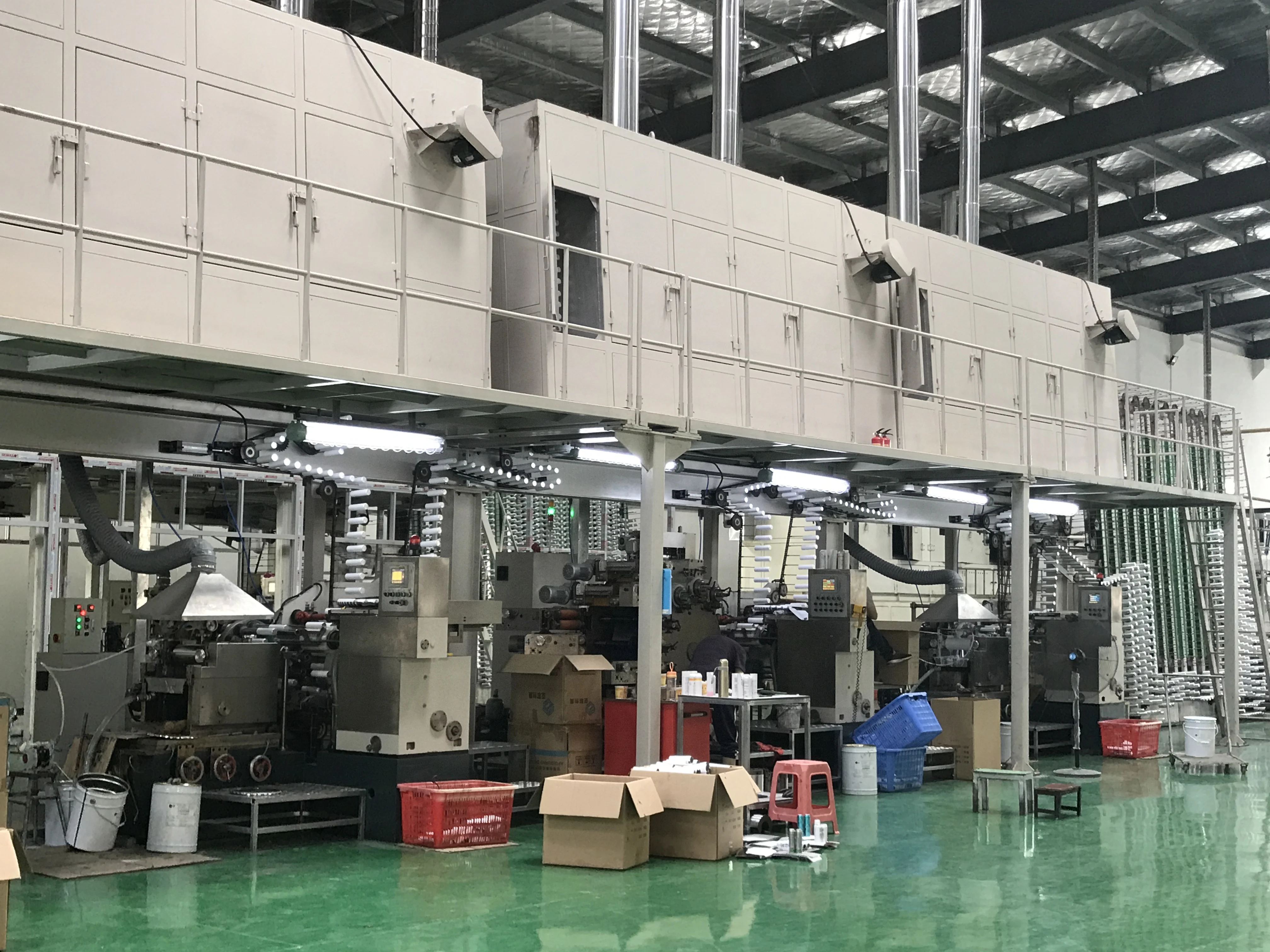

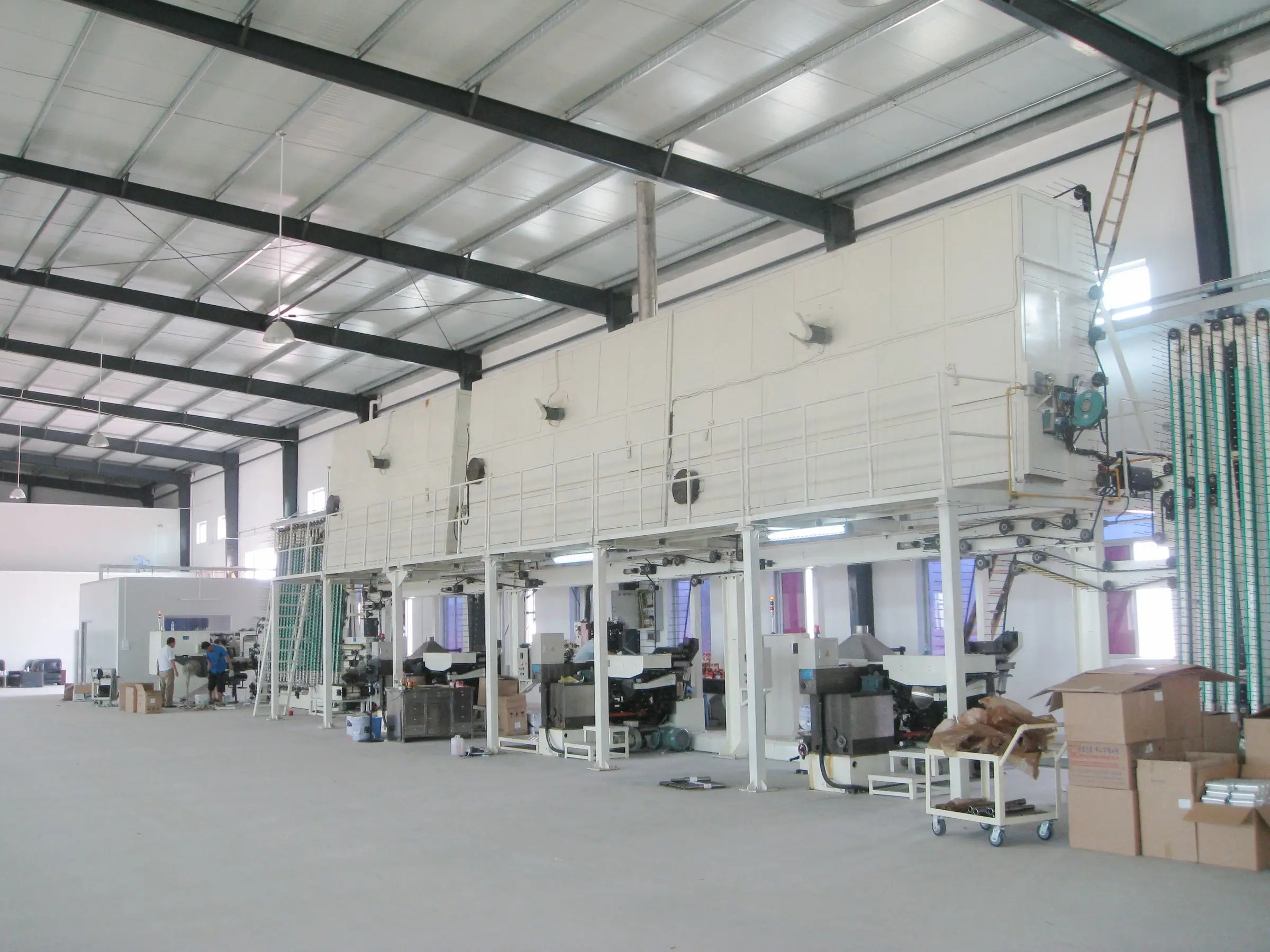

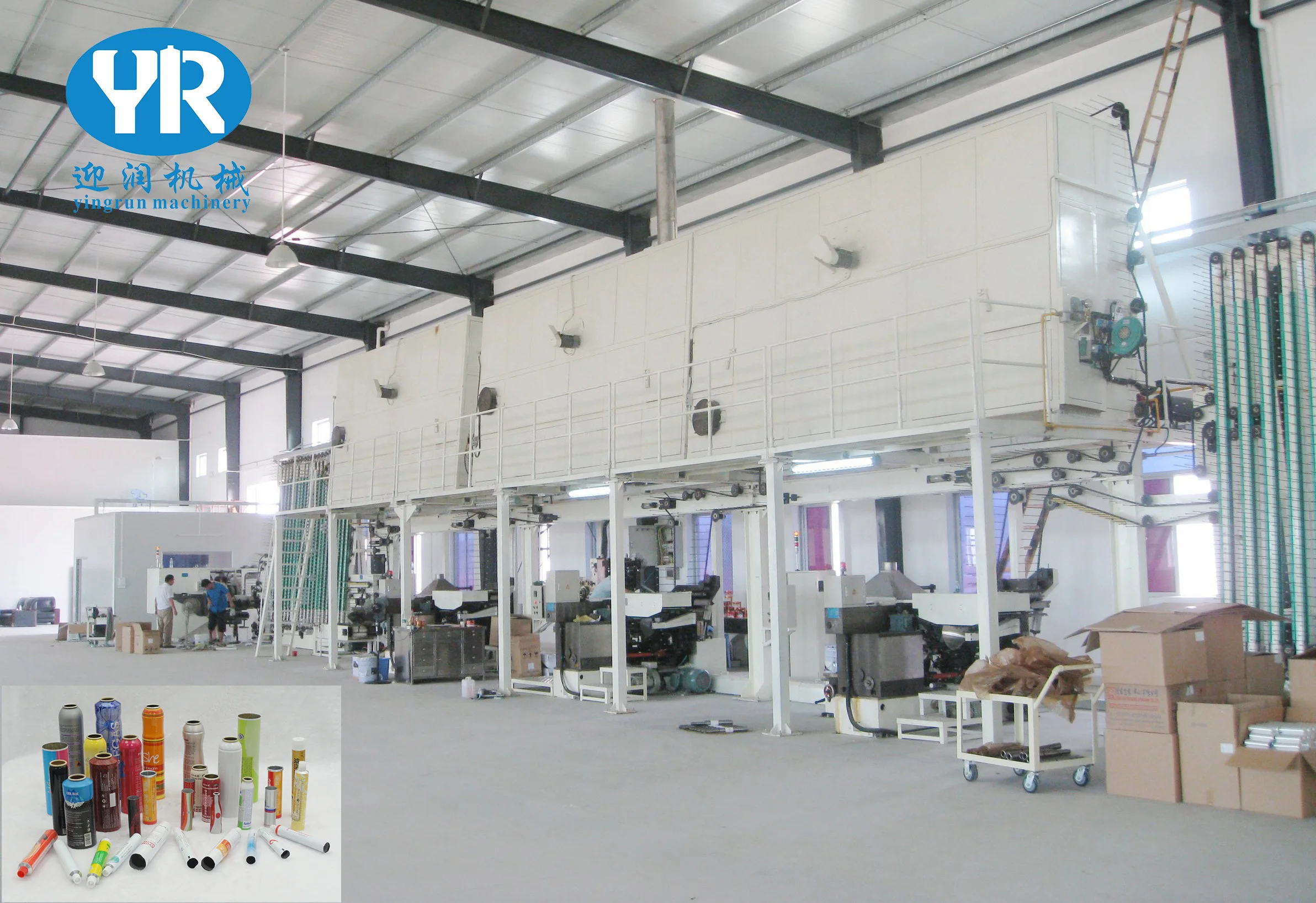

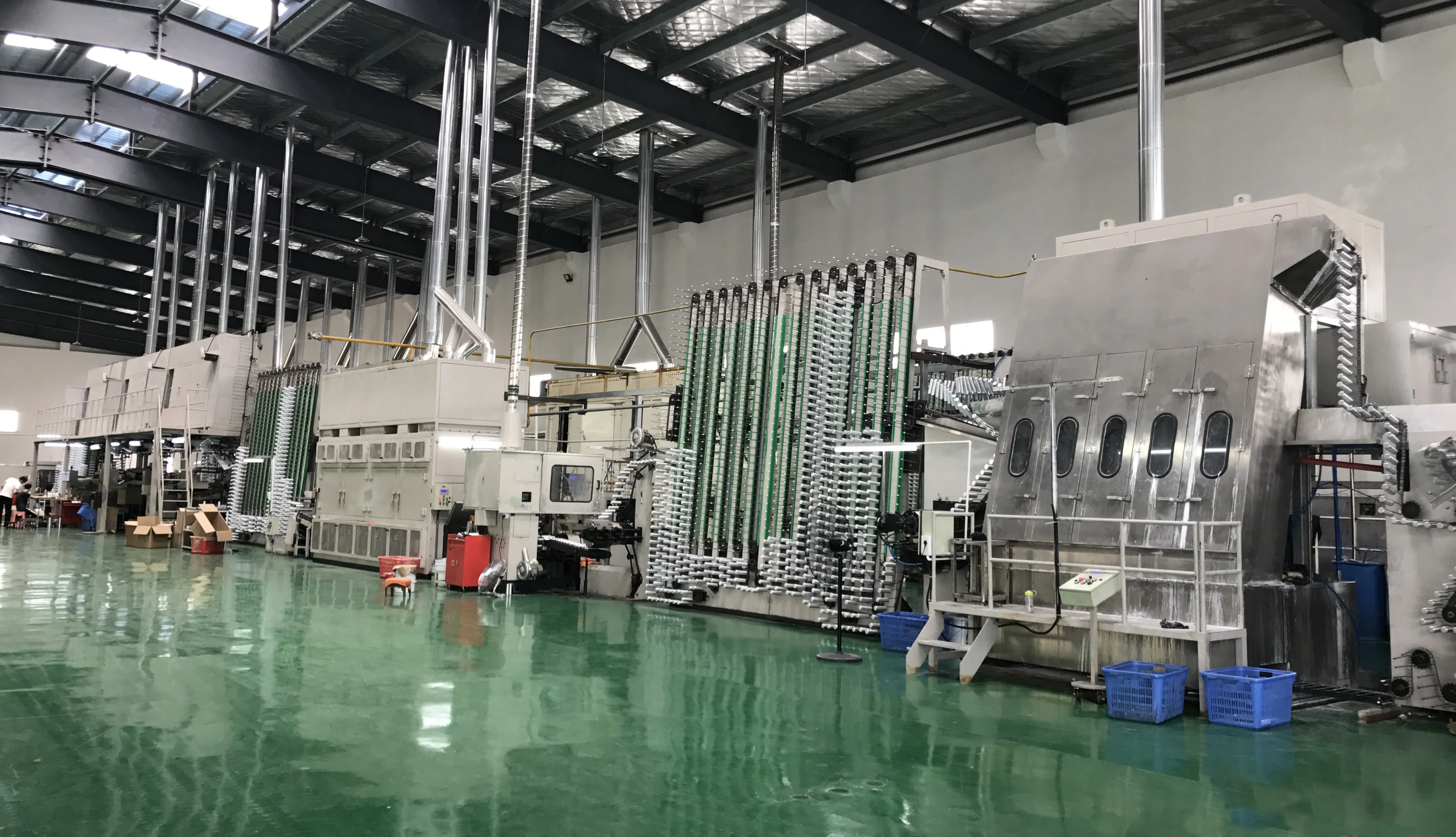

The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
