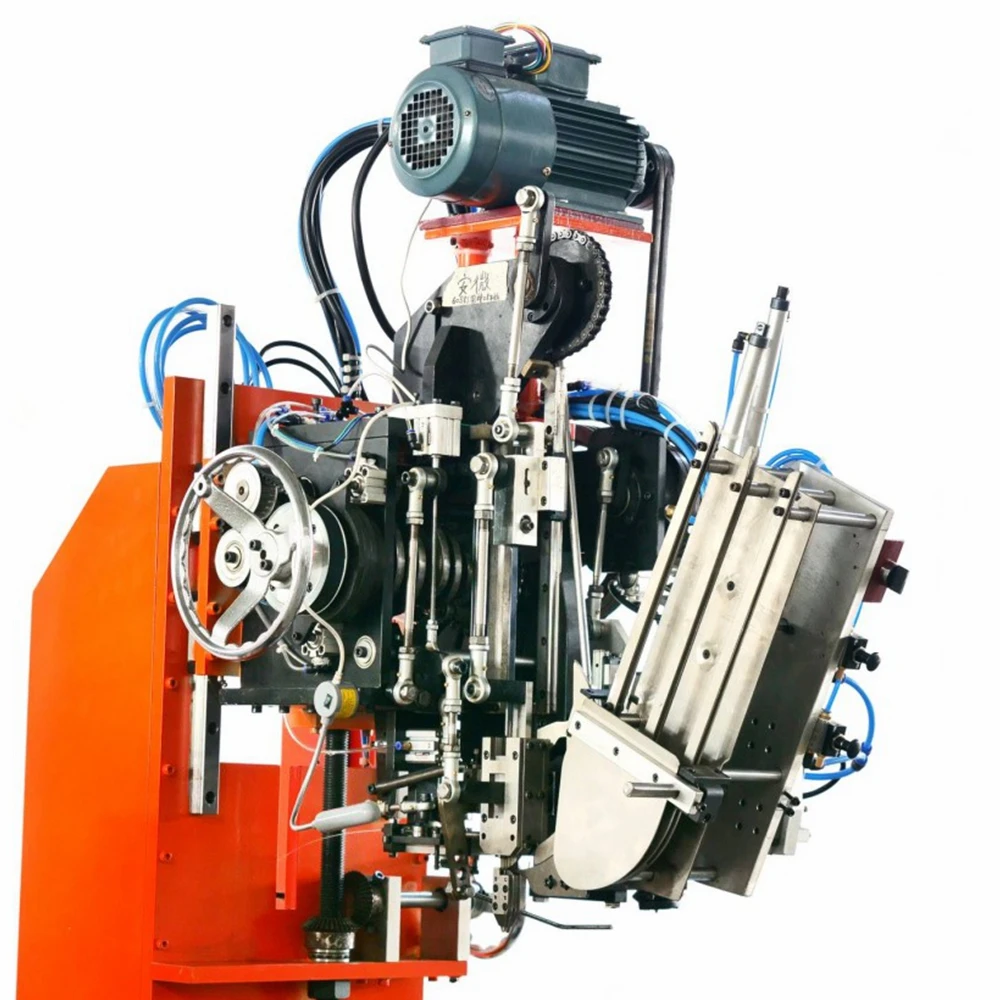

High efficiency automatic 2 axis 1 tufting shoe brush making machine 2 colors cloth washing brush making machine for cleaning
- Category: >>>
- Supplier: Jiangmen Meixin Comb Brush Machinery Co. Ltd.
Share on (62099820146):
Product Overview
Description
| Description: | |
| Model | MX-2AT001 |
| NO. of axis | 2 axis |
| Qty of heads | 1 tufting |

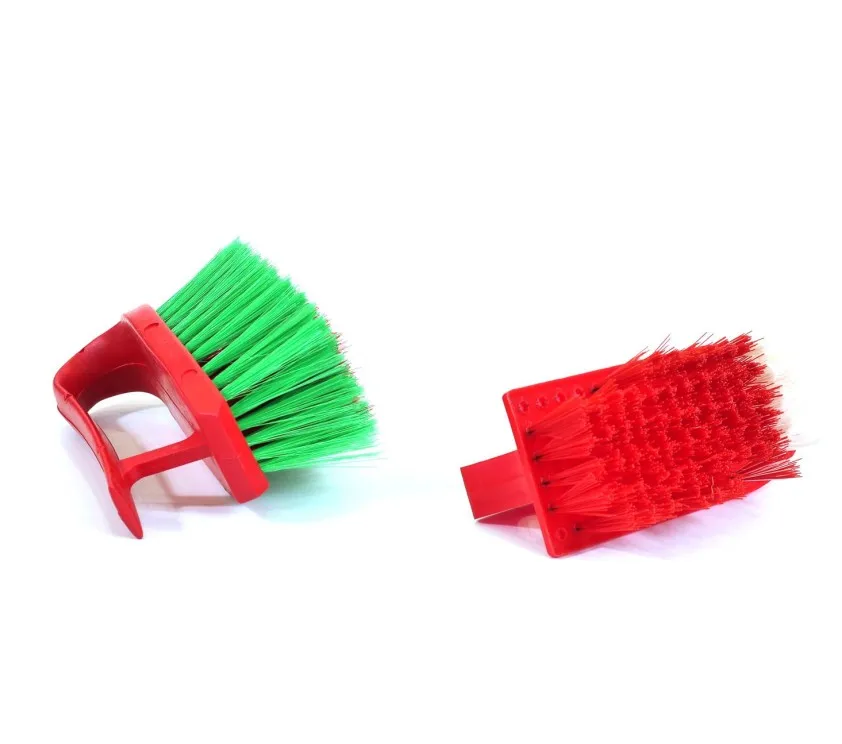

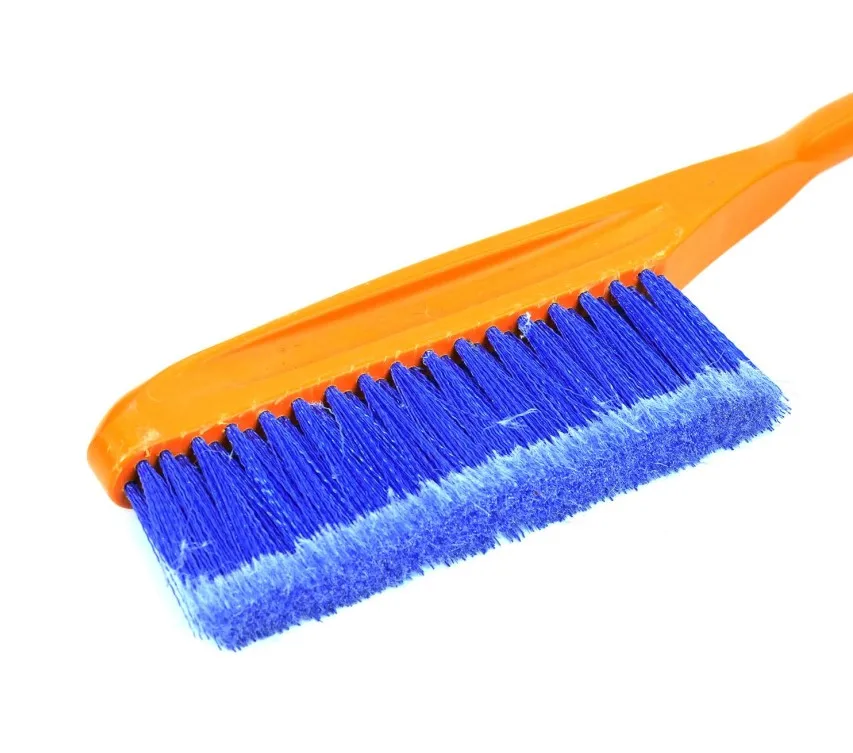

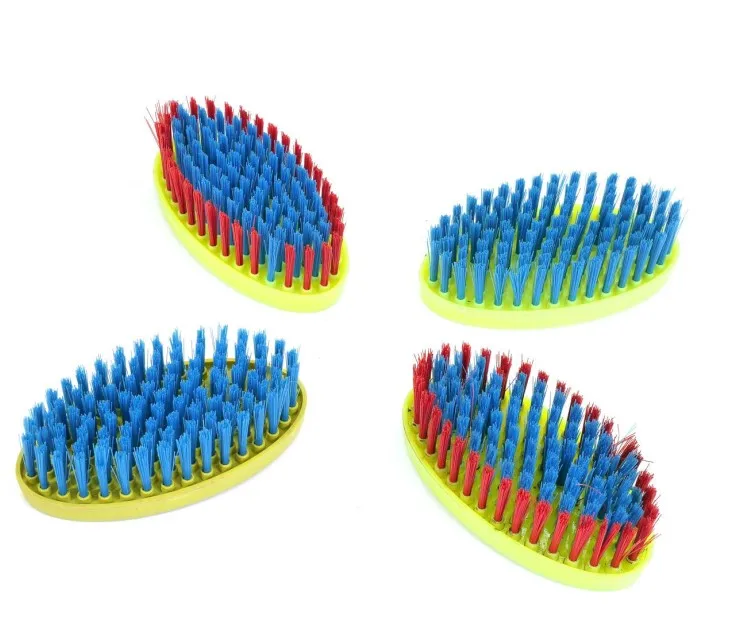

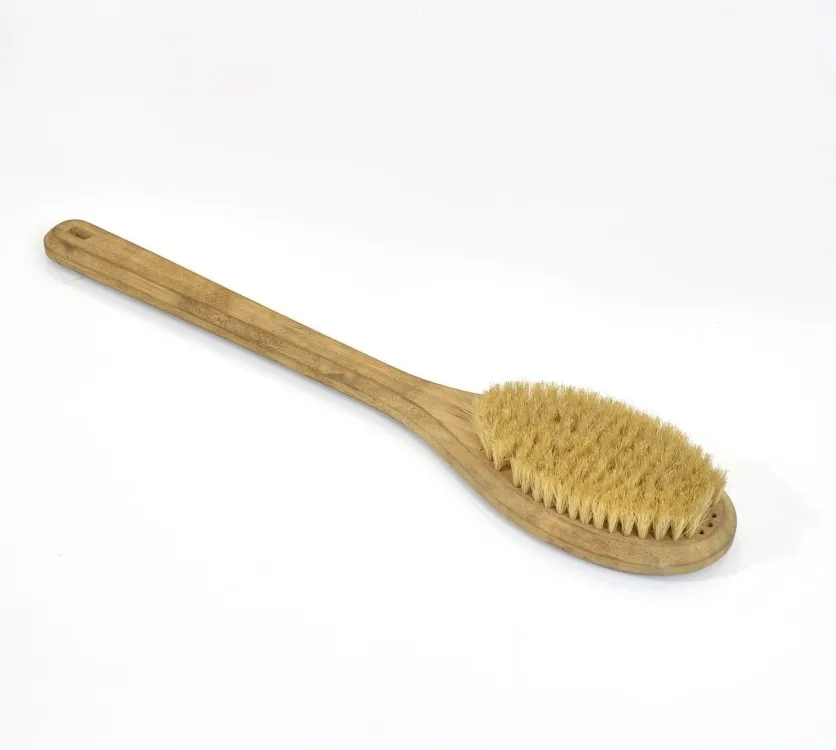

| Application | Flat brush ,broom |
| brush types | Flat brush base with holes |
| Brush base materials | Plastic, wood |
| Filament materials | PP,PET, Nylon,animal hair plant fiber etc. |
| The mold fixture size | 300*50mm |
| Diameter of hole | 4~6mm |
| The length of filament(outside the hole) | 15~110mm |
| Colors of Brush Filaments | 2 colors |
| Parameter: | |
| tufting Speed | 4~6 holes/sec. |
| Power voltage, frequence | 220/380v , 50/60HZ (customer choose) |
| Main motor power | 0.75kw |
| Air Source Input | 0.4~0.5Mpa |
| Equipment size | 1000*1100*1700mm |
| Weight | 600kg |
| Electrical parts: | |
| Control System(PLC) | MEIXIN Chinese and English version |
| Touch screen | MEIXIN Chinese and English version |
| Main motor | SNMA |
| Servo motor | Maxsine |
| Relay | IDEC (Janpan) |
| Variable-Frequency | DELTA (Taiwan) |
| Safety Protection: | Schneider (France brand) |
