Laboratory Chocolate Sugar Peanut Tablet Coating Machine
US $1550-$1650
BYC 600B BYC800Tablet Coating Machine with Spray gun/tablet coating machine
- Category: Film Coating Machines >>>
- Supplier: Shanghai Flight Pharmaceutical Machinery Co. Ltd.
Share on (62099923736):
Product Overview
Description
Product Description
———Descriptions———
The machine is used to carry out sugarcoating and film coating the core of Chinese traditional medicine
and western medicine tablets, it integrates strong power, weak power and hydraulic pressure with
pneumatic operation, it is new type equipment improved on the basis of original common type
sugarcoating machine.

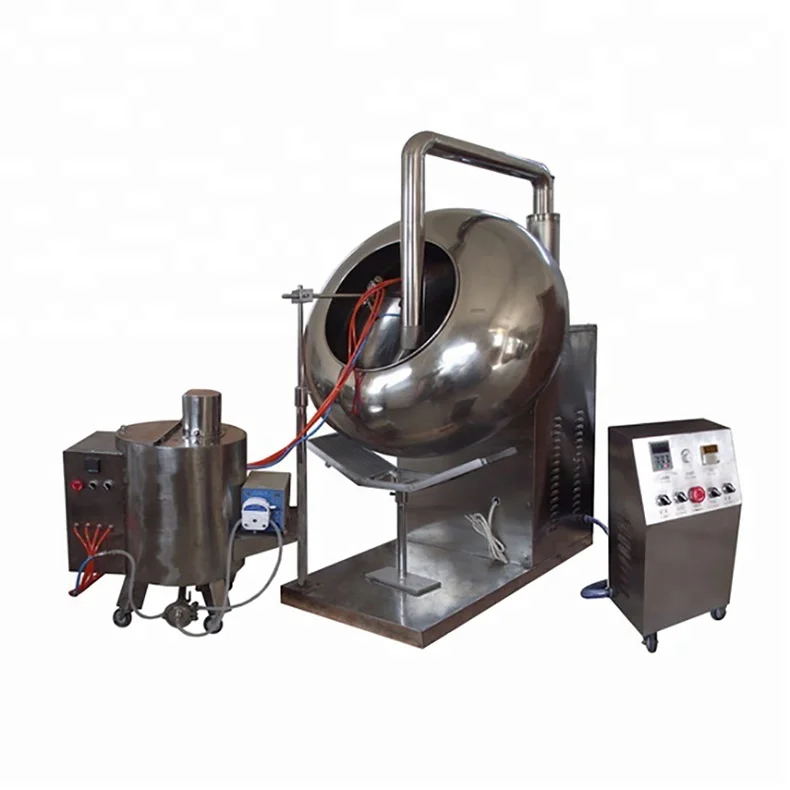

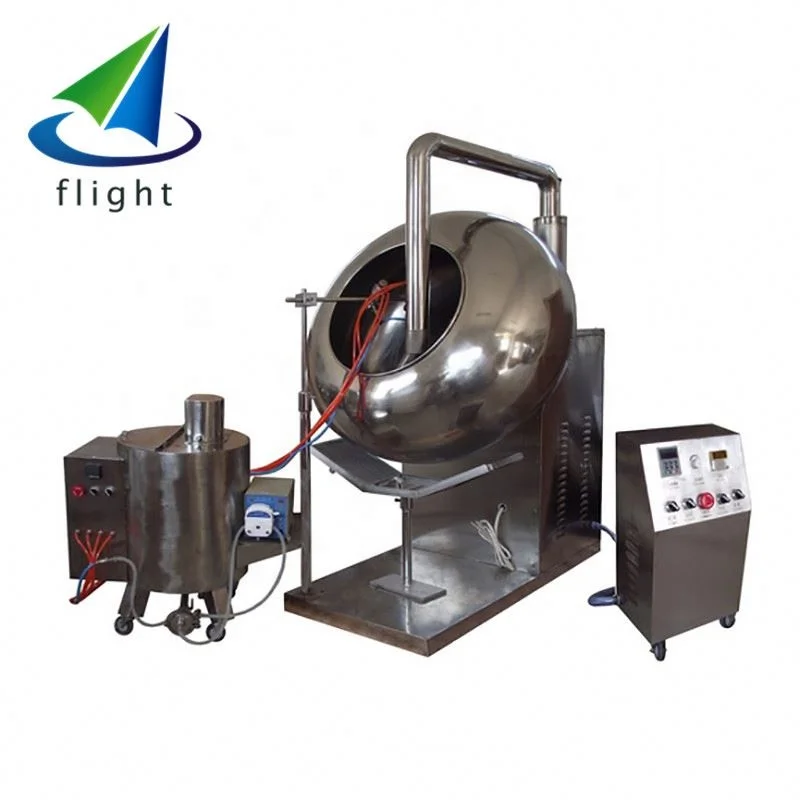

The machine is composed of the mainframe (original sugarcoating machine), controllable
normal-temperature hot air system, automatic liquid supply and air supply spraying system, exhaust unit
etc. The speed can be controlled, the coating accessories using high atomization spray to tablets
surface by the method of automatic electrical control, meanwhile, the tablets make continuous and
complex track movement in the coating pan;Let the coating liquid cover the tablet core evenly. The
controllable normal-temperature hot air in the pan will dry the tablets at the same time; let the tablet
surface form a film,fine, complete and smooth surface film rapidly.

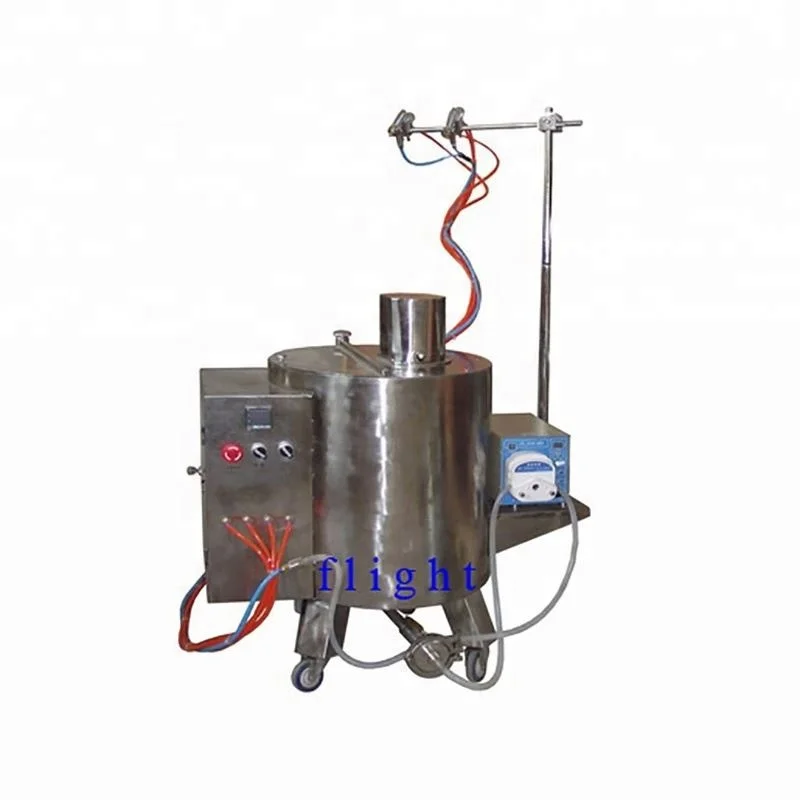

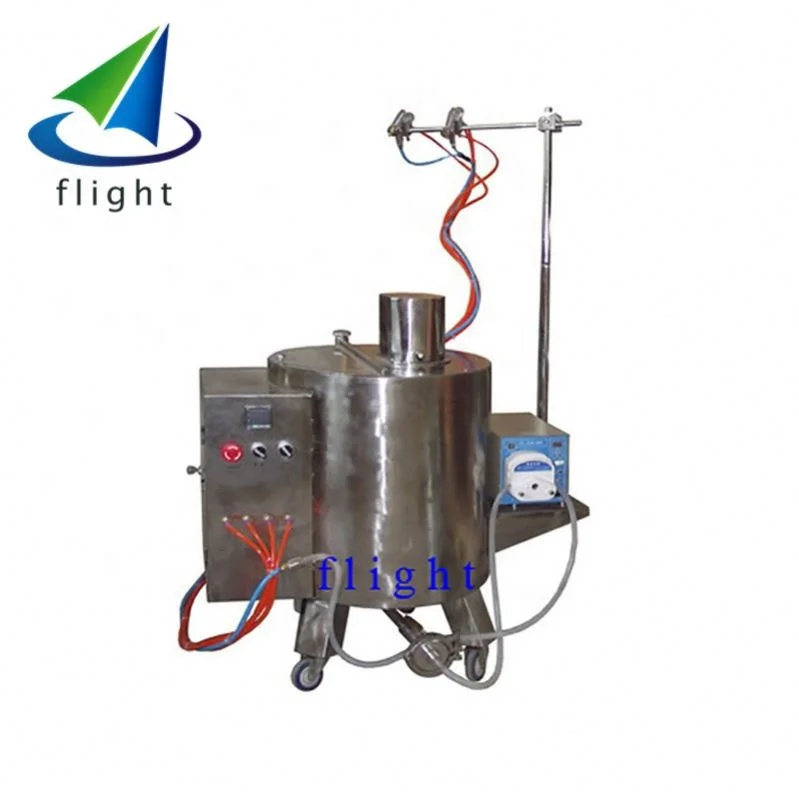

Automatic liquid supply vehicle is used for heating the coating solution that requires higher
temperature, and the temperature is adjustable. Barrel lined with rock wool insulation, even the heating
temperature arrives 80-90 ℃, the out wall of barrel still keep normal temperature. The liquid supply
vehicle is equipped with peristaltic pump and three-way magnetic valve, which can make the two spray
gun work at the same time. It is also equipped with pneumatic stirring motor that can continually stir
coating solution, and the speed of stirring is adjustable. There is also wheel installed in the bottom of
vehicle, so that users can remove it.
The machine has advantages of simplified operation, smooth, fine and bright tablet surface, saving
accessories and convenient maintenance. So it is an ideal equipment for tablet film coating.
———Technical Parameters———
Model | BYC-400B | BYC-800B | BYC-1000B | BYC-1250B |
2-5 kg/time | 30~50 kg/time | 50~70 kg/time | 80~150 kg/time | |
15°-45° | 15°-45° | 15°-45° | ||
0.55kw | 1.1 kw | 1.5kw | 2.2 kw | |
200 w | 200w | 370 w | ||
0-46r/min | 0-32r/min | 0-32r/min | 0-28r/min | |
Electric Thermal Power | 4KW | 3KW | 4KW | 6KW |
Weight | 65 kg | 280 kg | 300 kg | 500 kg |
Outline dim. | 700×660×970mm | 1000×1000×1550mm | 1300×1000×1680mm | 1350×1350×1600mm |
Automatic Liquid Supply Vehicle | ||||
Model | BYC-400B | BYC-800B | BYC-1000B | BYC-1250B |
Volume of Barrel | 5 L | 30L | ||
Heating Power | 1KW | 3KW | ||
Power | Single Phase | Single Phase | ||
Flow Rate | 0.34-870ml/min | 0.34-870ml/min | ||
Supporting silicone rubber tube | 24# | 24# | ||
Working Pressure | 0.4-0.8Mpa | 0.4-0.8Mpa | ||
Spray Gun | According to user’ demand. | |||
Weight | 60 kg | 60 kg | ||
Overall size | 585×410×600mm | 780×620×830mm | ||
———Product image———
Features
——Features——
Feature 1 |
The machine has advantages of simplified operation, smooth, fine and bright tablet surface, saving accessories and convenient maintenance. So it is an ideal equipment for Tablet film coating. |
Feature 2 | The machine is composed of the mainframe (original sugarcoating machine), controllable normal-temperature hot air system, automatic liquid supply and air supply spraying system, exhaust unit etc. The speed can be controlled, the coating accessories using high Atomization spray to tablets surface by the method of automatic electrical control, meanwhile, the tablets make continuous and complex track movement in the coating pan; Let the coating liquid cover the tablet core evenly. |
——Hot Sale Products——
Contact us to get your unique design
Our Advantages
——Our advantages——
Products advantages | 1. We always give top priority to quality 2. Strictly guarantee the precision of parts error 3. Reasonable processing technology coupled with advanced processing equipment |
Trade advantages | 1.Our company is a Gold Supplier on Alibaba. So we can provide Escrow Service on Alibaba. 2.Our company can do Trade Assurance Order for customers on Alibaba. |
Custom made advantages | 1.The company independent research and development, custom design exclusive for the series of products. 2. Mutual benefit with the best quality and service, and sincerely hope that friends from various circles at home and abroad sincere cooperation and mutual benefit and win-win situation. |
Company Introduction
——Our Company——
Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of
various pharmaceutical machineries in China. Our company has profuse designs with series
quality grade, and expressly, our price is very competitive, because we are manufactory.
Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000
quality system attestation, accord with GMP attestation request. All tasks from casting to
metal machining, and general assembly are accomplished ourselves.
We produce and export various pharmaceutical machineries, relevant medicament detecting
instruments and packing machinery, such as Rotary tablet press, Single punch tablet
press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling
machine, Capsule filing machine, Blister packing machine, and so on.
We have professional export office, with an experienced and professional team, they will
service in whole business. By excellent quality, reasonable price and perfect after-service,our
products have been sold in many countries and regions all over the world, Such as United
States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand
and Vietnam etc, these products are very popular with the customers there.
Try to do everything, let customer satisfaction, this is our company’s service tenet.
<<Welcome new and old customers come to discuss business>>
——Certificate——
Packaging & Shipping
——Packing & Shipping——
Delivery time | Within 7 days after receiving the payment. |
Payment methods | T/T or Western Union payment, and full payment before shipping |
Guarantee | One year quality guarantees and free with spare parts for one year. |
After sales service | The English user manual Circuit diagram |
