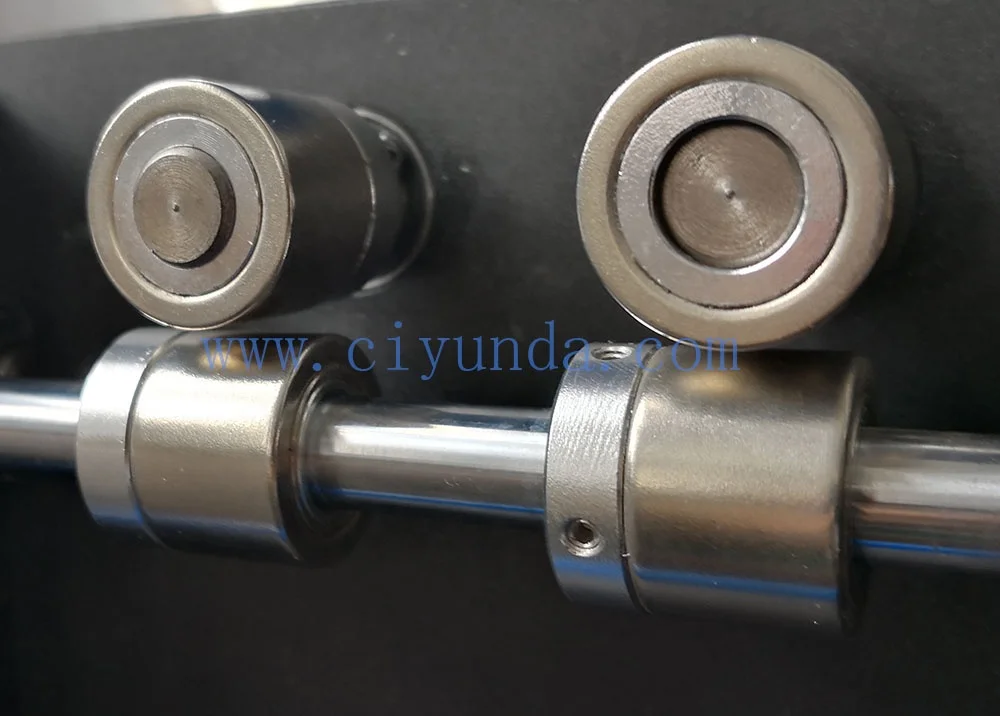

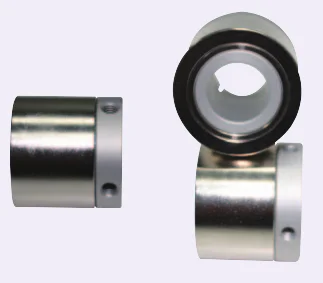

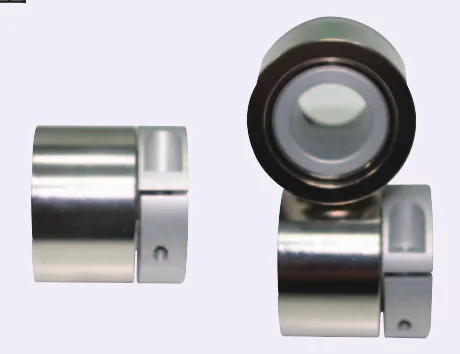

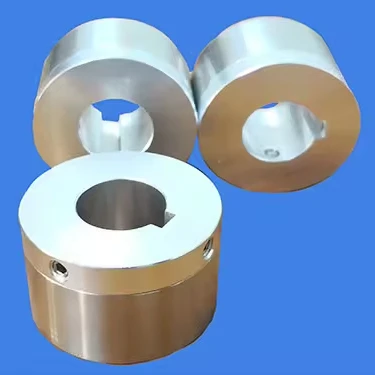

Magnet Gear Non contact magnetic power transmission gear wheel
- Category: >>>
- Supplier: Jinan Ouna Electromechanical Equipment Co. Ltd.
Share on (62099954525):
Product Overview
Description
Product Description
Product Application
Magnet Gear uses the attraction and repulsion of magnets to interact with each other.
Principle of action, non-contact power transmission device.
The magnetic wheel is a LCD which does not allow fine impurities in a clean environment.

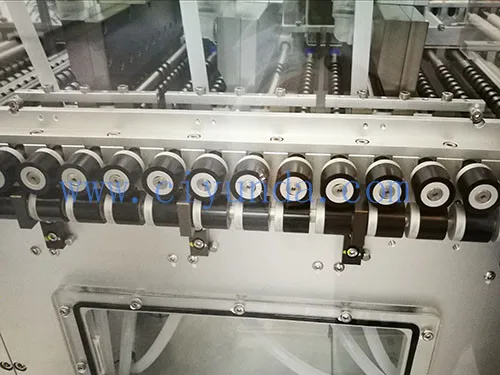

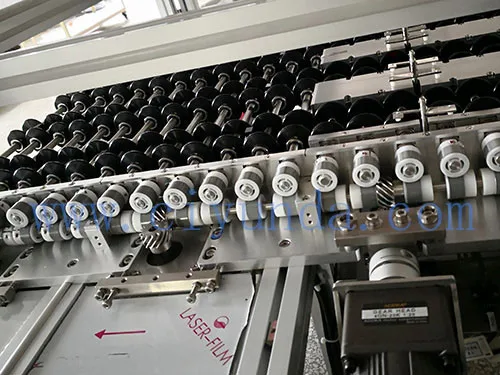

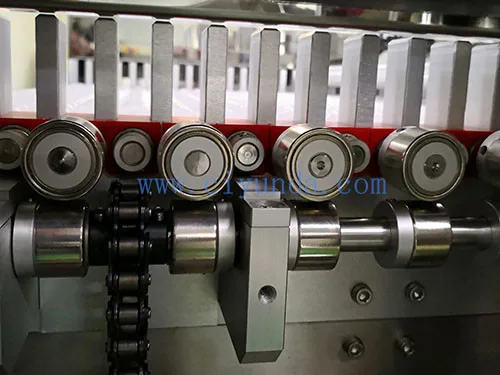

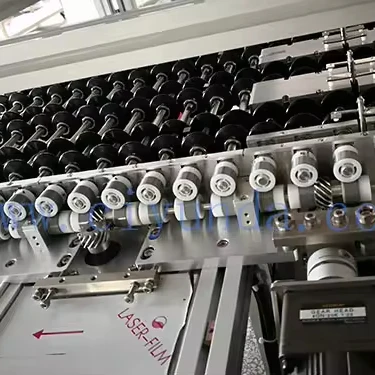

PDP, PCB, TFT, OLED, SOLAR CELL and other production lines
Products driven by non-contact state. Alternatively driven by friction
Mechanical gears.
It can fundamentally eliminate the dust produced by the use of mechanical gears in the past.
Problem. In addition, Nd-Fe-B permanent magnets with excellent properties are the largest.
The advantages are high power transmission capability, no noise and no need to replace.
Parts, semi-permanent use.
It solves the problem that even if abnormal load occurs, it will not cause any damage.
The problem.
Our products range from large machines to vacuum machines, electronics, chemistry,
Medicine, food and other broad areas, has a wide range of applications.
Main Features
1) Dust-free environment: Using magnetic force, in the non-contact state, it can use torsion to transfer products in vacuum where dust-free environment is needed.
2)Low Gas Emission: Large machine to vacuum machine, in order to reduce gas emissions, according to special surface treatment, can be used in 10-5PA environment.
3)Ultra-bass: Ultra-bass effect is unimaginable in transmission machines such as gears and conveyor belts in the past. It can provide clean and tidy production environment.
4) Torsion limit function:
If the abnormal load is generated, the two magnetic gears will rotate independently to achieve the torque limit function. In addition, because of the non-contact environment, there is no mechanical grinding.
Loss, because some transmission tools such as gears have a longer service life than before.
5) Cost reduction: No need to replace parts because of wear and tear, thus reducing operating costs. Because even if the vacuum standby is repeated, it will not produce any performance at all.
Influences, therefore, do not require previously complex and expensive designs
Certifications
Detailed Images
Machine Parts

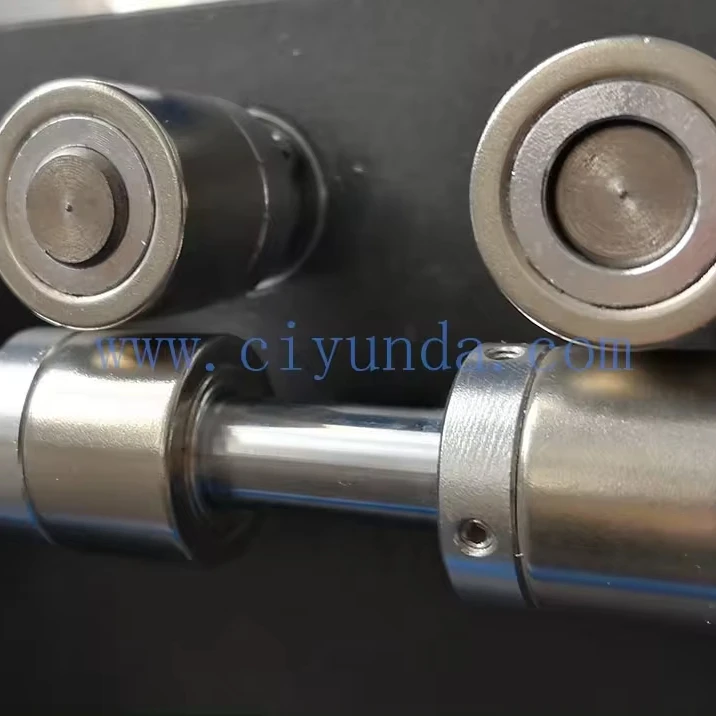

Name: Sintering right Angle drive magnetic wheel
Brand: OUNA
Original:CHINA

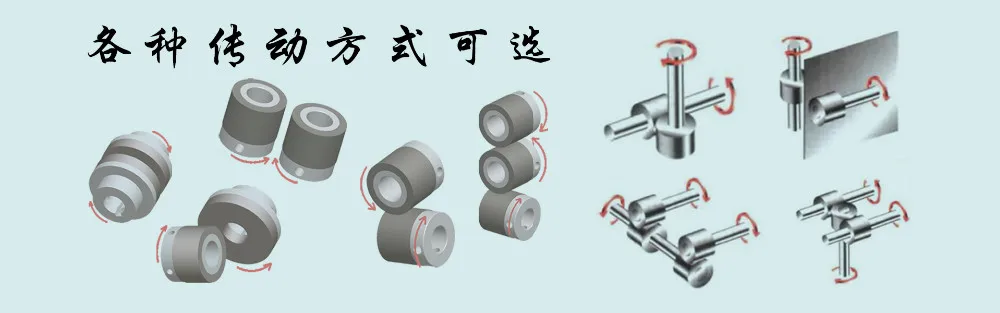

MGS series magnetic gears, made of sintered ndfeb material, ensure the magnetic strength and permanence.At present, MGS series are mainly in the direct - cross - type.
Direct intersection type is to arrange two magnetic gears into 90 degrees to transfer power, the main transfer methods are as follows: two axis rotation + transfer + Angle conversion.
Main Features
Name: Magnetic coupling
Brand: OUNA
Original: CHINA

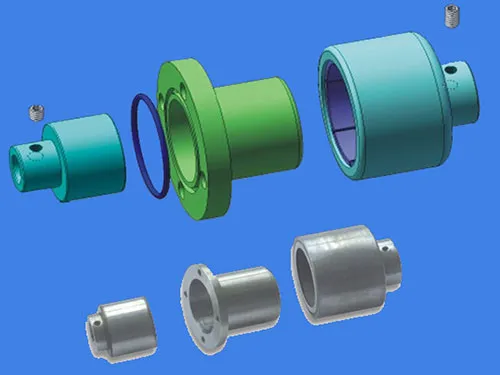

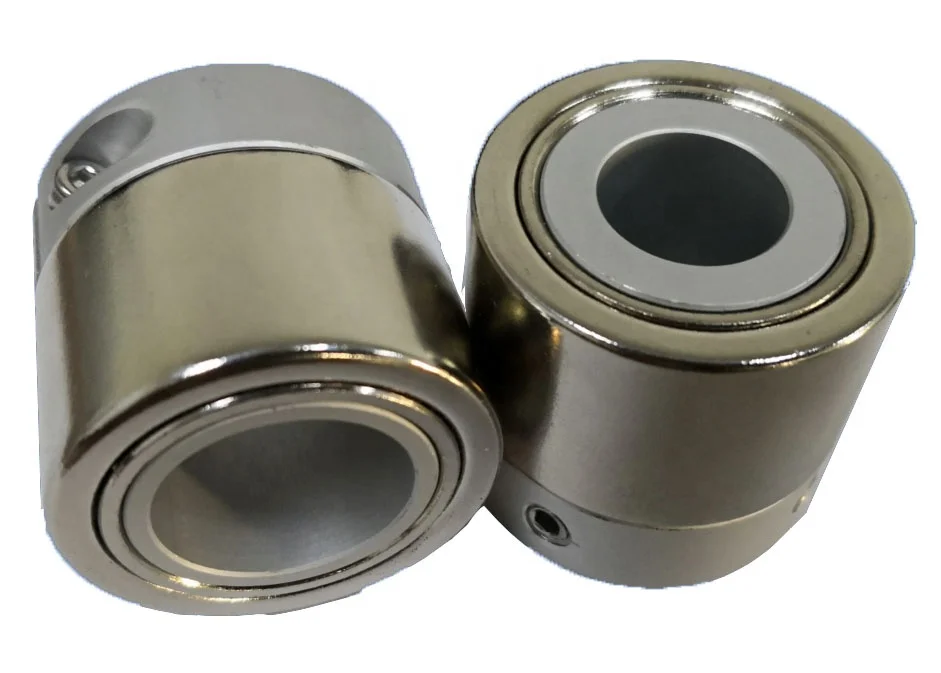

Magnetic coupling is a non-contact coupling, it is generally composed of two internal and external magnets, the middle by the isolation cover will be separated by the two magnets, the internal magnet and drive parts are connected, the external magnet and power parts are connected.Magnetic transmission shafts device in addition to have the function of the elastic coupling buffer vibration absorption, its biggest characteristic is that it break the structure of conventional coupling, magnetic coupling, new principle, implementation not by direct contact between driving shaft and driven shaft can force and torque transmission, and the dynamic seal into static seal, zero leakage.Therefore, it is widely used in occasions with special requirements for leakage.
Machine Parts
Name: Magnetic set pieces
Brand: OUNA
Original: CHINA

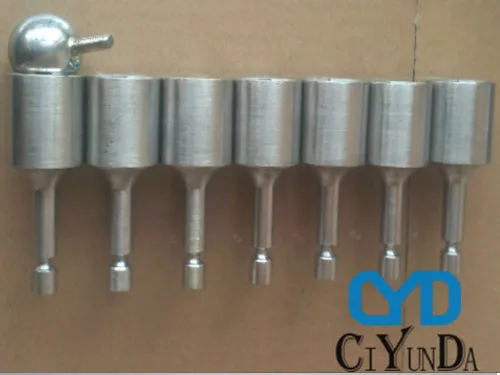

Magnetic set ball, also known as magnetic universal ball.It is composed of a single-sided cylindrical magnet and a steel ball.Steel ball adsorption in the cylindrical magnet, can be hemispheric range of free rotation positioning, due to the use of ndfeb magnet, has a strong attraction, so the positioning is relatively tight.The size of the connecting rod on the magnet can be customized according to the needs of processing.Mainly used in hospitals, photography, lighting, optics and other industries, has a wide range of applications.Magnetic universal axis between the ball and the magnet, the maximum attraction we can do 50 kg, thus ensuring the stability of positioning.
Our Service
Packing & Delivery
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | ||
Weight | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
