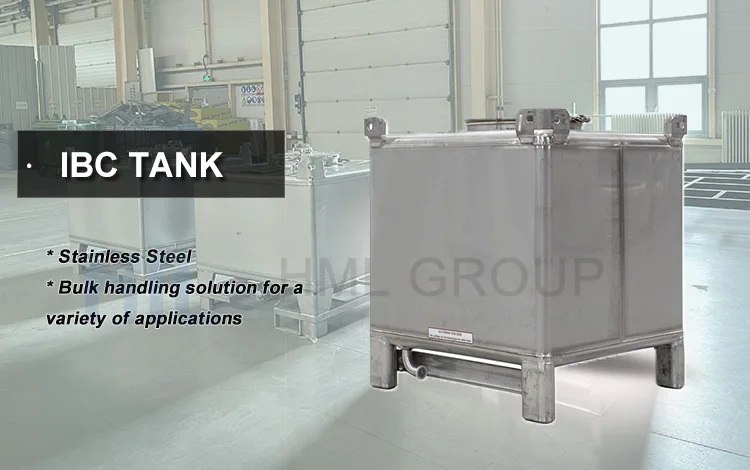

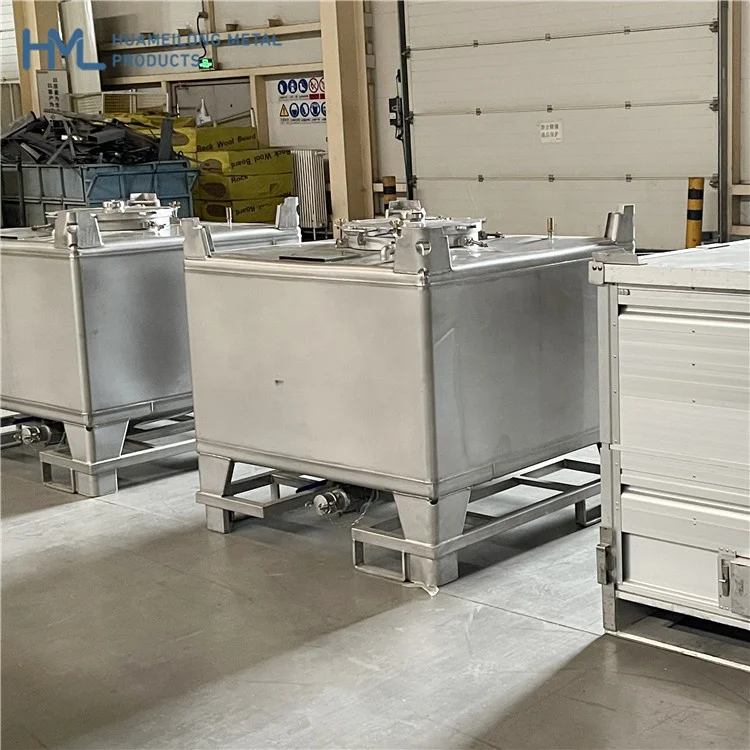

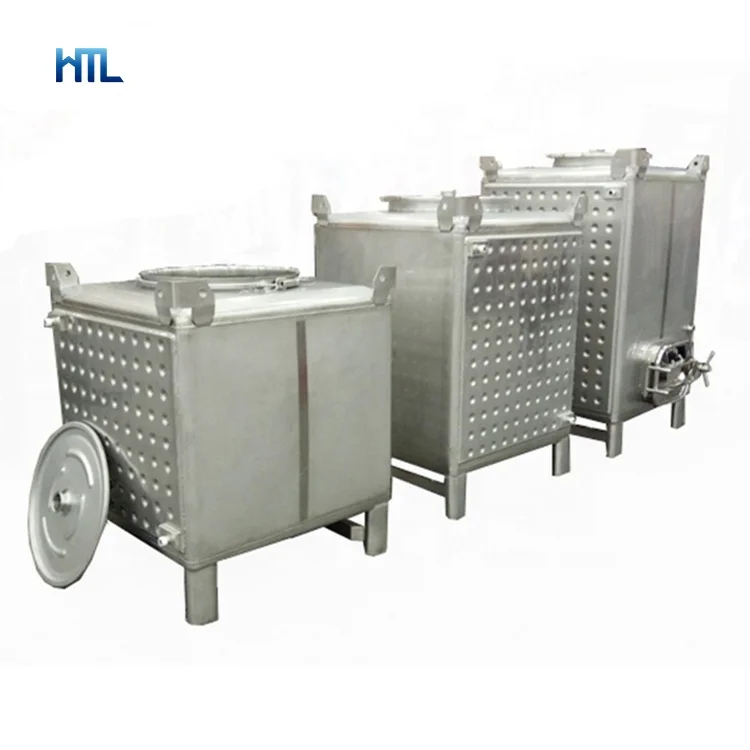

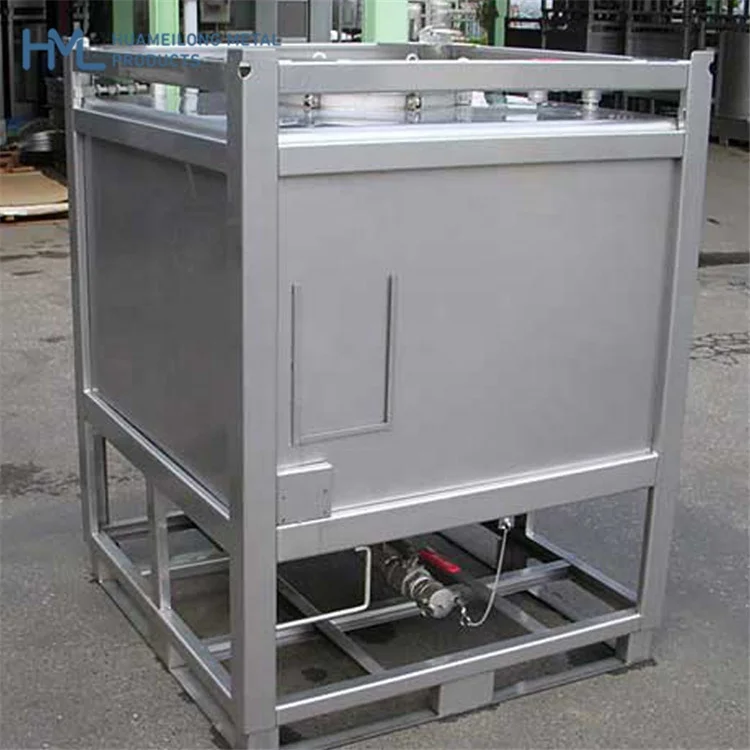

High quality bulk stainless steel IBC tank for for wine oil chemical drinking storage

SPECIFICATIONS

External

Length

   1150

3’–9 17/64”

Width

   1150

3’–9 17/64”

Height

   1280

4’–2 25/64”

Fork Pocket   Height

88

3 1/2”

Wall Thickness

2.5mm

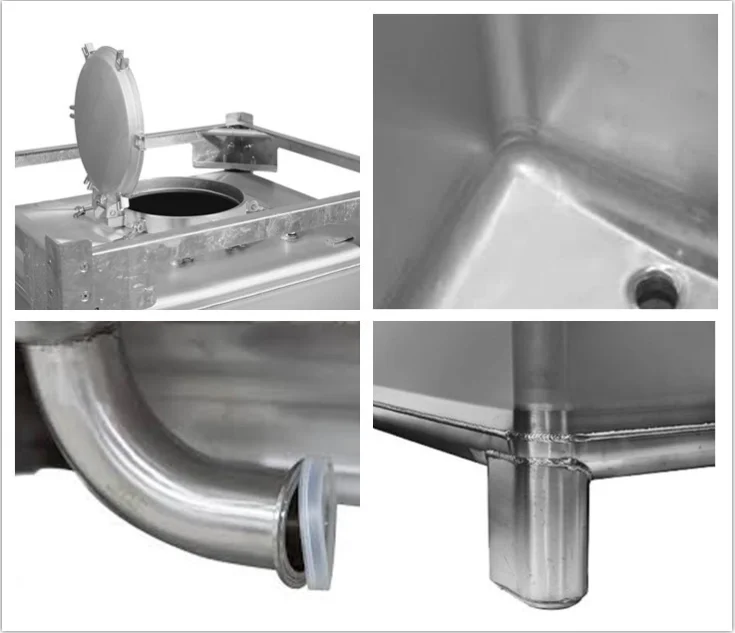

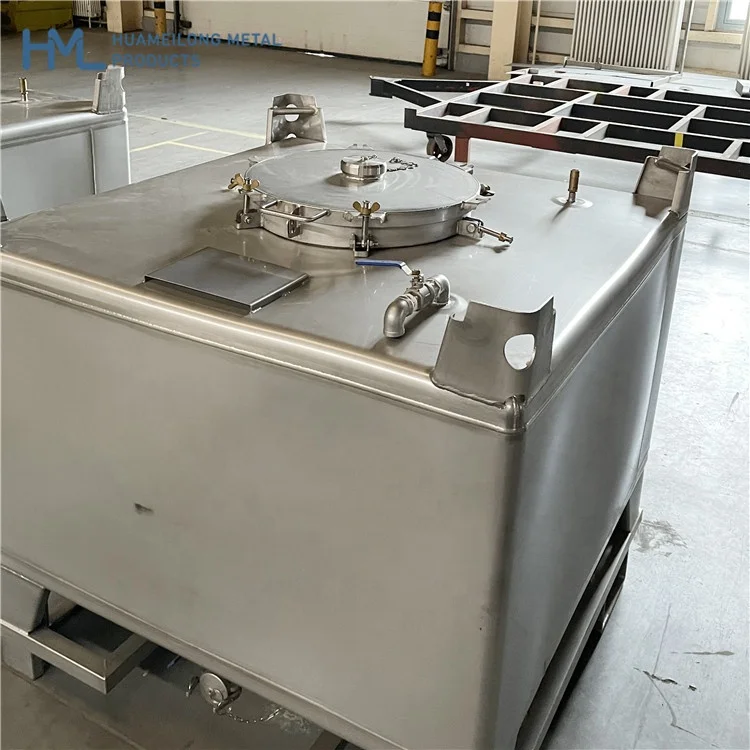

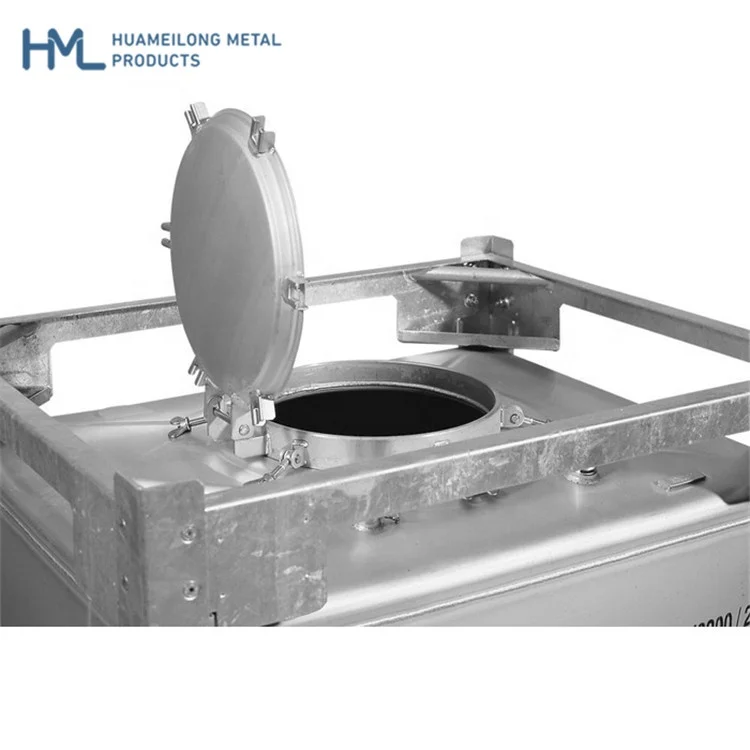

Lid Openning Diameter

450

1’–5 45/64”

Discharge Hole Diameter

50

2”

Inside Cubic Capacity

1000 Litres

264 Gallon

KG

LBS

Maximum  Gross Weight

1740

3835

Tare  Weight (nominal)

240

529

Maximum   Payload

1500

3306

Stacking Capacity (in warehouse)

   3 high

Stacking Capacity (in transport)

   2 high

SPECIAL FEATURES

1. Approval: UN 31AY,IMDG2006.

2. Material: Tank-0Cr18Ni9 ; Frame-SS400/Q345B;Seal gasket- FKM .

3. Tank finish: internal and external surface 2B; welding line with acid-washing.

4. Rated operation pressure:atmesphere pressure.

5. Relief valve:setting pressure(0.21bar), vacuum pressure(0.03bar);outlet :3PC ball     valve.

6. Four way fork entry tubes;top lift.

7. Suitable for storage and shipment thinner or other paint(density≤1.5 g/ cm3 ) .
