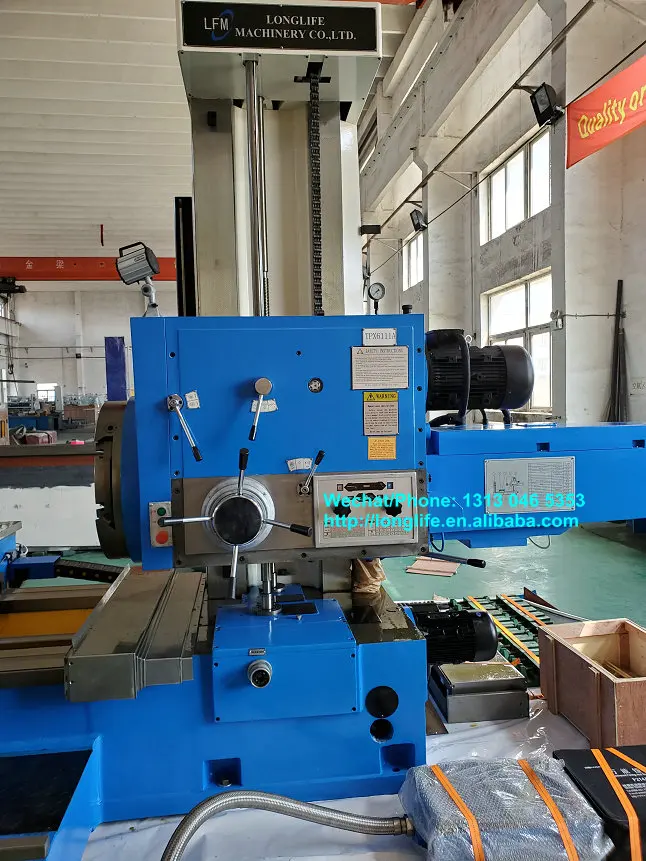

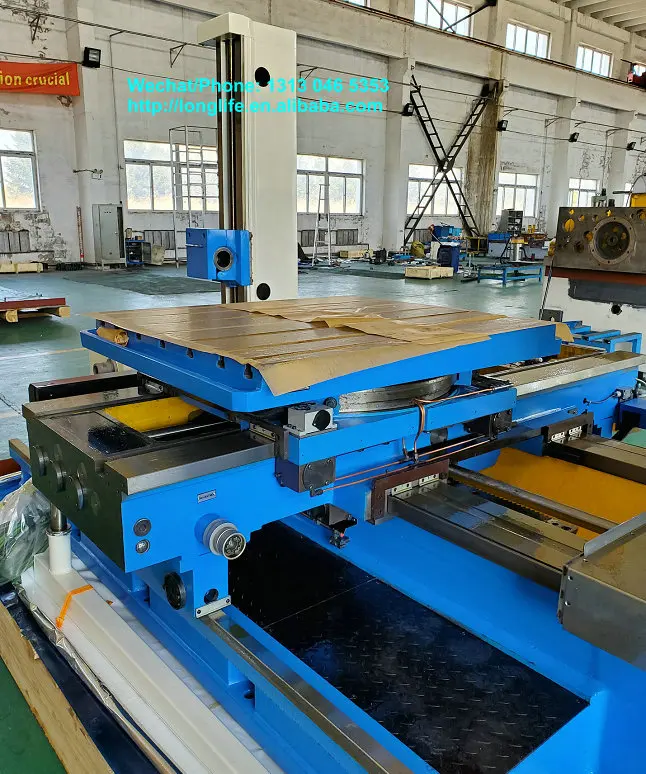

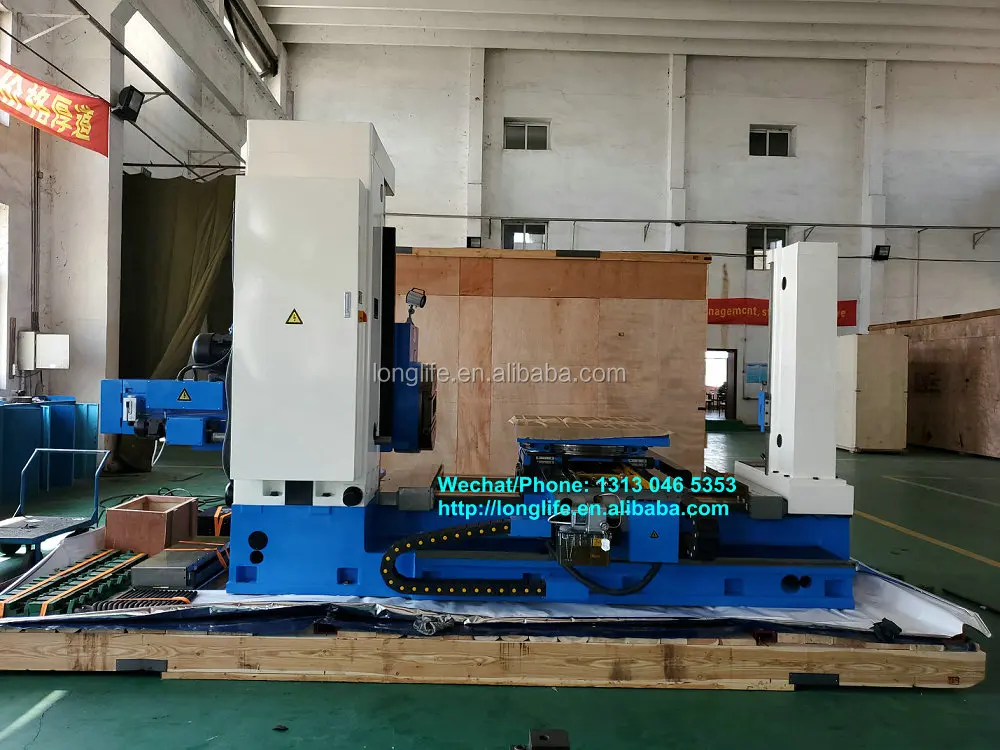

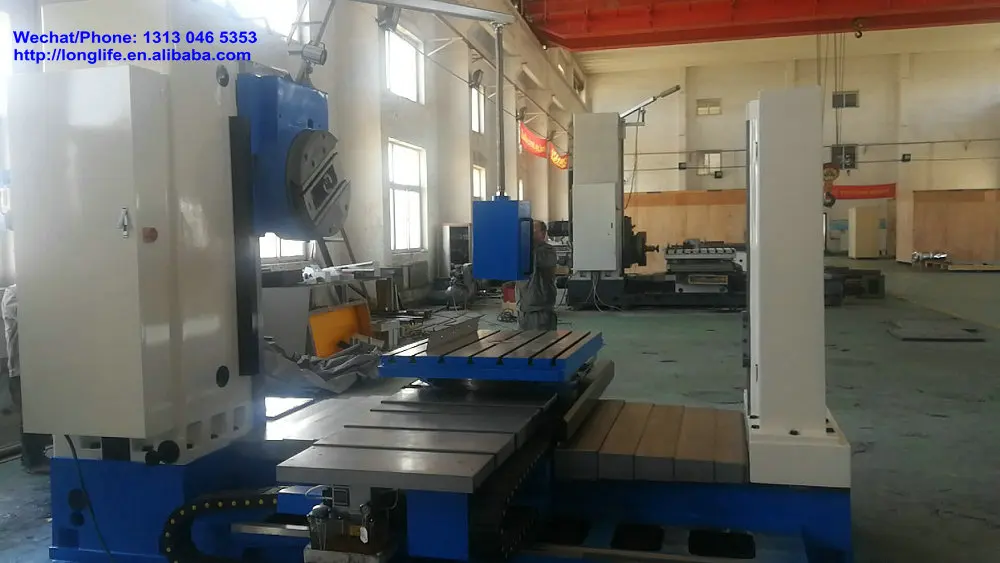

TPX6113 horizontal boring machine/horizontal boring mill machine
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (62100549784):
Product Overview
Description
TPX6113 horizontal boring mill machine
Recommended Boring
TPX6111(Ø110mm) Widely-used DRO Horizontal Boring Machine
Main Technical Data
|
Specifications |
Unit |
TPX6113 |
|
Spindle bore diameter |
mm |
Φ130 |
|
Spindle taper |
|
Metric 80# |
|
Max. torque of spindle |
Nm |
3136 |
|
Max. axial thrust of spindle |
N |
31360 |
|
Steps of spindle speed |
|
24 |
|
Range of spindle speed |
r/min |
4~800 |
|
Power of main motor |
kW |
15 |
|
Max. torque of facing head |
Nm |
4900 |
|

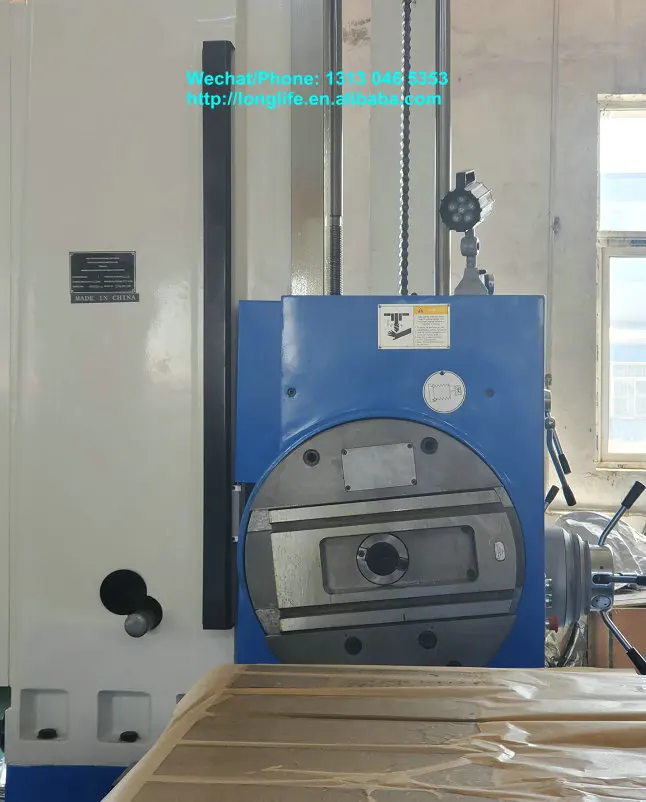

Diameter of facing head |
mm |
Φ750 |
|
Range of facing head speed |
r/min |
2.5~125 |
|
Speed step of facing head speed |
|
18 |
|
Table size |
mm |
1600 x1400 |
|
Max. permissible load on table |
kg |
8000 |
|
T- slot |
mm |
28 |
|
Number of T-slot |
|
9 |
|
X- axis travel |
mm |
1600 |
|
Y - axis travel |
mm |
1400 |
|
Z - axis travel |
mm |
2000 |
|
W- axis travel (Spindle travel) |
mm |
900 |
|
U - axis travel (facing head slide travel) |
mm |
250 |
|
B - axis work table rotary |
° |
360 |
|
Min. distance between spindle center and table surface |
mm |
0 |
|
Rapid travel (X/Y/Z) |
mm/min |
2500 |
|
Range of feed (X/Y/Z) |
mm/rev |
0.05-8/0.01-2 |
|
Precision of measurement accuracy by DRO (X/Y) |
mm |
0.005 |
|
Precision of measurement accuracy by DRO (Z-axis opt.) |
mm |
0.005 |
|
Overall dimensions (L*W*H) |
mm |
6995×3647 ×3442 |
|
Weight of machine |
kg |
24000 |
Free Std Accessories
|
S.N |
Name |
Remark |
|
2 |
Face heading plate |
1 Set |
|
3 |
Tool holder for boring |
1 pc |
|
4 |
Tool holder for milling |
1 pc |
|
5 |
Operation tools |
1 Set |
|
6 |
Automatic centralized lubrication system |
1 Set |
|
7 |
Work light |
1 Set |
|
8 |
Documents in English |
1 Set |
Optional Accessories
Pls send inquiry to me for more optioanl accessories and other further information about such horizontal boring mill machines.
|
S.N |
Name |
Remark |
|
1 |
Rear column |
$ |
|
2 |
universal boring head | $ |
|
3 |
angle boring head | $ |
|
4 |
tool holder for turning | $ |
|
5 |
DRO for B-axis | $ |
|
6 |
DRO for Z-axis | $ |
|
7 |
Brief Introduction
TPX6113 digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
the machine is equipped with DRO for X-axis and Y-axis(standard);
the DRO for B-axis(Worktable rotation) and Z-axis is available, too.
hydraulic & hollow spindle taper of ISO50 at 7:24 is optional;
