6.8L,9L,12L scba Portable Firefighter Drager Oxygen Breathing Apparatus Factory Price
- Category: >>>
- Supplier: Fenan Safety (Shanghai) Co. Ltd.
Share on (62100737152):
Product Overview
Description
PRODUCT INFORMATION
Full face mask | Material | Silicone | |
Visual field | ≥90% | ||
Service life | 15 years | ||
Advantage | Permanent double anti-fogging, Scratch and abrasion resistant lens | ||
Colors for option | Yellow, red, black, | ||
Oil mist Transmittance | ≤0.005% | ||
Exhalation resistance | ≤ 0.76bar | ||
Inhalation resistance | ≤ 0.25bar (30L/min) | ||
Gas Cylinder | Material | carbon fiber or steel | |
Volume | 6.8L | ||
Working pressure | 300bar | ||
Alarm pressure | (55±5)bar | ||
Operating temperature | -30°c--60°c | ||
Service time | 45-60 mins | ||
Back Plate | Material | Aramid | |
Use | Comfortable, Flexible and light-weight | ||
Achieve 180 degrees bending | |||
Demand Valve | Maximum air supply rate | More than 500L/min | |
Digital screen HUD of SCBA, Can display cylinder pressure, remaining time, ambient temperature, digital clock and compass | |||
Reducer | Balanced pressure reducing design | ||
Adopt medium pressure alarm | |||
PRODUCT DETAILS

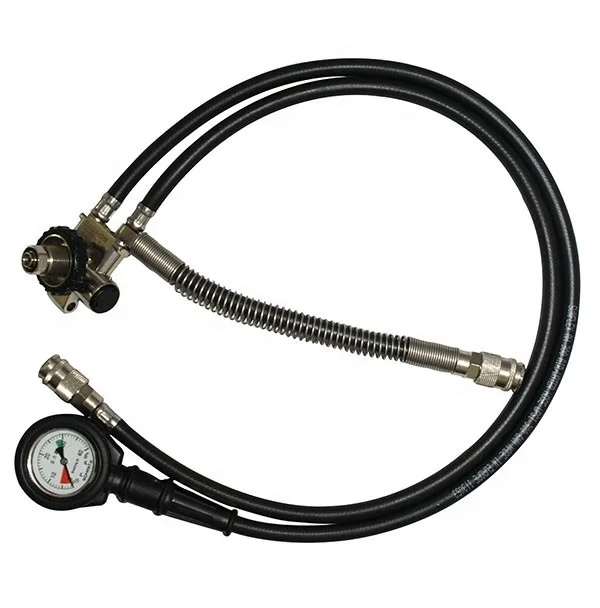

Reducer
▶ Balanced pressure reducing design, keeps the Medium Pressure system at 7.5 bars, the output flow rate is greater than 1000 L/min.

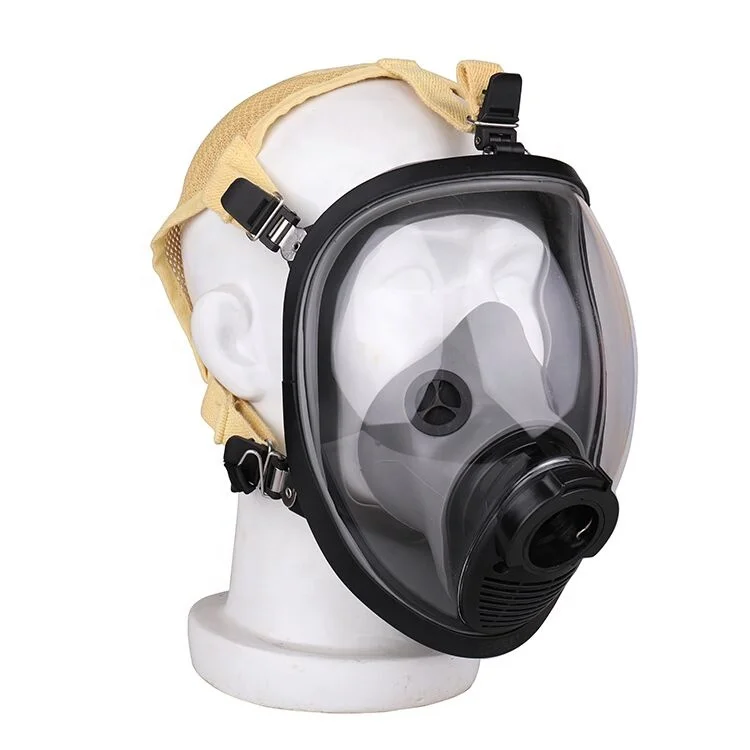

Full face gas mask
▶ Wide field of vision, the vision rate reaches above 91%.
▶ Comfortable,durable silicone mask.
▶ Optional cylindrical full face mask.
Alarming Device & Pressure Gauge
▶ The sound is ≥90dB, not weakening with reduced pressure.
▶ Easy to read and can be used in dark.
▶ Easy to read and can be used in dark.

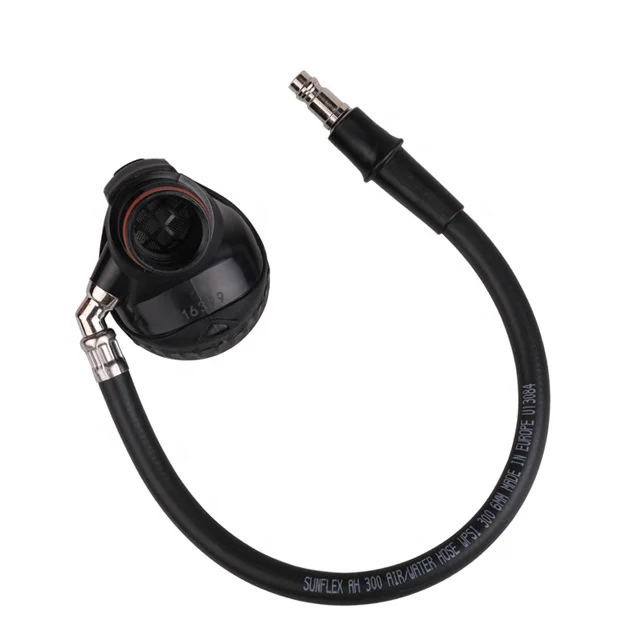

Demand Valve
▶ The amount of breathing apparatus air supply is according to users' inspiratory capacity.
▶ Hand-held, small and light, good down vision.
▶ Optional French demand valve.
▶ Hand-held, small and light, good down vision.
▶ Optional French demand valve.

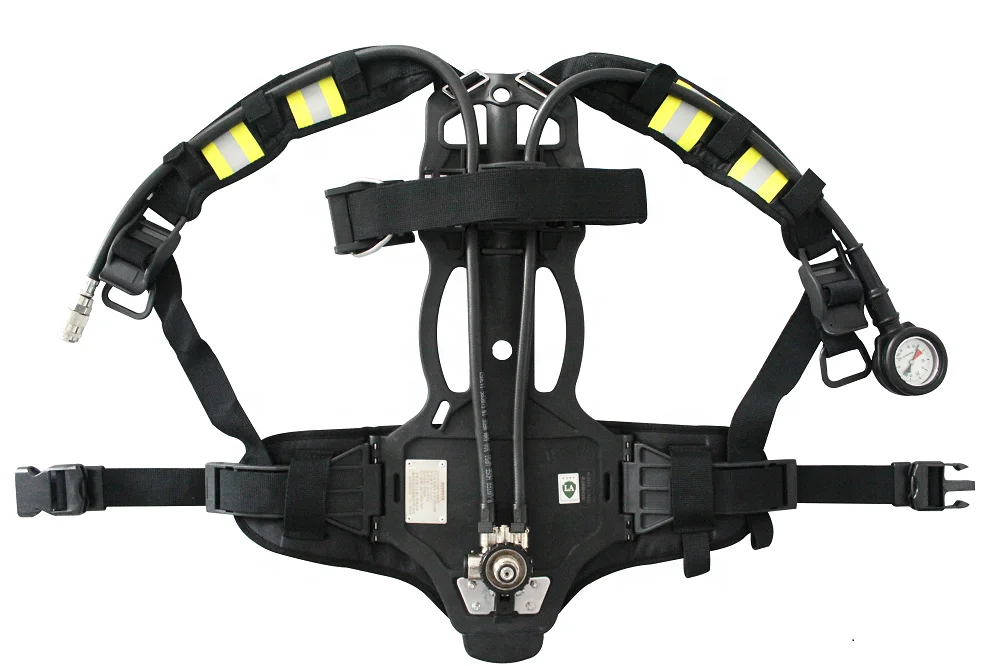

Back Pack
▶The backpack of breathing
apparatus SCBA is based on the figures of human beings, perfectly fits to the body.
▶ The special wing design of the waist belt greatly decentralize the weight points, which improve the flexibility of the users.
▶ Light-weight backpack is only at 0.416kg.

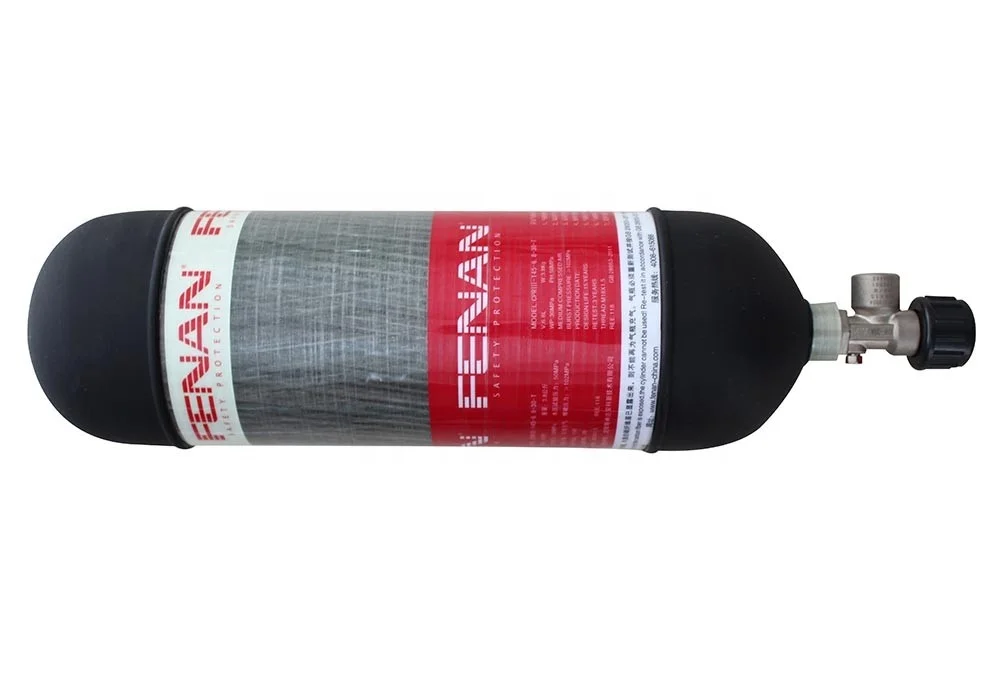

Cylinder
▶ With fluorescence cylinder sticker.
▶ The locking hand-wheel of breathing apparatus prevents the cylinder valve from being closed accidentally.
▶ Optional 6.8L, 9L and 12L carbon-fiber cylinder.
▶ The locking hand-wheel of breathing apparatus prevents the cylinder valve from being closed accidentally.
▶ Optional 6.8L, 9L and 12L carbon-fiber cylinder.
APPLICATIONS
Apparatus Application
▶ Self Contained Breathing Apparatus (SCBA) is a positive pressure air breathing apparatus for
protecting humans' respiratory system during emergency rescue and relief work.
▶ Self Contained Breathing Apparatus SCBA can be widely applied in the place of hypoxia, high or
unknown concentrations of toxic gases, endangering human health. Such as fire-fighting, petroleum and petrochemical, metallurgy and chemical industry, ship, mining, the public emergency.

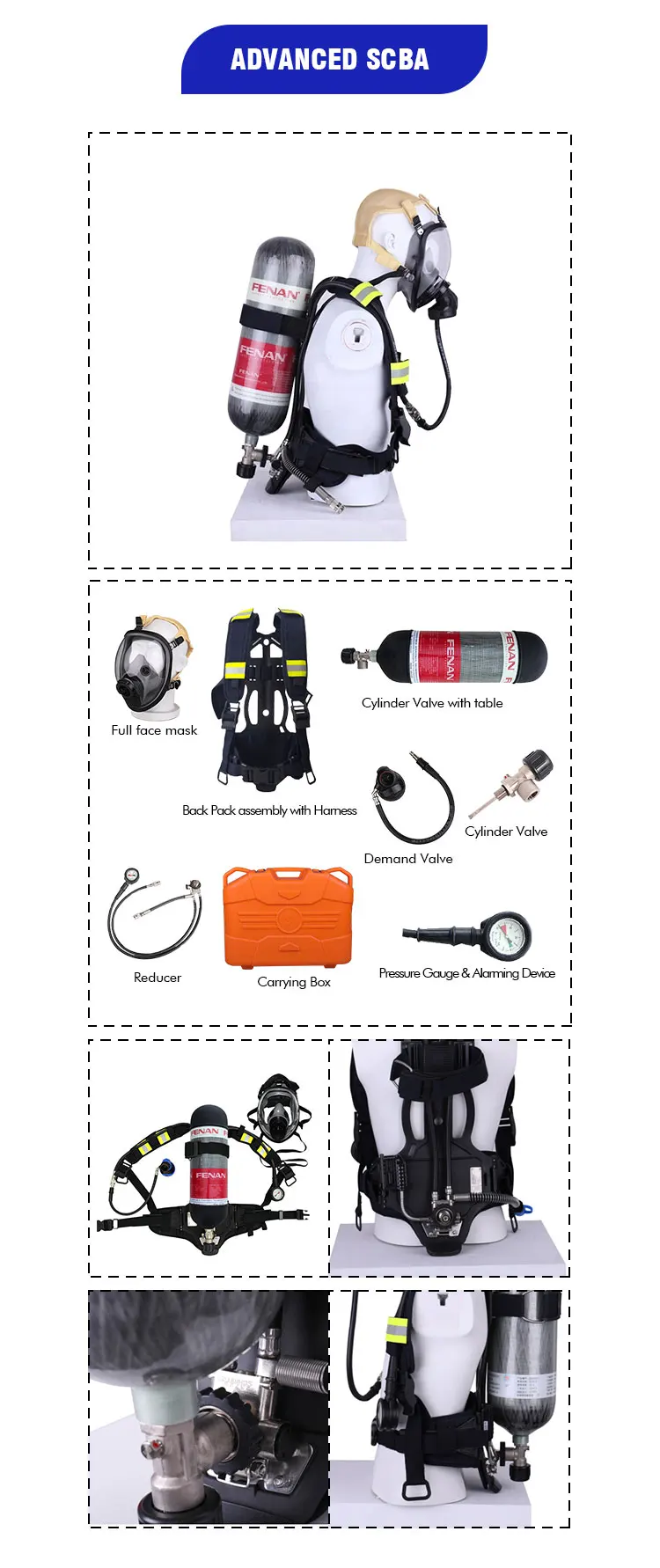

Apparatus Components
Self Contained Air Breathing Apparatus (SCBA) is composed of carbon-fiber cylinder, cylinder valve, reducer, medium-pressure tube,
fast joint, demand valve, full face mask, high-pressure tube, alarming device, pressure gauge and back pack.
fast joint, demand valve, full face mask, high-pressure tube, alarming device, pressure gauge and back pack.
