dpb 250 Automatic Chewing Gum Paper Blister Packing Machine
- Category: >>>
- Supplier: Zhejiang CapsulCN Machinery Co. Ltd.
Share on (62101212600):
Product Overview
Description
Product Description

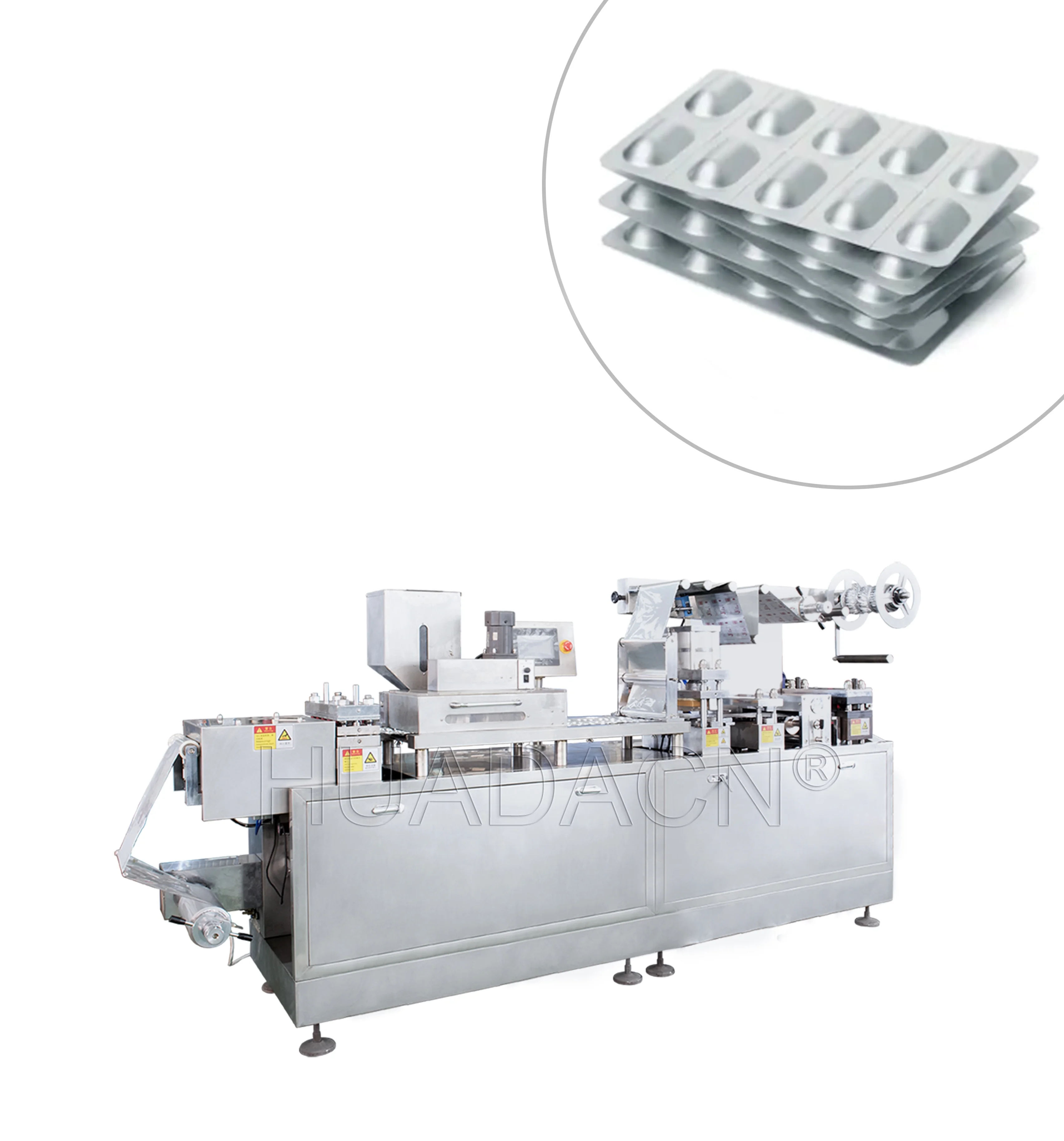

Flat type Aluminum Plastic Blister Packing Machine
Blister packaging machine is specially designed for hospital dosage room, laboratory institute, health care product, middle-small pharmacy factory, and featured by compact machine boby, easy operation, multi function, stroke adjustable, long durability etc.
Tablet blister packaging machine is suitable for the Alu-PVC package of medicine, food, electric parts etc.
Aided forming Precutting Inspection and rejecting control systems. Print mark registration Automatic feeder.
Specifications
| Model | DPP-110 | DPP-150 | DPP-250 |
|---|---|---|---|
| Cutting Frequency | 10-33 times/min | 10-35 times/min | 15-45 times/min |
| Capacity | 1980strip/h | 4200strip/h | 9600strip/h |
| Max shaping areas and depth | 90x115x26mm | 130x100x26mm | 250x120x23mm |
| Air Pressure | 0.6-0.8Mpa | 0.4-0.6Mpa | 0.6-0.8Mpa |
| Power Supply | 380V/220V 50Hz 2.4kw | 380V/220V 50Hz 3.8kw | 380V/220V 50Hz 8kw |
| Main motor power | 0.75kw | 1.5kw | 1.5kw |
| PVC hard pieces | 0.15-0.5*110mm | 0.15-0.5*150mm | 0.15-0.4*260mm |
| PTP Aluminum Foil | 0.02-0.035*110mm | 0.02-0.035*150mm | 0.02-0.015*260mm |
| Dialysis Paper | 50-100g*110mm | 50-100g*150mm | 50-100g*250mm |
| Mould Cooling | tap water or back water | tap water or back water | tap water or back water |
