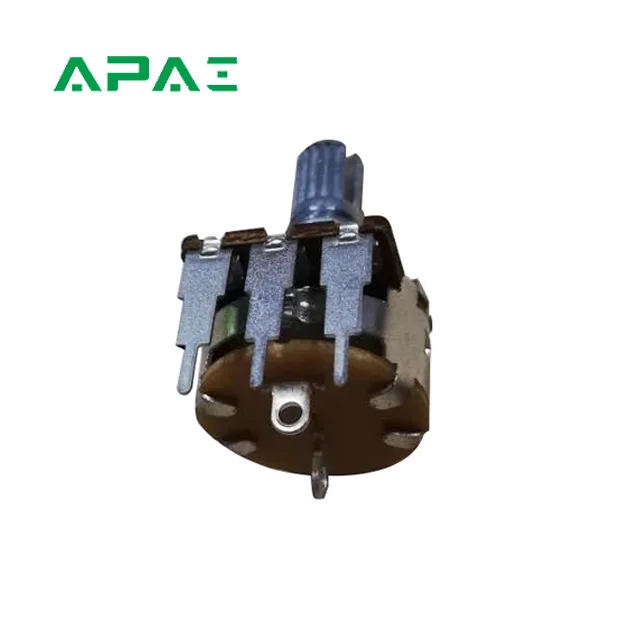

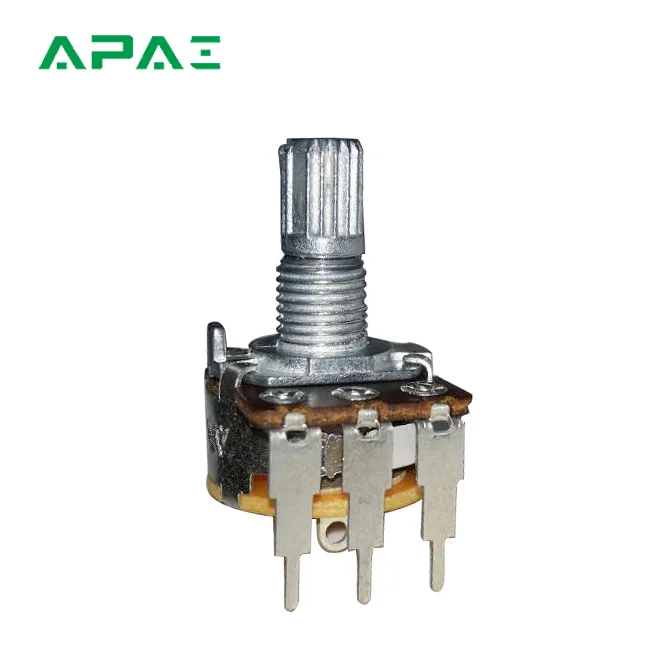

RK163NH5 S2 Single Unit 3 Pin Rotary Potentiometer Switch TYPE16 ALPS Potentiometer 100k log Dual Pot 100KAX2 Centre Detent

Operating temperature -10 ℃ - +70 ℃
Manual soldering 300 ℃ Max 3sec
Total resistance 1KΩ-1MΩ
Resistance tolerance ±20% (more than 1MΩ ±30%)
Resistance taper A B C D
Switch contact resistance Less than 50 mΩ
Insulation resistance More than 100 MΩ at DC 500 V
Rated power(W):Linear (B) taper : 0.125 W/Other taper : 0.06W
Switch rated power 125 V/AC 1 A
Max. Operating voltage :Linear (B) taper : 200 V/Other taper : 150 V
Withstand voltage 1 Minute at AC 500 V
Switch withstand voltage 1 Minute at AC 1000 V
Total rotational angle 300°±5 °(Switch angle: 35°±5 °)
Rotational torque 30~200 gf.cm
Switch Action:50~350gf.cm
Rotational stopper strength : 6 Kgf.cm Max
Shaft push-pull strength : 7 Kgf.cm Max.
Rotational life 15,000 Cycles (Switch life: 10,000 Cycles)
