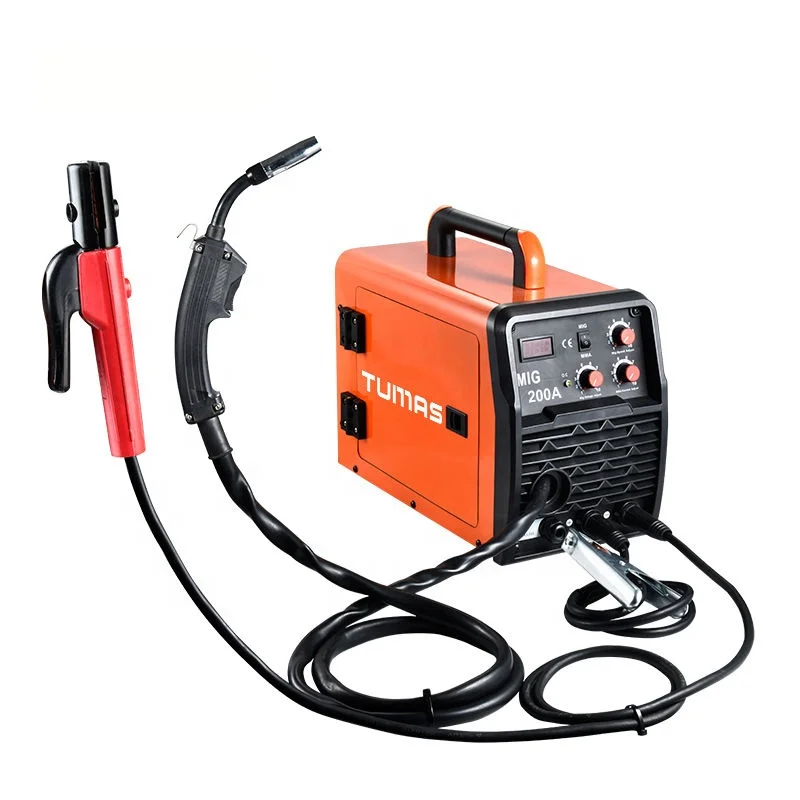

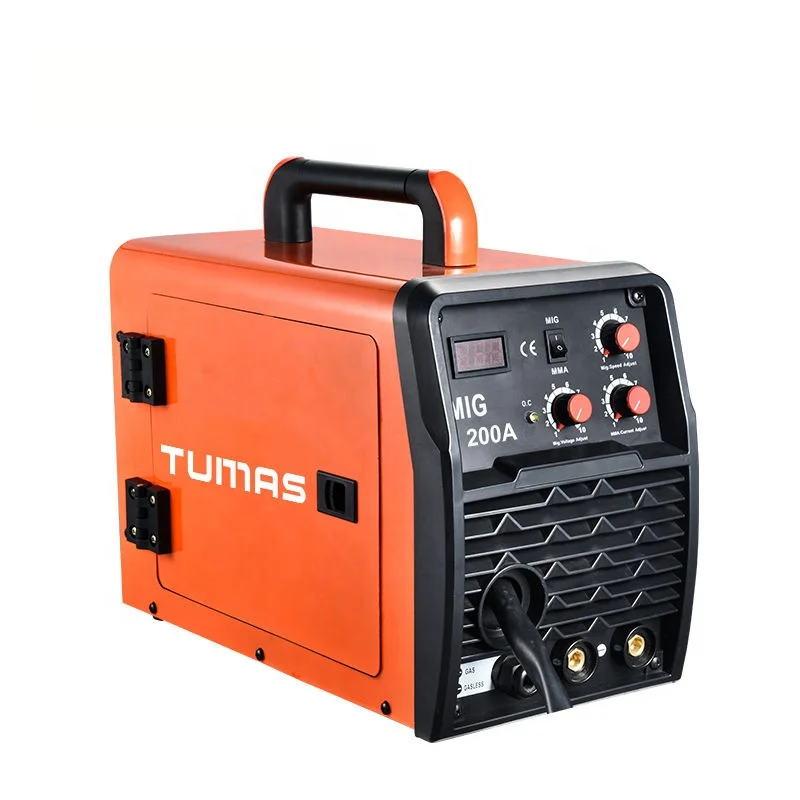

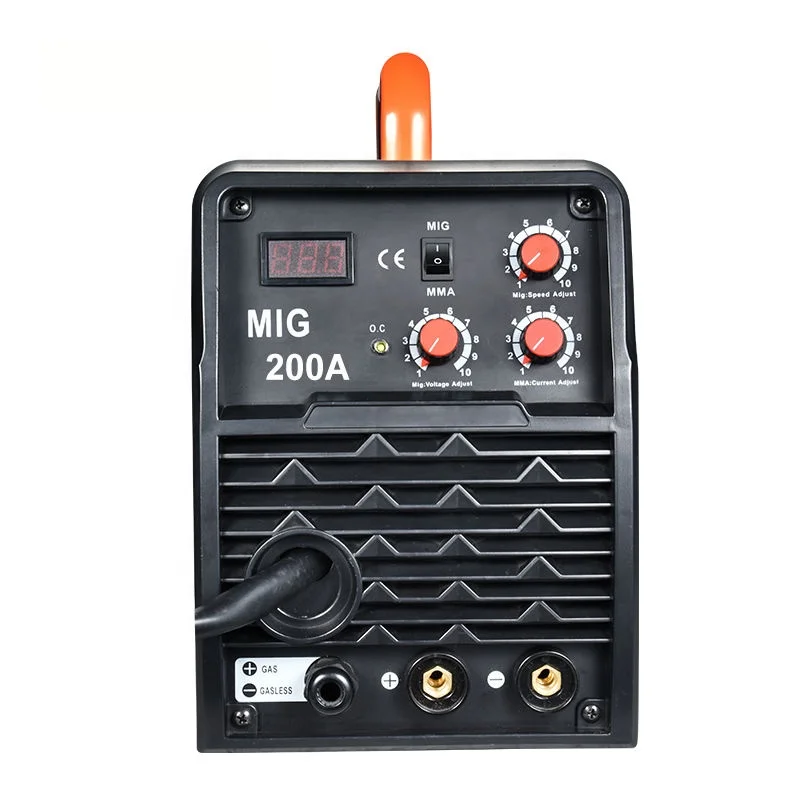

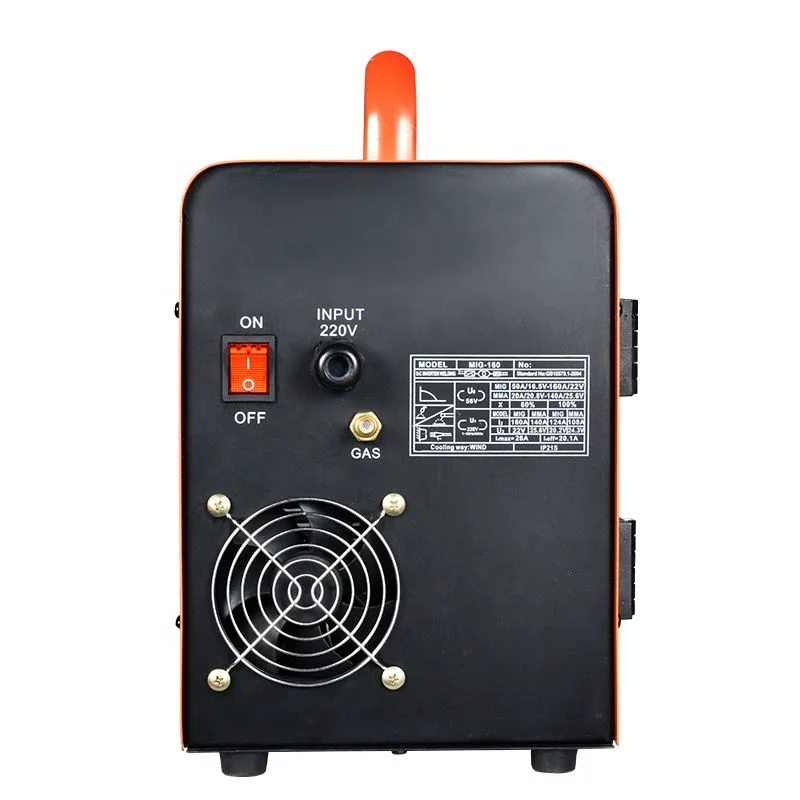

inverter igbt co2 mig mag mma welding machine

Product Overview

Description



Model	MIG-180A	MIG-200A
Type	IGBT	IGBT
Real amp(A)	140	160
AC Input Voltage(V)	AC 220V(110V Support)	AC 220V(110V Support)
Rated Input Power Capacity(KVA)	4.3	4.5
Input Frequency(Hz)	50/60	50/60
No-load Voltage(V)	60	60
Output current range(A)	20-180	20-200
Rated Duty Cycle(%)	60%	60%
Efficiency(%)	85%	85%
Class of Insulation	F	F
Protection class of case	IP21	IP21
Electrode diameter(mm)	1.6-3.2	1.6-4.0
Wire diameter(mm)	0.6/0.8	0.6/0.8
Quick joint Size(mm)	10-25	10-25
N.W./G.W.(kg)	10/14	10.2/14.2
Machine Size(LxWxH mm)	420*210*300	420*210*300
Package Dimension(LxWxH mm)	560*270*405	560*270*405
Package	color box+foam	color box+foam
Accessories	1.8m 16mm 200A holder 1.2m 16mm 300A clamp build-in 2m torch mask, brush, manual	1.8m 16mm 300A holder 1.2m 16mm 300A clamp build-in 2m torch mask, brush, manual
