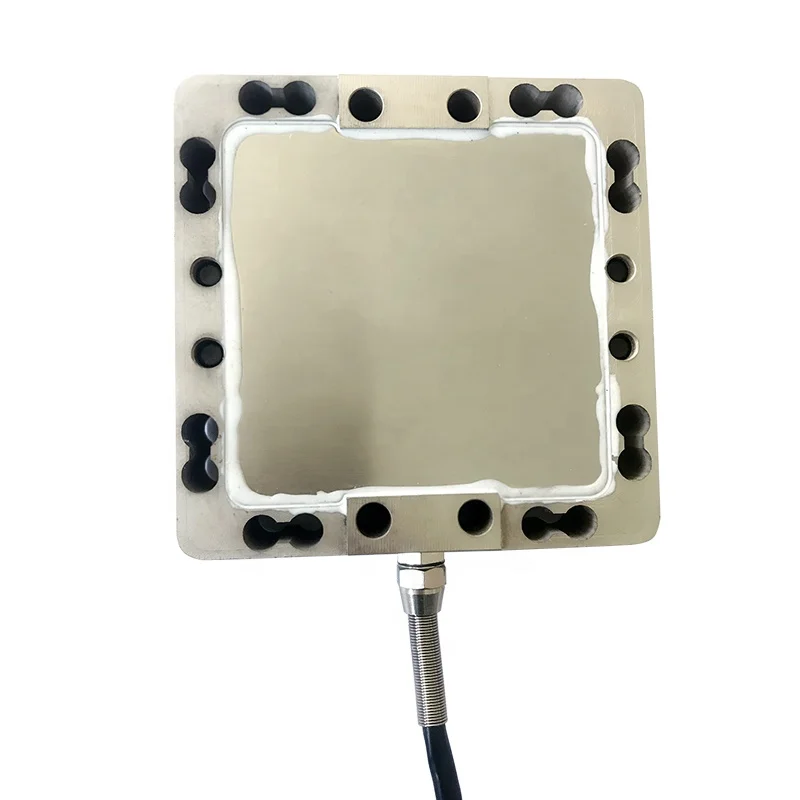

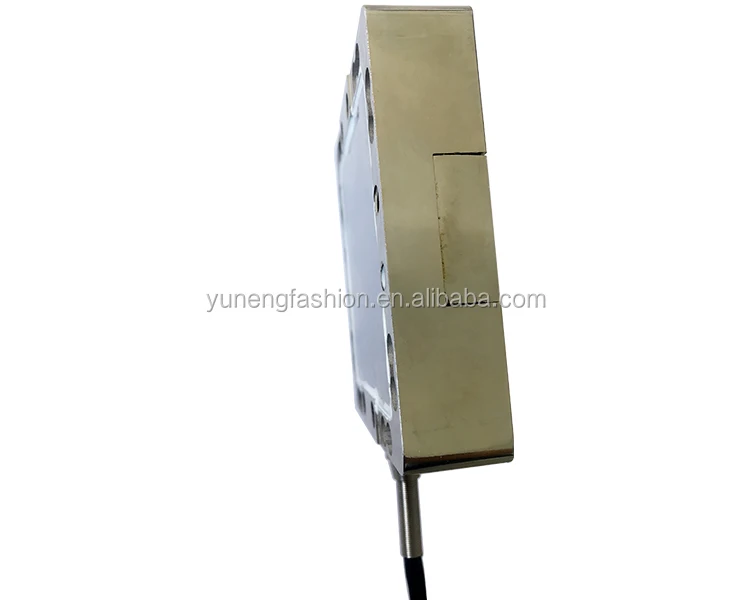

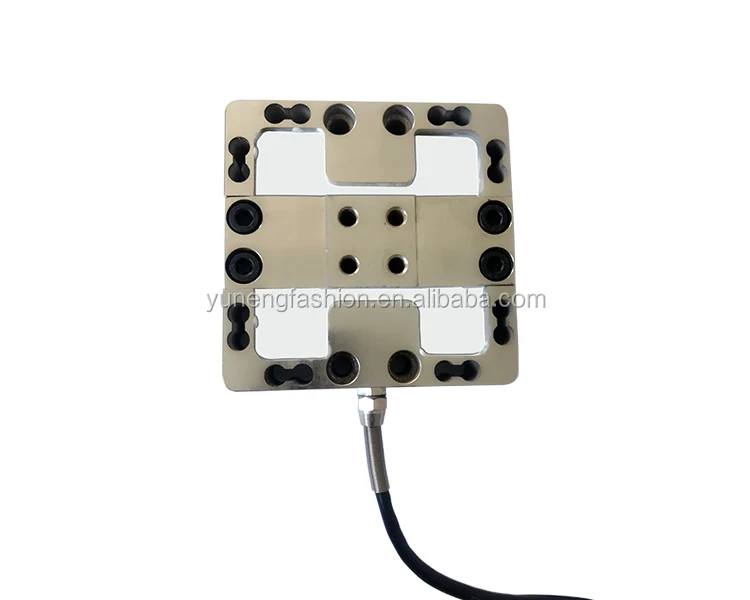

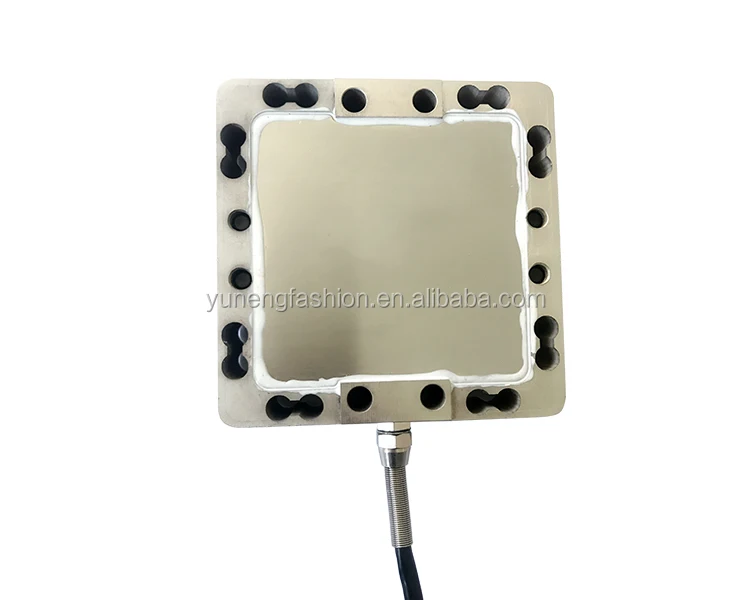

High precision three dimentional force AI manipulator sensor
Range : 10000N ,20000 N ,30000N ,40000N ..... can be customised as clients
Material : High quality steel alloy

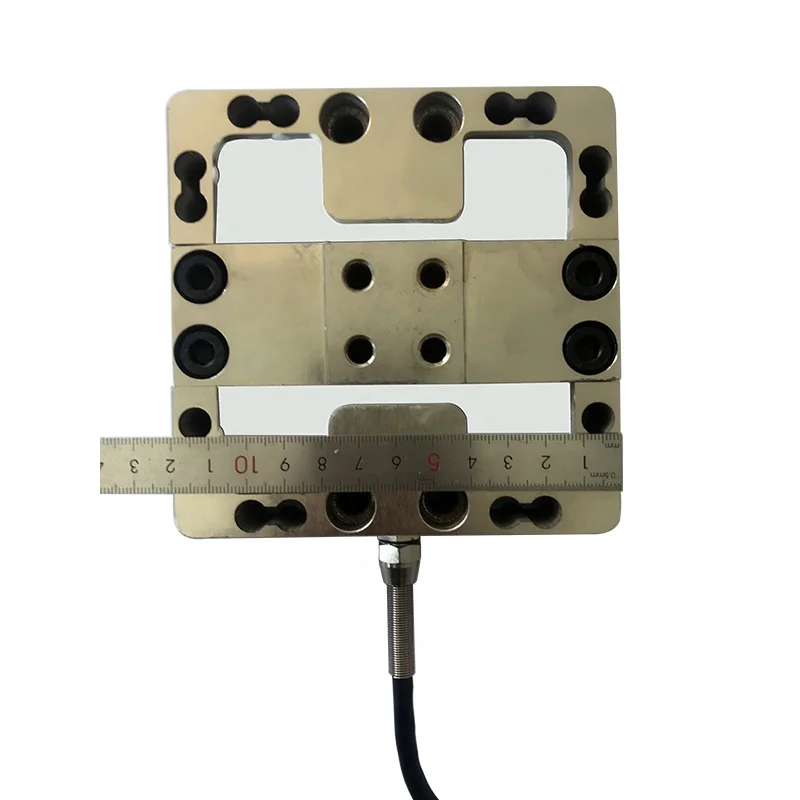

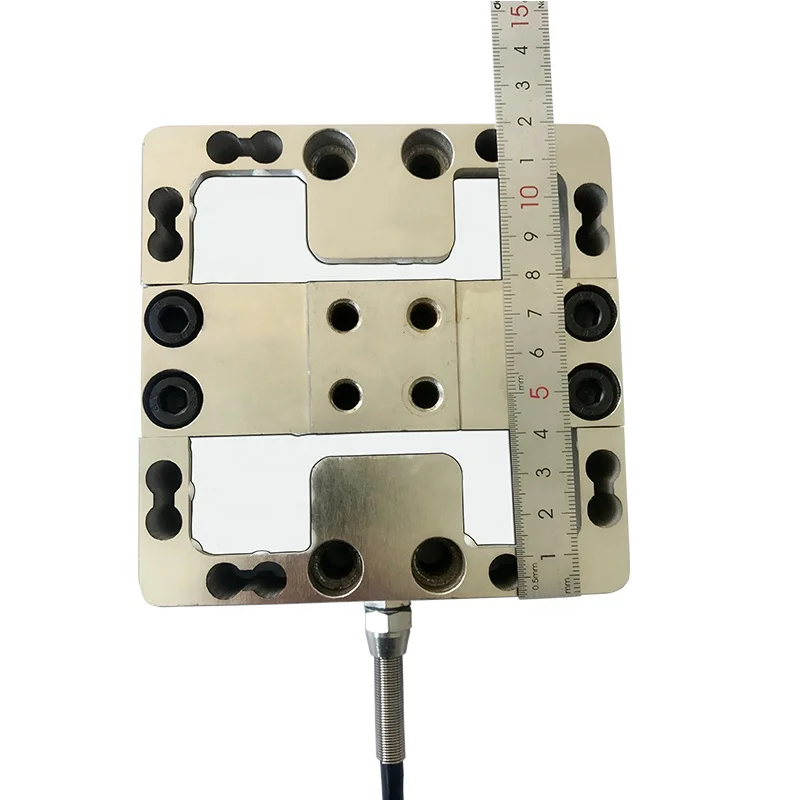

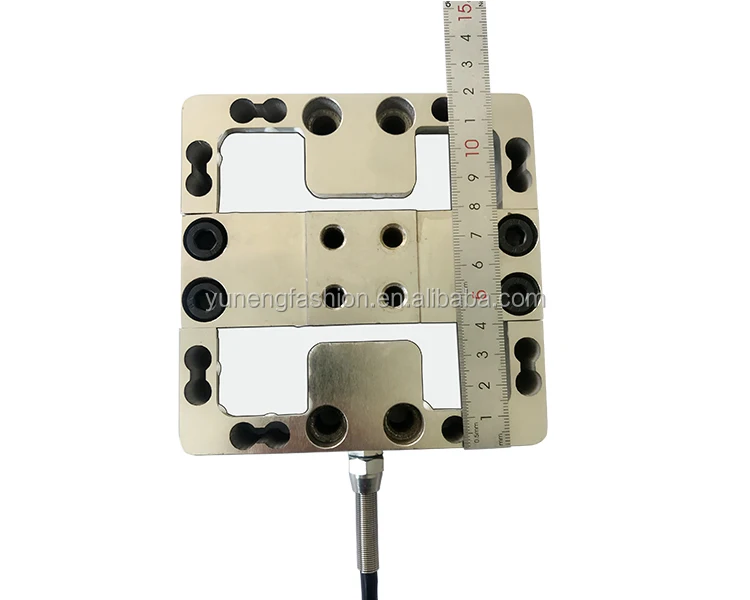

Size : Any sizes can be customised
Accuracy : can be customised
Technical Parameter
Range
2,5,10,20,50KN
Input Impedance
X/Y axis 700±5Ω Z axis 350±5Ω
Output Sensitivity
1.0%mv/V.F.S
Output Impedance
X/Y axis 700±5Ω Z axis 350±5Ω
Comprehensive Accuracy
0.1%F.S
Insulation Impedance
≥5000MΩ
Creep
±0.05%F.S/30mi
Maximum excitation voltage
10V
Nonlinear
±0.02%F.S
Working temperature range
-10-+85℃
Lag Error
±0.01%F.S
Safe Overload
150%F.S
Repeatability Error
±0.05%F.S
Ultimate Overload
300%F.S
Temperature effect on zero
±0.05%F.S/K
Texture of Material
Elastic Steel(NI)
Temperature drift eigenvalue
±0.05%RD/K
Cable Grade
Φ5×2000mm
Packaging & Shipping
Packing :Each piece in polybag /box ,can be customized as clients
Shipping Time : Very fast ,within request time
Our Services
We are a professional supplier for pressure sensors more than 15 years ,our sensors can be used for roborts ,AI ,and some other dynamics or mechanics machinery .Our high quality insurance and good service have received good praise from all over the world .
