CNC high production automatic 4 axis 1 tufting double brush making machine toilet brush making machine household hockey brush
- Category: >>>
- Supplier: Jiangmen Meixin Comb Brush Machinery Co. Ltd.
Share on (62102259160):
Product Overview
Description
CNC high production automatic 4 axis 1 tufting double brush making machine toilet brush making machine household hockey brush
| Description: | |
| Model | MX-4AT001 |
| NO. of axis | 4 axis |
| Qty of heads | 1 tufting |

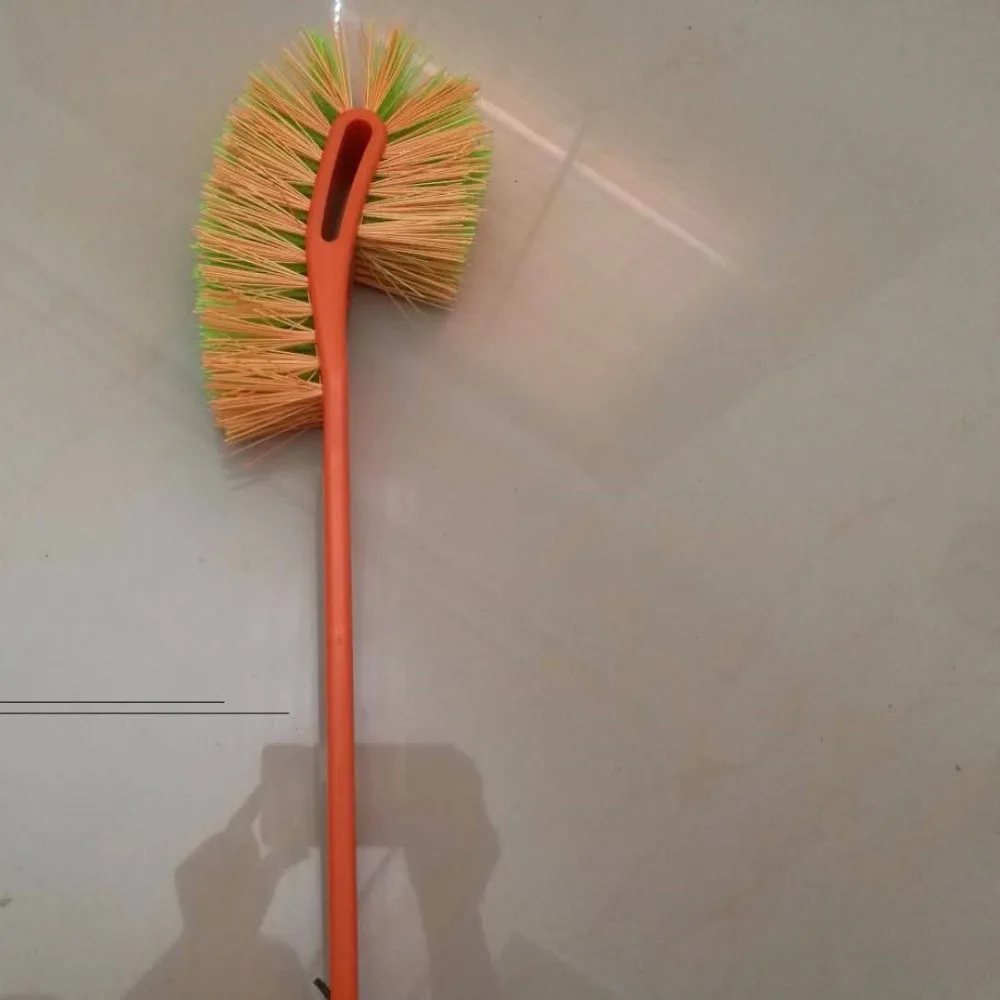

| Application | Double hockey brush |
| brush types | Brush base with holes |
| Brush base materials | Plastic, wood |
| Filament materials | PP,PET, Nylon,animal hair plant fiber etc. |
| The mold fixture size | 300*50mm |
| Diameter of hole | 4~6mm |
| The length of filament(outside the hole) | 50~110mm |
| Colors of Brush Filaments | 2 colors |
| Parameter: | |
| tufting Speed | 4~6 holes/sec. |
| Power voltage, frequence | 220/380v , 50/60HZ (customer choose) |
| Main motor power | 1kw |
| Air Source Input | 0.4~0.5Mpa |
| Equipment size | 1300*1200*1700mm |
| Weight | 900kg |
