WORKERSBEE Factory Supply AC EVSE IEC 62196 2 Type 2 FEMAIL Connector Plug/mennekes Charging Cable Ladekabel CN;JIA Plug

WORKERSBEE Factory Supply AC EVSE IEC 62196 2 Type 2 FEMAIL Connector Plug/mennekes Charging Cable Ladekabel CN;JIA Plug

Price:RUB 1,486.55 - RUB 5,946.17

Quantity:

Product Details

■Mechanical Functionarity	Insection Times	≥10000 Times
■Mechanical Functionarity	Impact of External Force	2t Vehicle Roll over + Drop from 2m Height
■Electrical Application	Terminal Temperature Rising	<50K
■Electrical Application	Contact Resistance	0.5 mΩ Max
■Operating Enviroment	Operating Temperature	-30°C~50°C
	Withstand Pollution Level	Grade 2
	Flame Retardant Level	UL94V0
	Protection Level	IP55(Plug)
■Main Material	Casing	Insulation Plastic
■Main Material	Connector Pin	Copper Core + Silver Plated
■Product Feature	Cable Length	Standard:5m (Can be Customized)

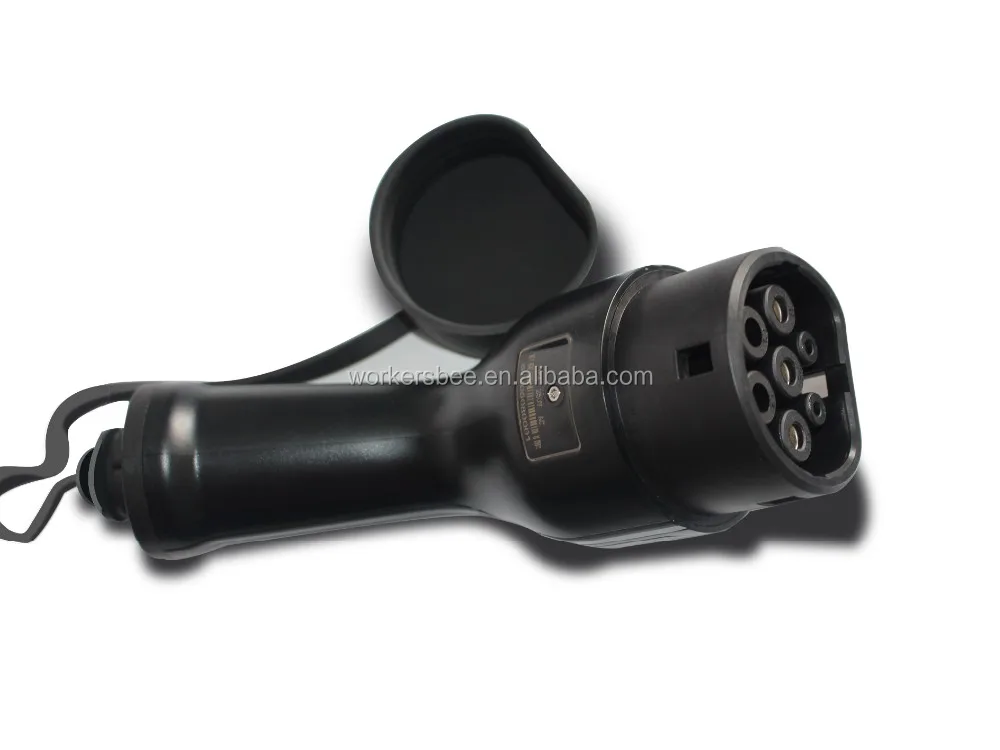

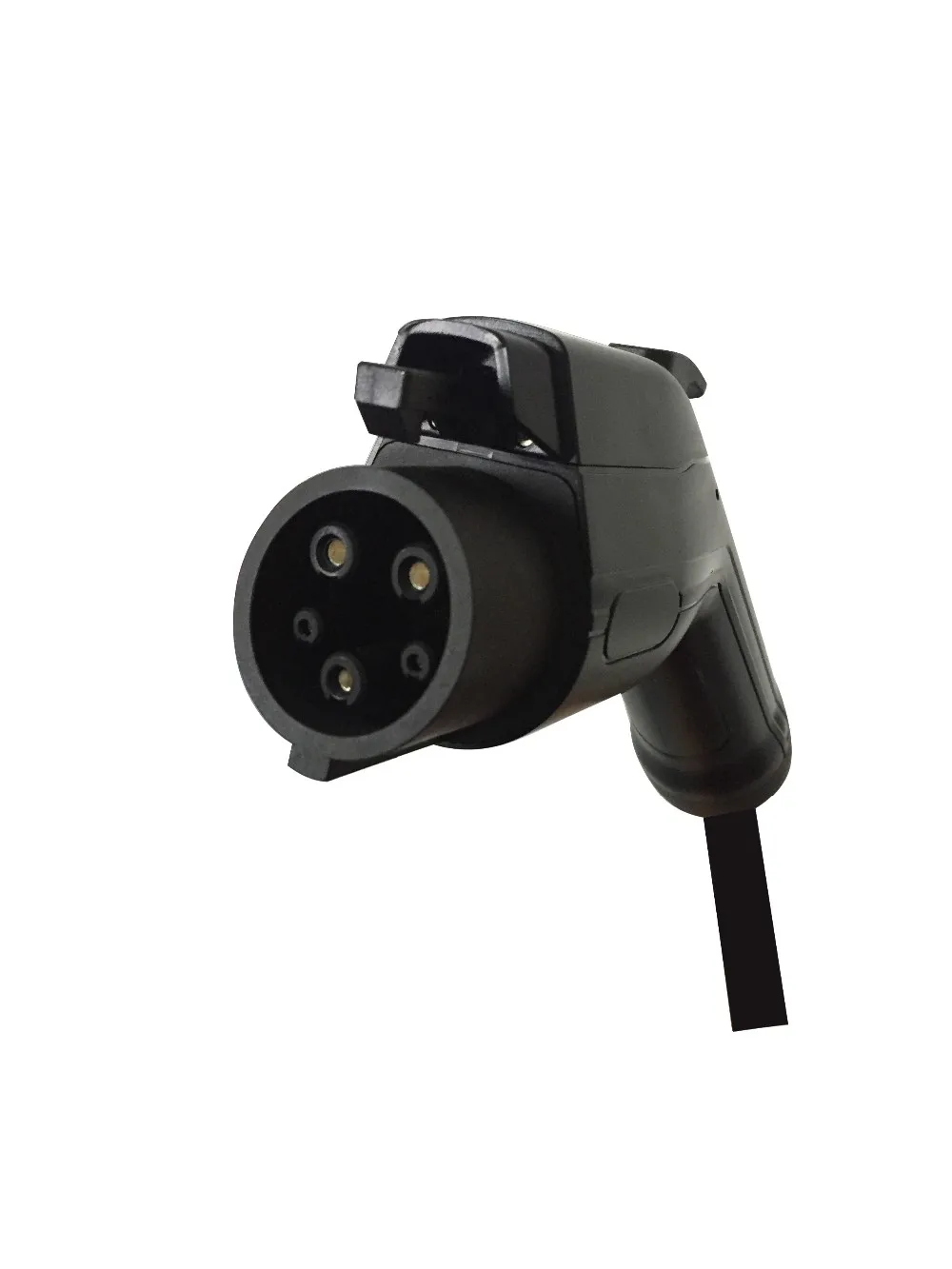

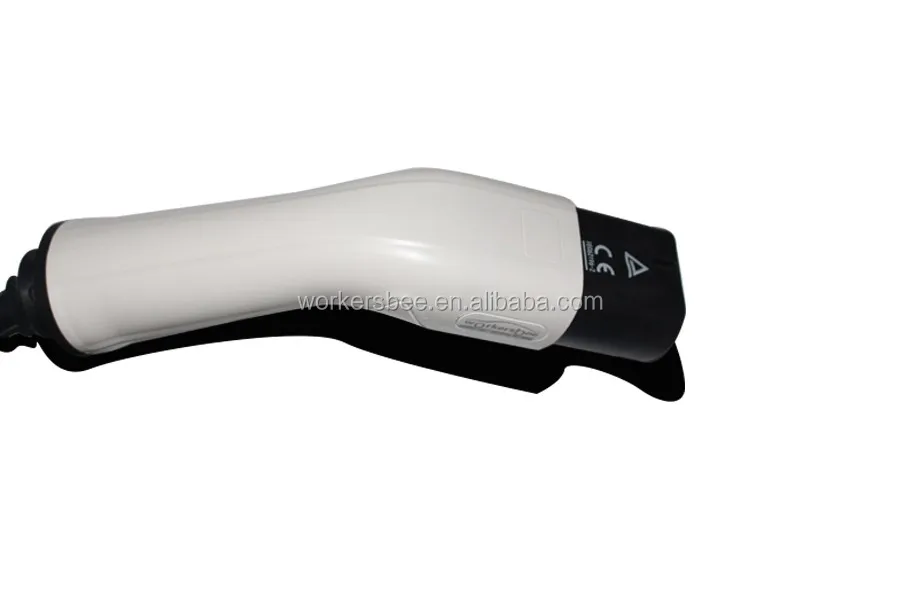

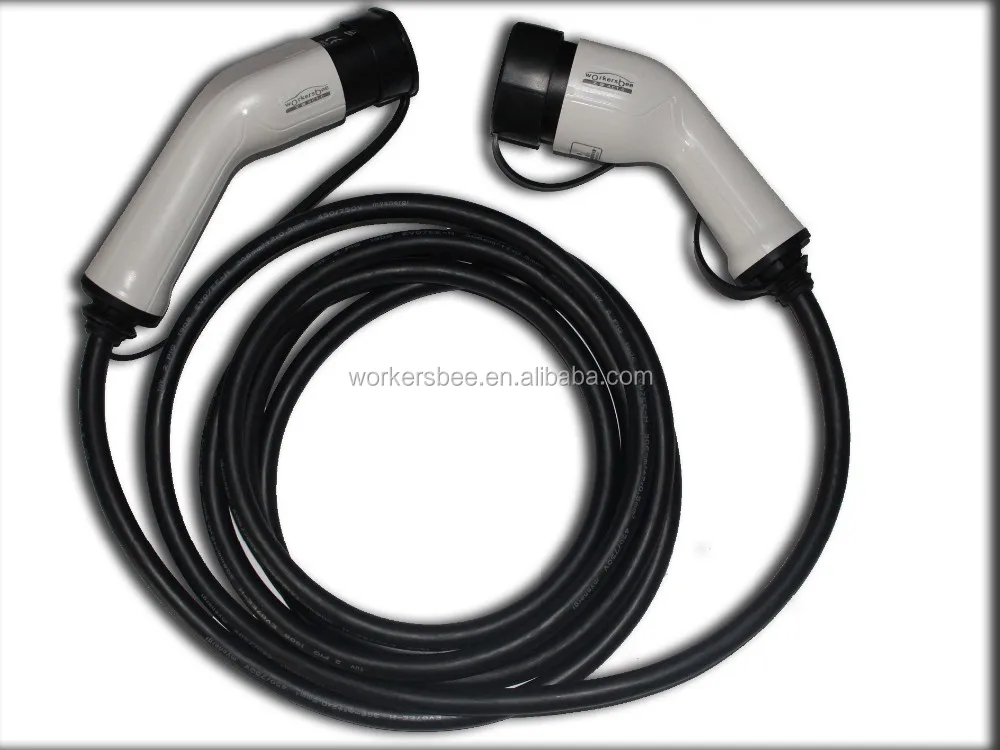

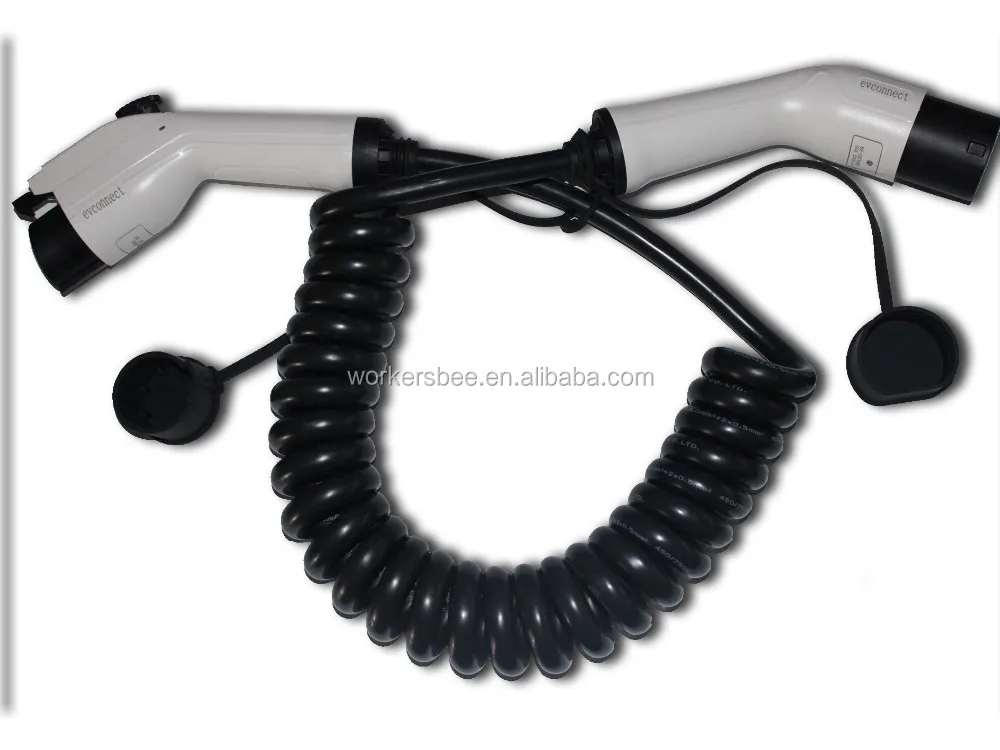

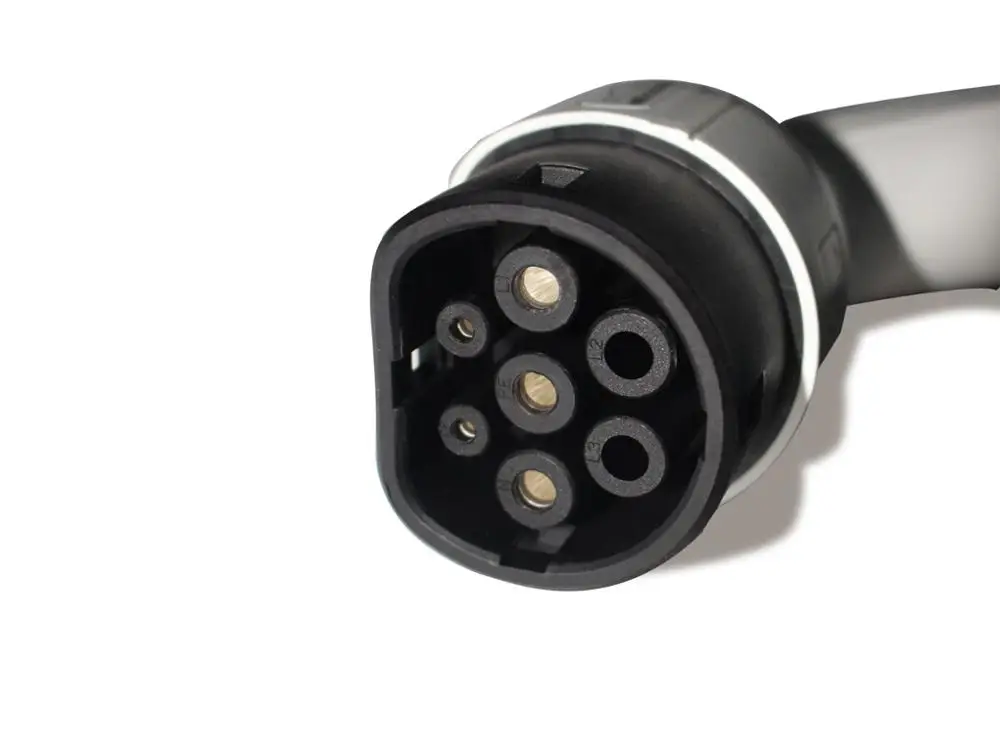

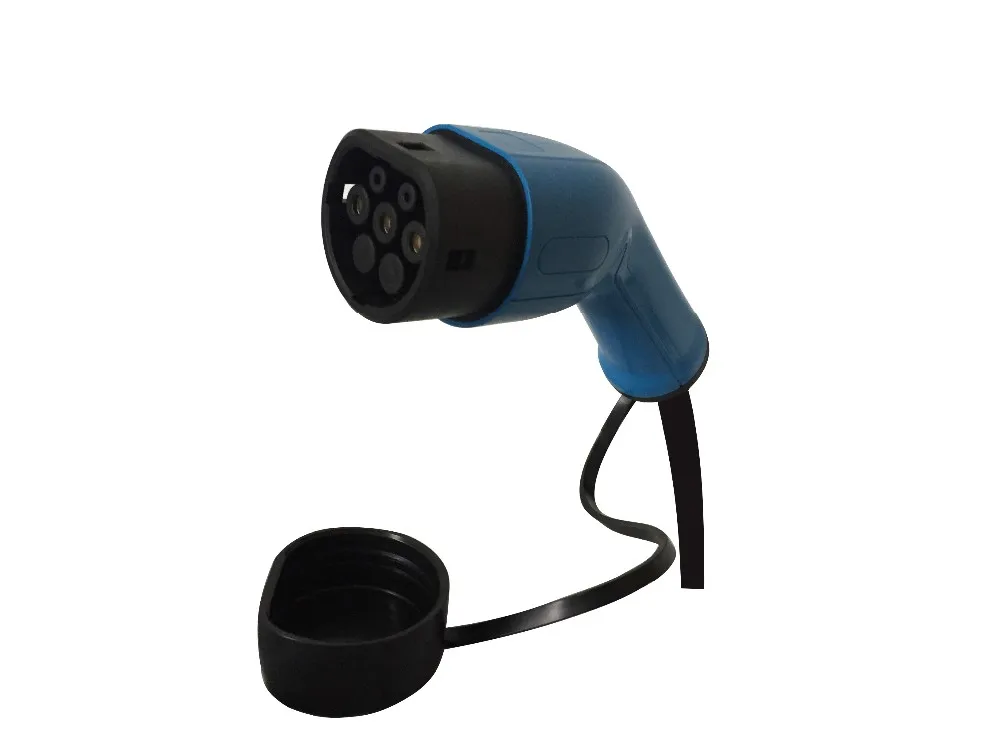

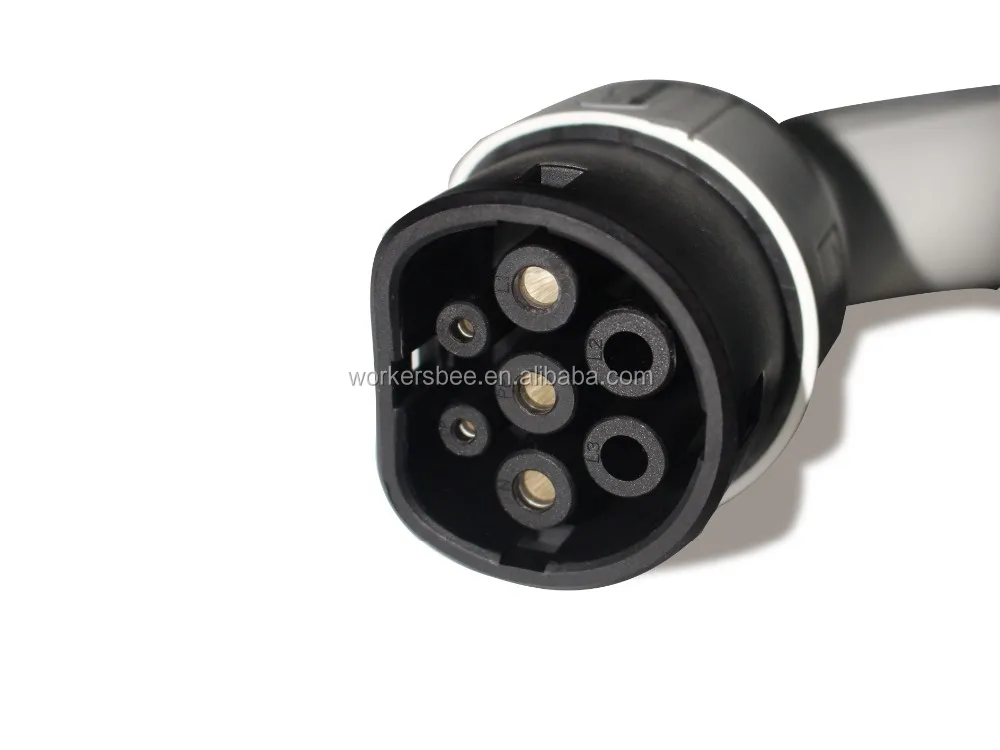

Product Picture

Product Parameters

■Product Name			AC IEC 62196-2 EV Charging Connector	AC IEC 62196-2 EV Charging Station Connector	AC IEC 62196-2 EV IC-CPD for Mode 2 Charger
■ Application Standard	Charging Connector		IEC62196-2 Type2
■ Application Standard	IC-CPD				IEC61851-1
■Mechanical Functionarity	Insertion Force		<80N
■Mechanical Functionarity	Impact Insection Force		>300N
■Electrical Application	Current Rate		16A/32A/40A		10A/16A
■Electrical Application	Voltage Rate		250VAC/480VAC		250VAC
■Product Feature	Fixed Current/ Cable Specifications	10A 250V AC/ 3×1.5mm²+1×0.5mm²			√
		16A 250V AC/ 3×2.5mm²+2×0.5mm²	√	√	√
		16A 480V AC/ 5×2.5mm²+2×0.5mm²	√	√
		32A 250V AC/ 3×6.0mm²+2×0.5mm²	√	√
		32A 480V AC/ 5×6.0mm²+2×0.5mm²	√	√
		40A 250V AC/ 3×8mm²+2×0.5mm²	√	√
		40A 480V AC/ 5×8mm²+2×0.5mm²	√	√

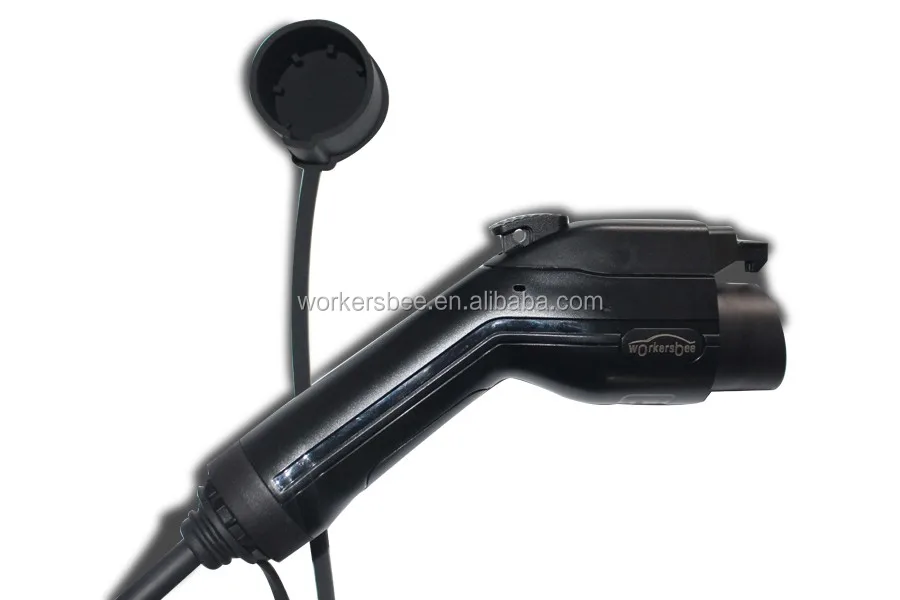

	Color	Black Casing	√	√	√

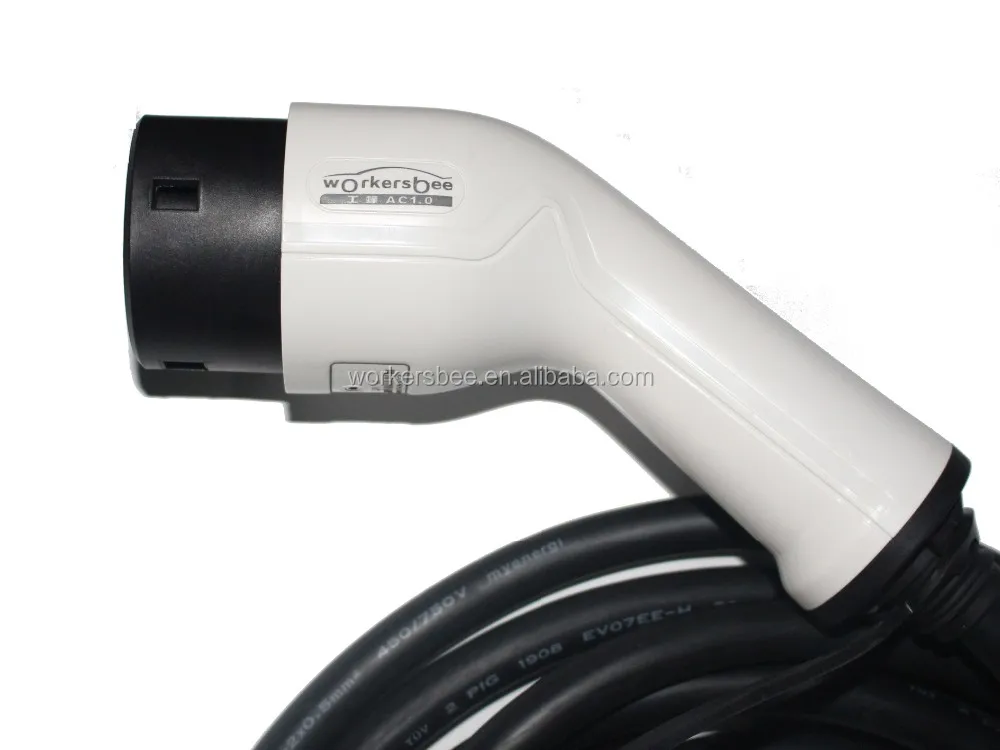

		White Casing	√	√	√

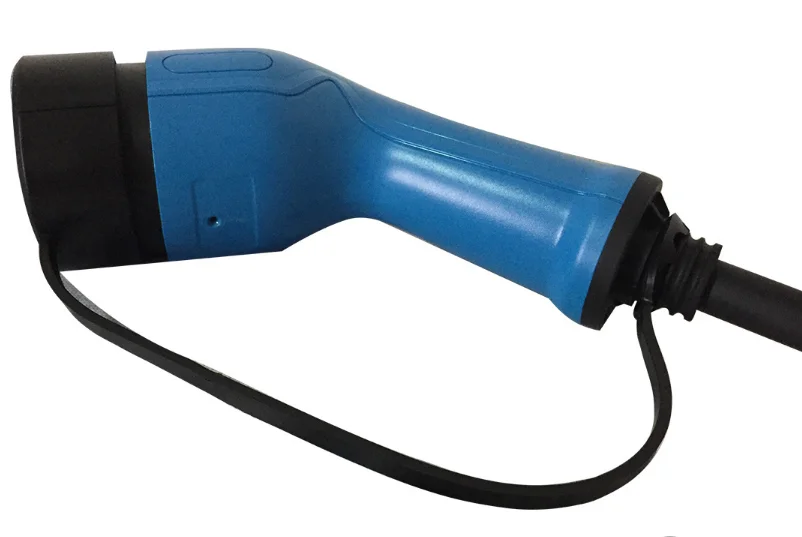

		Blue Casing (Customized)	√	√	√
		Black Cable	√	√	√
		Orange Cable (Customized)	√	√	√
		Black IC-CPD			√
■IC-CPD Function	Leakage Protection(Restart Recover)				√
	Overvoltage Under-voltage Protection(Self-checking Recover)				√
	Overload Protection(Self-checking Recover)				√
	Lightning Protection				√
