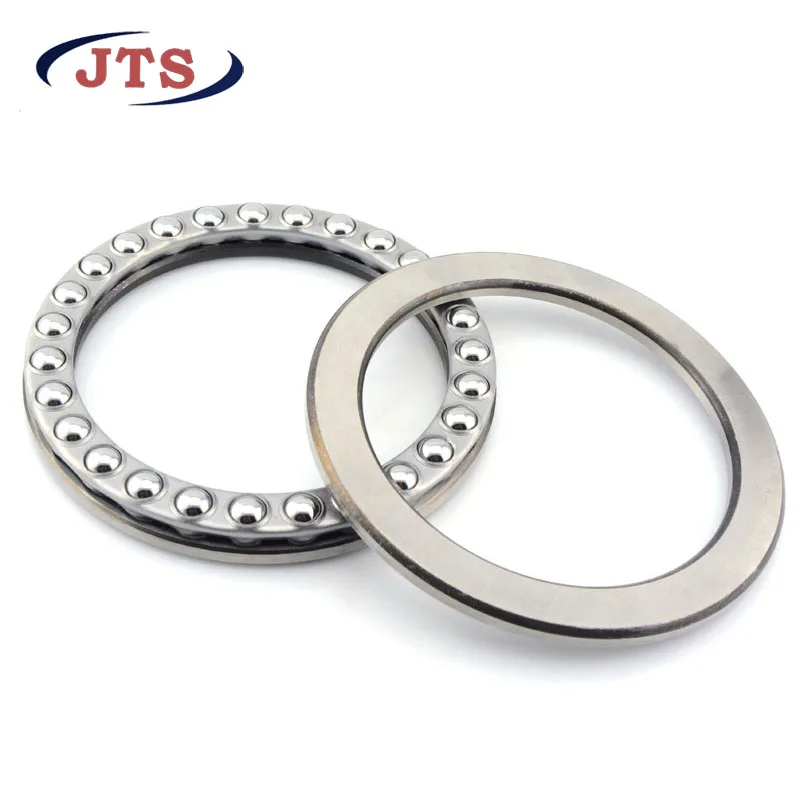

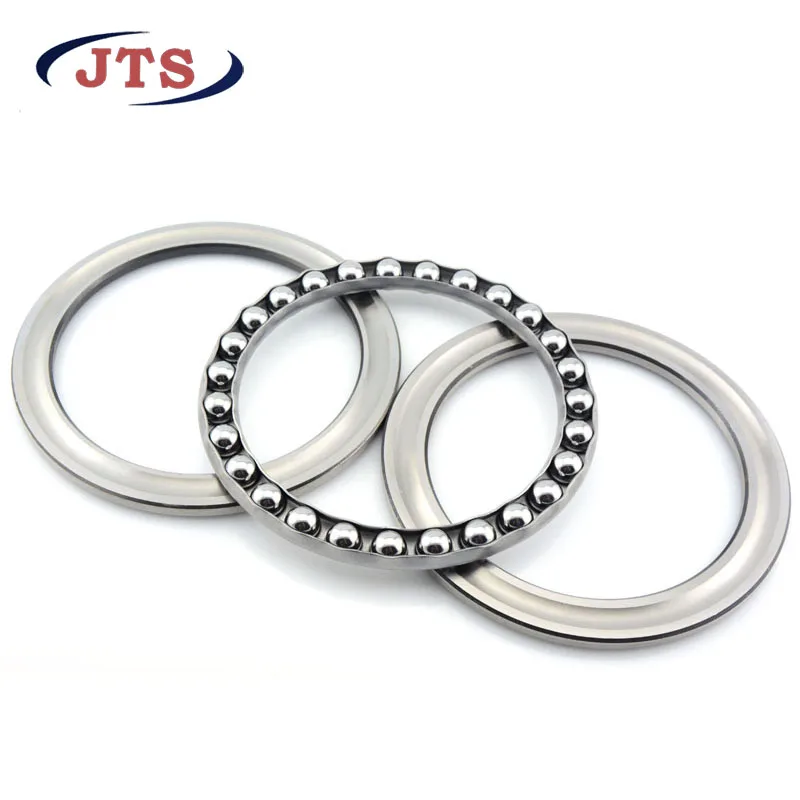

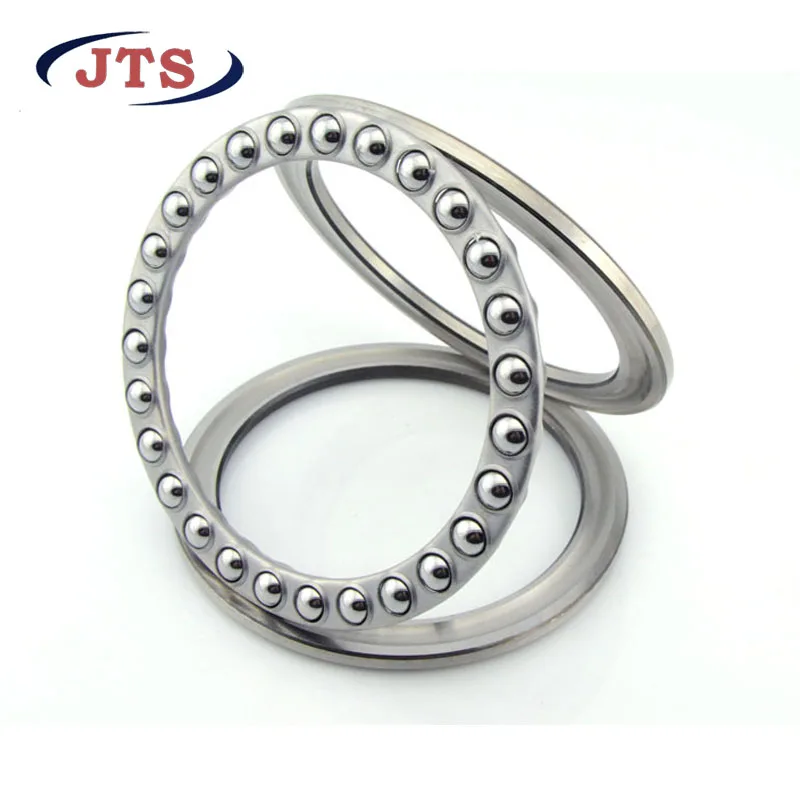

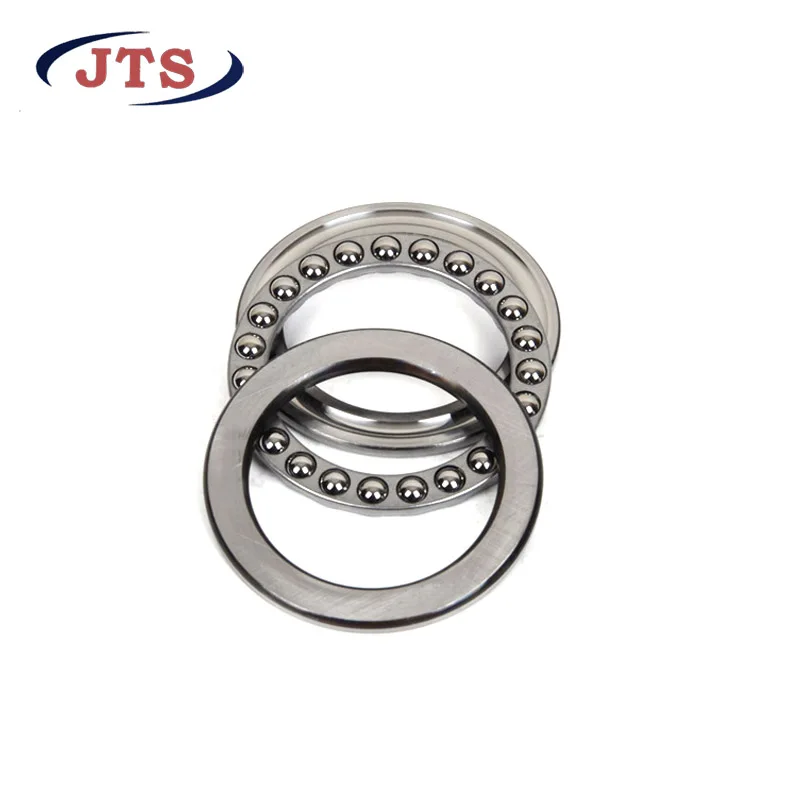

Factory price thrust ball bearing 51156 Size280*350*53mm

Product Overview

Description

51156  Thrust ball bearing

Brand	JTS or OEM
Company Type	Manufacturer and Trader
Material	Chrome Steel GCR15
Certificate	ISO9001:2015
MOQ	1PCS
Package	Tube or Single Box



Thrust ball bearing

Thrust ball bearings, composed of ball bearings supported in a ring, can be used in low thrust applications where there is little axial load.

Thrust ball bearings are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.

Thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.



Features of Thrust ball bearings



Available in two designs: single direction and double direction.

Designs are available with spherical aligning seats or aligning seat washers.

High quality steel-ultra clean steel to extend bearing life by up to 80%.

High Grade Balls - Quiet and smooth operation even at high speed.

Optional seating rings take initial misalignment.



Application of Thrust ball bearings

Thrust ball bearings applie to withstand the side of the axial load, lower speed parts , such as crane hooks , vertical pumps, vertical centrifuge , jack, speed reducer and so on . Shaft bearing ring , seat ring and rolling elements are separated , you can dismantle respectively .



Present code	Original code	Weight (kg)	Boundary Dimensions(mm)
			d x D x T
51100	8100	0.019	10x24x9
51101	8101	0.021	12x26x9
51102	8102	0.024	15x28x9
51103	8103	0.025	17x30x9
51104	8104	0.038	20x35x10
51105	8105	0.056	25x42x11
51106	8106	0.06	30x47x11
51107	8107	0.066	35x52x12
51108	8108	0.12	40x60x13
51109	8109	0.15	45x65x14
51110	8110	0.16	50x70x14
51111	8111	0.24	55x78x16
51112	8112	0.29	60x85x17
51113	8113	0.324	65x90x18
51114	8114	0.36	70x95x18
51115	8115	0.392	75x100x19
51116	8116	0.404	80x105x19
51117	8117	0.46	85x110x19
51118	8118	0.64	90x120x22
51120	8120	1	100x135x25
