200w industrial HV led high bay light aluminum no driver lamp

Product Overview

Description

200w industrial HV led high bay light aluminum no driver lamp



Induction LED high bay light
Using high power Bridge lux chip LED
High quality aluminum body
Patented cooling body design

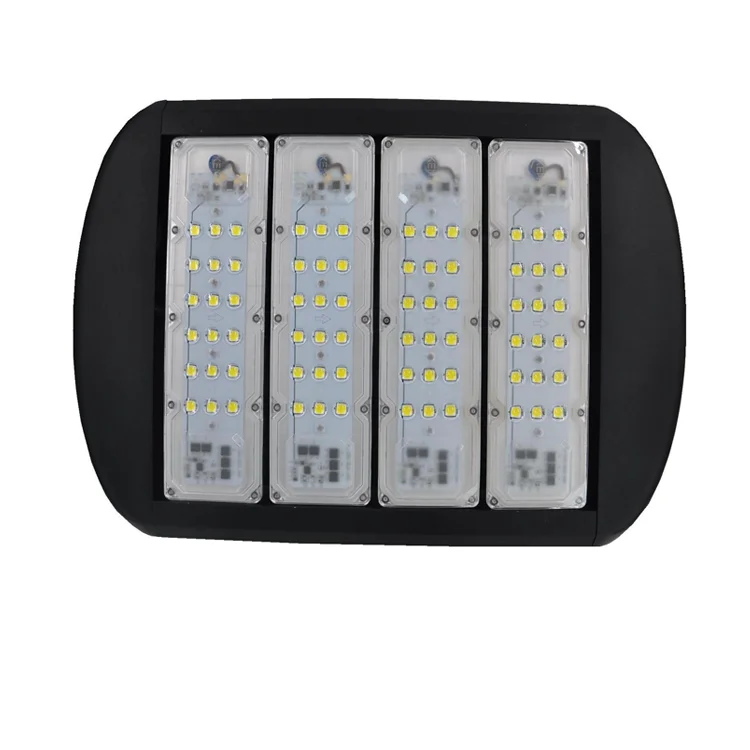

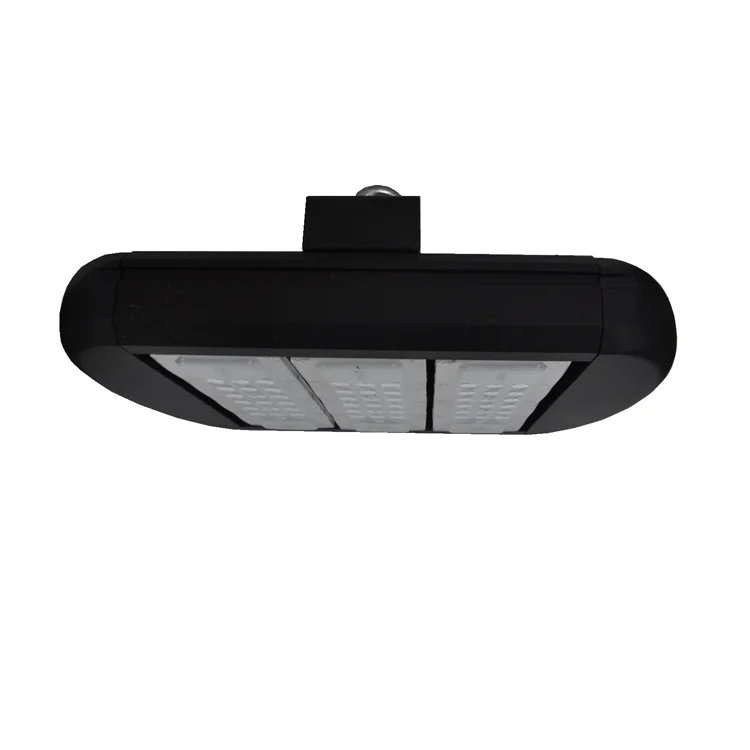

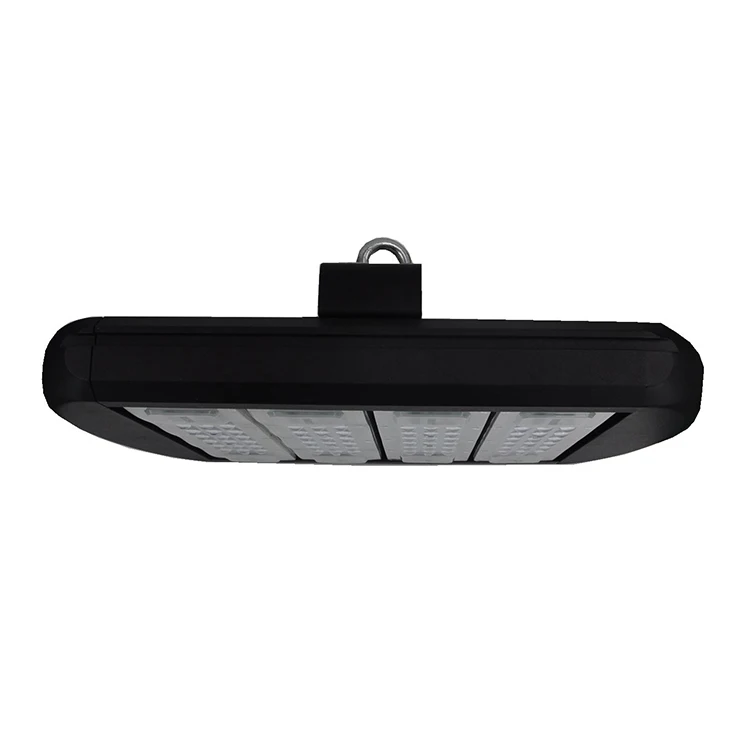

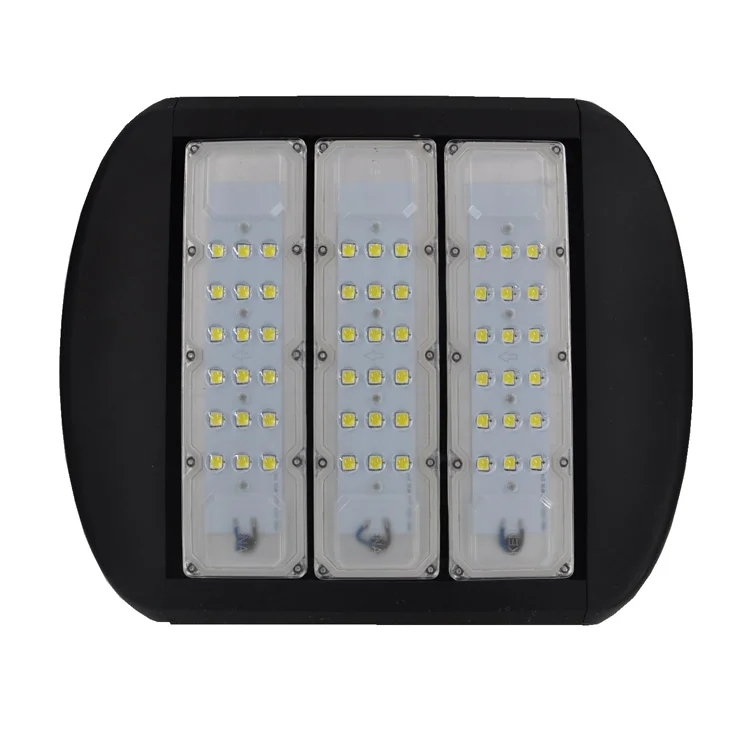

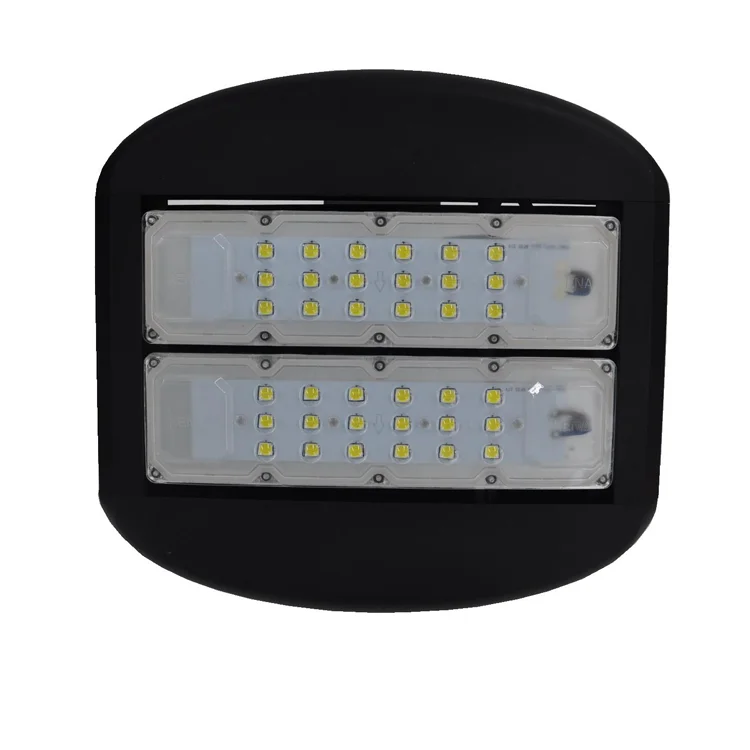

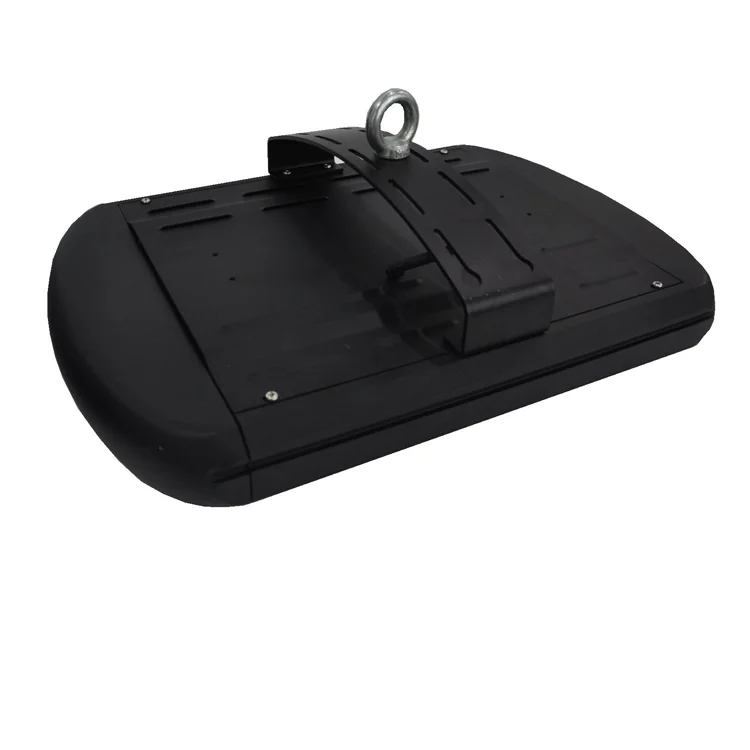

Product Picture:

Description:

LED lamps using single 5050 led lamp bead light source , high thermal conductivity aluminum lamp shell and radiating body, High light transmittance lens. Compared with the traditional street light, it has lots of unique features, such as more, energy-saving, more security and environmental, long lifespan, quicker response and higher CRI. It will be the best to replace traditional high pressure street light, besides, it’s also the best choice to light square, school personal garden and so on.



Main Technical Parameters:



Input Voltage				220-240VAC
Freqency Range				47Hz~63Hz
Total Harmonic Distortion				≤ 9 %
Power Factor				>0.98
Power Efficiency				>90 %
LED Working Voltage				DC45±1.0V
LED				5050(18PCSX4)
Led Consumption				190W
System Consumption				200±2W
Led Luminous Efficiency				>120Lm /W
lamp’s Luminous Efficiency				≥100Lm /W
Average Illuminance	2			26LUX
	3			11.5LUX
	4			6.5LUX
Illuminance Uniformity				>0.6
Color Rendering Index				Ra>70
Junction Temperature				≤80°C
Working Temperature				-30°C ~ +55°C
Storage Temperature				-25°C ~ +65°C
IP Grade				IP65
Working Life-span				50000H
The color of the lamp shell			Silver white/black
certificate			CE&ROHS



Features
By highlighting the patch package LED light source 5050, compared with the traditional equal brightness floodlight energy-saving more than 65%
The radiator and lamp shell integration design, LED directly with shell closely connect with cooling, fully guarantee the LED life
The lamp adopts aluminum alloy die-casting molding, can effective heat dissipation, dustproof, waterproof level through the IP65 standard
No bad glare and stroboscopic, eliminating the common floodlights undesirable glare caused by the glare, visual fatigue and disturbance.
Activated without delay, power that is the normal brightness, without having to wait for a long time, the elimination of the traditional lights start process.
Green pollution-free,no lead, mercury or other elements of environmental pollution, no pollution to the environment.

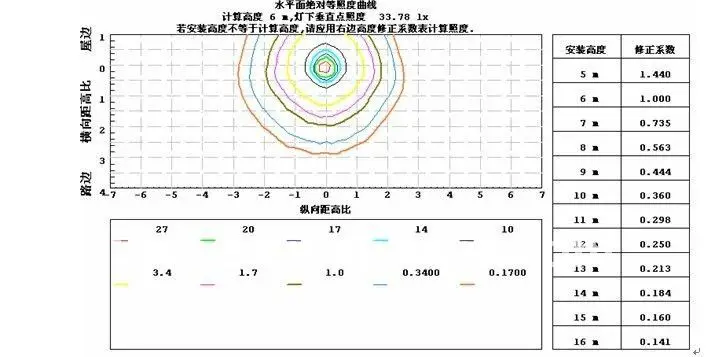

Light distribution curve :



Certificate:

Trade Terms:
1.Payment: T/T in advance,Western Union are welcomed.
2.Reseach and develop by ourselves with good mateirial.
3. Delivered in 5-15days
