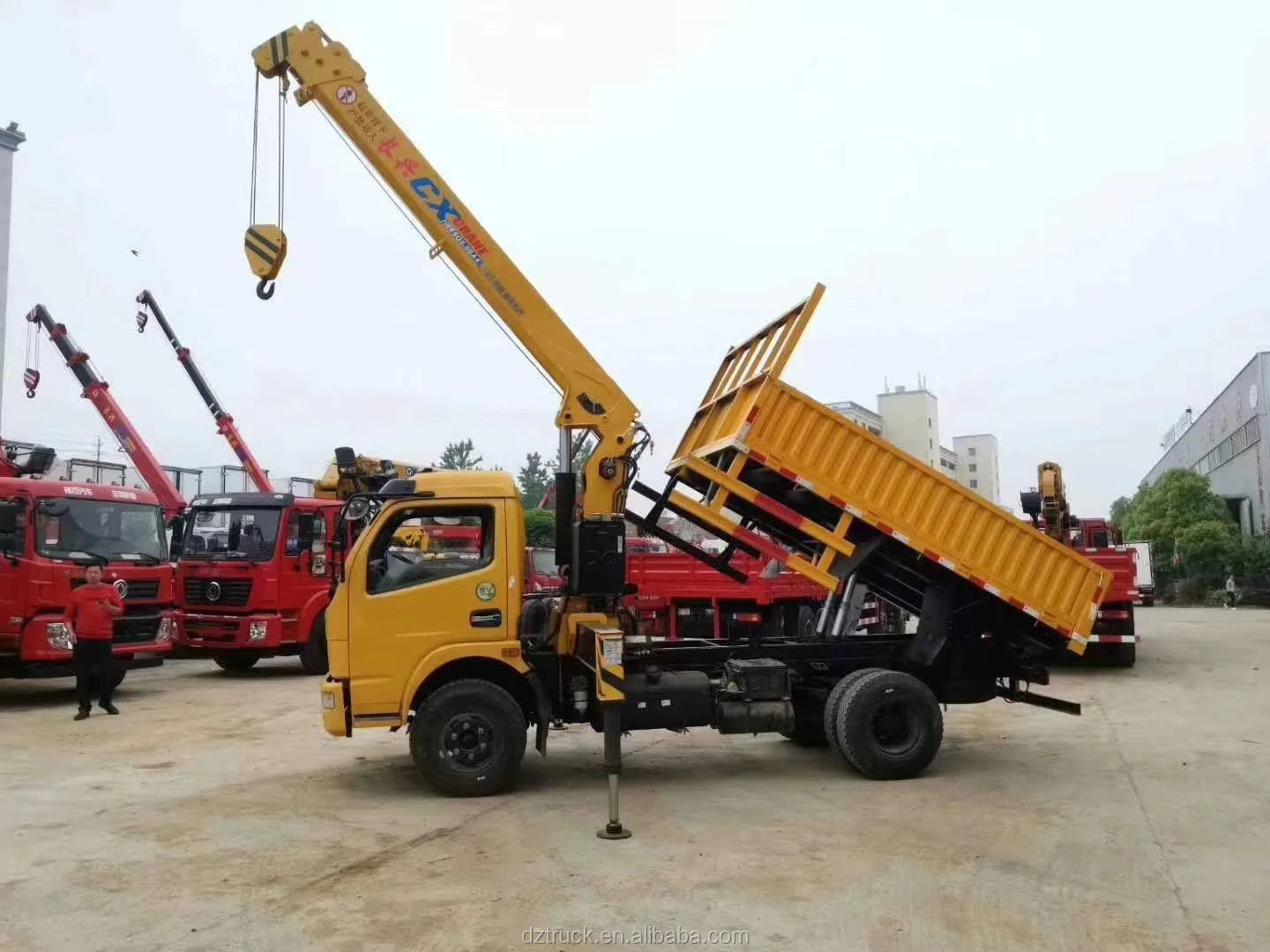

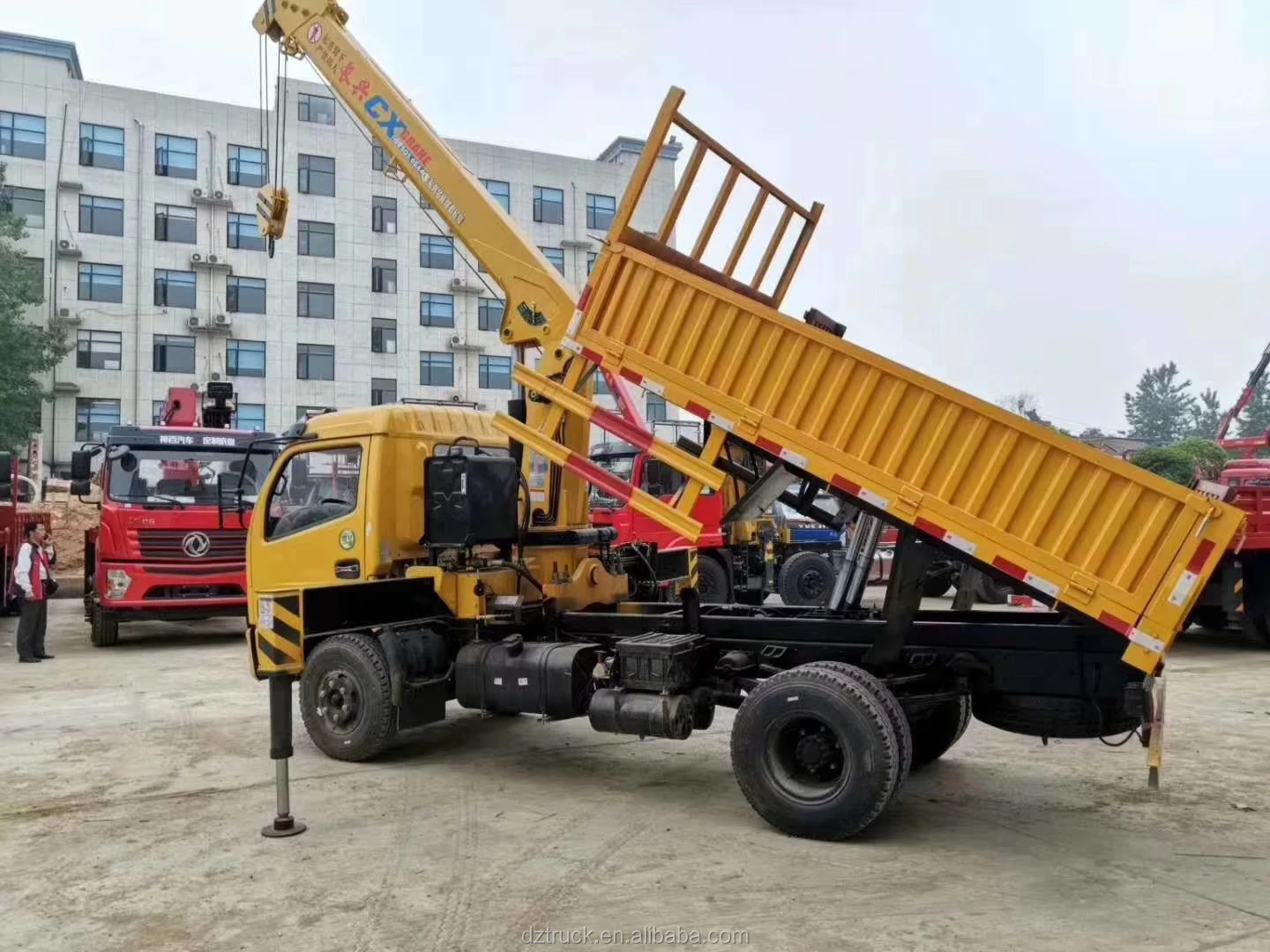

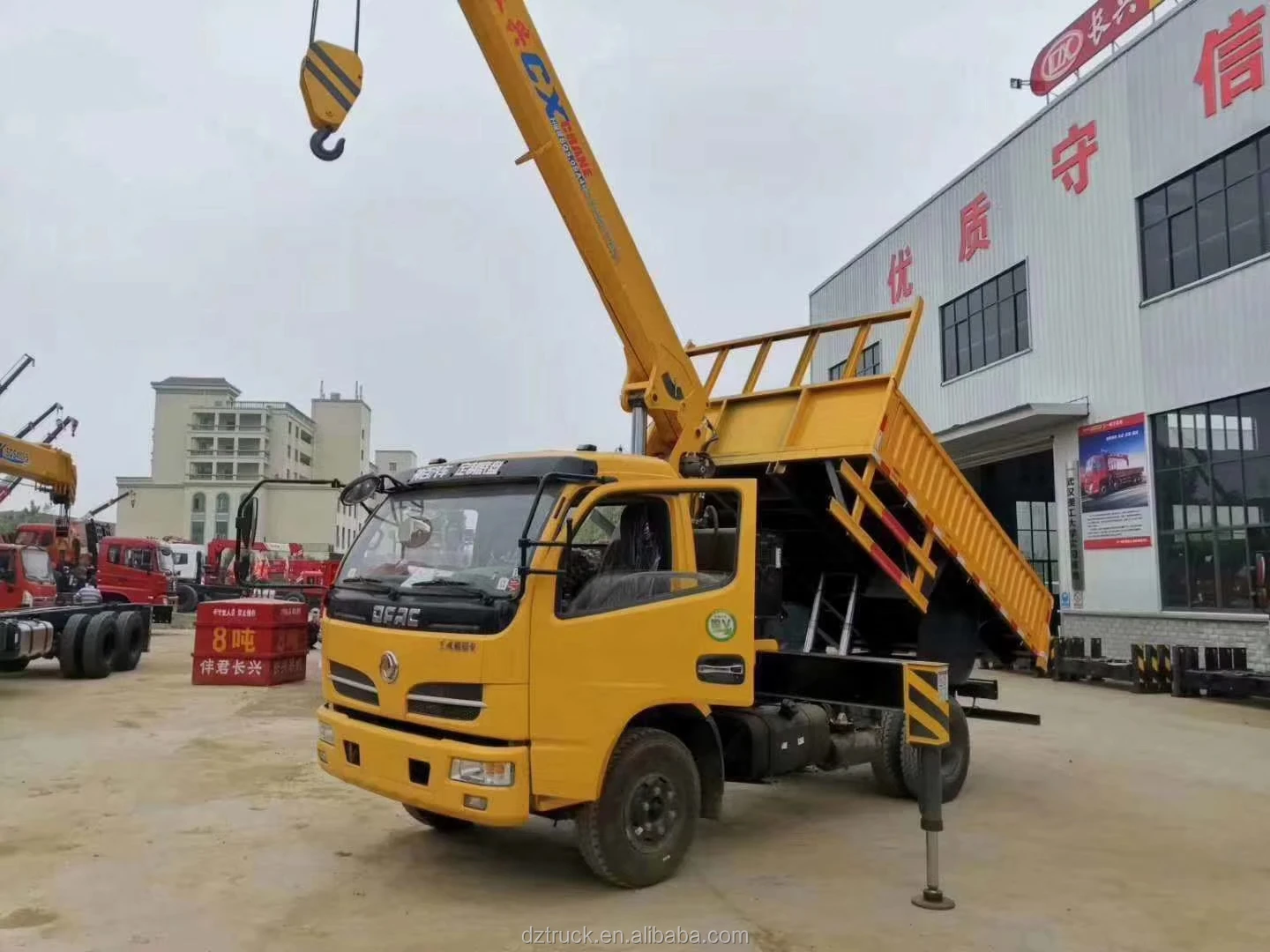

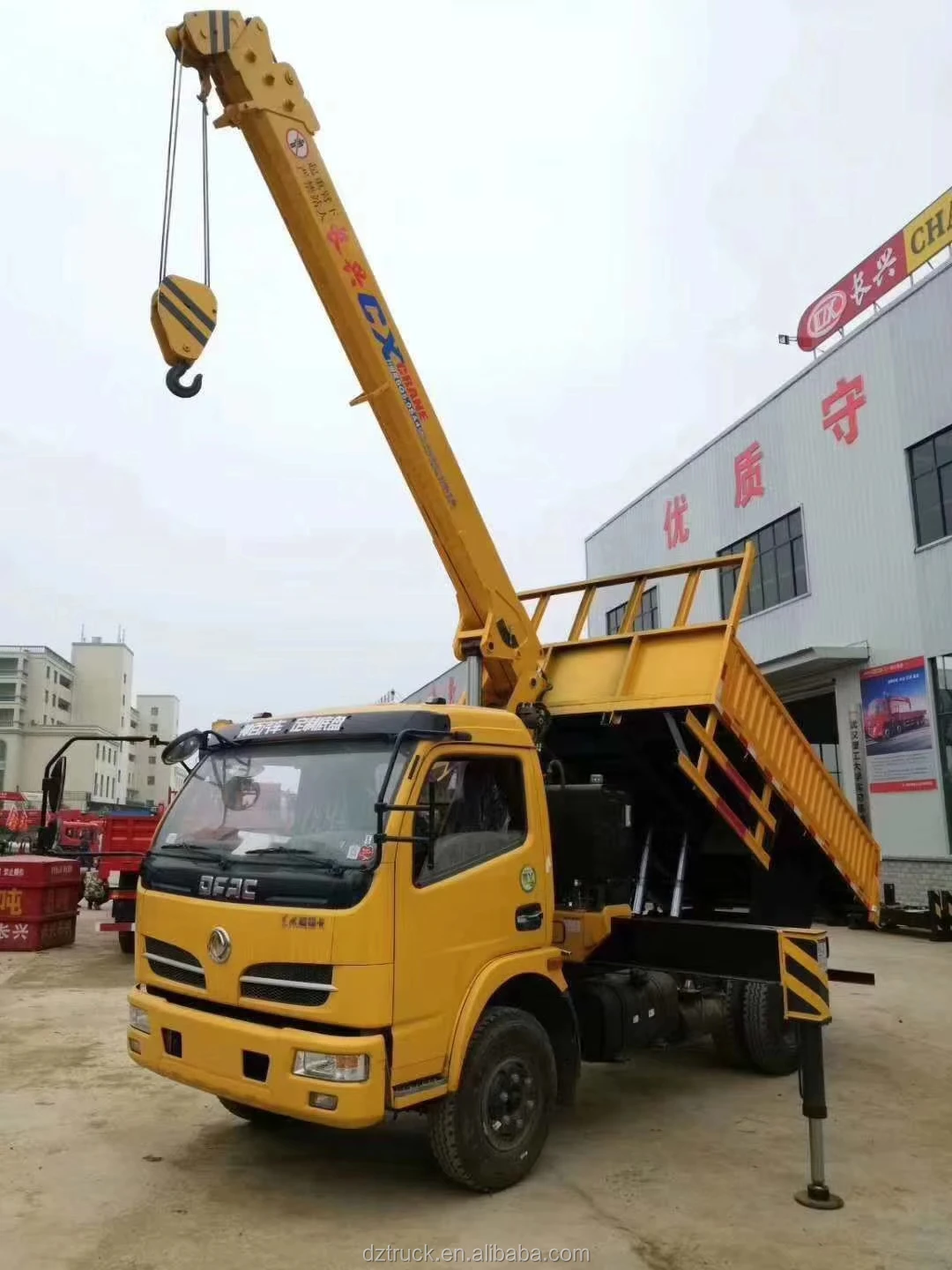

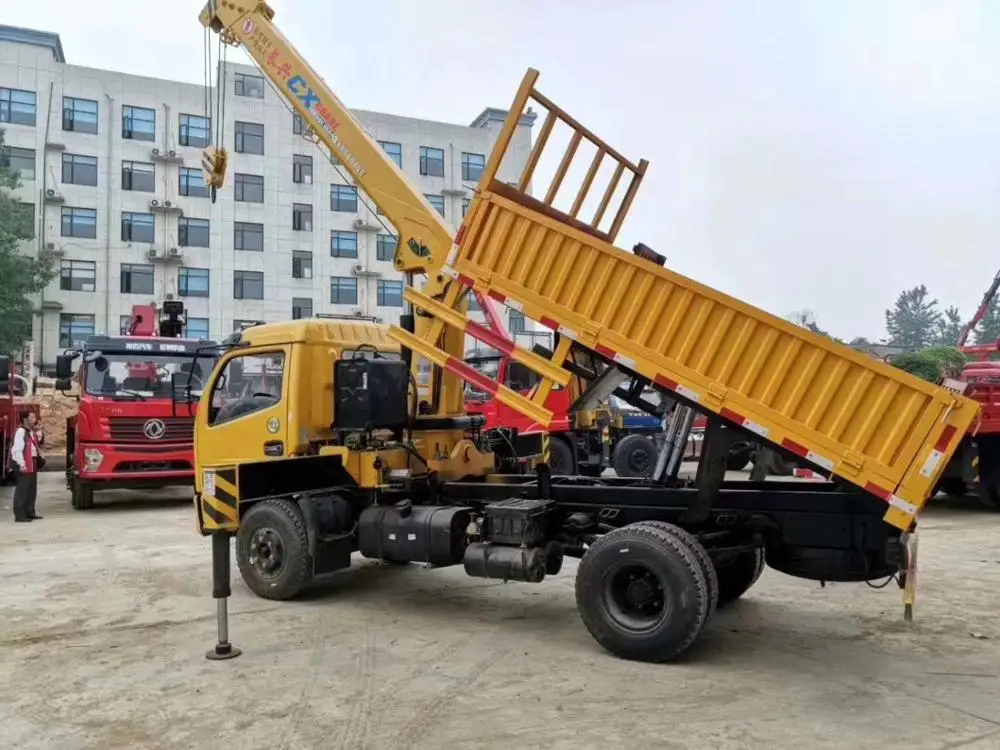

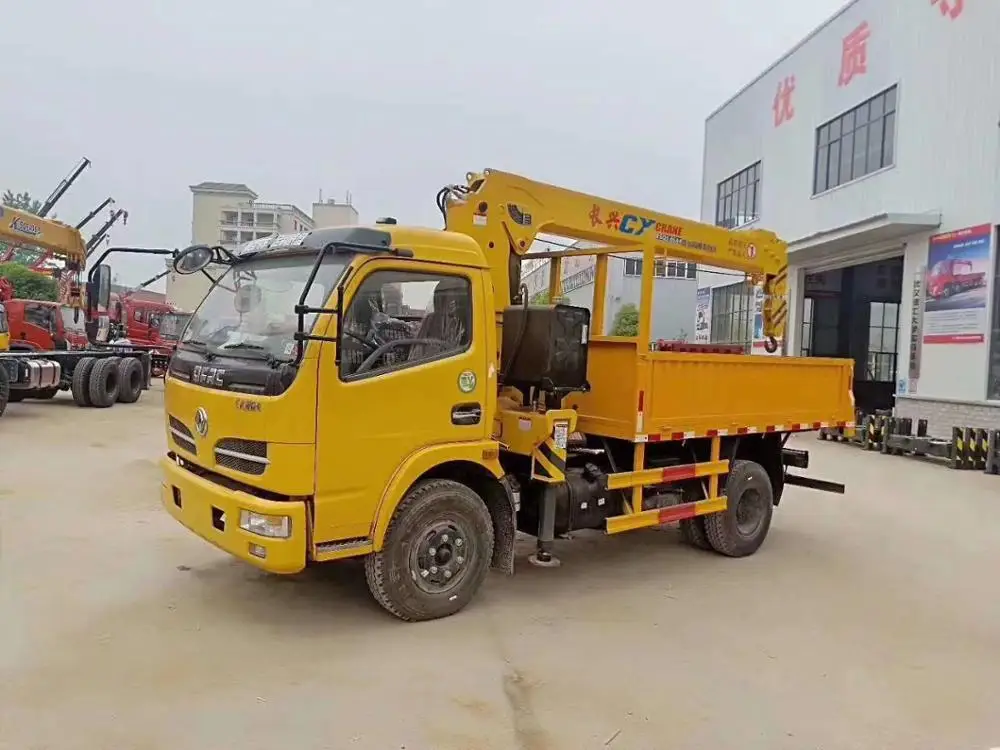

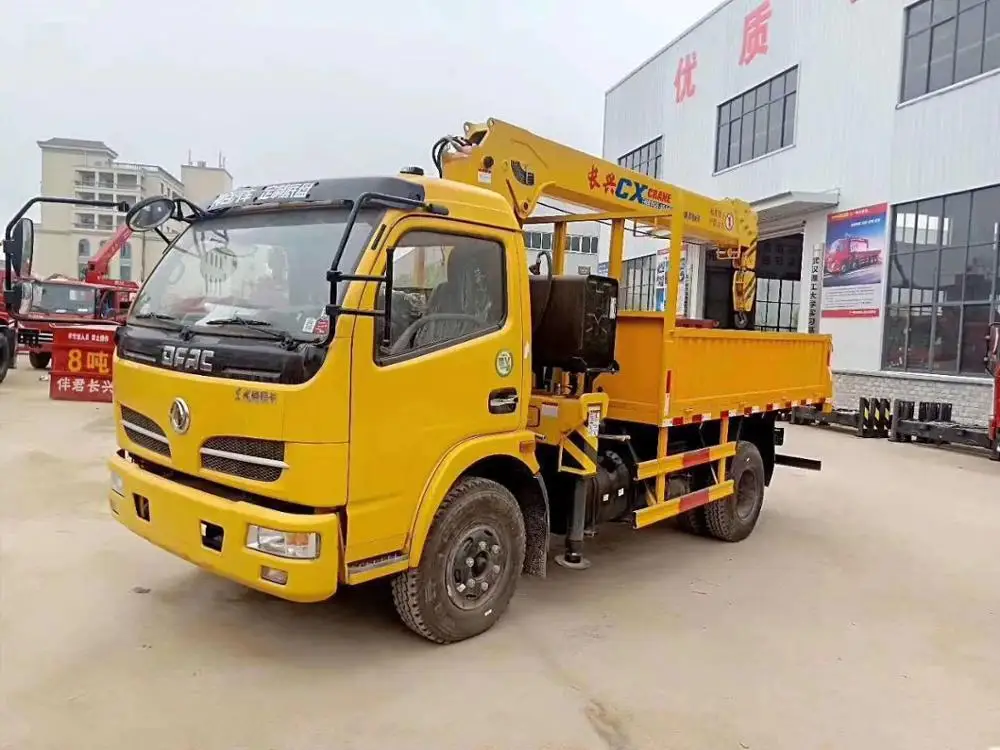

4 Ton Cargo Crane dump Truck for sale
- Category: >>>
- Supplier: Suizhou Dongzheng Special Automotive Co. Ltd.
Share on (62103454344):
Product Overview
Description

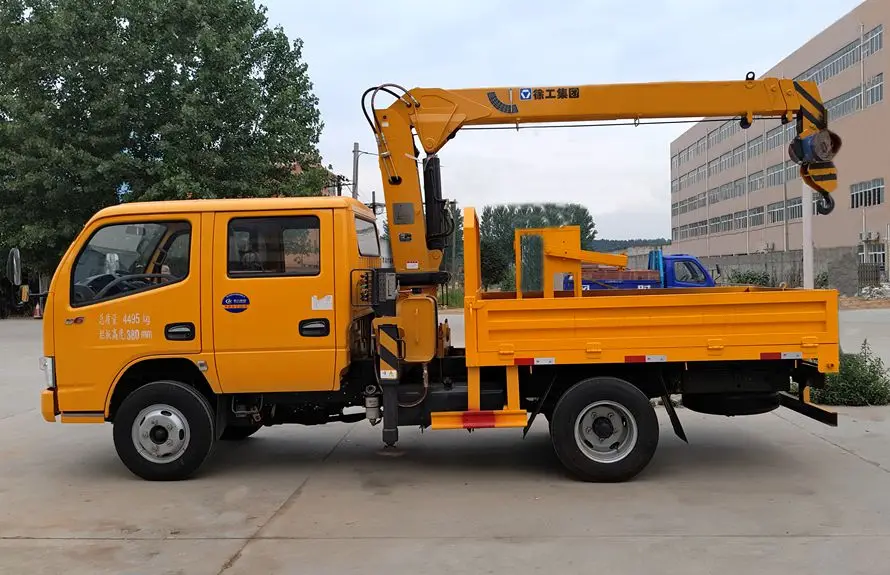

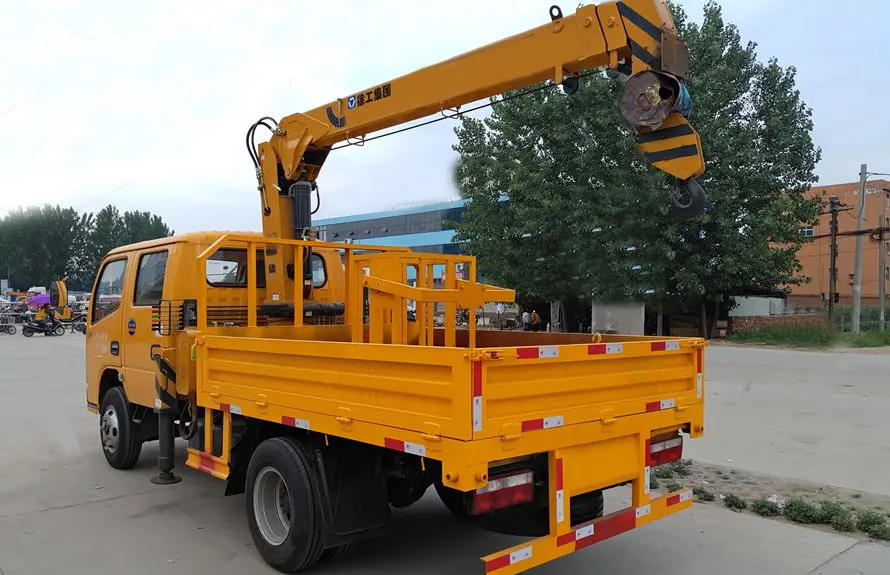

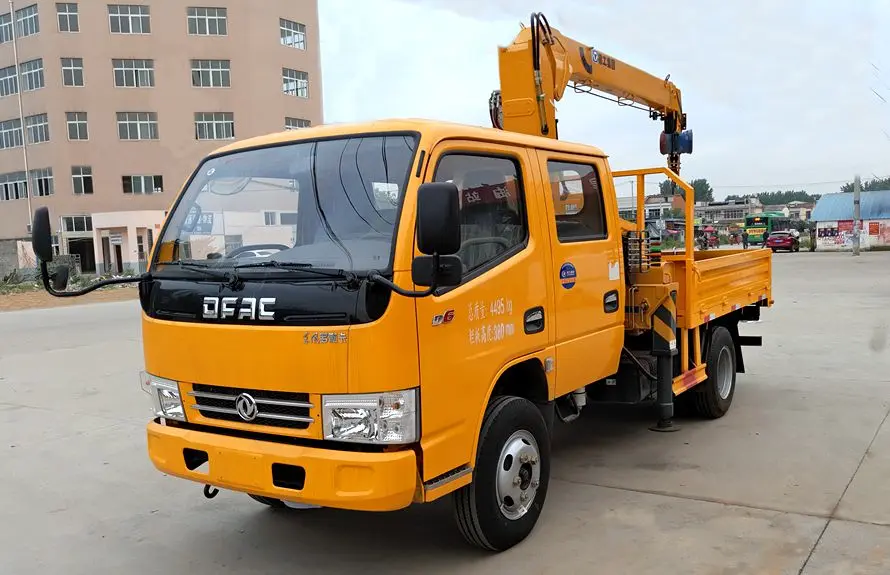

4 tons loading crane truck used in Sudan
we also manufacture kinds truck with crane, any enquiry of chassis or crane,please contact with us.
truck with crane is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.
Main specification | ||||||
Product model and name | SZD5083JSQ4 crane truck | Truck brand | Yandi(Our brand) | |||
Gross weight(Kg) | 8275 | Drive type | 4X2,LHD | |||
Curb weight(Kg) | 4850 | Overall dimension(mm) | 7000X2300X3150 | |||
Approach/departure angle(°) | 24/18 | Cargo body dimension | 4350X2050X550 | |||
Axle No. | 2 | Cab seats | 3 | |||
Axle load(Kg) | 3310/4695 | Front/rear hang(mm) | 1210/1990 | |||
Max speed(Km/h) | 99 | Wheelbase(mm) | 3800 | |||
Chassis specification | ||||||
Chassis model | EQ1070TJ9AD3 | Manufacturer | Dongfeng Motor Co., Ltd | |||
Brand name | Dongfeng | Dimension(mm) | 6815×2080×2440 | |||
Tyre specification | 7.50-16 | Tire No. | 6+1(One spare tire) | |||
Steel spring number | 8/10+7 | Front track base(mm) | 1770 | |||
Fuel type | Diesel | Rear track base(mm) | 1586 | |||
Emission standard | Euro III | Transmission | 5 forward gear | |||
Cab | Single row,3 persons allowed, with power steering, choose to fix A/C | |||||
Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | |||
CY4102-C3F | Dongfeng Chaoyang Engine Co.,Ltd | 3856 | 88(120HP) | |||
Crane specification | ||||||
Crane model | SQ3.2SK1Q (Straight crane) | Crane brand | XCMG | |||
Max Lifting Capacity | 3200kgs | Crane Weight | 4850kgs | |||
Max lifting height | 6.8m | Rotation Angle | 360 all rotation | |||
Working radius | 5.5m | Choose to fix | A/C, power steering | |||
Main feature | ||||||
1,Choose to fix straight crane or folding crane. 2, crane can install at the rear or middle part of the truck. 4,Truck Cargo length: 3m-13m. 5,Crane Brand optional: XCMG, ZOOMLION, SMJ, SANY or others. 6,Choose to fix rear landing legs, heavy duty crane choose to fix double combined pump. 7,Crane landing legs forms: the H-leg, each leg can be adjusted individually in order to adjust the frame level, outrigger span, good machine stability. 8, Crane Operation form: can operate at left and right side, rotation angle: ± 360 ° continuous rotation, hand throttle control the rotation speed and lifting speed. | ||||||
Q&A
1)Delivery time
Depend on the type of truck and the QTY and the shipping date,usually the truck can be ok on 10-20 working days.
2) Terms of payment
30% T/T deposit of contract amount before the production. After the completed trucks are checked and confirmed well by our clients, the balance shall be paid before the shipment.
3) After-sales warranty
We provide one year or 25000KM warranty period under your correct driving and using after customers' purchasing and we can supply spare parts of the trucks for the whole life.
If you have any interest and need more information,pls feel free to let me know or give me an inquiry. We will give you better service as soon as possible.
Contact information:
Email:dztruck
hotmail.com
Cell:0086-18008663670
Add:Xingguang Industrial Park,Zengdu District,Suizhou City,Hubei Province,China.
Welcome customers from all over the world to vist our factory.Thank you!
