Universal Drilling Milling Machine With Spindle Auto Feed

Product Overview

Description

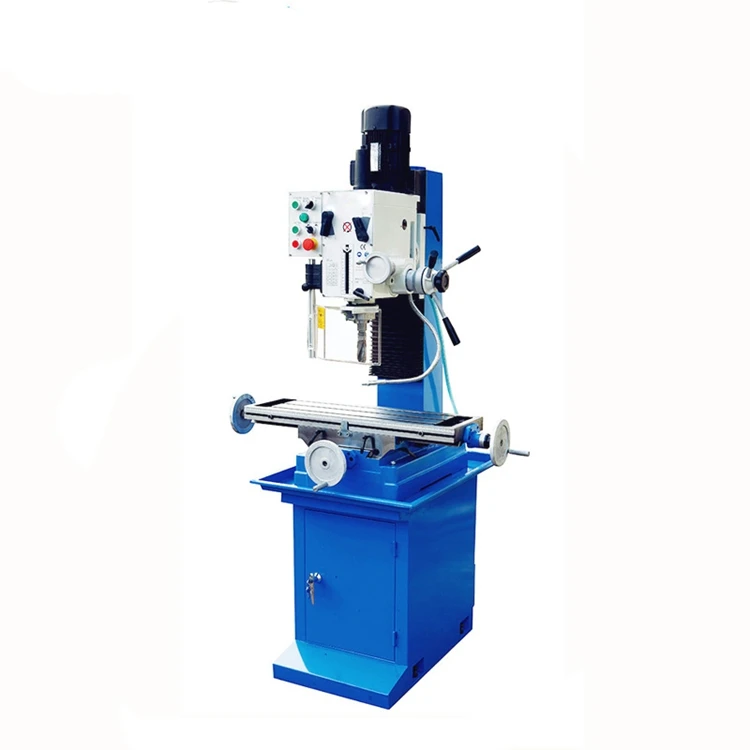

810302 Universal Drilling Milling Machine

1. Packaging & Delivery :

l 1Pc/Plywood Case

l Nw:325KG  Gw:350KG

l Master Carton Size:85x76x115cm

l 20Ft Container: 36Pcs

l Delivery Detail:30days

2. Product Description:

2.1. Specifications:

Model	810302
Max.drilling capacity(Iron/Steel)	φ45/φ32mm
Max.drilling capacity(Face milling)	φ80
Max.drilling capacity(End milling)	φ32
Working table size	800 x 240 mm
Working table cross/longitudinal travel	190 mm/560 mm
Spindle taper	MT4, R8
Spindle travel	120 mm
Spindle speed	75, 170, 280, 540, 960, 1600rpm
Max.distance spindle to table	460 mm
Head tilt left/right	+/- 45°
Power and speed of motor	1.5 KW  1450 rpm

2.2 Featuring

• Milling drilling, tapping, boring, reaming

• The head can swivels

• Optional Auto-feed

• Heavy-duty tapered roller bearing spindle

• Spindle can be locked, headstock power down feed

• Adjustable gibs on table

• Adjustable Stops on table

• Geared drie headstock

• Accurate position, good rigidity, big cutting power



3.Product Show



2.Related Products:

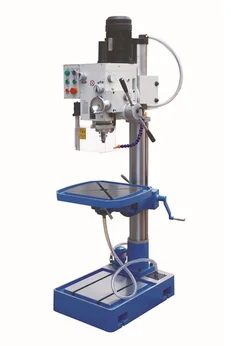

           810401 Automatic Feed Metal All Gear Stand Radial Drilling Machine

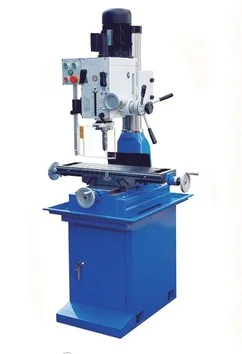

         810301 Gear Desktop Drilling Cum Milling Machine

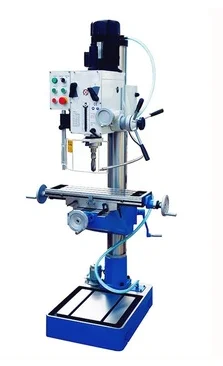

           810301A  Geared Head Vertical Drilling And Milling
