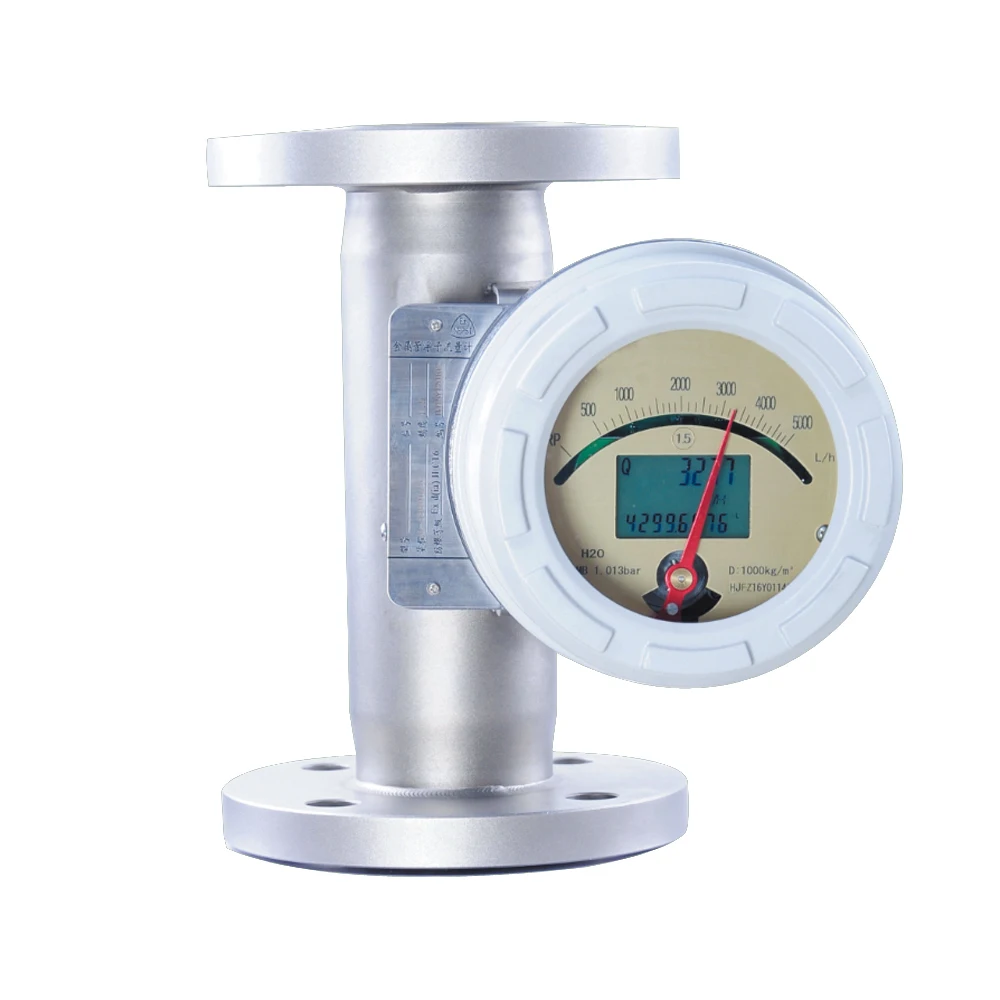

Mechanical indicator Local display metal tube float rotameters flow meters

Product Overview

Description

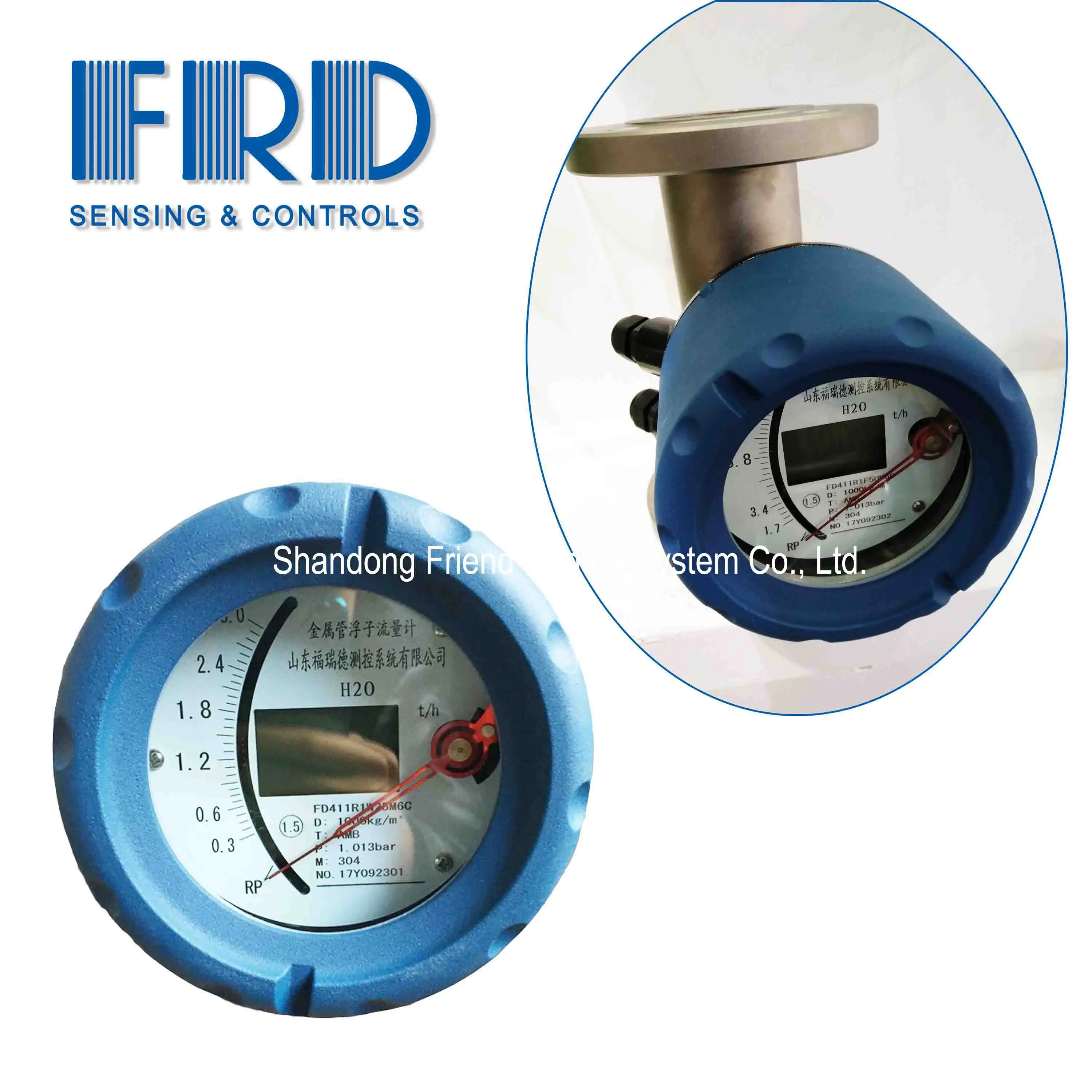

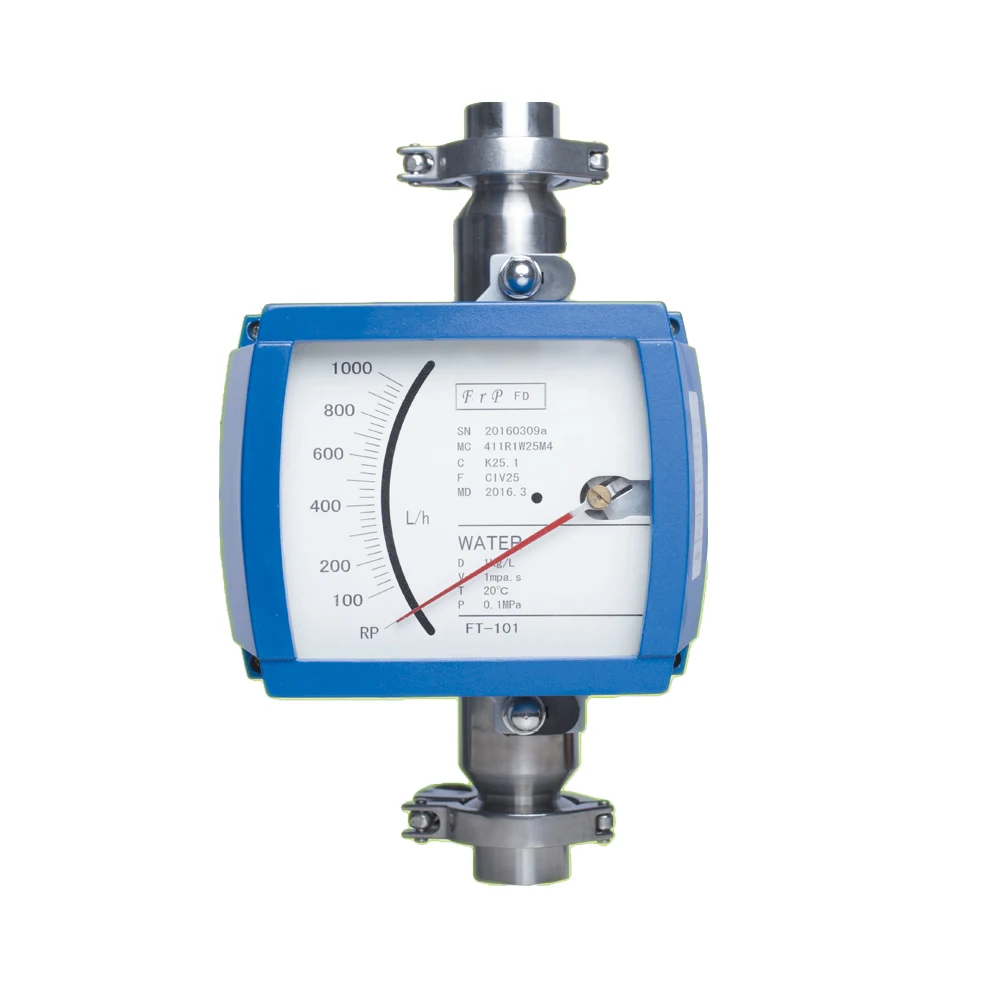

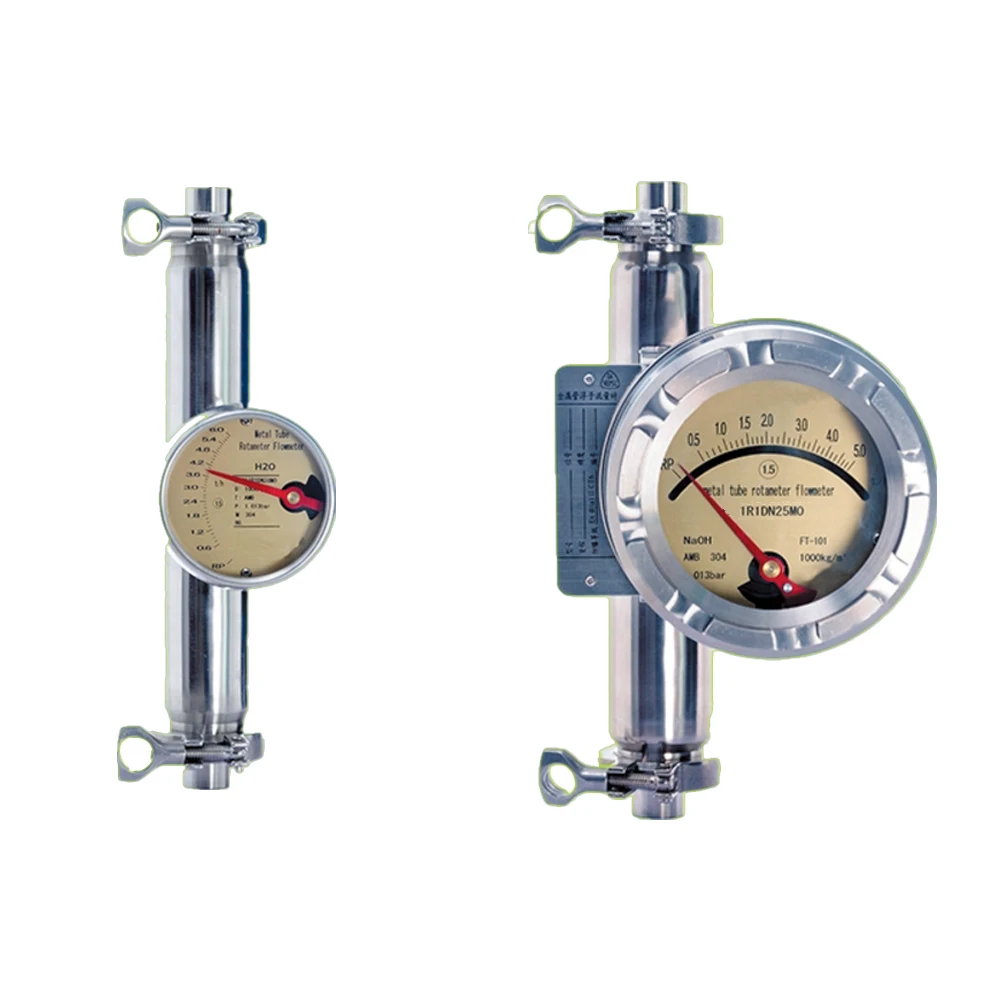

   FDLM Intelligent Mental Tube Rotameter Flowmeter



Flowmeter Type



The metal tube ratometer flowmeter is a kind of variable area flow quantity measuring instrument. It has such features as small volume, large detection range and convenient operation. It is especially suitable to measure flow quantity of media with small flow velocity and small flow quantity.Intelligentized metal tube rotameters have field indication type and intelligentized remote transmission type. So it provides the customers with very wide selection spaces. In addition, advanced 16 bits micro processor and high quality industrialized components are adopted in the instrument, which ensures excellent performances of the flowmeter in various kinds of application situations.



Product Features

• Small volume, large flow range, convenient operation


• Select the mode of measurement by the different require of the consumer


• Indicator of the intelligent flowmeter which have intellectual Property


• Suitable to measurement of flow quantity of low velocity and small diameter media


• Reliable operation, small maintenance work loads and long life low straight pipe condition required and wide twrn-down10:1


• Double line large liquid crystal display, displaying instantaneous flow quantity and accumulated flow quantity simultaneously,can be equipped with back light


• Single axis sensitive indication and Driving by non contact magnetic coupling


• Whole metal structure, suitable for high temperature, high pressure and strongly corrosive media


• Can be used in flammable, explosive and dangerous situations


• Such power supply patterns as  two-wire system, battery and AC for selection


• Multi-parameter calibration function


• Having the function of data recovery,data backup and power failure protection

Advantages of our Intelligent Metal Tube Rotameter Flowmeter

1. Double indication system


2. Separation of magnetic coupling and magnetic signals


3. Double line liquid crystal digital display


4. Bore diameter of the measuring tube of the flowmeter is complete


5. Resistance to high temperature and high pressure


6. Good protection and explosion proofing performance

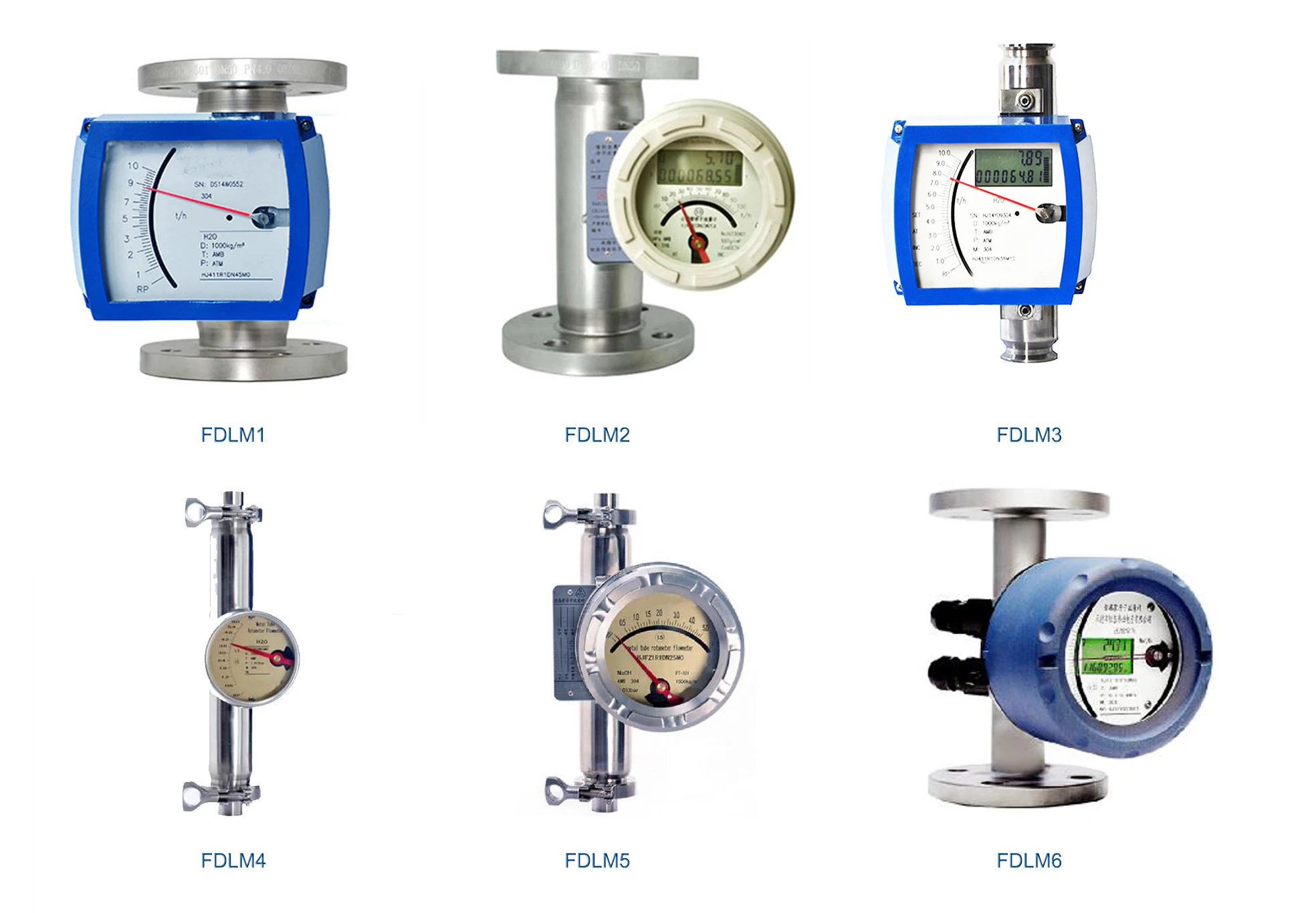

7. Full series of installation pattern


8. Various kinds of power supply patterns


9. Highly integrated circuit


10. Systematical software function and standard Hart communication pattern

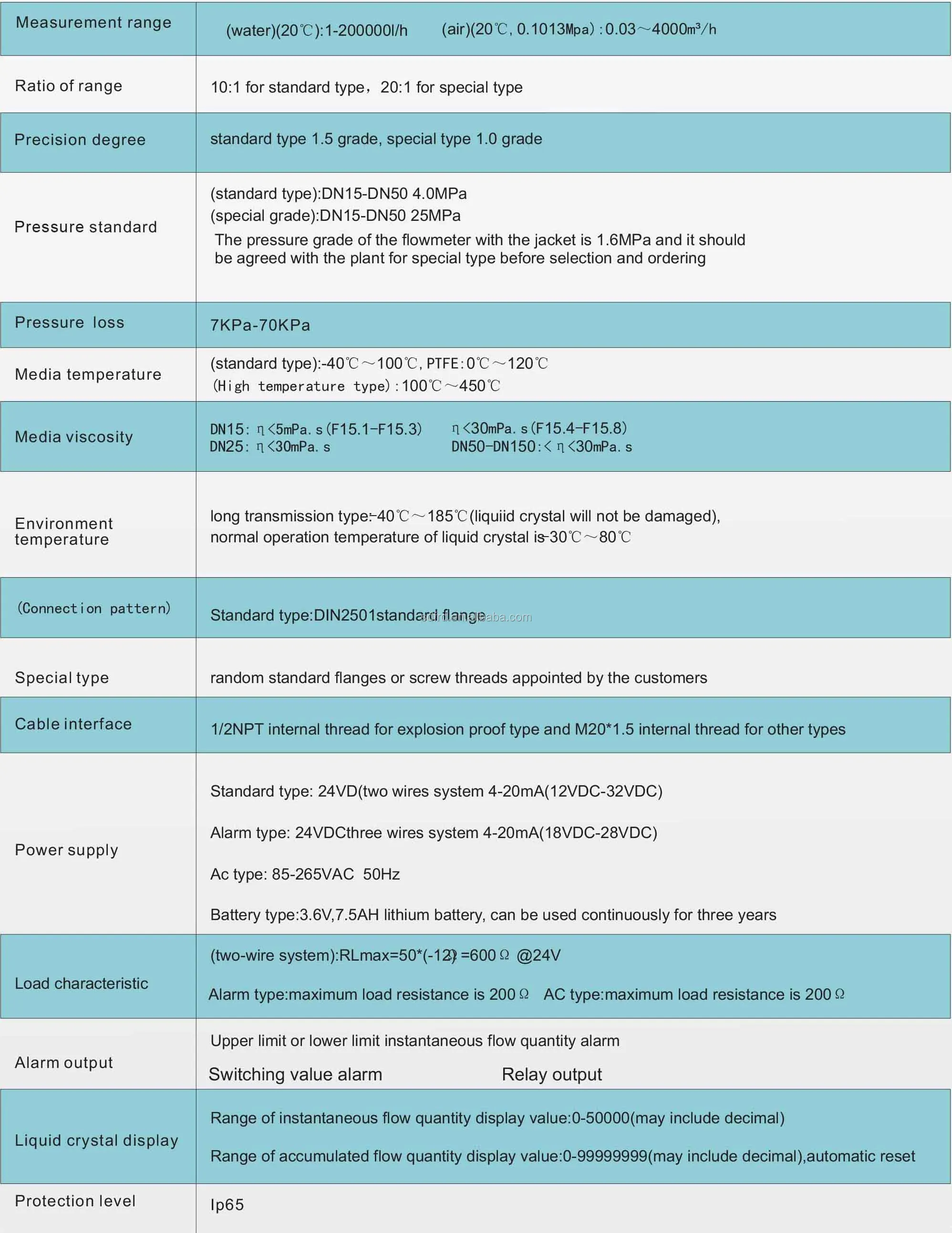

   Technical Parameters

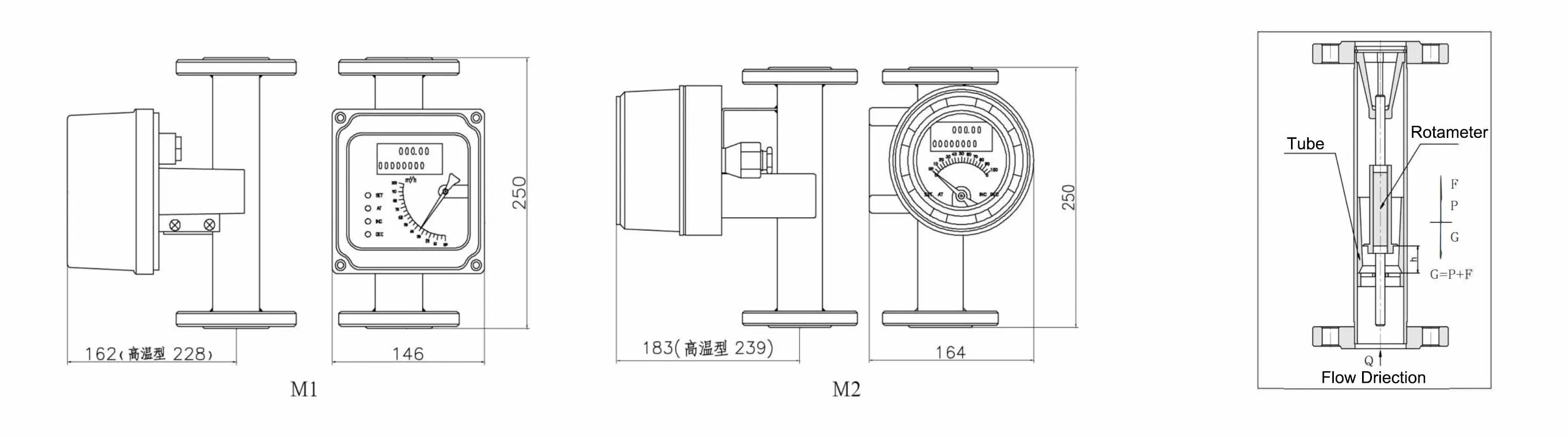

Specifications and Structural Composition



The series of metal tube rotameters flowmeter mainly consist of two parts: measuring tube and indicators. The measuring tube includes cone-shaped tube , guide apparatus, retainer and rotor. The indicator includes such components as magnetic servo system, pointer, scale plate and circuit. They are divided into field type and intelligent type.
For the field type,rotation is generated by coupling of servo magnetic steels in the field indicator and magnetic steel in the rotor. At the same time, it drives the pointer to indicate flow quantity through the scale plate.

   Application and  Installation
