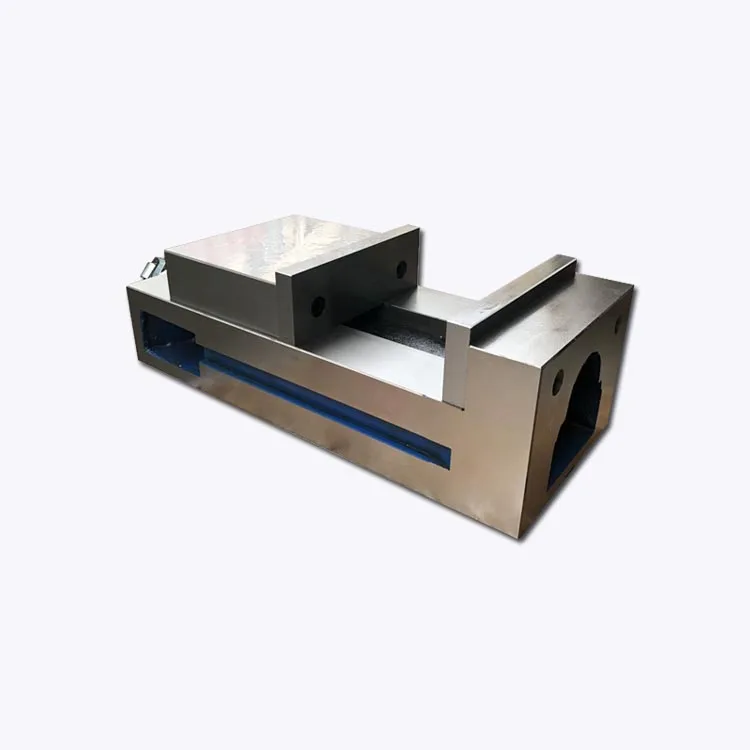

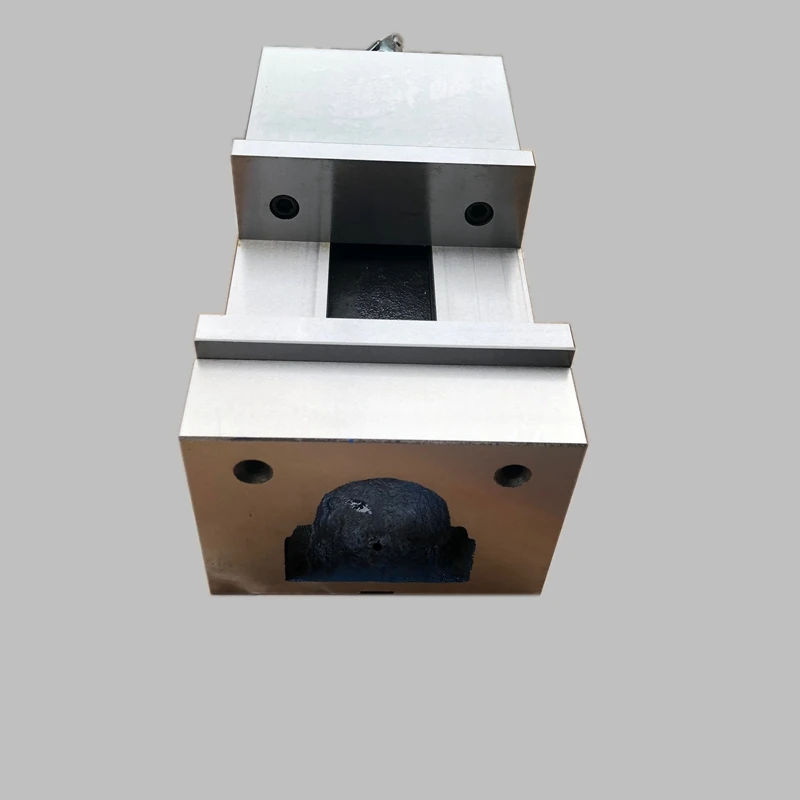

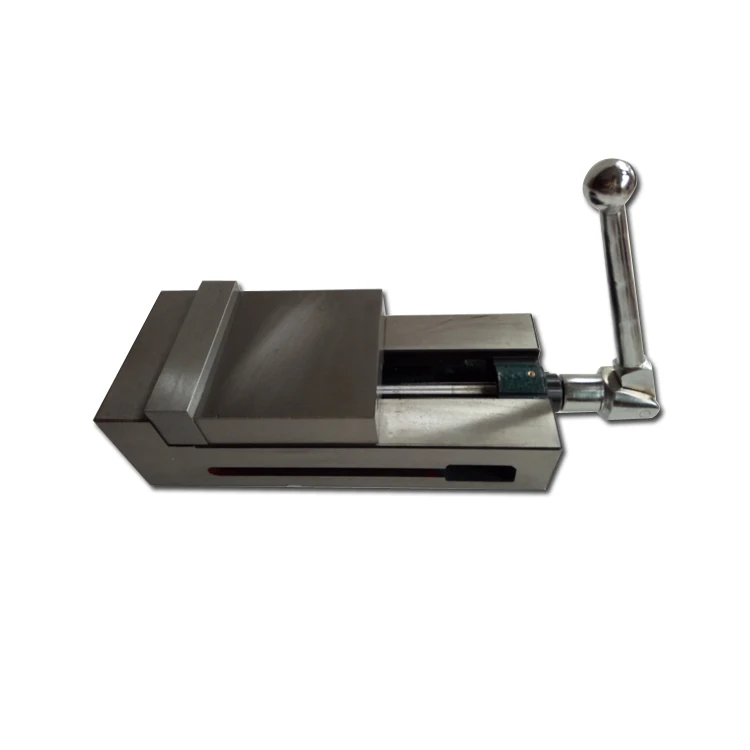

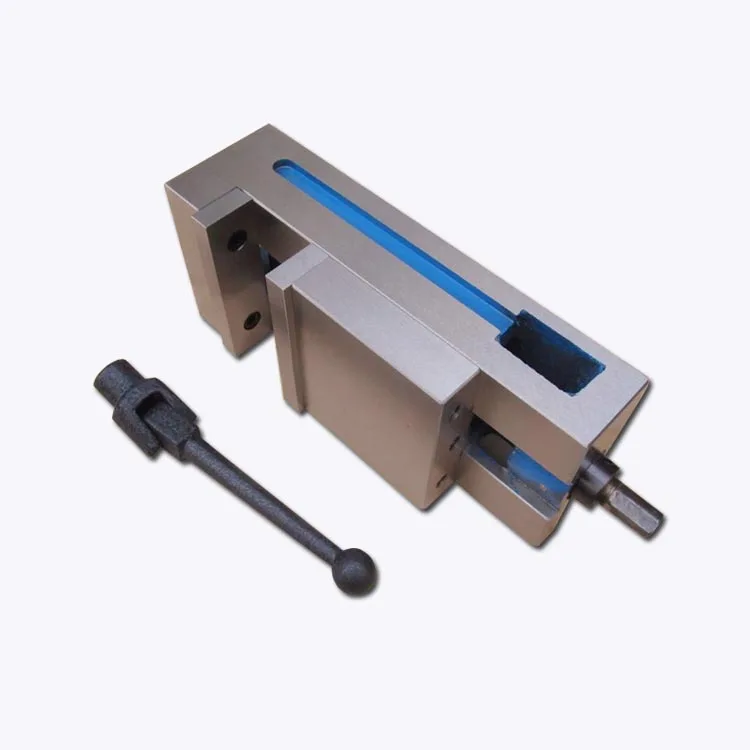

Precision smooth right angle vise for machine tools /Angle fixed precision vise
- Category: Vise >>>
- Supplier: Dongguan Weihe Machinery Equipment Co. Ltd.
Share on (62103670152):
Product Overview
Description
Product Description
Related introduction:
1. The side and end faces of the vise body are precision ground and can be placed sideways for clamping processing without affecting the accuracy.
2. The angle solid design allows you to lock the tiger's mouth naturally when holding the workpiece.
3. The body and the fixed tiger's mouth are integrated into one shape, and when the workpiece is clamped, the fixed tiger's mouth can be lowered backward.
4. Parallelism/verticality within 100mm/0.02mm.
1. The side and end faces of the vise body are precision ground and can be placed sideways for clamping processing without affecting the accuracy.
2. The angle solid design allows you to lock the tiger's mouth naturally when holding the workpiece.
3. The body and the fixed tiger's mouth are integrated into one shape, and when the workpiece is clamped, the fixed tiger's mouth can be lowered backward.
4. Parallelism/verticality within 100mm/0.02mm.
Precautions:
(1) When clamping the workpiece, it should be loose and appropriate. Only use the hand plate to tighten the handle, and do not use other tools to force.
(2) When working hard, try to force the force toward the fixed clamp.
(3) Do not tap on the movable jaw and smooth surface.
(4) The moving surfaces such as the screw and nut should be cleaned and lubricated frequently to prevent rust.
(1) When clamping the workpiece, it should be loose and appropriate. Only use the hand plate to tighten the handle, and do not use other tools to force.
(2) When working hard, try to force the force toward the fixed clamp.
(3) Do not tap on the movable jaw and smooth surface.
(4) The moving surfaces such as the screw and nut should be cleaned and lubricated frequently to prevent rust.
